ErgoMove 500 drive system set, sensor handle with force sensing, handle length 565 mm.

Estimated delivery: 36 days

ErgoMove 500 drive system set, sensor handle with force sensing, handle length 565 mm

• Supplied = pre-assembled, final assembly by customer
• Width = 85 mm
• Depth = 140 mm
• Height = 150 mm
• Colour = grey, black

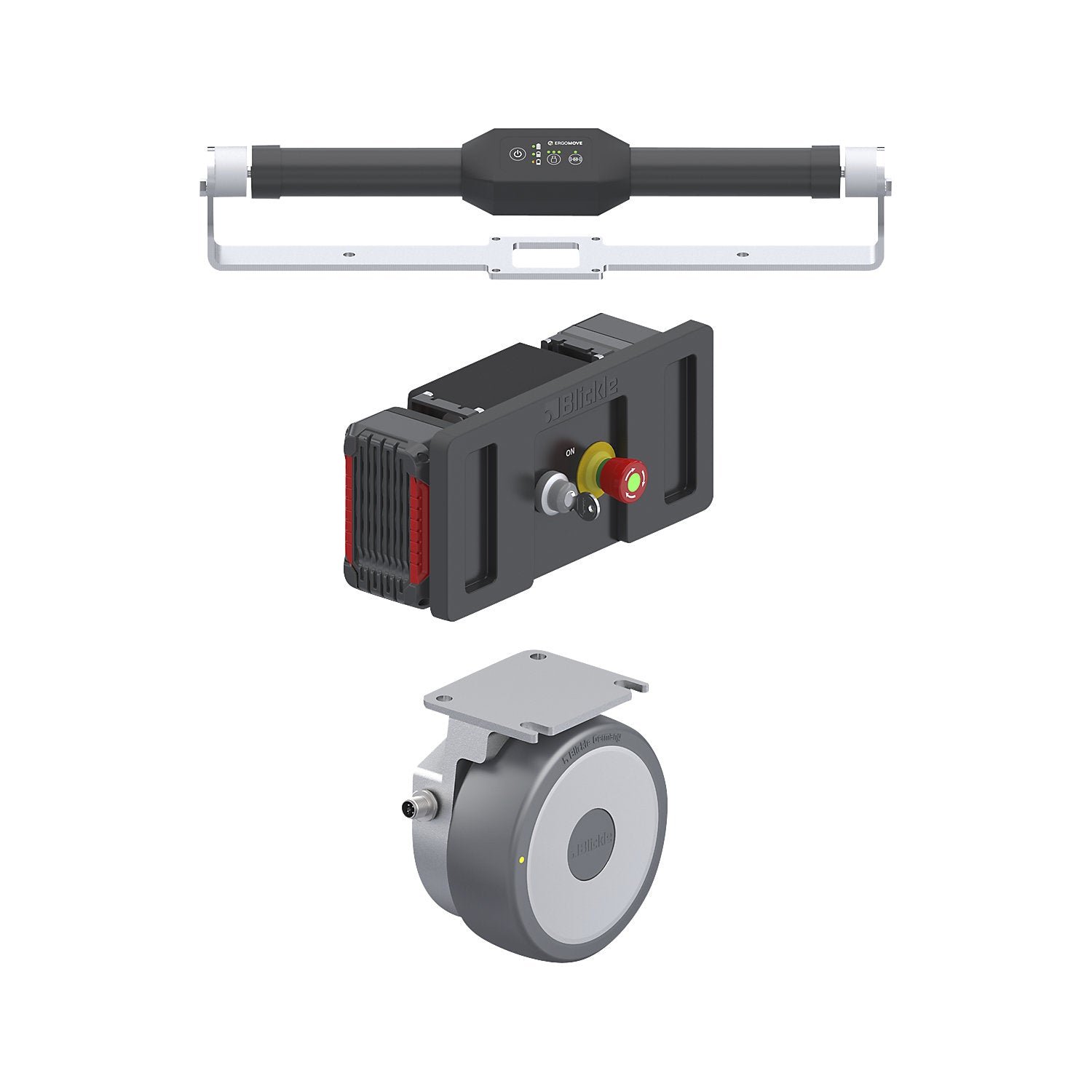

• Scope of delivery = 2 x EM500-ALST 140K-AS fixed castors with electric drive, 1 x sensor handle with force sensing (handle length 515 mm), including pre-assembled bracket, standby button, operating mode button, differential lock button and LEDs for status indication, 1 x safety box including emergency stop, key switch and plug-in cables to the drive castors and the grab handle, 2 x keys, 2x18V-5.2Ah rechargeable batteries, 1 x assembly instructions, 1 x declaration of incorporation
• Battery version = lithium-ion battery (Li-ion)
• Protection type = IP44
• Power = 1.26 kW
• Charging time = 1.5 hrs
• Battery capacity = 5.2 Ah
• Max. speed = 5 km/h
• Model = handle length 565 mm
• Material = aluminium, plastic
• Product type = drives/motors, e-module retrofit sets
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 17.85 kg
• Weight = 16 kg
• Electric drive for easy retrofitting on transport trolleys
• For transport trolleys with total loads of up to 500 kg
• Supports ergonomics, safety and driving comfort
• Travel speed up to 5 km/h for rapid material transport
• Adjustable power levels for different trolley weights
• Low-noise, non-marking Softhane tread
• The ErgoMove 500 Set drive system is an electric drive system for retrofitting manually pushed or pulled transport trolleys
• It reduces the effort required when starting, pushing, steering and braking loads of up to 500 kg and can be quickly integrated into existing trolleys thanks to plug and play
• The electric drive improves ergonomics, safety and driving comfort in daily material transport
• Pre-assembled components enable easy installation without complex modifications

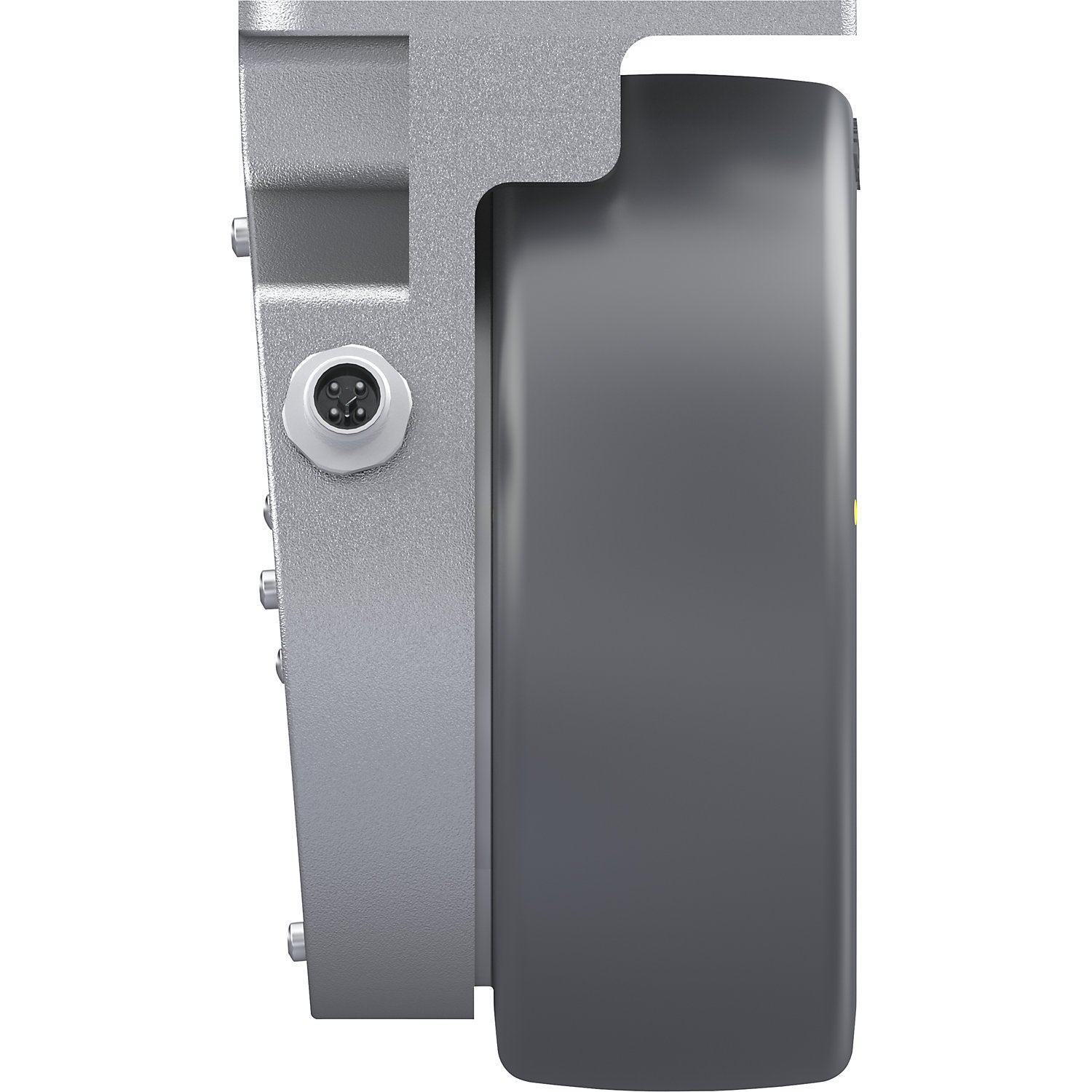

• Two electrically driven fixed castors reliably assist with starting, pushing, steering and braking
• Adjustable power levels ensure smooth driving characteristics with different trolley weights
• With a driving speed of up to 5 km/h, the system enables rapid material transport
• The high-quality soft polyurethane tread made of antistatic polyurethane elastomer ensures an exceptionally elastic, low-noise and non-marking operation
• The integrated safety box with emergency stop enables the system to be switched off quickly in critical situations
• The key switch protects against unauthorised use
• Plug-in cables facilitate installation and maintenance work
• Two 18 V/5,2 Ah rechargeable batteries ensure low-interruption operation, as one battery can be charged during use
• Depending on the model, a control unit with a sensor handle and force sensor or a handle with a rotary drive switch is available
• The sensor handle with an integrated force sensor detects the drawer or pulling pressure exerted and adapts the drive support accordingly
• The handle with a rotary drive switch enables the continuous preselection of the driving speed and is particularly suitable for applications where a constant and precise travel movement is required
• The ErgoMove 500 drive system is suitable for industry, logistics, production and internal material transport
• The electric drive relieves employees when moving heavy trolleys and helps to reduce physical strain and the risk of overexertion
• At the same time, transport processes can be carried out in a more controlled and efficient manner
• The compact drive module also fits into small installation spaces and turns existing transport trolleys into ergonomic transport solutions without the need for new purchases
• As an electric drive for retrofitting, the system supports companies in continuing to use existing equipment economically and making workflows safer
• The models of the Blickle ErgoMove series are partly completed machinery within the meaning of the Machinery Directive EC Directive 2006/42/EC.
