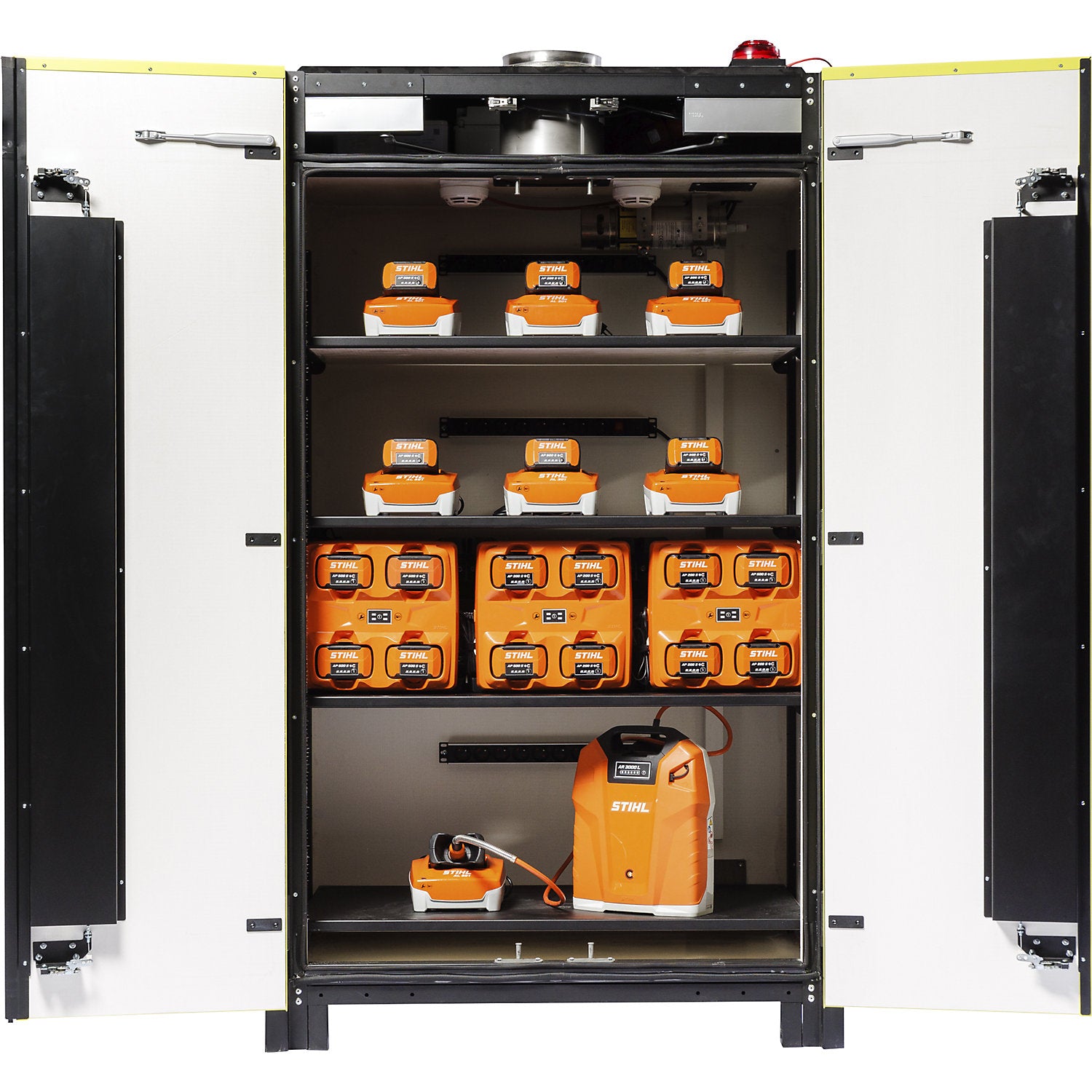

Battery charging cabinet LOXK2000 VDMA, HxWxD 2040 x 1142 x 765 mm, 4 x 8-compartment trailing socket.

Estimated delivery: 40 days

Battery charging cabinet LOXK2000 VDMA, HxWxD 2040 x 1142 x 765 mm, 4 x 8-compartment trailing socket

• Supplied = assembled
• Fittings = 4x8-compartment trailing socket
• Height = 2040 mm
• Width = 1142 mm
• Depth = 765 mm
• Mains voltage = 230 V
• Internal height = 1600 mm
• Internal width = 1070 mm
• Internal depth = 680 mm
• Fire resistance = -
• Power supply = 1x230 V
• Internal fittings = without fire suppression system
• Material = sheet steel, powder coated, special fire resistant boards
• Number of shelves = 4 pcs
• Body colour = black
• Door colour = yellow
• Lock type = locking handle with key
• Door type = hinged door
• For media = lithium-ion batteries/rechargeable batteries
• Product type = battery charging safety cabinets
• Customs tariff number = 94032080
• Country of origin = BEL
• Gross weight = 479.1 kg
• Weight = 450 kg
• Safe charging and storage of multiple lithium-ion batteries in the cabinet
• VDMA 24994 tested and certified for a high capacity of 17 kWh, fire resistance class A1
• Four fire-resistant storage levels each equipped with an 8-compartment socket
• Integrated smoke detector and temperature sensor for early detection of dangerous situations
• Audiovisual alarm system with RGB LED status indicator
• Self-closing doors with lock for secure storage and safe operation
• Active ventilation to limit heat build-up
• Adjustable feet and magnetically removable base panel for quick and easy transport
• Connection to external fire alarm and exhaust air systems possible
• Optional aerosol extinguishing system for additional protection in the event of a battery fire
• With this cabinet, you do not only protect your batteries, but also your environment from fire risks
• The lithium battery cabinet LOXK2000 VDMA is designed for the safe storage and charging of lithium-ion batteries used in devices such as e-bikes, scooters, power tools, scanners, drones and communication devices
• The cabinet creates a controlled environment that minimises the risks associated with lithium-ion batteries, including overheating, thermal reactions, fire and explosions
• The LOXK2000 cabinet is certified according to VDMA 24994, a recognised German standard for fire-protected storage and charging solutions for lithium-ion batteries
• Fire detection: The cabinet features a dual detection system combining smoke detection and temperature monitoring to detect early signs of battery failure
• Through the combination of both detection methods, the system can distinguish between harmless environmental influences and actual fire hazards
• If smoke and an unusual temperature rise are detected at the same time, a serious battery incident is recognised
• Alarm and notifications: If a potential hazard is detected, the cabinet alerts nearby personnel via an integrated audiovisual alarm system
• The notification system includes a high-intensity siren, a flashing optical indicator and an RGB status LED
• The cabinet uses two alarm levels to provide an early warning while reducing false alarms due to environmental influences
• A pre-alarm is triggered if either smoke or elevated temperatures (>60 °C) are detected inside the cabinet
• This early warning immediately activates safety precautions and simultaneously notifies the personnel
• In the event of a pre-alarm, the system carries out the following measures: - Battery charging is interrupted - The ventilation system is switched off - A pulsating siren is activated - The RGB status LED changes to warning status A full alarm is triggered when smoke and an unusual temperature rise are detected simultaneously, indicating a confirmed battery incident
• In the event of a full alarm, the cabinet activates maximum safety measures: - The charging process is stopped immediately - The ventilation remains switched off - The siren sounds continuously - The RGB status LED lights up red Alarm signals can also be forwarded to the building's fire alarm panel, enabling external monitoring and response
• A mains connection is provided in the cabinet for this purpose
• If the cabinet is equipped with the optional aerosol extinguishing system (at an extra cost), this is also activated automatically
• Safety construction: The LOXK2000 VDMA cabinet is made of fire-resistant materials designed to contain battery accidents
• Four height adjustable, fire-resistant shelves divide the cabinet into five compartments
• Each shelf carries up to 70 kg and serves as a fire barrier to prevent vertical fire spread between levels
• The cabinet construction consists of materials of fire protection class A1 and complies with recognised fire protection standards
• Integrated charging function: The cabinet features four integrated trailing sockets of 8 x 230 V per shelf, so that several lithium-ion batteries can be charged simultaneously in the cabinet
• Model for EU: - 1-phase with CEE7/7 plug, operating voltage 230 V, 1-phase 16 A, maximum electrical power per cabinet 3,68 kWh. - Optional, see below under accessories, with operating voltage 400 V, 3-phase 3 x 16 A, maximum electrical power per cabinet 11,04 kWh
• Model for CH: - 1-phase with type J 13 plug, operating voltage 230 V, 1-phase 10 A, maximum electrical power per cabinet 2,3 kWh. - Optional, see below under accessories, with operating voltage 400 V, 3-phase 3 x 10 A, maximum electrical power per cabinet 6,9 kWh
• Optionally available at an extra cost, see accessories below: For additional protection, the cabinet can be equipped with an optional aerosol extinguishing system
• When activated during a confirmed alarm, the fire suppression system releases a dry aerosol within 1 - 2 seconds inside the cabinet
• The aerosol interrupts the chemical combustion process on a molecular level and helps to bring lithium-ion battery fires under control in less than 30 seconds
• The aerosol disperses into all compartments of the cabinet and provides an additional level of safety in addition to detection, alerting and fire containment
• Can only be ordered in conjunction with a cabinet, factory fitted only.
