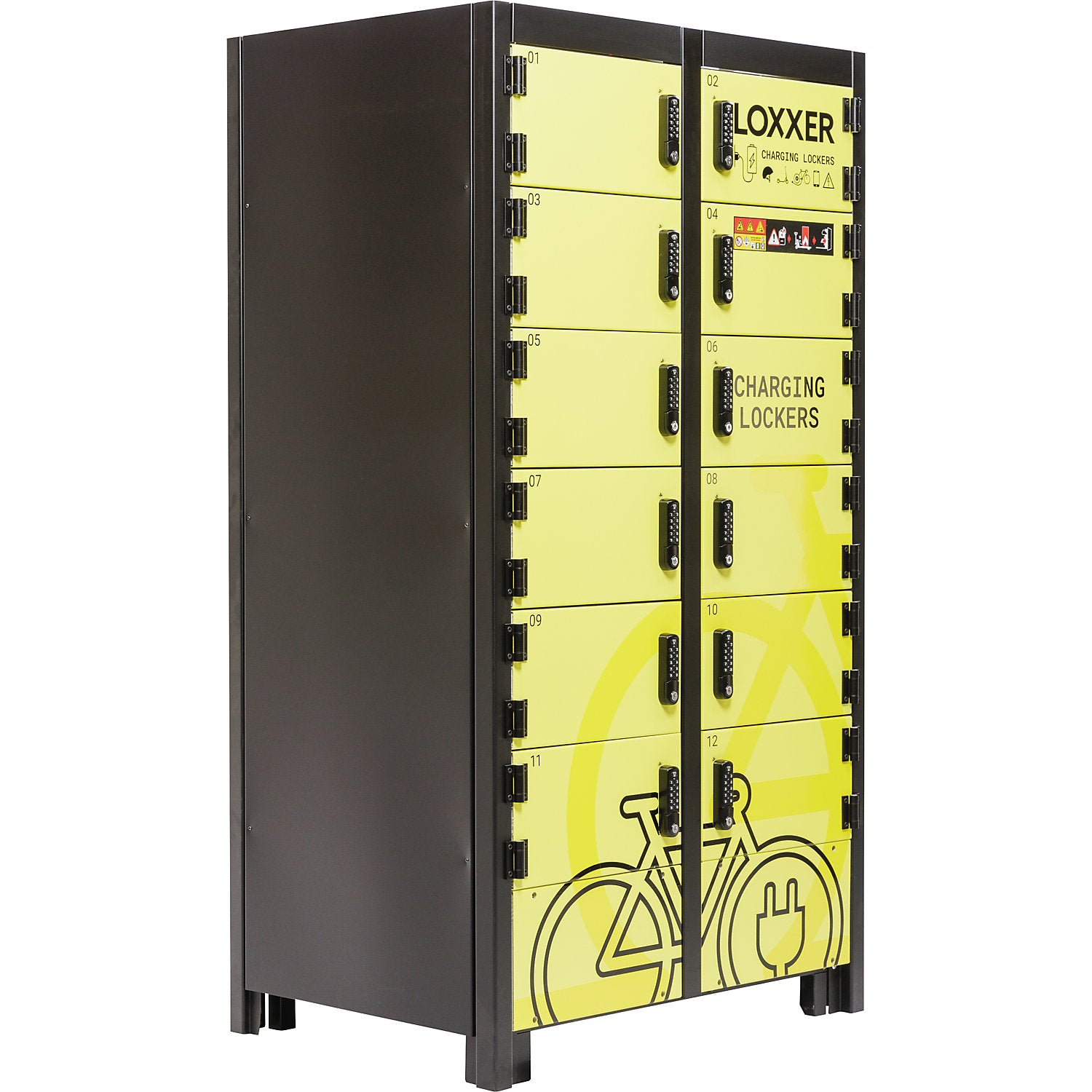

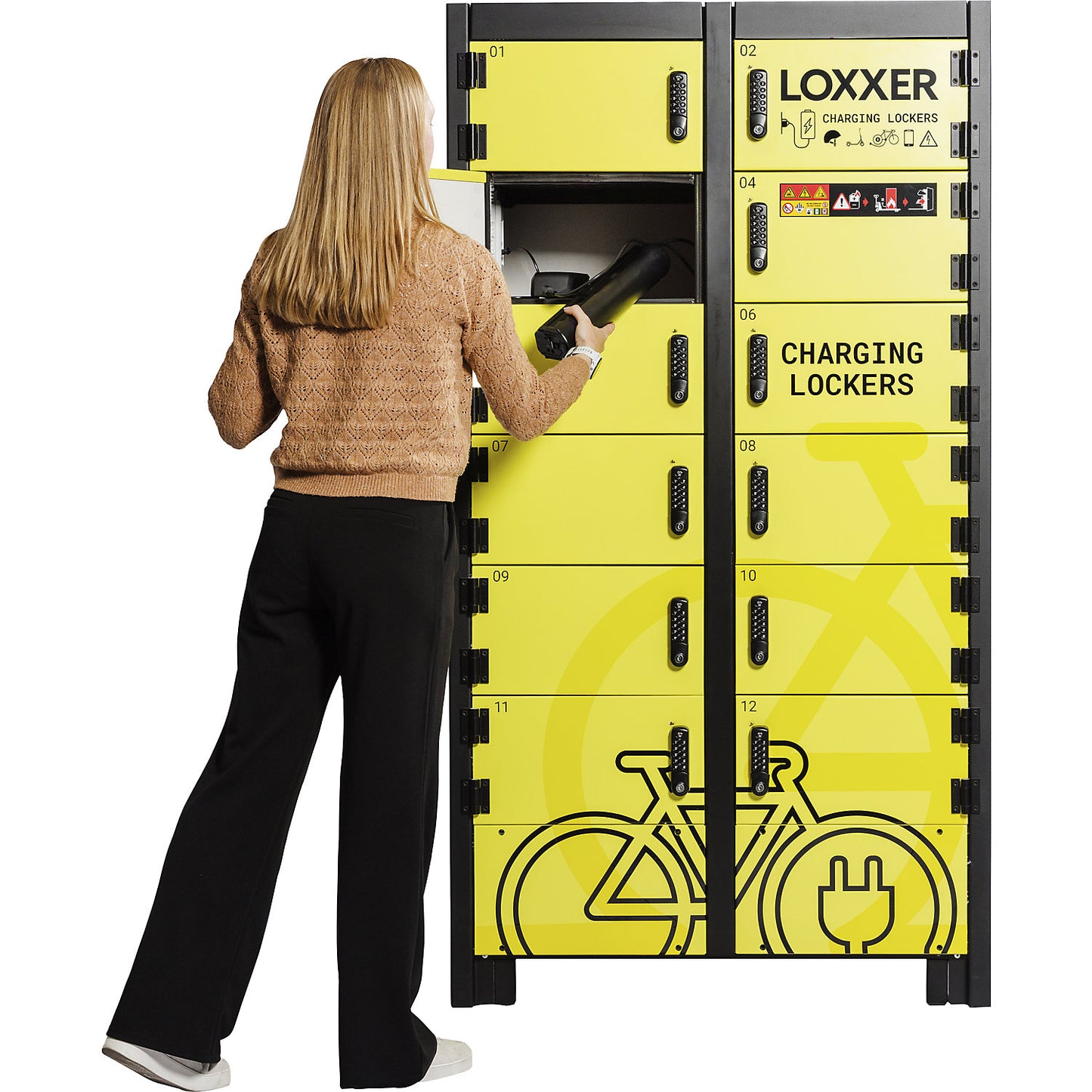

Battery charging cabinet LOX12, HxWxD 2015 x 1042 x 765 mm, 12 shelves.

Estimated delivery: 40 days

Battery charging cabinet LOX12, HxWxD 2015 x 1042 x 765 mm, 12 shelves

• Supplied = assembled
• Fittings = 12x2-compartment sockets
• Height = 2015 mm
• Width = 1042 mm
• Depth = 765 mm
• Mains voltage = 230 V
• Internal height = 246 mm
• Internal width = 484 mm
• Internal depth = 683 mm
• Fire resistance = -
• Power supply = 1x230 V
• Internal fittings = without fire suppression system
• Material = special fire resistant boards
• Number of shelves = 12 pcs
• Body colour = black
• Door colour = yellow
• Lock type = combination lock
• Door type = hinged door
• For media = lithium-ion batteries/rechargeable batteries
• Product type = battery charging safety cabinets
• Customs tariff number = 94032080
• Country of origin = BEL
• Gross weight = 425.1 kg
• Weight = 400 kg
• Safe charging of lithium-ion batteries for several users. 12 individual charging compartments, individually lockable with a combination lock
• Two sockets per compartment that allow simultaneous charging of batteries
• Integrated smoke detector and temperature sensor for early detection of dangerous situations
• Audiovisual alarm system with RGB LED status indicator
• Active ventilation to limit heat build-up
• Adjustable feet and magnetically removable base panel for quick and easy transport
• Connection to external fire alarm and exhaust air systems possible
• Optional aerosol extinguishing system (extra cost) for additional protection in the event of a battery fire
• Ideal for locations where organisation, safety and user-friendliness come together
• The LOX12 is a fire-resistant lithium battery charging cabinet with 12 individual charging compartments for the safe charging and storage of lithium-ion batteries
• The LOX12 lithium battery cabinet is designed for the safe storage and charging of lithium-ion batteries used in devices such as e-bikes, e-scooters and professional communication devices
• The cabinet provides a controlled charging environment that helps to reduce the risks associated with lithium-ion batteries, such as overheating, thermal reactions, fire and explosions
• The cabinet is particularly suitable for work environments where several users each have their own devices
• Examples of this are police stations, emergency services or industrial workplaces where each employee is responsible for their own battery-powered devices such as two-way radios, tools or mobility batteries
• With 12 individual charging compartments, each equipped with a combination lock, the LOX12 allows users to safely store and charge their batteries while keeping the equipment organised and secured
• The LOX12 combines secure personal storage with the safe charging of lithium-ion batteries in shared work environments
• Fire detection: The cabinet features a dual detection system that combines smoke detection and temperature monitoring to detect early signs of battery failure
• Through the combination of both detection methods, the system can distinguish between harmless environmental influences and actual fire hazards
• If smoke and an unusual rise in temperature are detected at the same time, a serious battery incident is identified
• Alarm and notifications: If a potential hazard is detected, the cabinet alerts nearby staff via an integrated audiovisual alarm system
• The notification system includes a high-intensity siren, a flashing optical indicator and an RGB status LED
• The cabinet uses two alarm levels to provide an early warning while reducing false alarms due to environmental influences
• A pre-alarm is triggered if either smoke or elevated temperatures (>60 °C) are detected inside the cabinet
• This early warning immediately activates safety precautions and alerts staff at the same time
• In the event of a pre-alarm, the system carries out the following measures: - Battery charging is interrupted - The ventilation system is switched off - A pulsating siren is activated - The RGB status LED changes to warning status A full alarm is triggered when smoke and an unusual rise in temperature are detected simultaneously, indicating a confirmed battery incident
• In the event of a full alarm, the cabinet activates maximum safety measures: - The charging process is stopped immediately - The ventilation remains switched off - The siren sounds continuously - The RGB status LED lights up red Alarm signals can also be forwarded to the building's fire alarm panel, which allows for external monitoring and response
• A mains connection is provided in the cabinet for this purpose
• If the cabinet is equipped with the optional aerosol extinguishing system (at extra cost), this is also activated automatically
• Safety construction: The LOX12 cabinet is made of fire-resistant materials designed to contain the spread of fire in the event of battery accidents
• Each compartment is equipped with fire-resistant linings and perforated shelves that allow effective circulation of heat and extinguishing agents while helping to limit the spread of fire
• The cabinet construction itself consists of materials of fire protection class A1 and complies with recognised fire protection standards
• Safety features: The cabinet is equipped with active ventilation to keep the heat generation of the batteries within safe limits during the charging process
• There is a mains connection for an external exhaust air system to discharge excess heat and potential gases if the system is connected to the building ventilation
• Each cabinet features an individual combination lock, which allows for the safe storage of batteries during the charging process
• Self-closing hinges ensure that the cabinet doors close automatically after use
• The cabinet also features adjustable levelling feet for a robust, stable stand as well as forklift pockets on all four sides so that it can be easily moved with a pallet truck in the event of an incident
• Integrated charging function: The cabinet features 12 individual charging compartments, each equipped with two sockets
• This allows several batteries to be charged safely
• Model for EU: 1-phase with operating voltage 230 V, 1-phase 16 A, maximum electrical output per cabinet 3,68 kWh
• Maximum charging output per side (6 compartments) 1,84 kWh
• Optional see below under accessories, with operating voltage 400 V, 3-phase 3 x 16 A, maximum electrical output per cabinet 7,36 kWh
• Maximum charging output per side (6 compartments) 3,68 kWh = 1 phase
• Model for UK: Operating voltage of 230 V, 1-phase, 13 A, maximum electrical output per cabinet 2,99 kWh
• Maximum charging output per side (6 compartments) 1,495 kWh
• Optional with operating voltage 400 V, 3-phase 3 x 16 A, maximum electrical output per cabinet 7,36 kWh
• Maximum charging output per side (6 compartments) 3,68 kWh = 1 phase
• Optional aerosol extinguishing system: For additional protection, the cabinet can be equipped with an optional aerosol extinguishing system
• When activated during a confirmed alarm, the fire suppression system releases a dry aerosol within 1-2 seconds inside the cabinet
• The aerosol interrupts the chemical combustion process at molecular level and helps to bring lithium-ion battery fires under control in under 30 seconds
• The aerosol distributes itself in all compartments of the cabinet, providing an additional level of safety in addition to detection, alerting and fire containment
• Can only be ordered in conjunction with a cabinet, factory fitted only
• Overall height 2015 mm (incl. detachable alarm), without alarm the height is: 1938 mm Locker dimensions W x H x D : 484 x 246 x 683 mm
