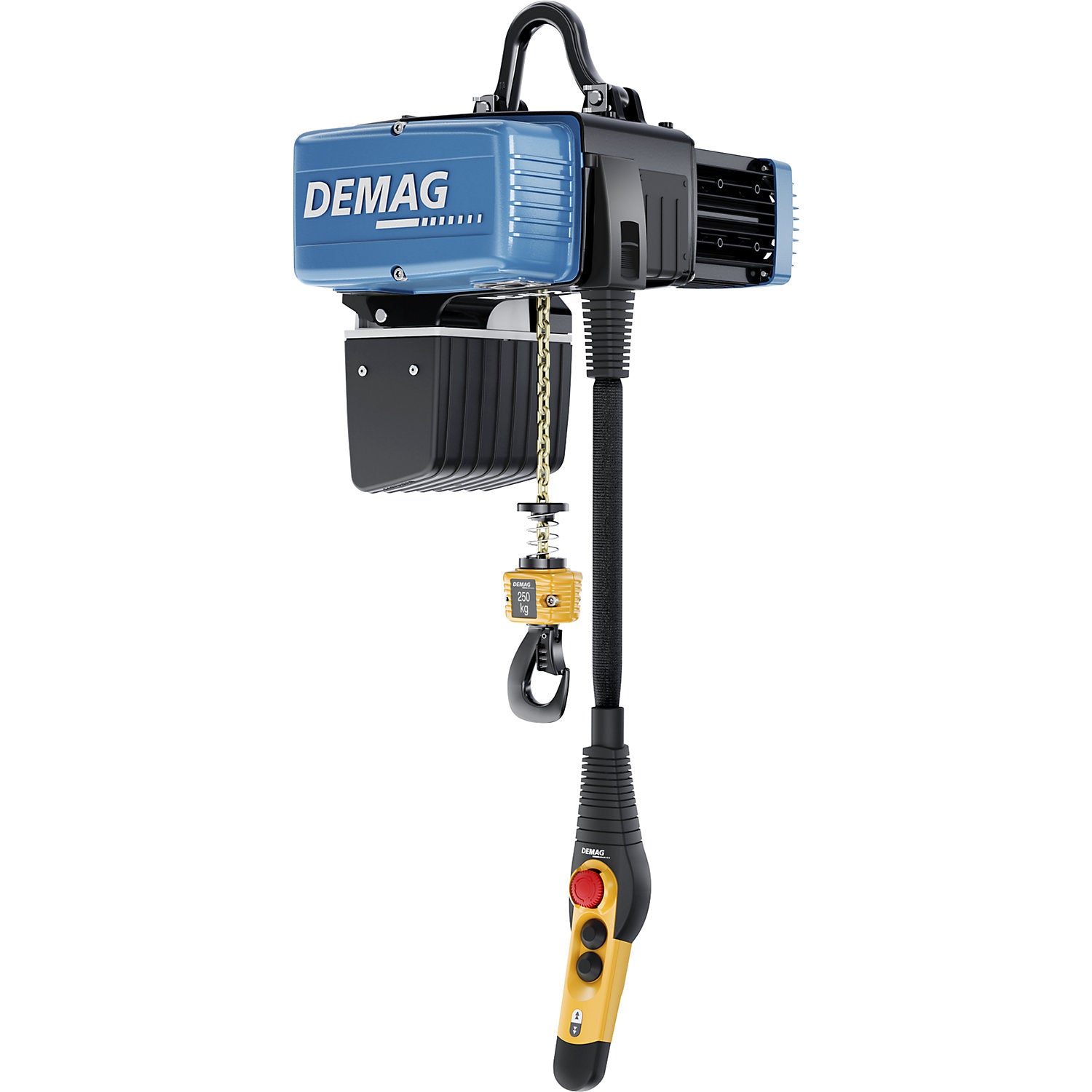

Electric chain hoist DC-ComA II, with suspension bracket, max. load 125 kg.

Estimated delivery: 36 days

Electric chain hoist DC-ComA II, with suspension bracket, max. load 125 kg

• Supplied = assembled
• Max. load = 125 kg
• FEM group = 3 m
• Design of chain hoist = with suspension bracket
• Number of strands = 1 pcs
• Colour = black grey RAL 7021, azure blue RAL 5009
• Operating voltage = 400 V
• Protection class = IP55
• Overall height = 394 mm
• Lifting height = 4000 mm
• Lift speed = 8 / 2 m/min
• Starting time main lift / precise lift = 60 %
• Material = steel
• Product type = electric chain hoists
• Customs tariff number = 84251100
• Country of origin = DEU
• Gross weight = 22 kg
• Weight = 20 kg
• Two lifting speeds as main and precise lifting as standard
• Gears, brakes and couplings are maintenance free for up to 10 years
• Control cable infinitely height adjustable
• The Demag chain hoist DC-ComA II meets all requirements for a quality product of the Demag brand and sets standards in the industrial standard for hoists
• It is a chain hoist that is flexible to the highest dimensions, which can be installed and put into operation within a very short time
• The DC-ComA II is characterised by high ease of operation, high productivity, optimum utilisation of headroom and maximum reliability, and meets both the economic and safety-relevant requirements of a modern hoist
• Two standard hoisting speeds as main and precise lifting, contactor control with 24 V control voltage (with internal trichloroethylene-state signal transmission), limit switches for the highest and lowest hook positions for safe shutdown of the chain hoist in the end positions, speed-monitored brake and coupling principle ensures high safety and is durable
• Gearbox, brake and clutch are maintenance free for up to 10 years
• Operating hours counter readable from the outside, for service purposes, the operating parameters can be read out from the chain hoist control via an optical display or wirelessly via the built-in infrared diagnostic interface
• All electrical mains connections of the chain hoist are plug-in
• Central service space, which allows quick and direct access to all important plug connections and easy chain lubrication
• Quick and easy replacement of the chain drive without dismantling motor or gearbox parts.
