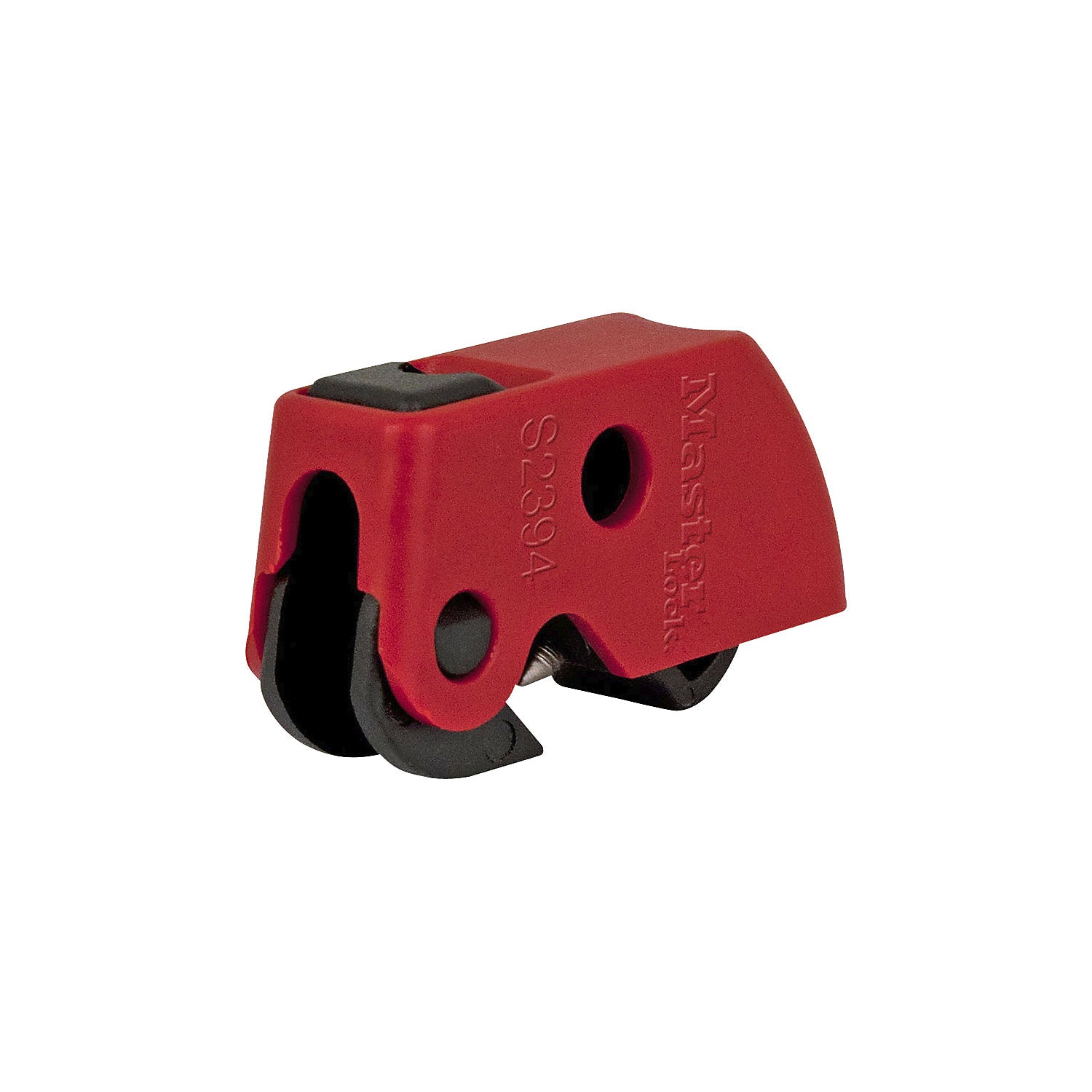

Mini circuit breaker lockout, tool-free universal fit, pack of 12, plastic.

Estimated delivery: 34 days

Mini circuit breaker lockout, tool-free universal fit, pack of 12, plastic

• Colour = red
• Number of suspension points = 1 pcs
• Material = plastic
• Height = 30 mm
• Width = 53 mm
• Depth = 18 mm
• Product type = lockout/tagout products
• Customs tariff number = 39269097
• Country of origin = MEX
• Gross weight = 0.04 kg
• Weight = 0.02 kg
• Made of robust, thermoplastic material
• Suitable for ATEX areas
• Chemical-resistant
• Rotary knob for easy attachment - no tools required
• Locks practically all mini circuit breakers used worldwide in accordance with ISO/DIN
• Mini circuit breaker lockout - compact lockout system for miniature circuit breakers The universal mini circuit breaker lockout enables quick and tool-free securing of miniature circuit breakers and supports a reliable lockout system for lockout-tagout applications
• The compact design is particularly suitable for closely spaced switches and facilitates use in cramped control cabinets
• Made of robust thermoplastic material, the mini circuit breaker lockout stands out due to its high resistance to chemicals and its reliable function even under demanding environmental conditions
• It is fastened using an easy-to-use rotary knob, so that no additional tools are required for installation
• After locking, the rotary knob is no longer accessible, which makes unauthorised removal of the lockout more difficult and ensures the lockout system remains reliably secured
• The safety padlock can be attached both horizontally and vertically depending on the installation situation
• In addition, the design allows the installation of multiple mini circuit breaker lockouts on adjacent miniature circuit breakers
• This creates flexible application options and supports structured lockout-tagout procedures even with more complex electrical installations
• The mini circuit breaker lockout is suitable for locking almost all miniature circuit breakers used worldwide according to ISO/DIN with external pins
• As part of a lockout system, it supports the safe securing of electrical energy sources and contributes to clearly regulated lockout-tagout processes during maintenance and servicing work.
