Hazardous goods shelf container for passive storage, HxWxD 3575 x 5580 x 1530 mm, capacity 8 x 1000-l-IBC/KTC.

Estimated delivery: 39 days

Hazardous goods shelf container for passive storage, HxWxD 3575 x 5580 x 1530 mm, capacity 8 x 1000-l-IBC/KTC

• Supplied = assembled
• Place of use = outdoor use
• Height = 3575 mm
• Width = 5580 mm
• Depth = 1530 mm
• Sump capacity = 2x1000 l
• Material = sheet steel
• Finish = painted
• Position of hinged door = long side
• Door type = sliding door
• Internal height = 1450 mm
• Internal width = 2700 mm
• Internal depth = 1300 mm
• Type of floor = hot dip galvanised sump tray with grate, max. load 1500 kg/m² with evenly distributed load
• For media = flammable liquids, water hazardous dangerous goods
• Max. snow load = 156 kg/m²
• Number of storage levels = 2 pcs
• Colour = sky blue RAL 5015
• Hazard class = for water hazardous liquids in GHS categories 1 - 4, for the passive storage of flammable substances in GHS categories 1 - 3
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• Product type = hazardous goods containers
• Customs tariff number = 94062000
• Country of origin = DEU
• Gross weight = 2312.5 kg
• Weight = 2300 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• For regulation-compliant outdoor storage of flammable and environmentally hazardous liquids
• With general technical approval/design approval DIBt Berlin Z-38.5-122 and Ü mark
• Space-saving storage on two storage levels minimises costs per storage space
• The water protection specialist container consists of a robust frame construction with hollow and rolled sections and, together with a 5 mm tightly welded and tested sump, ensures high safety for the passive storage of flammable liquids of GHS category 1 - 3 and water-hazardous liquids of GHS category 1 - 4

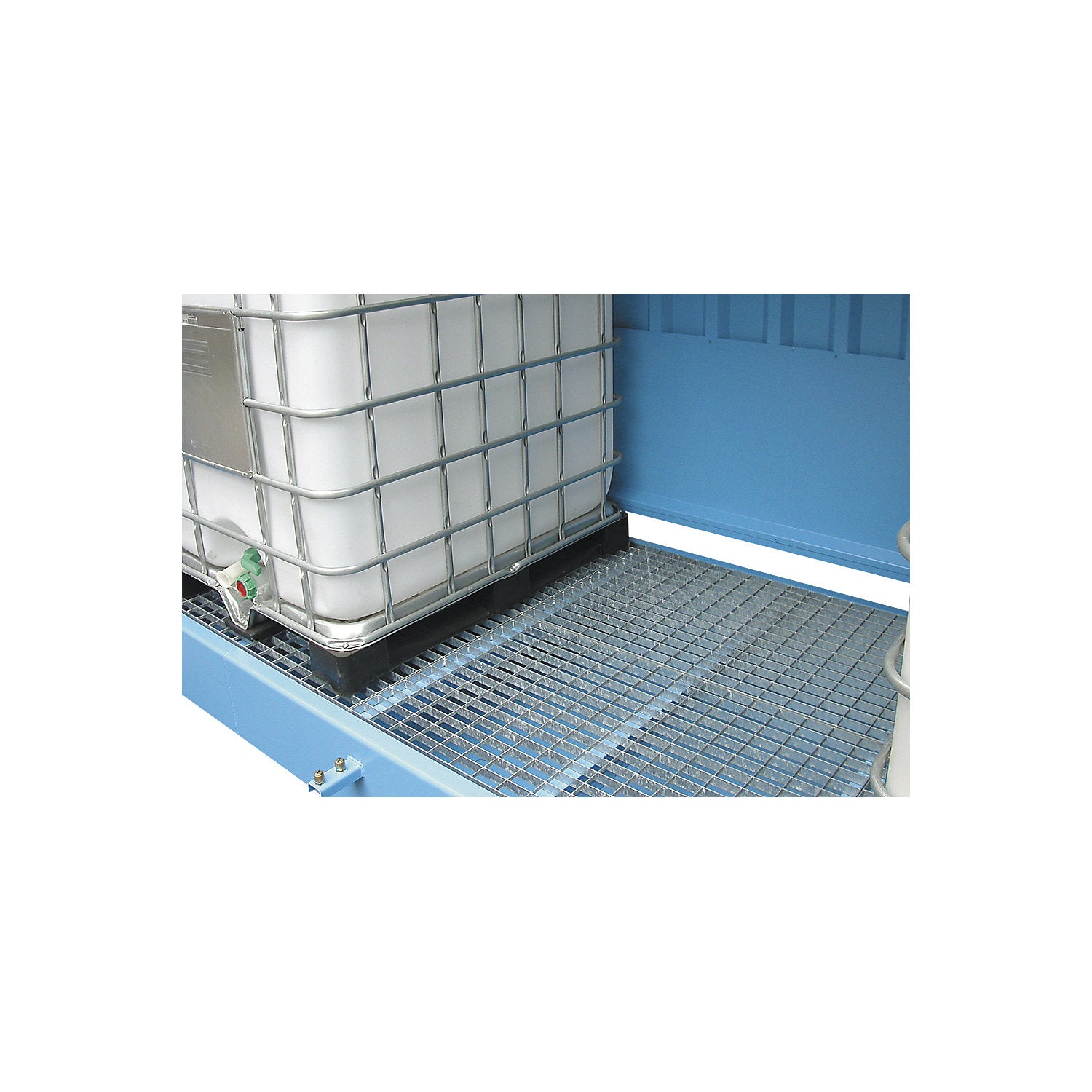

• Removable, hot-dip galvanised gratings guarantee stability and easy cleaning processes, while galvanised liquid diversion sheets provide additional safety in the event of an accident
• The container shell painted in RAL 5015 sky blue and lockable sliding gates made of sheet metal ensure high corrosion protection
• The snow load is 1.56 kN/m² according to DIN EN 1991-1-3/NA2
• Supplied complete as standard are crane eyelets for transport when empty, 100 mm ground clearance for under-ventilation, hot-dip galvanised base plates including earthing connection points, as well as composite anchors for fixing the container
• Please enquire about further colours, designs, accessories, special designs and individual project planning
• Notes: When storing flammable liquids of GHS category 1 - 3, the required safety distance to surrounding buildings, according to TRGS 510, must be observed
• If this cannot be guaranteed, we would be happy to offer you a solution in F90 construction upon request
• Depending on the outside temperature and solar radiation, the internal temperature can rise significantly
• Based on the safety data sheets, the specified limit values and the possibility of co-storage must be checked by the operator
• The use of this water protection specialist container for the intended purpose should be coordinated in advance with the competent authorities
• The inspection/acceptance by an expert at the installation site may still be required, in accordance with the applicable national legal regulations
• Customer-provided services: - Strip foundations according to the foundation plan provided in advance by the manufacturer (installation on composite paving or asphalt is not permitted) - Unloading, erection, alignment and anchoring - (unloading on site possible upon request) - Earthing connection to existing foundation or deep earth electrodes (stainless steel) - Internal and external lightning protection for hazardous material storage according to local installation conditions and valid regulations.
