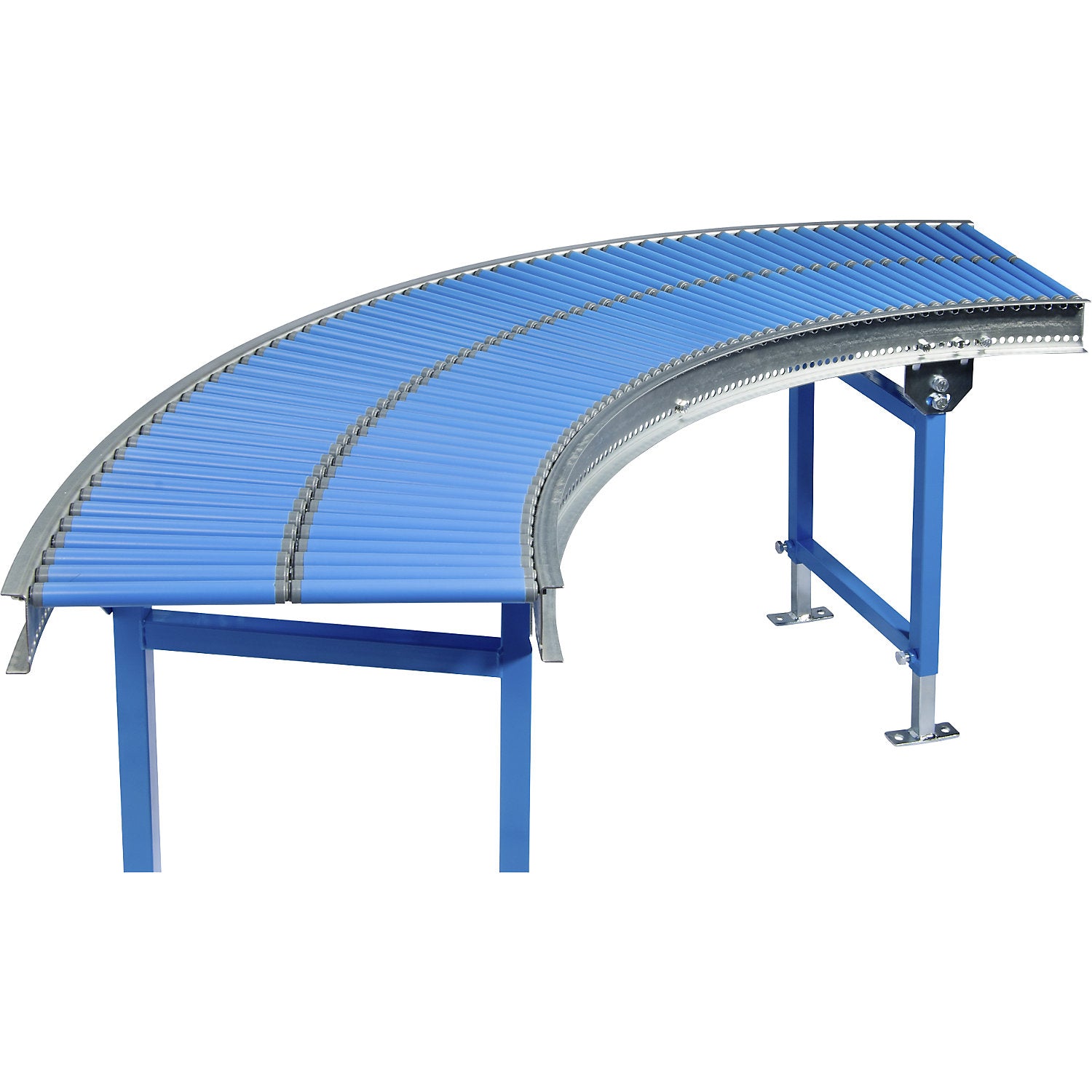

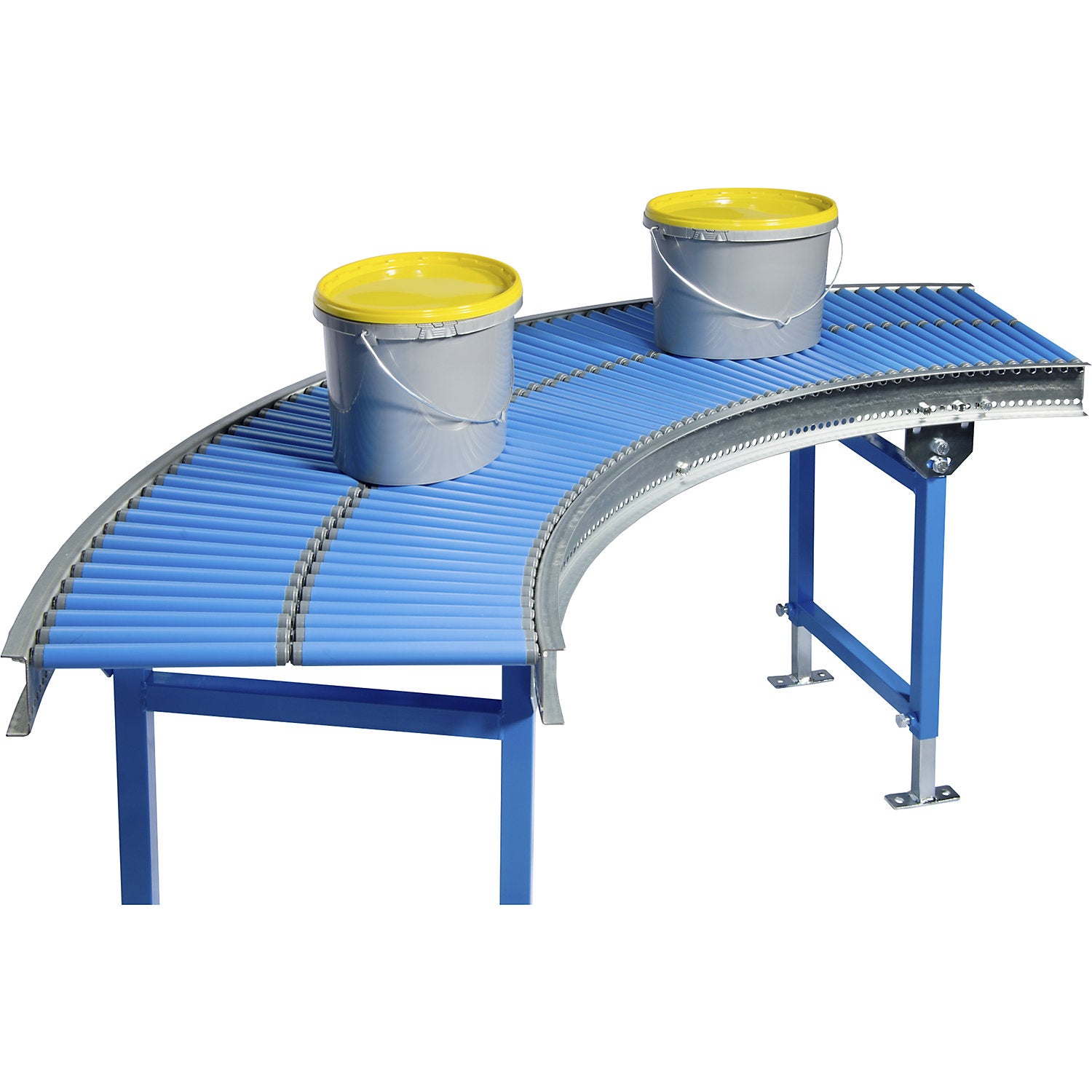

Small roller conveyor, plastic rollerss, track width 200 mm, 90° curve, inner radius 800 mm.

Estimated delivery: 40 days

Small roller conveyor, plastic rollerss, track width 200 mm, 90° curve, inner radius 800 mm

• Supplied = assembled
• Design of frame = aluminium
• Track width = 200 mm
• Overall height = 80 mm
• Width = 240 mm
• Length = 1500 mm
• Roller diameter = 20 mm
• Roller material = plastic
• Axle spacing = 25 mm
• Max. load with 1 m frame support spacing = 7.5 kg
• Frame colour = silver
• Radius of curve = 800 mm
• Model = 90° curve
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 10.5 kg
• Weight = 10.3 kg
• Energy-efficient due to gravity drive without power requirements
• Quiet and smooth running thanks to plastic rollers
• Gentle transport of light to medium-weight conveyed goods
• Robust steel construction for high stability and durability
• Modular, flexibly expandable with the BLUME system
• Low-maintenance operation for economical conveying processes
• The small roller conveyor with plastic rollers enables the energy-efficient and low-noise transport of light to medium-weight conveyed goods
• Thanks to precisely mounted plastic rollers, a spring-loaded axle and a robust steel frame construction, this roller conveyor ensures a smooth material flow with low maintenance effort
• As a reliable solution in conveyor technology, it supports processes in production and logistics areas
• The small roller conveyor impresses with its sturdy design and durable components
• The load-bearing steel U-profile ensures high stability and precise alignment of the plastic rollers
• This allows conveyed goods to be transported safely, smoothly and gently
• The plastic rollers with Ø 20 mm are characterised by low rolling resistance and are particularly suitable for sensitive goods
• At the same time, their quiet operation ensures a pleasant working environment
• It is driven purely by gravity
• Even a slight incline of 2 to 5 % reliably sets the conveying process in motion
• As a result, the roller conveyor operates without additional energy requirements and enables economical and low-maintenance operation
• With conveyor lengths of 1 to 3 metres, the small roller conveyor can be flexibly adapted to different requirements
• It can be used as an individual section or seamlessly combined with other elements of the BLUME system to form continuous conveyor lines
• Optional supports enable secure installation and individual height adjustment, and facilitate integration into various production and logistics areas
• The small roller conveyor is suitable for companies in industry, production, trade, warehousing and shipping logistics that want to transport light to medium-weight conveyed goods reliably
• It reduces manual transport paths, supports a smooth material flow and facilitates the adaptation of existing conveyor technology to changing work processes or growing requirements.
