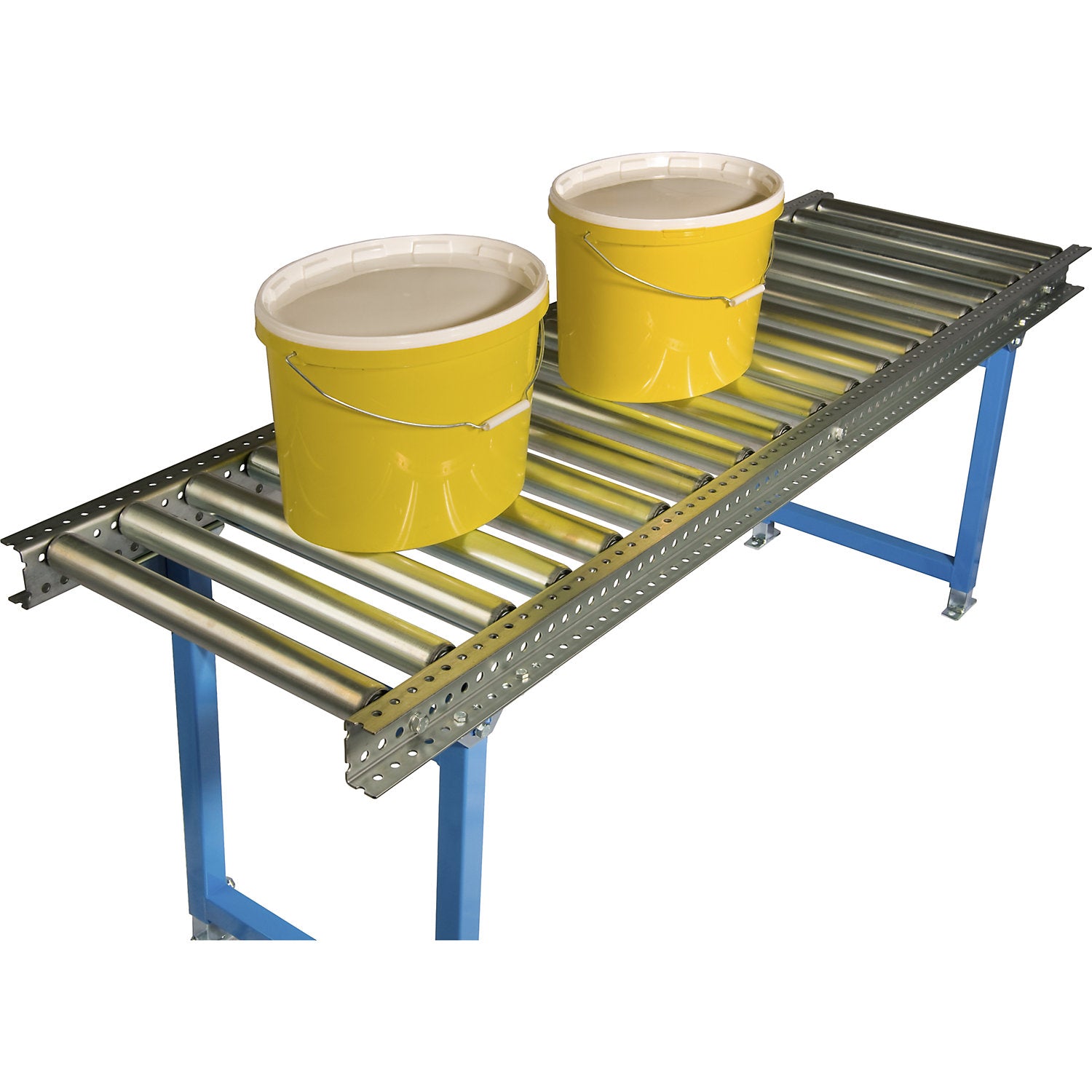

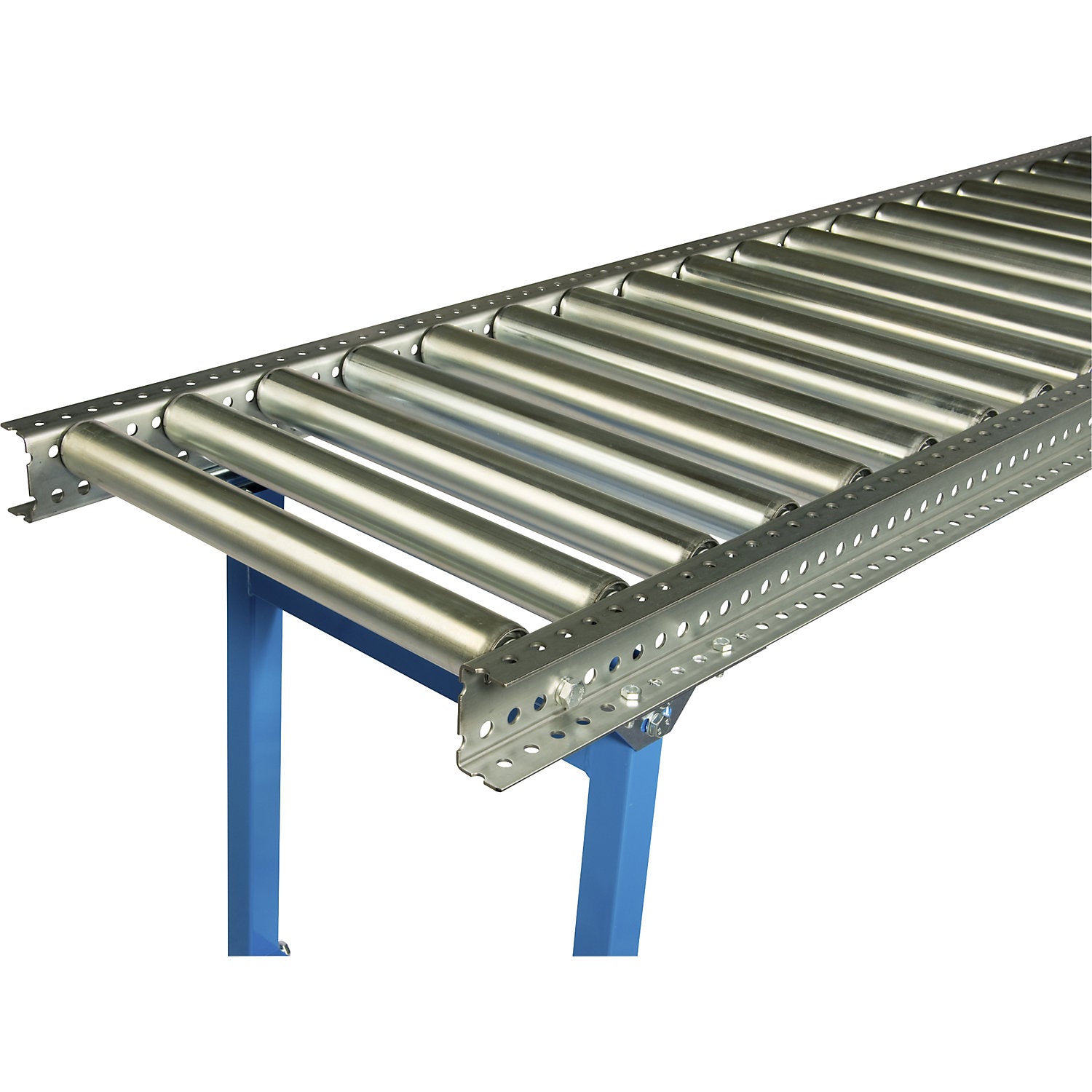

Roller conveyor, zinc plated steel rollers, track width 800 mm, axle spacing 100 mm, length 1500 mm.

Estimated delivery: 40 days

Roller conveyor, zinc plated steel rollers, track width 800 mm, axle spacing 100 mm, length 1500 mm

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 800 mm
• Overall height = 80 mm
• Width = 380 mm
• Length = 1.5 m
• Roller diameter = 50 mm
• Roller material = steel, zinc plated
• Axle spacing = 100 mm
• Length of goods conveyed = 300 mm
• Width of goods conveyed = 450 mm
• Max. load with 1 m frame support spacing = 200 kg
• Installation length = 300 mm
• Frame colour = silver
• Model = straight
• Product type = roller conveyors, heavy duty
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 22 kg
• Weight = 21.8 kg
• Suitable for small to medium-sized conveyed goods
• Robust steel rollers, zinc plated and corrosion-protected
• Energy-efficient transport by gravity
• Low-maintenance operation in daily use
• Modularly extendable with the BLUME conveyor system
• Flexible integration into existing conveyor systems
• The roller conveyor with zinc plated steel rollers impresses with its robust design and reliable, energy-efficient material transport
• The roller conveyor is suitable for continuous internal material flow and combines a high load capacity with low-maintenance operation
• As a component of modern conveyor technology, it supports economical processes in warehousing, production and shipping
• The roller conveyor is equipped with steel tubular rollers Ø 50 mm and a sturdy threaded axle
• High-quality steel tubes and zinc plated steel rollers ensure high stability, reliable corrosion protection and are durable
• The proven U-profile ensures high dimensional stability as well as precise alignment of the rollers
• As a result, small to medium-sized conveyed goods with different bottom conditions run smoothly and trouble-free over the roller conveyor with zinc plated steel rollers
• A gradient of 2 to 5 % is sufficient for the drive, so that transport takes place solely by gravity
• This reduces energy consumption and minimises maintenance effort in daily operation
• The roller conveyor can be flexibly integrated into existing conveyor technology systems or used as an independent conveyor line
• Thanks to the modular design, it can be individually adapted to operational requirements and, if required, expanded with further elements of the BLUME conveyor system
• Optionally available supports also enable easy installation and adaptation to different conveyor heights
• The roller conveyor with zinc plated steel rollers is suitable for companies in industry, logistics, production and shipping
• It supports a reliable material flow, reduces manual transport routes and ensures efficient processes at production lines, packaging stations and in warehouse areas
• The robust construction ensures high operational reliability even in continuous use and makes the roller conveyor an economical, long-lasting and adaptable solution for internal transport processes.
