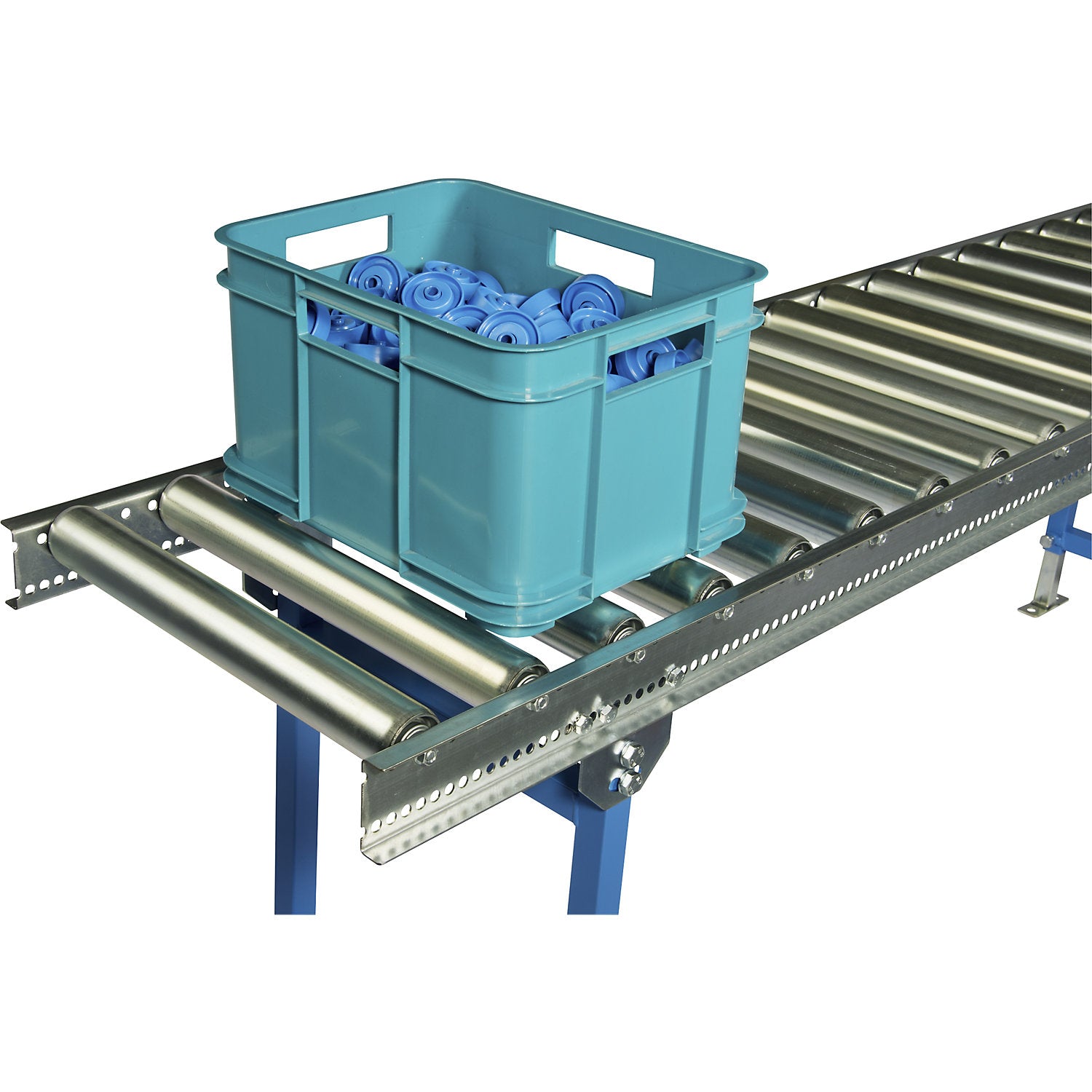

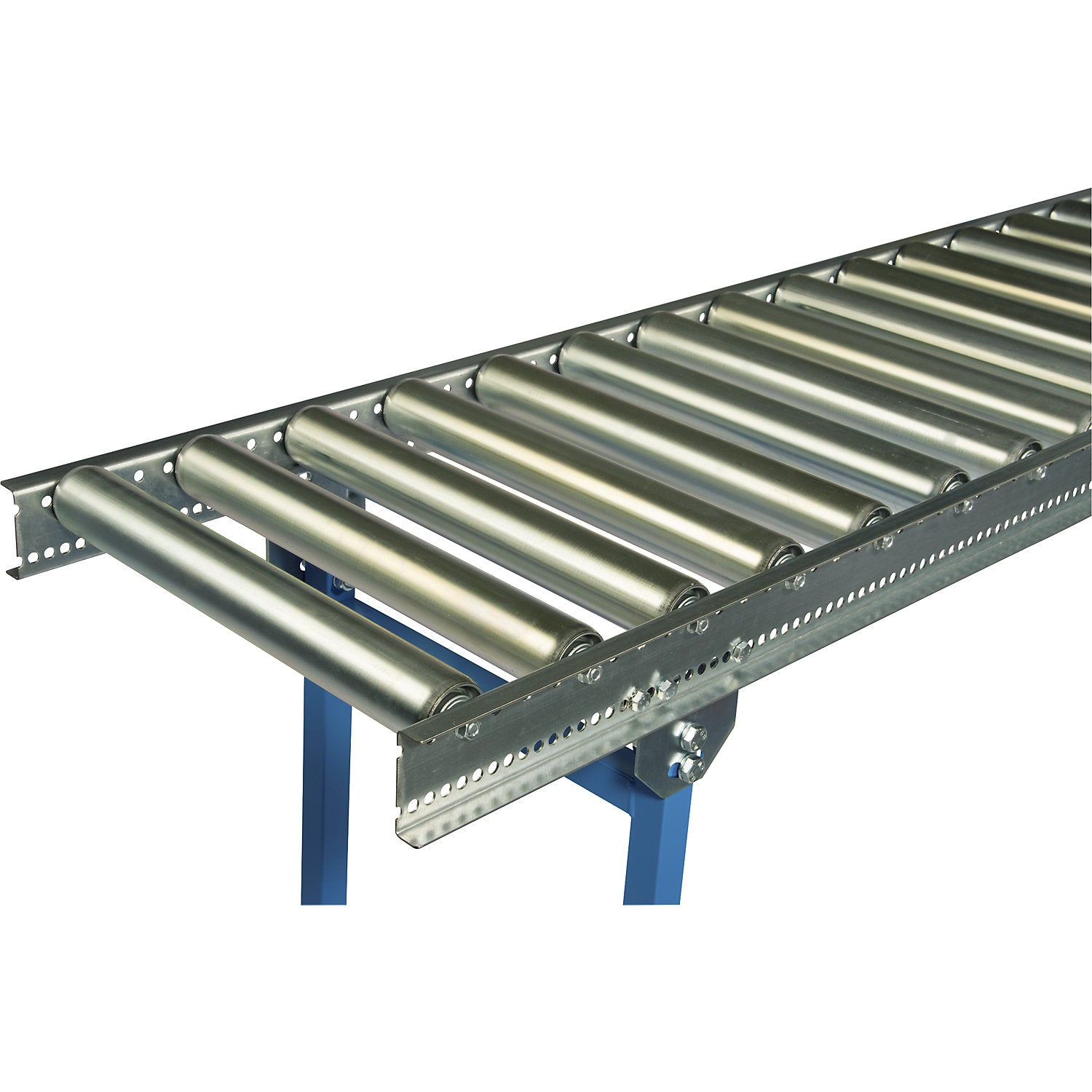

Lightweight roller conveyor, zinc-plated steel rollers, track width 600 mm, axle spacing 62,5 mm, length 1500 mm.

Estimated delivery: 40 days

Lightweight roller conveyor, zinc-plated steel rollers, track width 600 mm, axle spacing 62,5 mm, length 1500 mm

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 600 mm
• Overall height = 80 mm
• Width = 640 mm
• Length = 1.5 m
• Roller diameter = 50 mm
• Roller material = steel, zinc plated
• Axle spacing = 62.5 mm
• Length of goods conveyed = 189 - 1000 mm
• Width of goods conveyed = 750 mm
• Max. load with 1 m frame support spacing = 40 kg
• Installation length = 603 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 37.4 kg
• Weight = 37.2 kg
• Reliable transport of items up to 40 kg
• Zinc plated steel rollers for durable use
• Modularly expandable and flexibly adaptable
• Suitable for various undersides of the conveyed goods
• Robust tubular steel construction with a low dead weight
• Includes track connectors, optionally with connecting supports
• The light roller conveyor, zinc plated steel rollers ensures a reliable and consistent material flow in the facility
• As a light roller conveyor with zinc plated steel rollers, it combines a robust tubular steel design with a modular construction and can be flexibly integrated into existing conveyor technology
• This saves time, reduces personnel requirements and supports smooth processes during internal transport
• The roller conveyor is suitable for transporting unit loads with a unit weight of up to 40 kg
• Zinc plated steel rollers ensure smooth running and offer reliable corrosion protection in daily use
• For trouble-free transport, the conveyed goods must rest on at least three load rollers
• With an axle spacing of 62,5 mm, this corresponds to a minimum product length of 190 mm
• The light roller conveyor with zinc plated steel rollers safely accommodates conveyed goods with differently shaped undersides
• Whether smooth base, longitudinal rib, ring collar or grid structure - the roller conveyor ensures safe transport
• The robust tubular steel construction combines a high max. load with a comparatively low dead weight
• Track connectors are already included in the scope of delivery
• Optionally available supports simultaneously act as connecting elements between the individual segments during assembly
• Thanks to the modular system, the light roller conveyor with zinc plated steel rollers can be expanded at any time and adapted to changing production conditions
• Matching curved elements also allow flexible routing within the conveyor technology
• The light roller conveyor with zinc plated steel rollers is particularly suitable for production facilities, warehouses, shipping areas and assembly stations
• It is a tried-and-tested solution to efficiently organise the internal material flow and flexibly expand existing conveyor lines
• The roller conveyor reduces manual transport routes, supports consistent workflows and enables an economical adaptation of the conveyor technology to growing or changing requirements.
