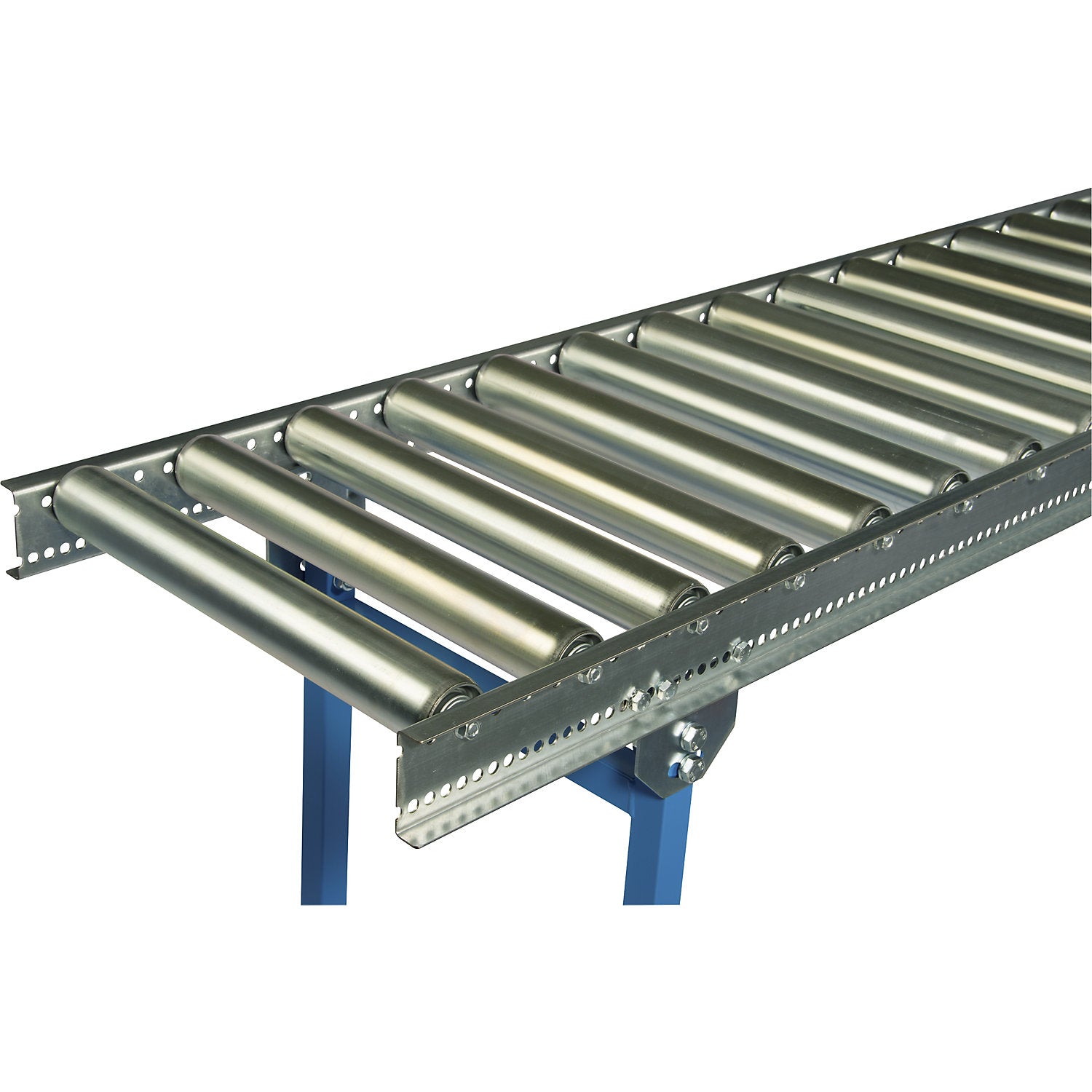

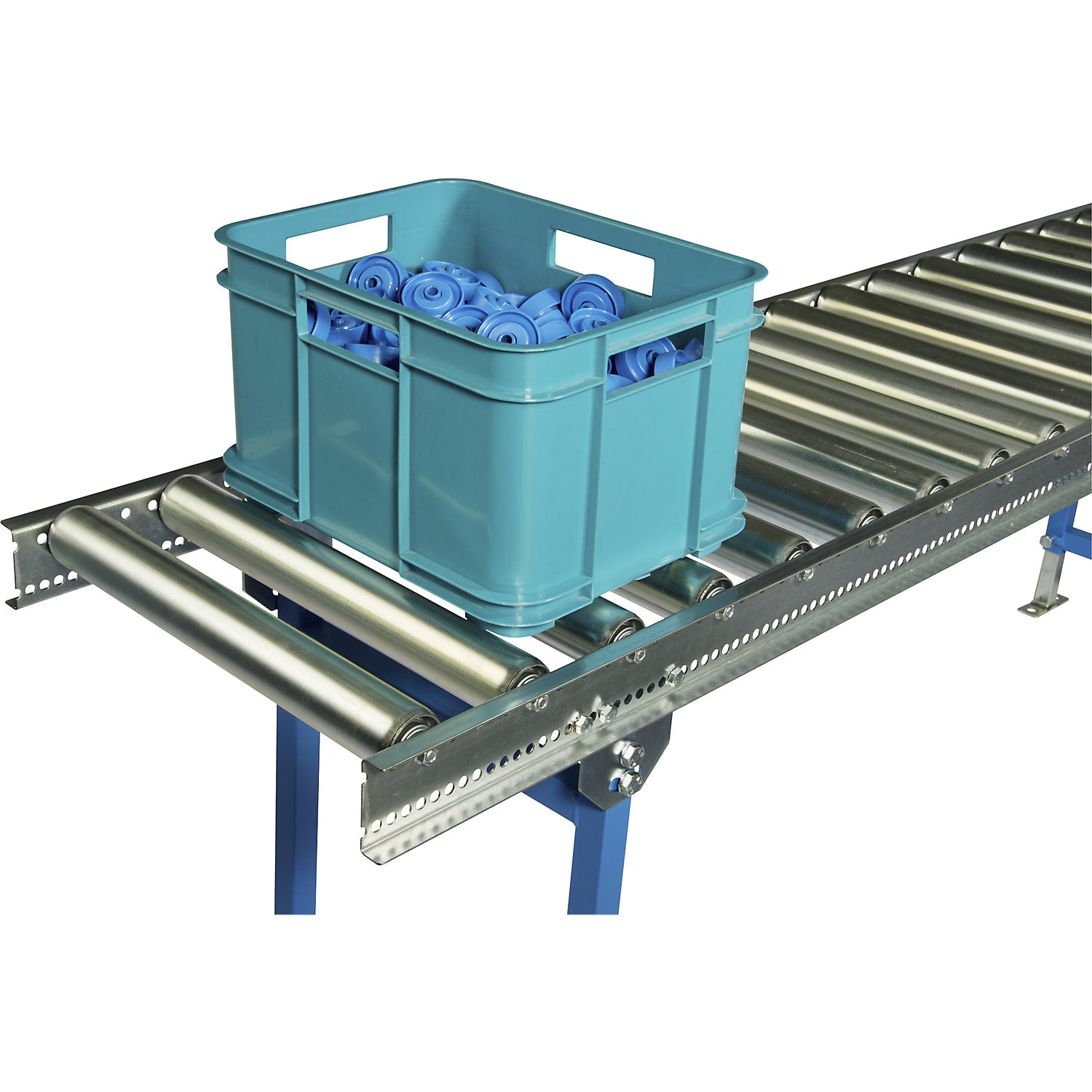

Light-duty roller conveyor, aluminium rollers, track width 300 mm, axle spacing 62,5 mm, length 2000 mm.

Estimated delivery: 40 days

Light-duty roller conveyor, aluminium rollers, track width 300 mm, axle spacing 62,5 mm, length 2000 mm

• Supplied = assembled
• Design of frame = aluminium
• Track width = 300 mm
• Overall height = 80 mm
• Width = 340 mm
• Length = 2 m
• Roller diameter = 50 mm
• Roller material = anodised aluminium
• Axle spacing = 62.5 mm
• Length of goods conveyed = 189 - 1000 mm
• Width of goods conveyed = 450 mm
• Max. load with 1 m frame support spacing = 40 kg
• Installation length = 300 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 31.1 kg
• Weight = 30.9 kg
• Efficient transport of unit loads up to 40 kg
• Modular system can be flexibly expanded
• Easy integration into existing conveyor systems
• Robust tubular steel construction with a low dead weight
• Suitable for various undersides of the conveyed goods
• Includes track connectors, optionally with connecting supports
• The lightweight roller conveyor with aluminium rollers enables a reliable and smooth material flow in internal conveyor technology
• Thanks to its robust, modular design, the roller conveyor can be flexibly integrated into existing conveyor systems and extended if required
• This saves time, reduces personnel costs and supports efficient processes when transporting unit loads
• The lightweight roller conveyor with aluminium rollers is suitable for transporting goods with a unit weight of up to 40 kg
• The aluminium load rollers ensure smooth running and reliably support conveyed goods with differently shaped undersides
• Whether smooth base, longitudinal rib, annular collar or grid structure - the roller conveyor guarantees the reliable transport of various conveyed goods
• For trouble-free operation, the conveyed goods must rest on at least three load rollers
• With an axle spacing of 62,5 mm, this corresponds to a minimum product length of 190 mm
• The sturdy tubular steel construction combines high load-bearing capacity with a low dead weight, making it suitable for continuous use in daily production
• A track connector is already included in the scope of delivery
• Optionally available supports facilitate assembly and also serve as connecting elements between the individual segments
• Thanks to the modular design, the lightweight roller conveyor with aluminium rollers can be adapted to changing production conditions at any time
• Supplementary curve elements also enable flexible routing within the conveyor system
• The lightweight roller conveyor with aluminium rollers is a field-tested solution for production plants, warehouses, dispatch areas and assembly lines
• It supports a smooth internal material flow, reduces manual transport effort and facilitates the organisation of recurring material movements
• The flexibly expandable roller conveyor grows with the requirements of the operation and helps to economically expand existing conveyor systems.
