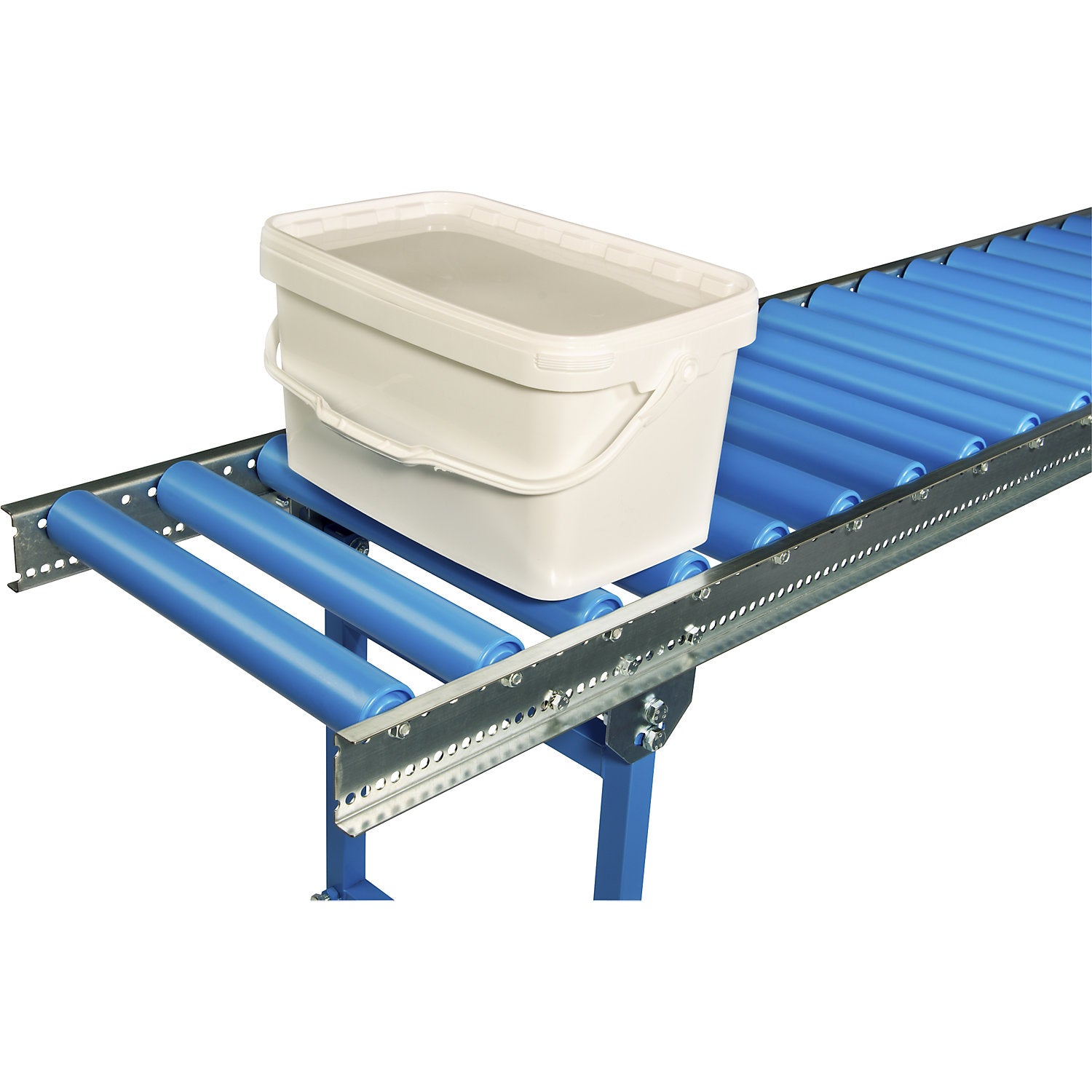

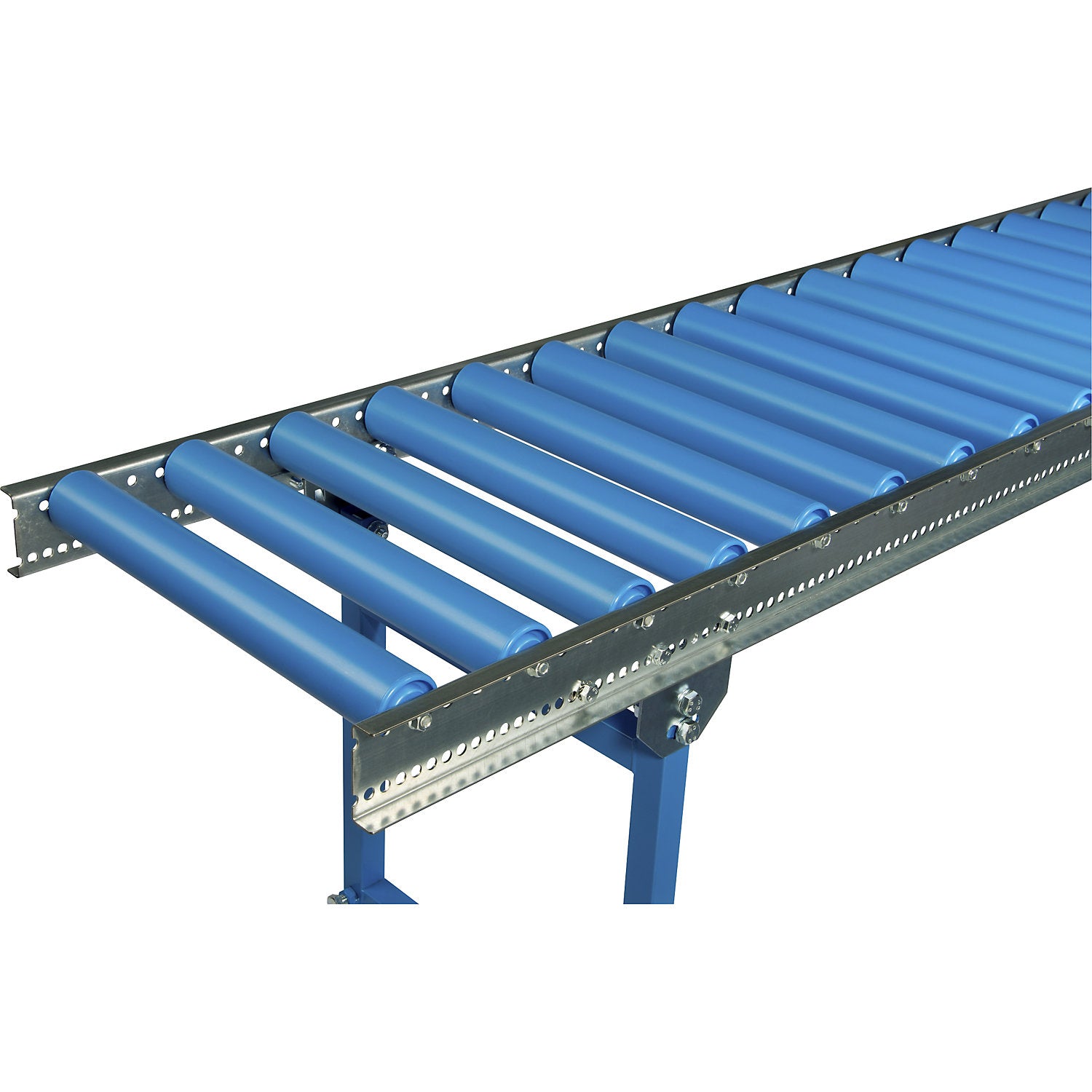

Lightweight roller conveyor, steel with plastic rollers, track width 600 mm, axle spacing 62,5 mm, length 1000 mm.

Estimated delivery: 40 days

Lightweight roller conveyor, steel with plastic rollers, track width 600 mm, axle spacing 62,5 mm, length 1000 mm

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 600 mm
• Overall height = 80 mm
• Width = 640 mm
• Length = 1 m
• Roller diameter = 50 mm
• Roller material = plastic
• Axle spacing = 62.5 mm
• Length of goods conveyed = 189 - 1000 mm
• Width of goods conveyed = 750 mm
• Max. load with 1 m frame support spacing = 25 kg
• Installation length = 603 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 16 kg
• Weight = 15.8 kg
• Continuous transport without waiting times
• Modular, expandable as desired
• Flexible integration into existing conveyor lines
• Robust U-profile made of zinc plated steel
• Suitable for items up to 25 kg
• Plastic rollers for various undersides of conveyed goods
• The light roller conveyor, steel with plastic rollers, enables the continuous transport of small unit loads and supports a smooth material flow
• Thanks to its modular design, the light roller conveyor with plastic rollers can be flexibly integrated into existing conveyor lines and adapted to different requirements of conveyor technology
• This relieves material flows and noticeably reduces manual transport routes
• The roller conveyor is suitable for transporting unit loads up to 25 kg and represents efficient additional models to the use of pallet trucks or stackers for recurring conveying processes
• In contrast to these solutions, transport is continuous and independent of larger batches
• This allows even smaller conveyed goods to reach the next production, picking or packaging step without waiting times
• The sturdy U-profile made of zinc plated steel ensures a durable construction
• The plastic rollers are designed for different underside surfaces of conveyed goods and reliably transport both unit loads with smooth bases and structured surfaces
• A slight incline of 2 % to 5 % is sufficient to enable smooth running
• Conveyed goods should be at least 190 mm long so that they rest on at least three load rollers at all times
• Supplied conveyor connectors as well as optionally available supports enable a flexible adjustment of the roller conveyor
• The max. load can be adjusted to the respective requirements via the spacing of the supports
• The modular system can be expanded as required and easily integrated into existing conveyor technology
• The light roller conveyor with plastic rollers is suitable for production plants, warehouses, dispatch areas and packaging stations with regularly recurring conveying processes
• The roller conveyor supports the continuous material flow of small unit loads, reduces the manual transport effort and can be flexibly adapted to changing requirements of conveyor technology.
