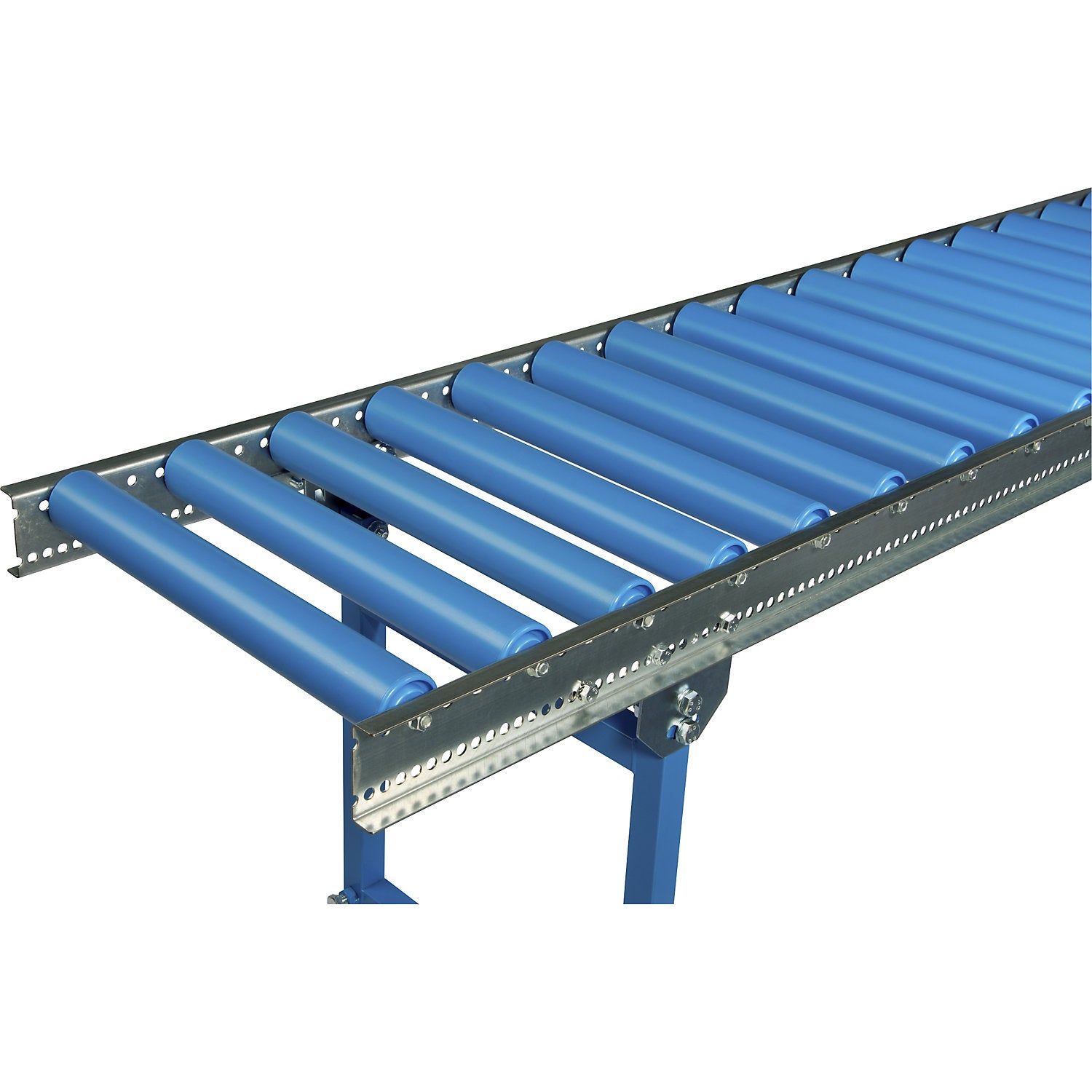

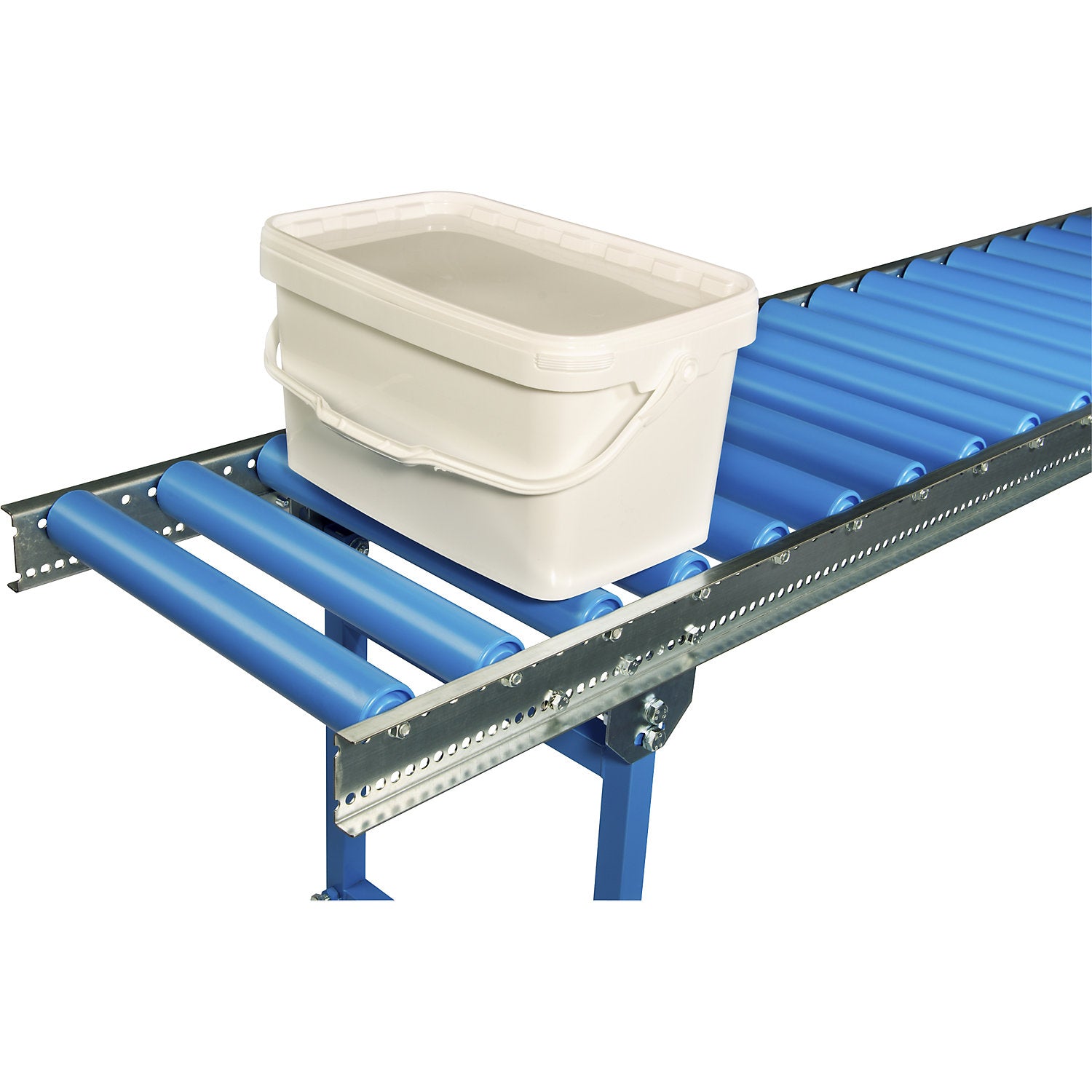

Light-duty roller conveyor, aluminium with plastic rollers, track width 600 mm, axle spacing 75 mm, length 2000 mm.

Estimated delivery: 40 days

Light-duty roller conveyor, aluminium with plastic rollers, track width 600 mm, axle spacing 75 mm, length 2000 mm

• Supplied = assembled
• Design of frame = aluminium
• Track width = 600 mm
• Overall height = 80 mm
• Width = 640 mm
• Length = 2 m
• Roller diameter = 50 mm
• Roller material = plastic
• Axle spacing = 75 mm
• Length of goods conveyed = 225 - 1000 mm
• Width of goods conveyed = 750 mm
• Max. load with 1 m frame support spacing = 25 kg
• Installation length = 603 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 25.8 kg
• Weight = 25.6 kg
• Continuous piece goods transport up to 25 kg
• Modularly expandable and can be flexibly integrated
• Sustainably reduces manual transport routes
• Suitable for smooth and textured undersides
• Max. load adjustable via support spacing
• The lightweight roller conveyor, aluminium with plastic rollers, ensures a continuous material flow and can be flexibly integrated into existing conveyor lines thanks to its modular design
• It reduces manual transport routes and supports the smooth transport of small packaged goods up to 25 kg
• The lightweight roller conveyor with plastic rollers offers an efficient solution for recurring conveying processes and relieves internal material flows
• Compared to transport with pallet trucks or stackers, conveying is independent of larger batches
• Packaged goods are transported continuously and without waiting times to the next production, picking or packaging step
• The conveyor technology is based on a sturdy construction with smooth-running plastic rollers and is suitable for various undersides of conveyed goods
• Both smooth bases and structured surfaces are reliably moved at a gradient of 2 % to 5 %
• To ensure safe running, conveyed goods should be at least 190 mm long
• This ensures they rest on at least three load rollers at all times
• Supplied track connectors enable direct mains connection to existing conveyor lines
• Optionally available supports allow individual adaptation of the roller conveyor to the respective requirements
• At the same time, the max. load can be flexibly influenced via the spacing of the supports
• The modular system can be extended to any length and grows with changing production or logistics processes
• The lightweight roller conveyor with plastic rollers is suitable for production facilities, warehouses, dispatch and packaging areas with regular transport of packaged goods
• The roller conveyor helps companies to relieve material flows, design recurring transport tasks efficiently and organise workflows reliably
• Thanks to the flexible conveyor technology, the roller conveyor can be easily integrated into existing systems and expanded as requirements change.
