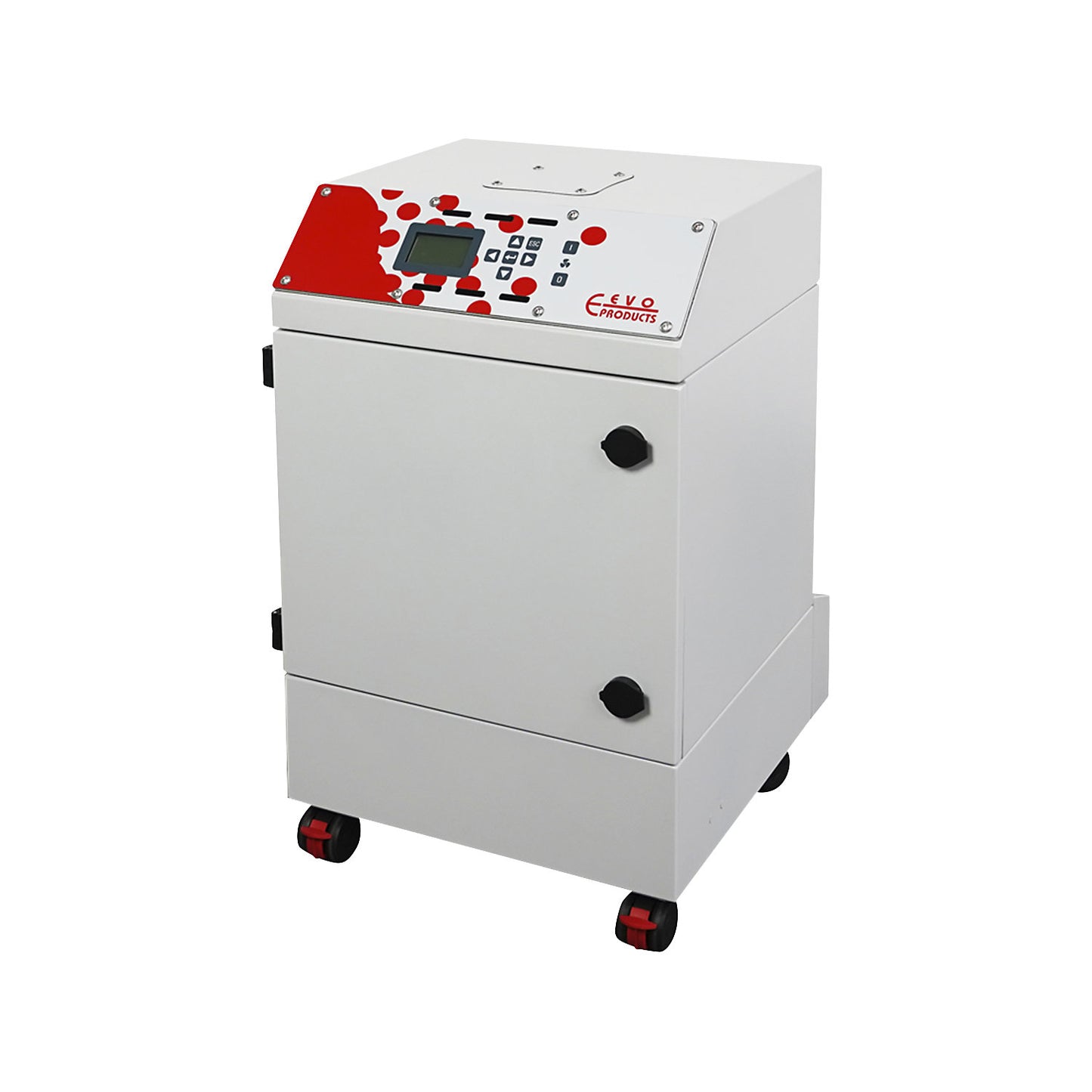

Extraction unit FEX 1000.1, standard, LxWxH 400 x 430 x 709 mm.

Estimated delivery: 41 days

Extraction unit FEX 1000.1, standard, LxWxH 400 x 430 x 709 mm

• Supplied = assembled
• Material = steel, powder coated
• Model = standard
• Noise level = 52 - 69 dB(A)
• Length = 400 mm
• Width = 430 mm
• Height = 709 mm
• Vacuum pressure = 100 mbar
• Voltage = 100 - 240 V
• Protection type = IP55
• Wheel fittings = 4 swivel castors with wheel stops
• Motor power = 1.1 kW
• Area of application = battery cell and battery production, car industry, electronics industry, potentially explosive dusts, fine dust, laser work, soldering and welding work, food industry, pharmacy, chemicals industry, medicine and research, polishing work, smoke extraction, grinding work, packaging industry
• Colour = light grey RAL 7035
• For media = welding fumes, smoke, soldering fumes, vapours, suspended dusts
• Product type = extraction system
• Customs tariff number = 85081900
• Country of origin = DEU
• Gross weight = 31.5 kg
• Weight = 22 kg
• Designed for 24/7 continuous operation and 3-shift use
• Infinitely adjustable extraction capacity for every process
• Efficient filtration with H13/H14 particulate filters
• Compact design, can also be used as an under-table unit
• Convenient operation with status and filter display
• Made in Germany - quality for continuous industrial use
• This compact extraction system is the ideal solution for the reliable capture of smoke, soldering fumes, welding fumes, laser fumes, cutting fumes, vapours, solvents and airborne dusts in industrial applications
• Thanks to its process-adaptable system, it can be flexibly adapted to different work processes and requirements, whilst offering maximum performance in continuous operation
• The powerful EC blower is designed for continuous 24/7 use as well as 3-shift operation and ensures high air flow rates with simultaneously infinitely adjustable extraction capacity
• Thanks to the low overall height, the unit can also be used under a workbench to save space
• For efficient and reliable filtration , the system is equipped with a graduated combination filter system that effectively removes suspended particles from the process air
• The activated carbon content integrated in the main filter additionally reduces odours in the exhaust air and thus contributes to a more pleasant working environment

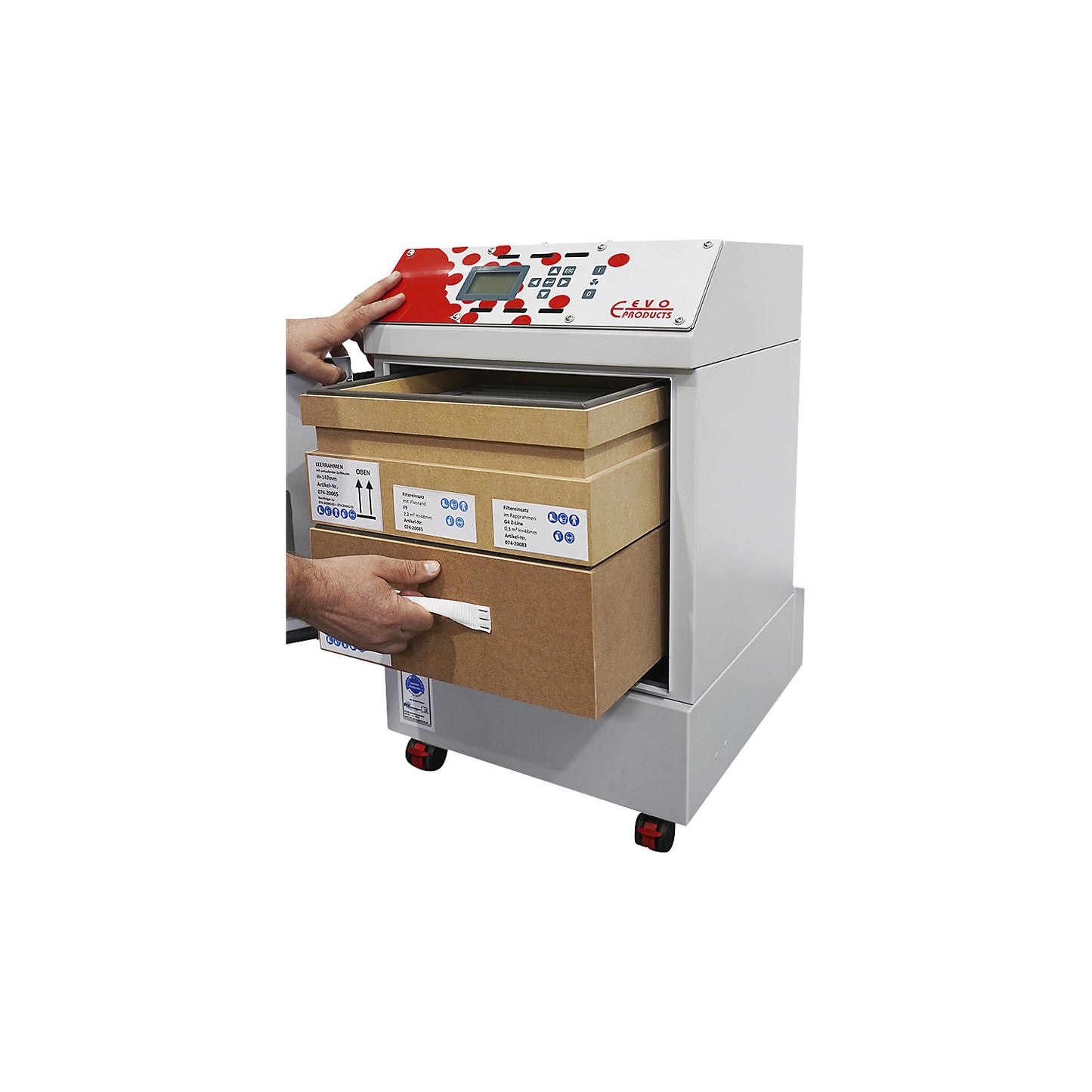

• Convenient filter replacement is carried out via a 2-cassette system, in which the filter cassettes can be replaced independently of each other, thereby minimising maintenance effort and downtime
• Modern control technology enables simple and convenient operation
• The operating parameters can be quickly adapted to individual requirements via the intuitive control panel
• A clear graphic display as well as large, multi-coloured LED indicators provide information at all times about the current unit status, operating states and upcoming filter changes
• In addition, the system has a mains connection for an external on/off remote control
• Depending on the application, the extraction system can be operated with up to two hoses or an extraction arm
• The hose connections can be flexibly positioned on the top or rear of the unit and enable optimal adaptation to the respective workstation
• The standard version is supplied with an initial equipment filter set, consisting of an empty storage filter frame with an F9 filter insert as well as a particulate filter of filter class H13/H14
• This means that a powerful and reliable filter solution for demanding extraction tasks is available right from commissioning.
