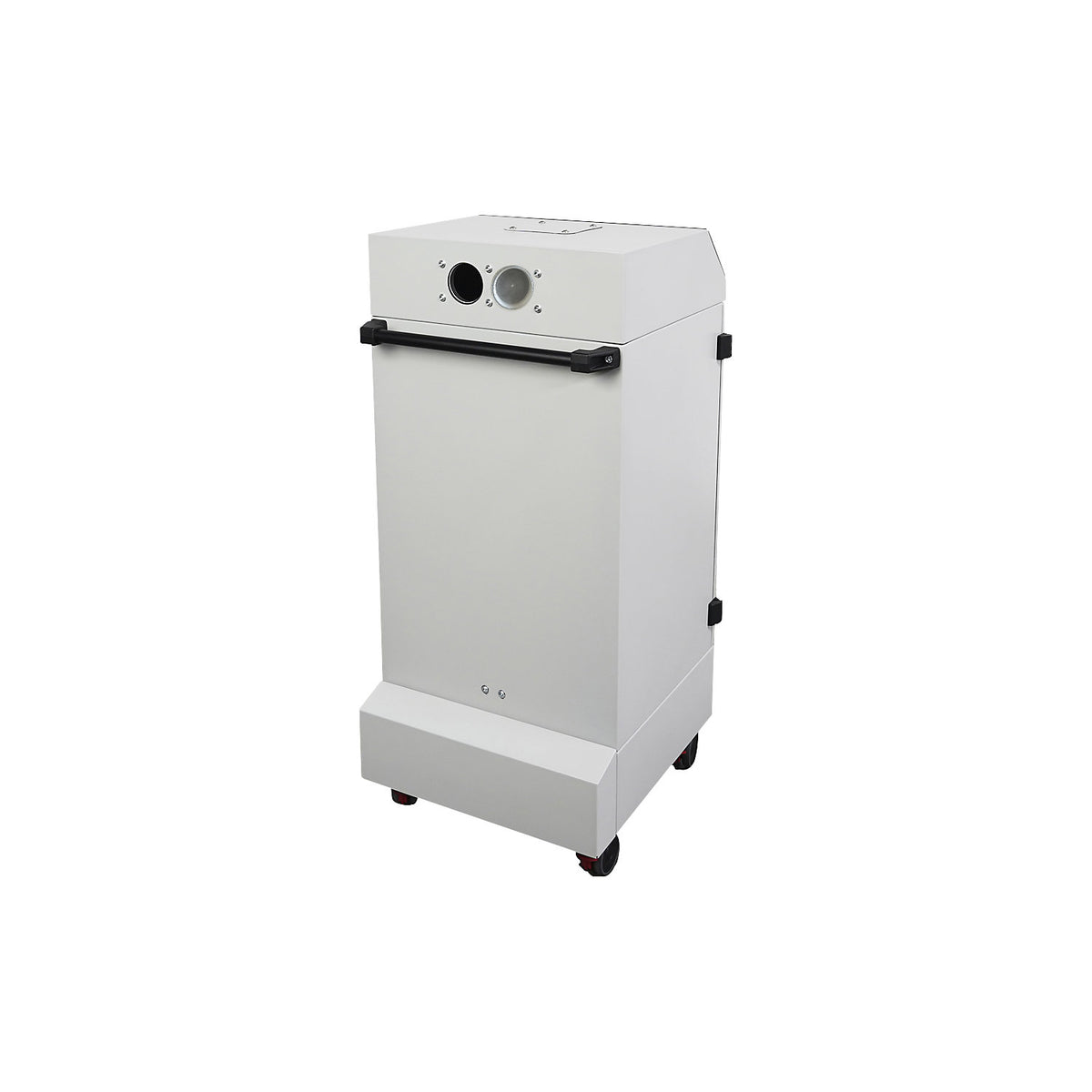

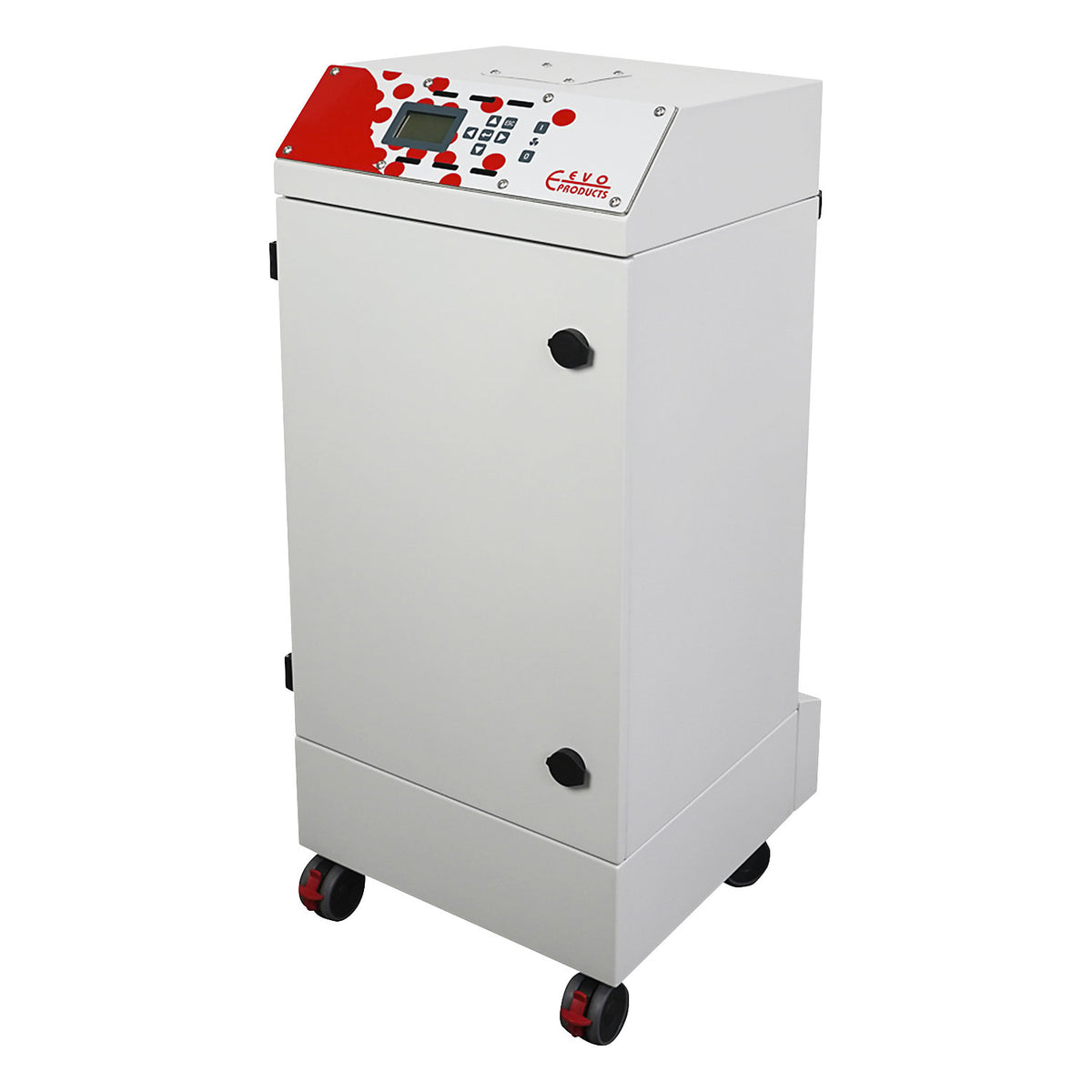

Extraction unit FEX 3000.1, standard, LxWxH 400 x 430 x 957 mm.

Estimated delivery: 48 days

Extraction unit FEX 3000.1, standard, LxWxH 400 x 430 x 957 mm

• Supplied = assembled
• Material = steel, powder coated
• Model = standard
• Noise level = 53 - 68 dB(A)
• Length = 400 mm
• Width = 430 mm
• Height = 957 mm
• Vacuum pressure = 100 mbar
• Voltage = 100 - 240 V
• Protection type = IP55
• Wheel fittings = 4 swivel castors with wheel stops
• Motor power = 1.1 kW
• Area of application = battery cell and battery production, car industry, electronics industry, potentially explosive dusts, fine dust, laser work, soldering and welding work, food industry, pharmacy, chemicals industry, medicine and research, polishing work, smoke extraction, grinding work, packaging industry
• Colour = light grey RAL 7035
• For media = welding fumes, smoke, soldering fumes, vapours, suspended dusts
• Product type = extraction system
• Customs tariff number = 85081900
• Country of origin = DEU
• Gross weight = 38.5 kg
• Weight = 29 kg
• Process-adaptable extraction system for smoke, vapours and airborne dusts
• Continuous-duty EC blower (24/7) with infinitely variable power control. 3-cassette combination filter system with F9/M5, H13/H14 and activated carbon filter
• Convenient filter change thanks to the 3-cartridge system
• Made in Germany - quality for continuous industrial use
• This powerful extraction system was developed for the effective capture of smoke, soldering fumes, laser fumes, welding fumes, cutting fumes, vapours, solvents and airborne dusts
• The flexibly adjustable extraction system can be optimally adapted to different production processes and, thanks to its high-quality model, is ideal for continuous use in 3-shift operation
• A durable EC blower ensures high air volume flows and, thanks to the continuous volume flow control, enables demand-oriented adjustment of the extraction capacity
• This reliably captures pollutants directly at the source of origin
• The design for continuous operation ensures safe and efficient use around the clock
• For effective air purification, the system is equipped with a three-stage combination filter system
• The individual filter stages reliably remove suspended particles from the process air, while the integrated activated carbon filter significantly reduces unpleasant odours
• The well-thought-out 3-cassette system enables quick and convenient filter replacement, with each filter cassette being able to be replaced separately
• The modern control technology supports simple operation and, with a graphic display as well as large, multi-coloured LED displays , provides a quick overview of the operating state, device status and filter messages at any time
• All settings can be easily adjusted to the respective requirements via the intuitive control panel
• For maximum flexibility, up to two extraction hoses or, alternatively, an extraction arm can be connected
• The mains connections can optionally be used on the top of the device or on the rear
• In addition, the integrated mains connection for an on/off remote control enables easy integration into existing workflows
• The scope of delivery includes an original equipment filter set consisting of a storage filter with F9 and M5 insert, a class H13/H14 particulate filter and an activated carbon filter
• This means the system is immediately ready for use for demanding extraction tasks.
