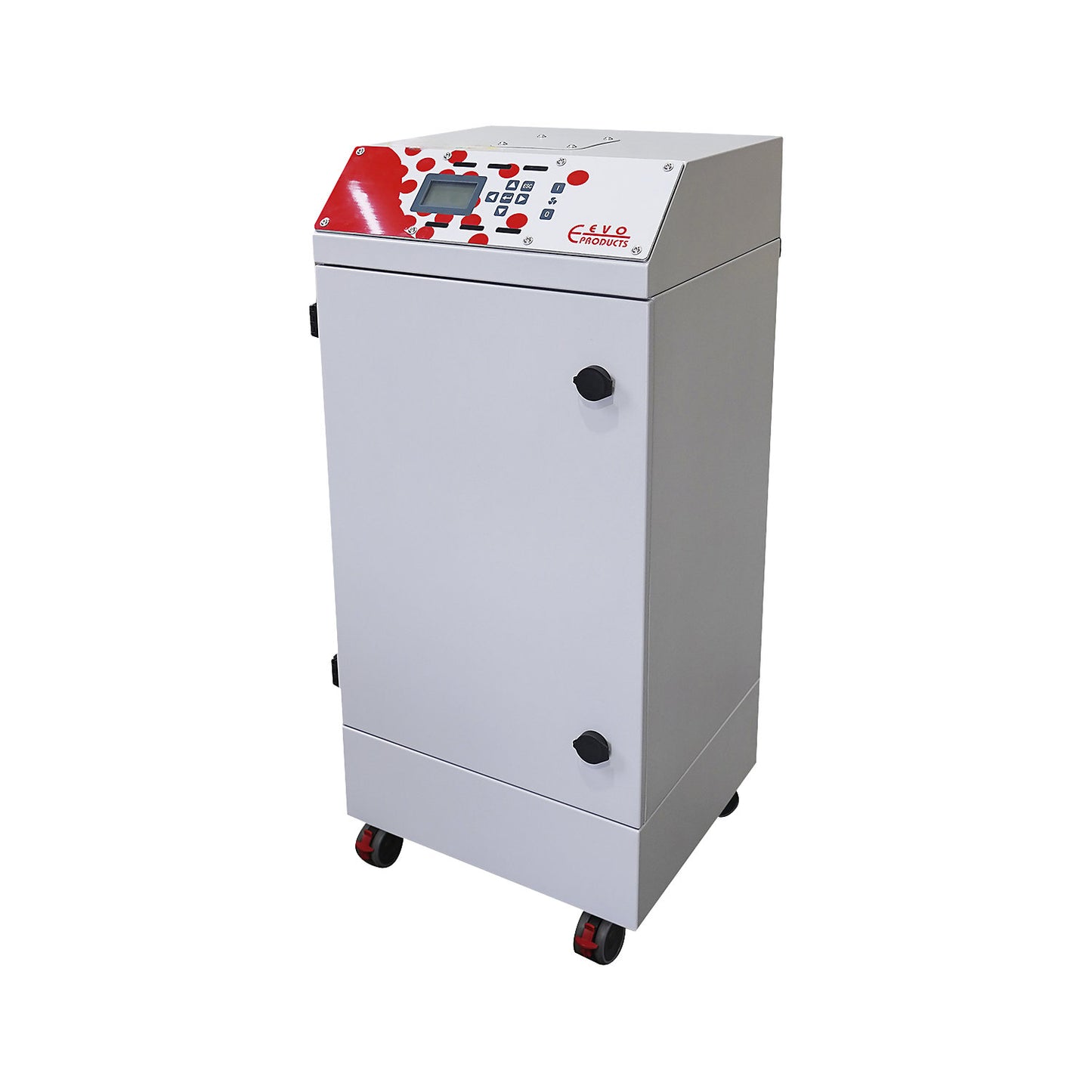

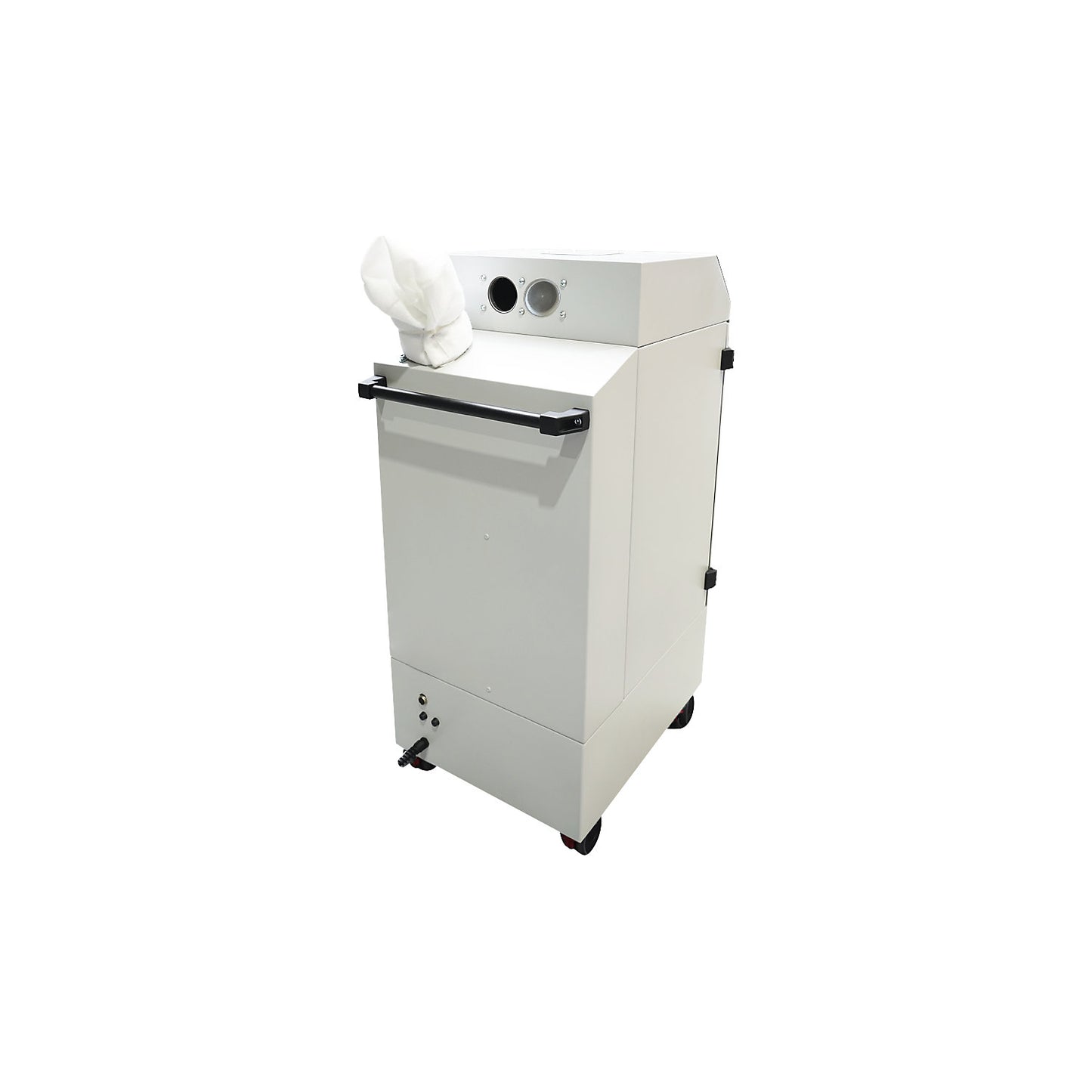

Extraction system FEX 3000.2, standard, LxWxH 590 x 430 x 1025 mm.

Estimated delivery: 41 days

Extraction system FEX 3000.2, standard, LxWxH 590 x 430 x 1025 mm

• Supplied = assembled
• Material = steel, powder coated
• Model = standard
• Noise level = 56 - 66 dB(A)
• Length = 590 mm
• Width = 430 mm
• Height = 1025 mm
• Vacuum pressure = 100 mbar
• Voltage = 230 V
• Protection type = IP55
• Wheel fittings = 4 swivel castors with wheel stops
• Motor power = 2x1,1 kW
• Area of application = battery cell and battery production, car industry, electronics industry, potentially explosive dusts, fine dust, laser work, soldering and welding work, food industry, pharmacy, chemicals industry, medicine and research, polishing work, smoke extraction, grinding work, packaging industry
• Colour = light grey RAL 7035
• For media = welding fumes, smoke, soldering fumes, vapours, suspended dusts
• Product type = extraction system
• Customs tariff number = 85081900
• Country of origin = DEU
• Gross weight = 52 kg
• Weight = 38 kg
• Made in Germany - quality for continuous industrial use. 24/7 operational EC blowers with large air volume. 3-stage filter system for maximum air purity
• Extra-quiet operation thanks to silencer and blow-out diffuser
• Flexibly adaptable through infinitely variable volume flow control
• The FEX 3000.2 is a high-quality extraction system manufactured in Germany for the effective capture and filtration of smoke, soldering fumes, vapours and suspended dusts
• It was specially developed for industrial applications and impresses with its high performance, reliable filter technology and maximum operational safety in demanding continuous operation
• Thanks to its robust model and the use of high-quality components, the system is designed for 24/7 continuous operation as well as use in 3-shift operation
• The powerful EC blowers ensure the extraction of large air volumes and enable stepless volume flow control, so that the extraction capacity can be optimally adapted to the respective process requirements at any time
• The integrated, three-stage combination filter system ensures reliable air purification
• Suspended matter and the finest particles are efficiently separated, while the activated carbon filter effectively reduces odours and gaseous pollutants in the exhaust air
• This makes the FEX 3000.2 ideal for the extraction of laser smoke, welding and soldering fumes, cutting fumes as well as a wide variety of vapours and solvents
• The system can be operated flexibly with up to two extraction hoses or an extraction arm
• The hose connection can optionally be implemented on the top of the device or on the rear, thereby offering maximum flexibility when integrating into existing workstations and production environments
• Operation is via an intuitive control panel, which enables quick and convenient adaptation to individual requirements
• A clear graphic display and large, multi-coloured LED displays provide reliable information about the device status, filter condition and current settings at any time
• The fume extraction system also impresses with a well-thought-out concept in the area of maintenance
• The integrated 3-cassette system enables a particularly convenient filter change, whereby the individual filter cassettes can be replaced independently of each other
• This reduces downtimes and contributes to economical operation
• In the standard model, the system is delivered with an initial filter equipment set consisting of a storage filter with F9 and M5 insert, a class H13/H14 particulate filter as well as an activated carbon filter
• In addition, the FEX 3000.2 is equipped as standard with a silencer and an exhaust diffuser
• This combination ensures an extra-low sound pressure level and enables a pleasantly quiet operation even in noise-sensitive work areas
• With its high filter efficiency, flexible adaptability, durable technology and Made in Germany quality, the FEX 3000.2 offers a future-proof solution for the professional extraction of airborne pollutants in modern industrial and manufacturing processes.
