Drawbar and coupling set, for pallet dollies, screw-on.

Estimated delivery: 36 days

Drawbar and coupling set, for pallet dollies, screw-on

• Supplied = partially assembled
• Finish = hot dip galvanised
• Product type = accessories for dollies
• Customs tariff number = 87168000
• Country of origin = SVK
• Gross weight = 2.3 kg
• Weight = 2 kg
• Transport of up to 4 dollies in the tugger train
• Designed for towing weights up to 2000 kg
• Robust, screw-on model

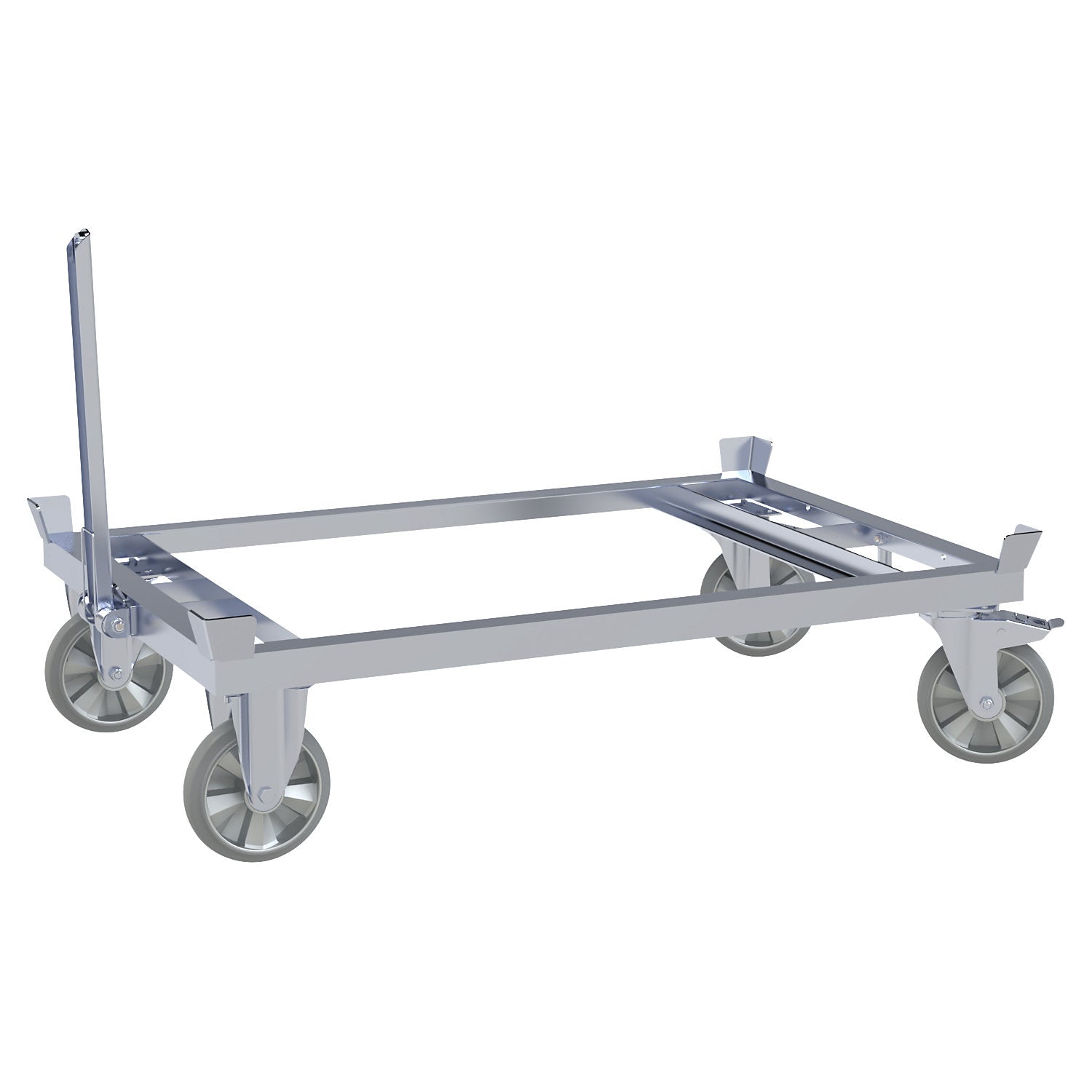

• Drawbar as standard mounting on the swivel castor side
• Drawbar available on request for the fixed castor side
• Sturdy coupling with drawbar made of folded sheet metal profile

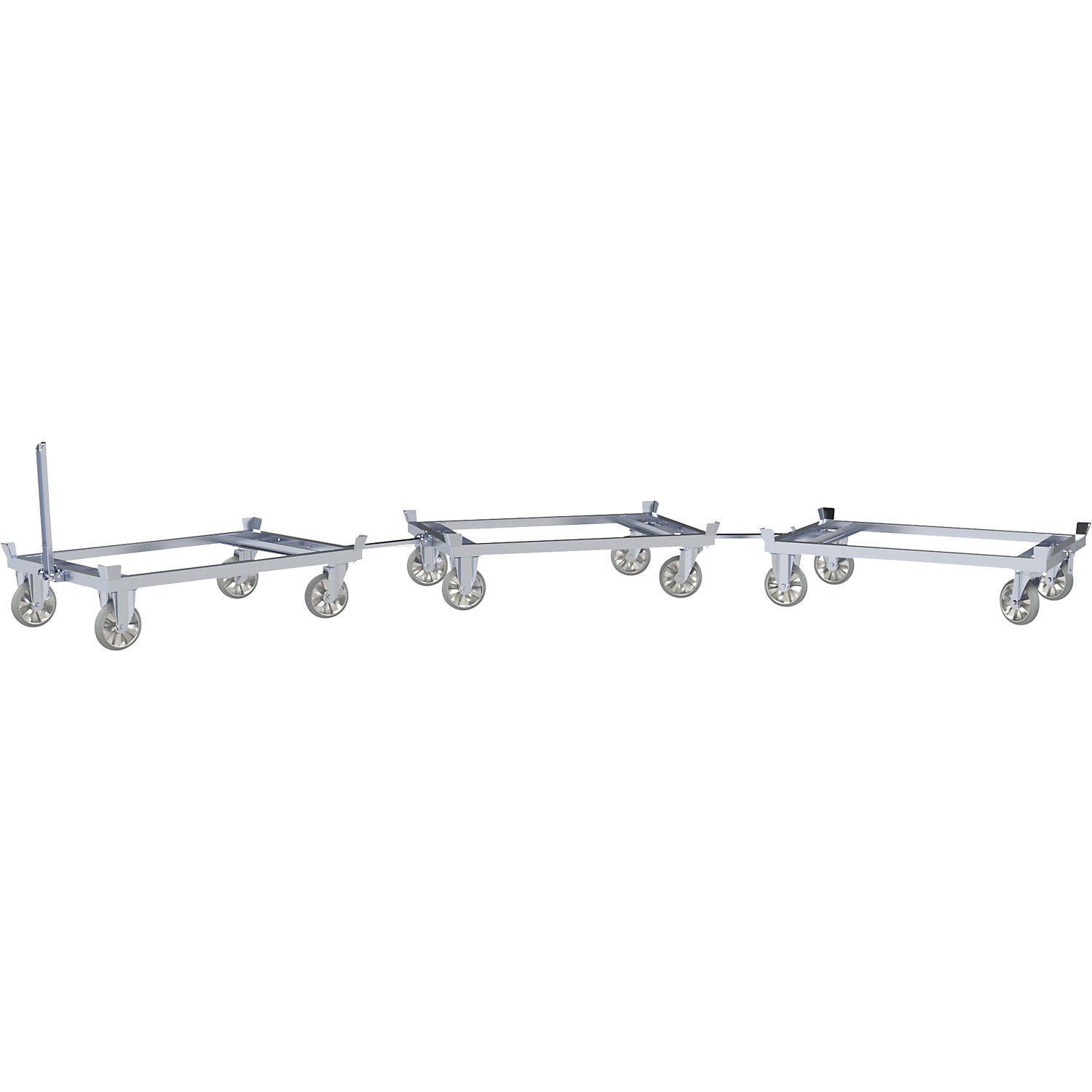

• The drawbar and coupling set enables the safe assembly of a tugger train with up to four pallet dollies
• With a maximum towing weight of 2000 kg, several dollies can be efficiently connected to each other and moved together
• This simplifies internal transport processes and reduces the number of individual journeys
• The drawbar and coupling set for pallet dollies consists of a screw-on drawbar and a matching coupling
• As standard, the drawbar is mounted on the swivel castor side
• A model for the fixed castor side is also available on request
• The drawbar made of folded sheet metal profile with the dimensions 520 x 50 mm ensures a robust connection between the dollies
• The eyes with a diameter of 30 mm and the coupling pin made from a shaft with 20 mm diameter ensure a stable and reliable coupling
• The coupling pin features a hole for a spring cotter pin, which is, however, not included in the scope of delivery
• The drawbar and coupling set is suitable for companies in warehousing, logistics, production and dispatch that want to move several pallet dollies at the same time
• By using them as a tugger train, material flows can be consolidated and transport routes can be made more efficient
• This reduces walking distances, saves time and facilitates internal material transport
• At the same time, the sturdy, screw-on construction ensures a durable connection of the individual dollies and enables flexible adaptation to different requirements in everyday work
• The drawbar and coupling set for pallet dollies thus supports an economical and structured material flow in a wide variety of operational areas.
