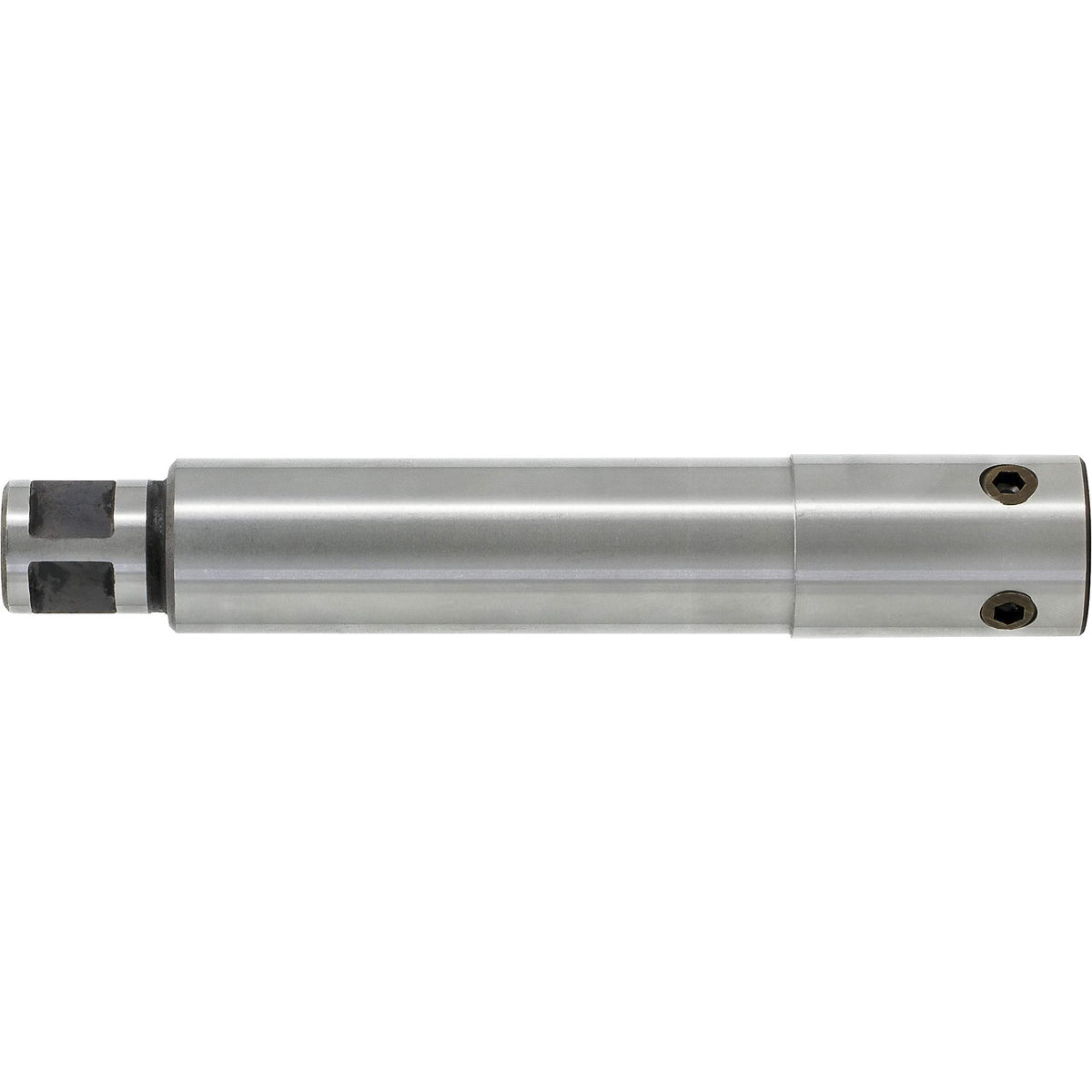

WELDON extension, for core drills with 19 mm, 150 mm.

Estimated delivery: 34 days

WELDON extension, for core drills with 19 mm, 150 mm

• Colour = silver
• Number of parts = 1 pcs
• Material = metal
• Product type = extensions
• Customs tariff number = 82075060
• Country of origin = CHN
• Gross weight = 0.63 kg
• Weight = 0.43 kg
• Suitable for core drills with a 19 mm WELDON shank from a diameter of 26 mm
• Optimally suited for drilling through both flange sides of H and I steel beams
• Ejector pins can be used in combination with the extensions

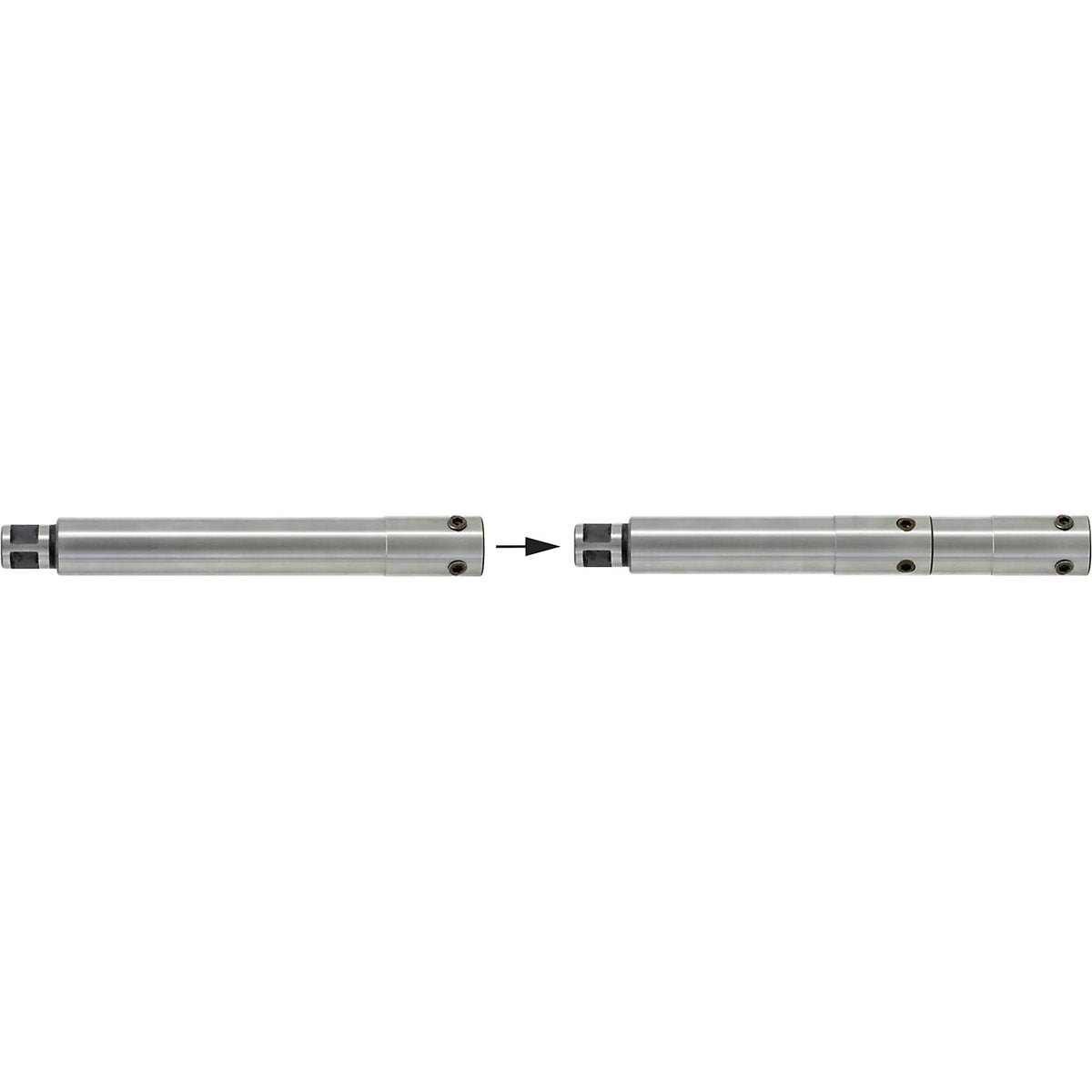

• Extensions can be slotted into each other to achieve a greater overall length
• For realising greater drilling depths
• WELDON extension - more reach for precise drilling work The WELDON extension extends the working range of core drills and enables drilling in hard-to-reach areas
• The robust tool was developed specially for core drills with a 19 mm WELDON holder from a diameter of 26 mm and ensures flexible adaptation to different application requirements
• By using the extension, greater drilling depths can be achieved without sacrificing precision or stability
• Especially for constructions with large material thicknesses, it offers a practical solution when conventional drills reach their reach
• The extension can be used in combination with ejector pins
• This ensures that the drill core remains reliably ejectable after the drilling process and the workflow is not interrupted
• Another advantage is that several extensions can be combined with one another
• They can easily be slotted into each other, creating a greater overall length
• This increases the flexibility of the tool and enables its use even in demanding drilling situations where particularly deep or through-holes are required
• The WELDON extension is particularly suitable for drilling through both flange sides of H- and I-steel beams
• It thus supports precise work in steel construction, plant engineering, as well as assembly and maintenance tasks
• In combination with suitable drills, a reliable solution is created for applications where reach, precision and an economical workflow are crucial.
