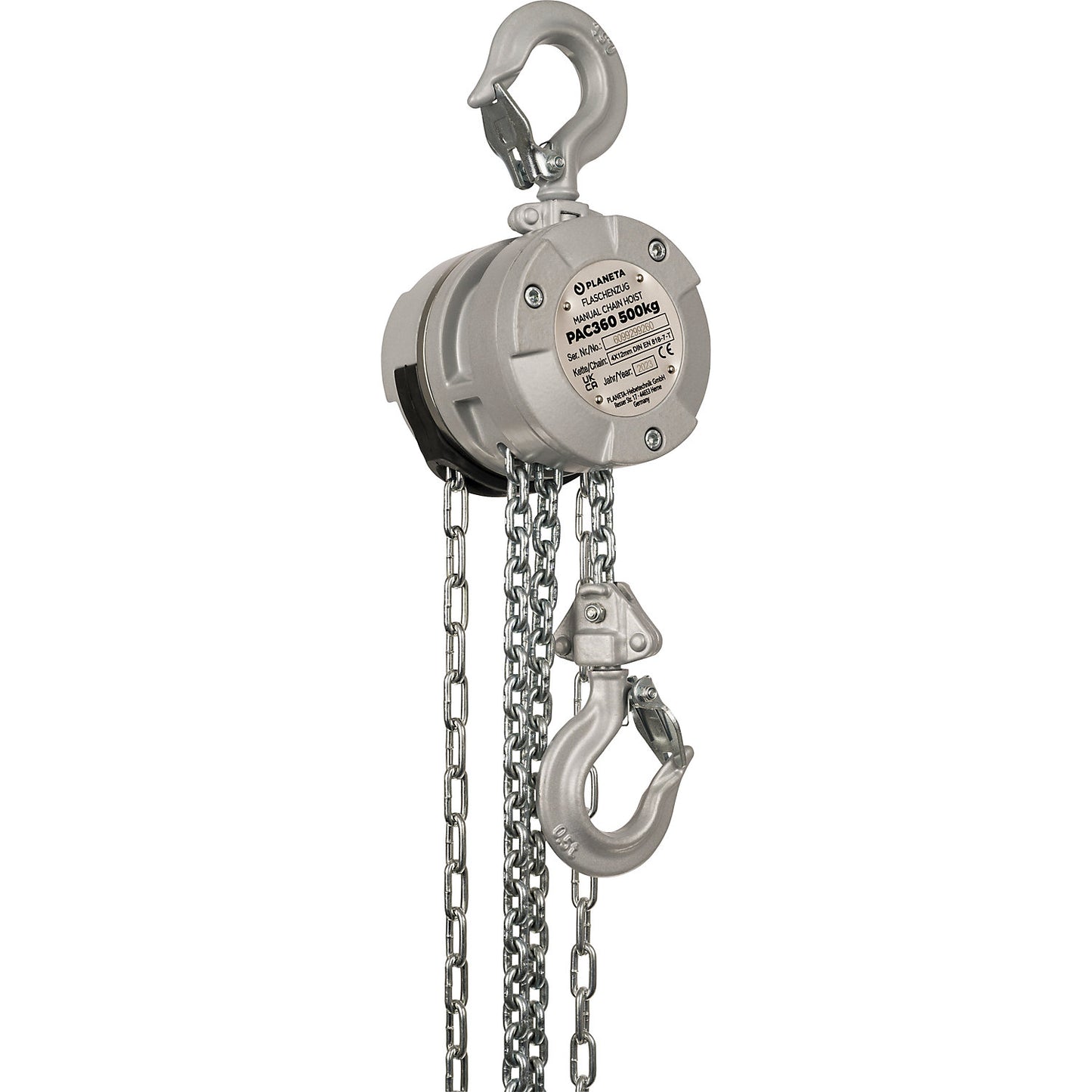

Mini aluminium block and tackle, max. load 500 kg, lifting 3 m.

Estimated delivery: 34 days

Mini aluminium block and tackle, max. load 500 kg, lifting 3 m

• Supplied = assembled
• Max. load = 500 kg
• Lift = 3000 mm
• Number of chain strands = 1 pcs
• Overall height (between device hook / load hook inner edges) = 290 mm
• Power required at full load = 19 daN
• Housing material = anodised aluminium
• Product type = block and tackles
• Colour = silver
• Customs tariff number = 84251900
• Country of origin = CHN
• Gross weight = 4.1 kg
• Weight = 2.8 kg
• Compact, lightweight and for mobile use. 360° rotating hand chain guide for working from any position
• Low overall height for tight and hard-to-reach locations
• High lifting capacity with minimal effort
• One-piece aluminium housing for maximum stability
• Overload protection reliably protects the device, load and operator
• The mini aluminium chain hoist impresses with its compact design, the lightweight aluminium housing and the 360° rotating hand chain guide for comfortable working from almost any position
• Thanks to the low overall height, this chain hoist is particularly suitable for work in tight spaces or at hard-to-reach locations
• At the same time, it offers a reliable solution for the safe lifting and positioning of loads and is specially designed for mobile use
• The manual chain hoist is designed for mobile use and is easy to transport due to its low weight
• The aluminium housing is manufactured from a single piece and thus ensures high stability as well as a permanently resilient construction
• The finely tuned gear ratio enables a high lifting performance with little effort

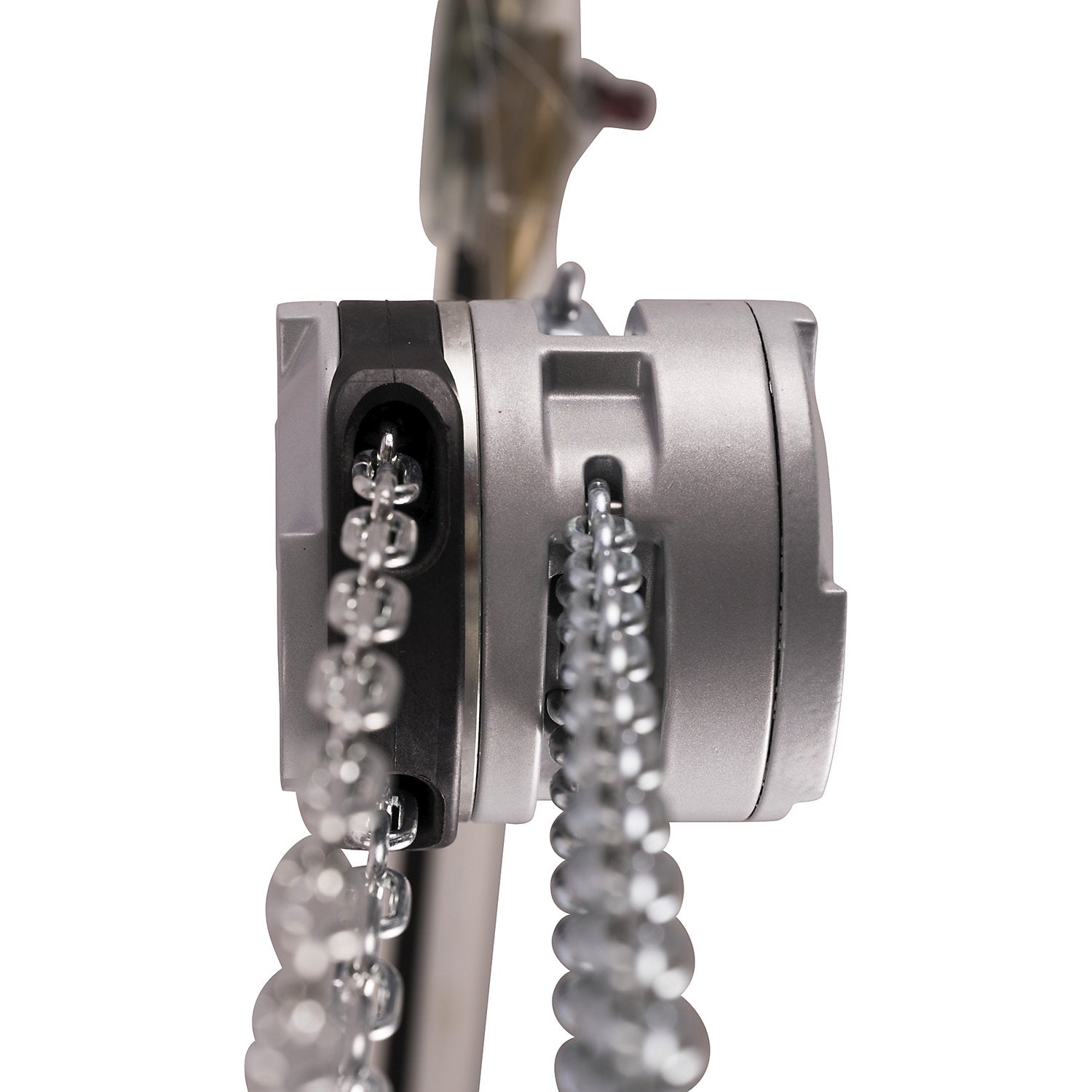

• The 360° rotating hand chain guide ensures comfortable operation from almost any working position and makes working easier even in confined spaces
• A galvanised hand chain protects against corrosion and ensures reliable use, even under demanding conditions
• The high-strength load chain meets the requirements of DIN EN 818-7-T and ensures a high degree of safety and quality
• An integrated overload protection device protects both the chain hoist and the load from damage caused by overloading
• The versatile hooks extend the application possibilities and enable flexible use in a wide variety of industrial and craft sectors
• The chain hoist is suitable for industry, trade, maintenance, workshops and assembly areas
• Wherever loads have to be regularly lifted, lowered or precisely positioned, the compact ratchet chain hoist supports effort-saving and safe working
• Thanks to its compact design, the chain hoist is particularly suitable for confined working areas and changing locations of use
• It helps to reduce physical strain, make work processes more efficient and move loads safely even under difficult space conditions.
