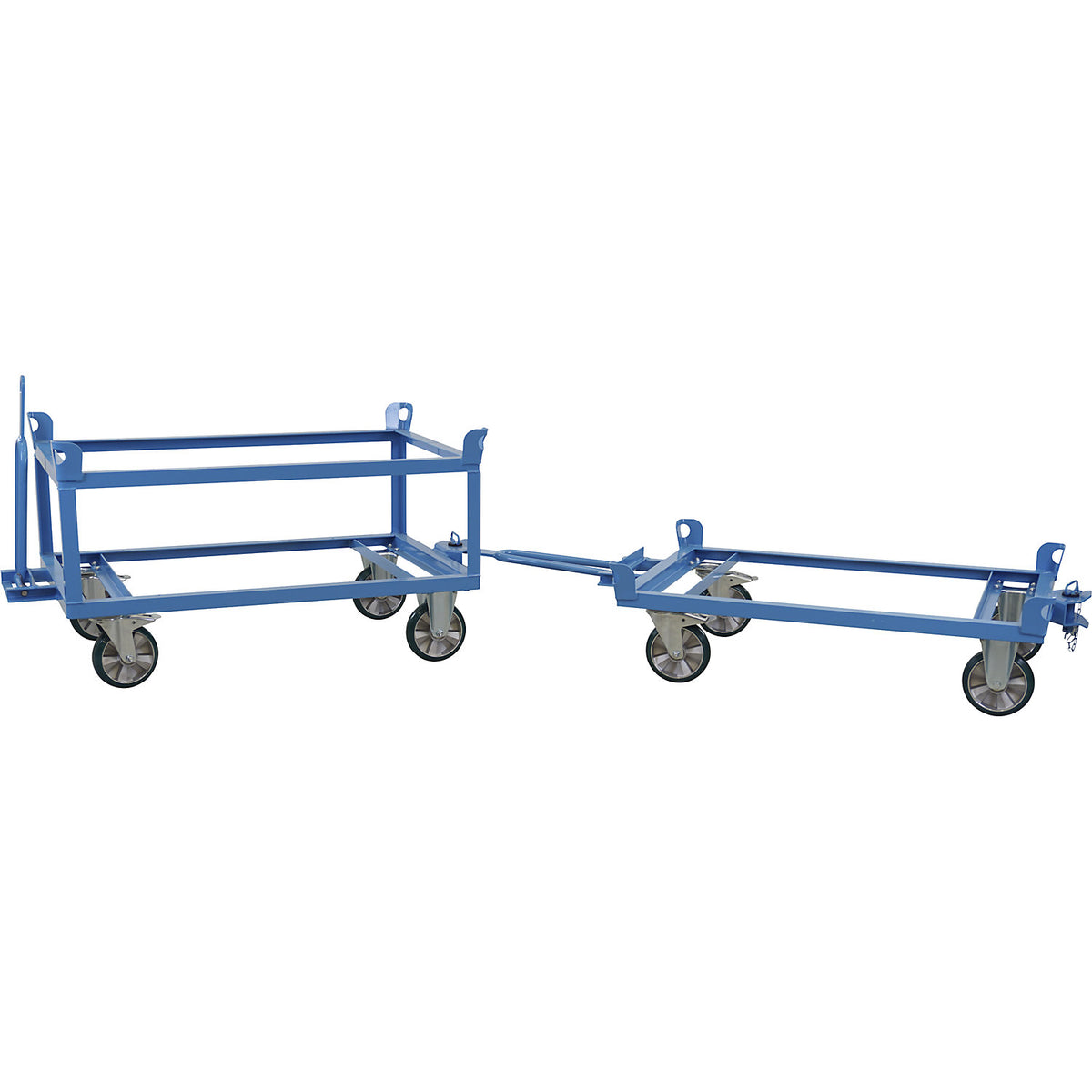

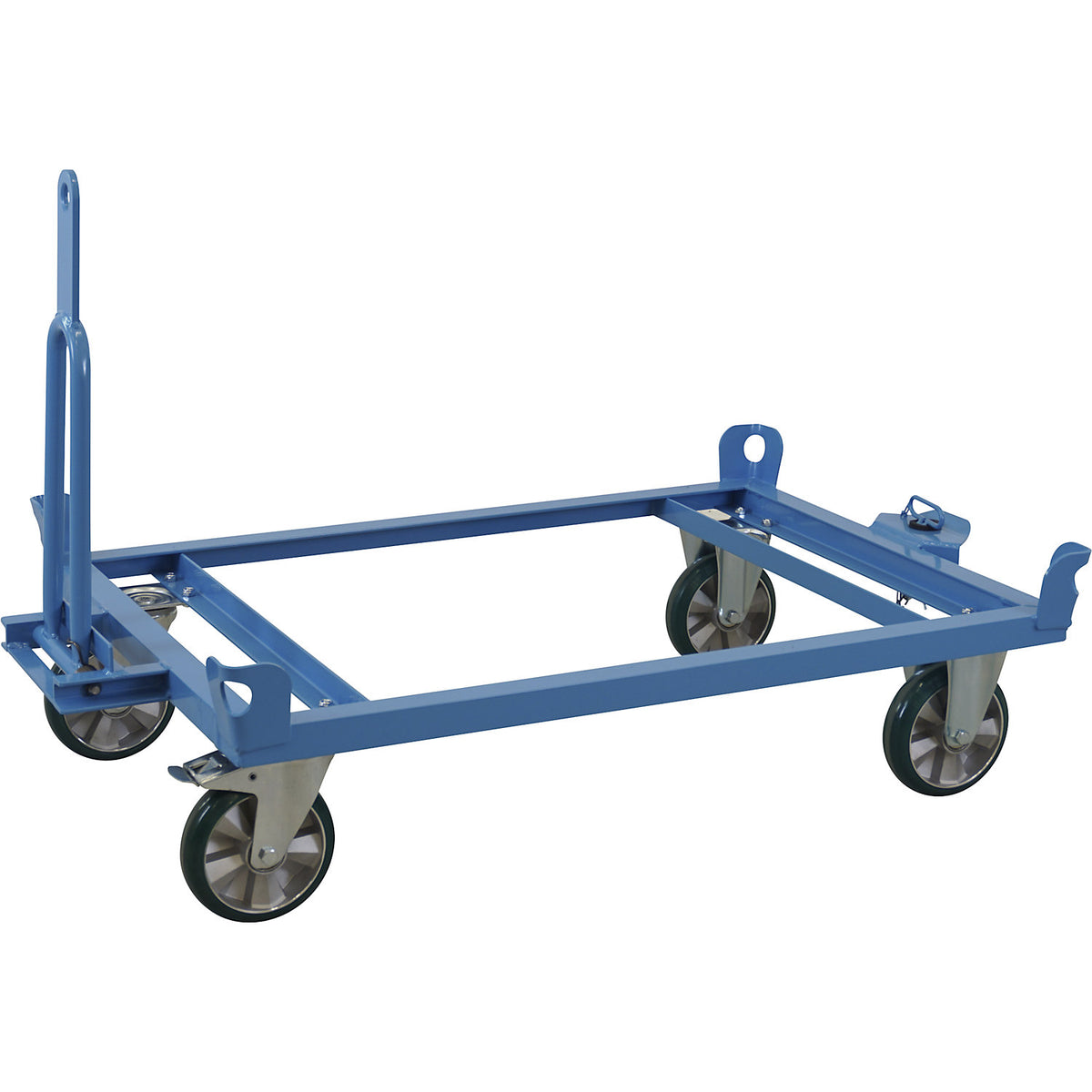

Chassis with drawbar and coupling, max. load 1200 kg, platform height 280 mm.

Estimated delivery: 64 days

Chassis with drawbar and coupling, max. load 1200 kg, platform height 280 mm

• Supplied = assembled
• Max. load = 1200 kg
• Platform length = 1210 mm
• Platform width = 810 mm
• Loading height = 280 mm
• Length = 1463 mm
• Width = 850 mm
• Frame material = steel
• Frame colour = light blue RAL 5012
• Finish = powder coated
• Height = 900 mm
• Wheel fittings = 2 swivel castors with double stops, 2 fixed castors
• Wheel type = polyurethane
• Wheel diameter = 200 mm
• Wheel bearing = double ball bearing
• Fittings = stacking corners/corner braces, angled frame, drawbar, coupling
• Application = for pallets
• Drawbar height = 260 mm
• Pulling/pushing speed under load = 12 km/h
• Product type = wheeled bases for Euro pallets
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 56.2 kg
• Weight = 45 kg
• Suitable for Euro pallets and mesh pallets in Euro dimensions
• Four interlocking corners secure the pallet safely
• Permanently approved for speeds up to 12 km/h
• Maximum towing weight of 3500 kg
• Swivelling drawbar and secured bolt coupling
• The dolly with drawbar and coupling enables the safe and efficient use in tugger trains at a continuously permissible speed of up to 12 km/h
• It thus supports swift transport processes over longer internal routes
• The dolly is designed for Euro pallets and mesh pallets in Euro dimensions
• Four catch corners secure the loaded pallet or mesh pallet and prevent accidental slipping during travel
• As a result, goods and materials remain reliably positioned even during regular transports
• The maximum towing weight of 3500 kg enables use in high-performance tugger trains

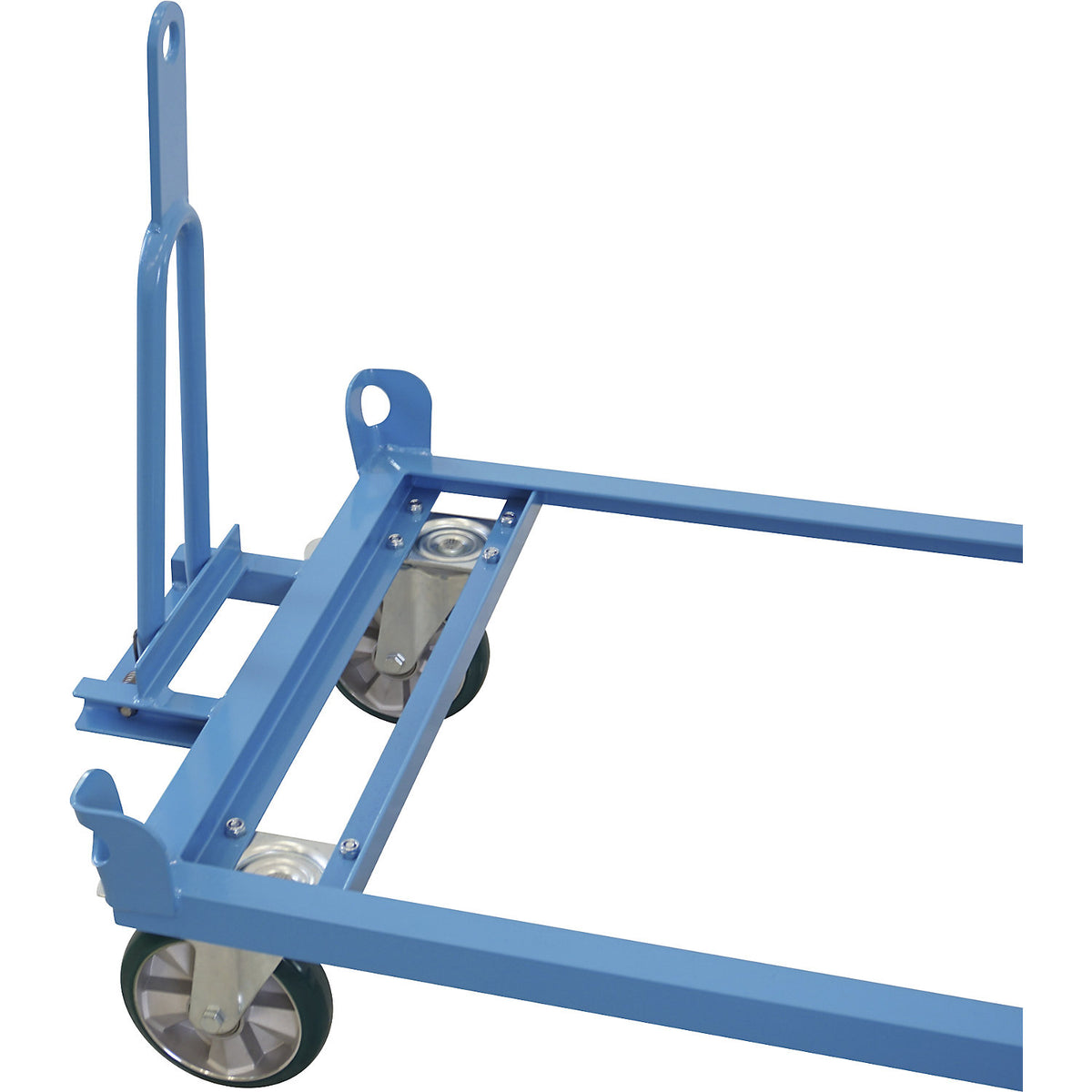

• A swivelling drawbar facilitates the connection and manoeuvring of the pallet dolly
• The pin coupling with a diameter of 30 mm establishes a stable connection
• A spring cotter pin secures the pin and reduces the risk of accidental loosening
• In this way, the dolly with drawbar and coupling can be safely integrated into existing transport processes
• Two swivel castors with double stop and two fixed castors ensure controlled handling
• The high-quality castor equipment is approved for continuous operation up to 12 km/h
• The powder coated steel frame provides a robust basis for recurring transport tasks
• The pallet dolly is suitable for production plants, warehouses, dispatch areas and internal logistics
• It helps to move Euro pallets and mesh pallets in batches between workstations, staging areas and storage areas
• This allows individual transport journeys to be reduced, material flows to be structured and manual transport routes to be shortened
• Particularly for regularly recurring supply runs, the dolly supports consistent and predictable processes.
