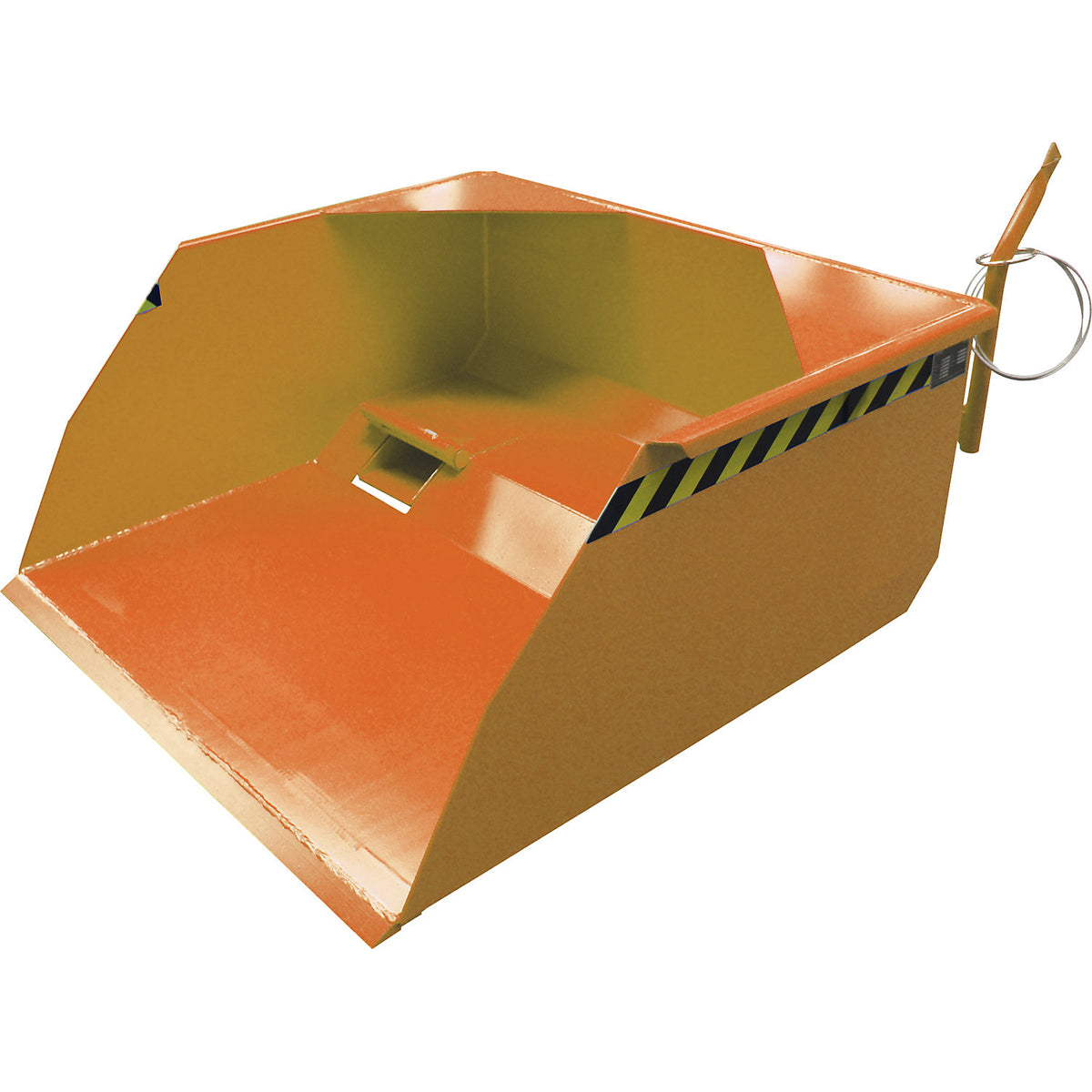

BSM stacker bucket, mechanical with opening for fork tips, capacity 0.75 m³, yellow orange RAL 2000.

Estimated delivery: 58 days

BSM stacker bucket, mechanical with opening for fork tips, capacity 0.75 m³, yellow orange RAL 2000

• Supplied = assembled
• Capacity = 0.75 m³
• Max. load = 1500 kg
• Colour = yellow orange RAL 2000
• Material = steel
• Finish = painted
• Forklift pocket spacing = 580 mm
• Length = 1420 mm
• Width = 1170 mm
• Height = 730 mm
• Customs tariff number = 84312000
• Country of origin = DEU
• Gross weight = 210 kg
• Weight = 210 kg
• Sustainability = Recyclable
• Optimal load centre
• Scraper blade made of special steel
• Release of the mechanism by cable pull
• The stacker shovel impresses as a versatile stacker attachment with exceptionally easy handling and convenient emptying via cable pull directly from the stacker seat
• It is ideal for loading, transporting and dumping a wide variety of bulk materials and supports efficient workflows in warehouses, industry, agriculture and construction
• The mechanical shovel is quickly and easily picked up via rear drive-in openings with the fork tips of the stacker
• This means it is ready for use in no time and can be used flexibly on different vehicles
• A high level of safety is ensured by the integrated device to prevent accidental slipping and tipping during operation
• Particularly practical is the tilting function, which can be conveniently triggered from the stacker seat at any lifting height via cable pull
• This allows controlled emptying of the material and saves valuable working time
• The optimal load centre also contributes to safe handling and stable load pick-up
• A sturdy base frame and the robust bucket sheet metal with an all-round edge profile ensure high resistance even in demanding applications
• The high-quality scraper bar made of special steel features high wear resistance and is ideal for picking up sand, gravel, soil, crushed stone or other bulk materials
• The stacker shovel is available in the five sizes 0.5 m³, 0.75 m³, 1.0 m³, 1.5 m³ and 2.0 m³, offering the right model for virtually any application
• In addition, two colour variants are available for selection
• With its durable construction, simple operation and well-thought-out safety features, this shovel is a reliable solution for professional material handling in daily use.
