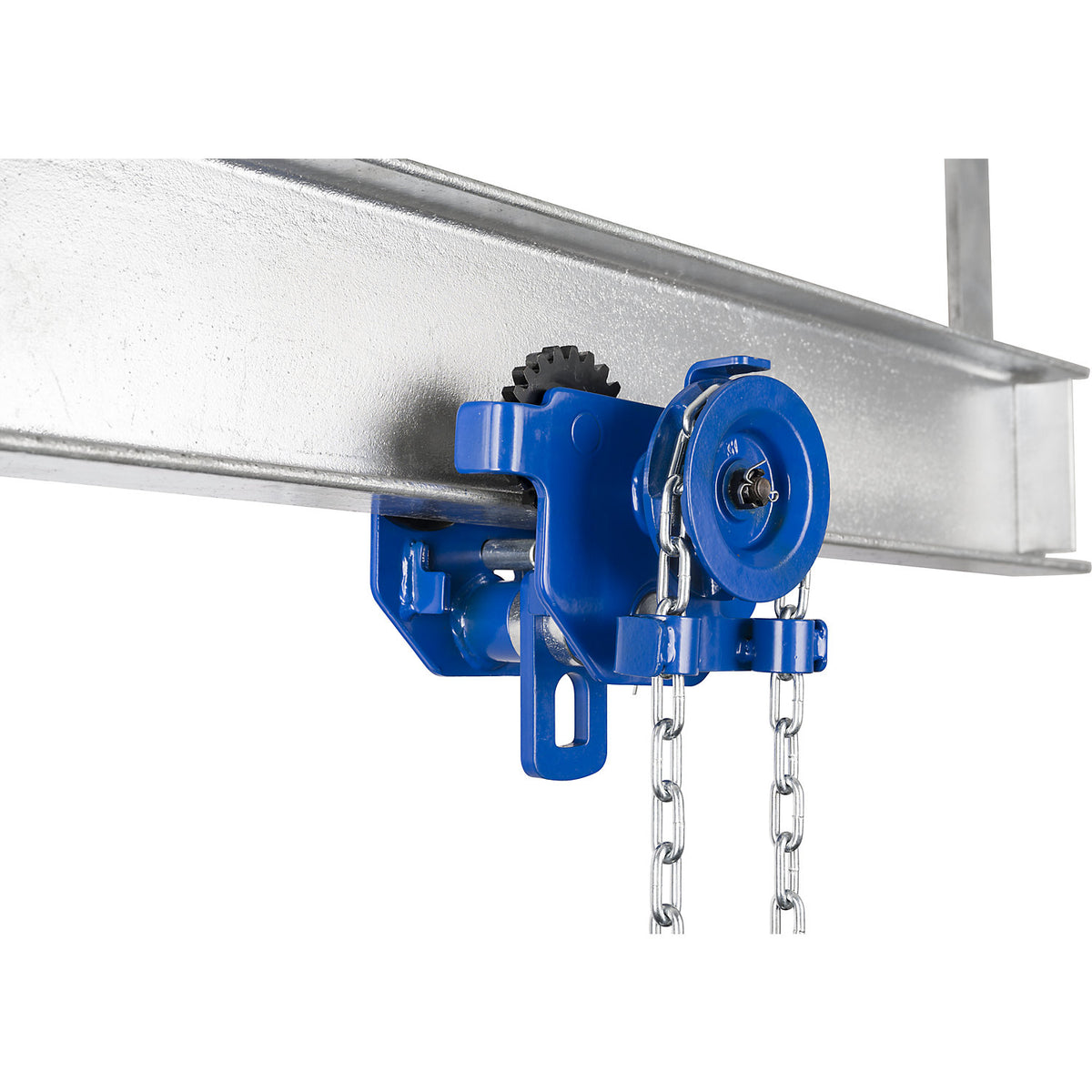

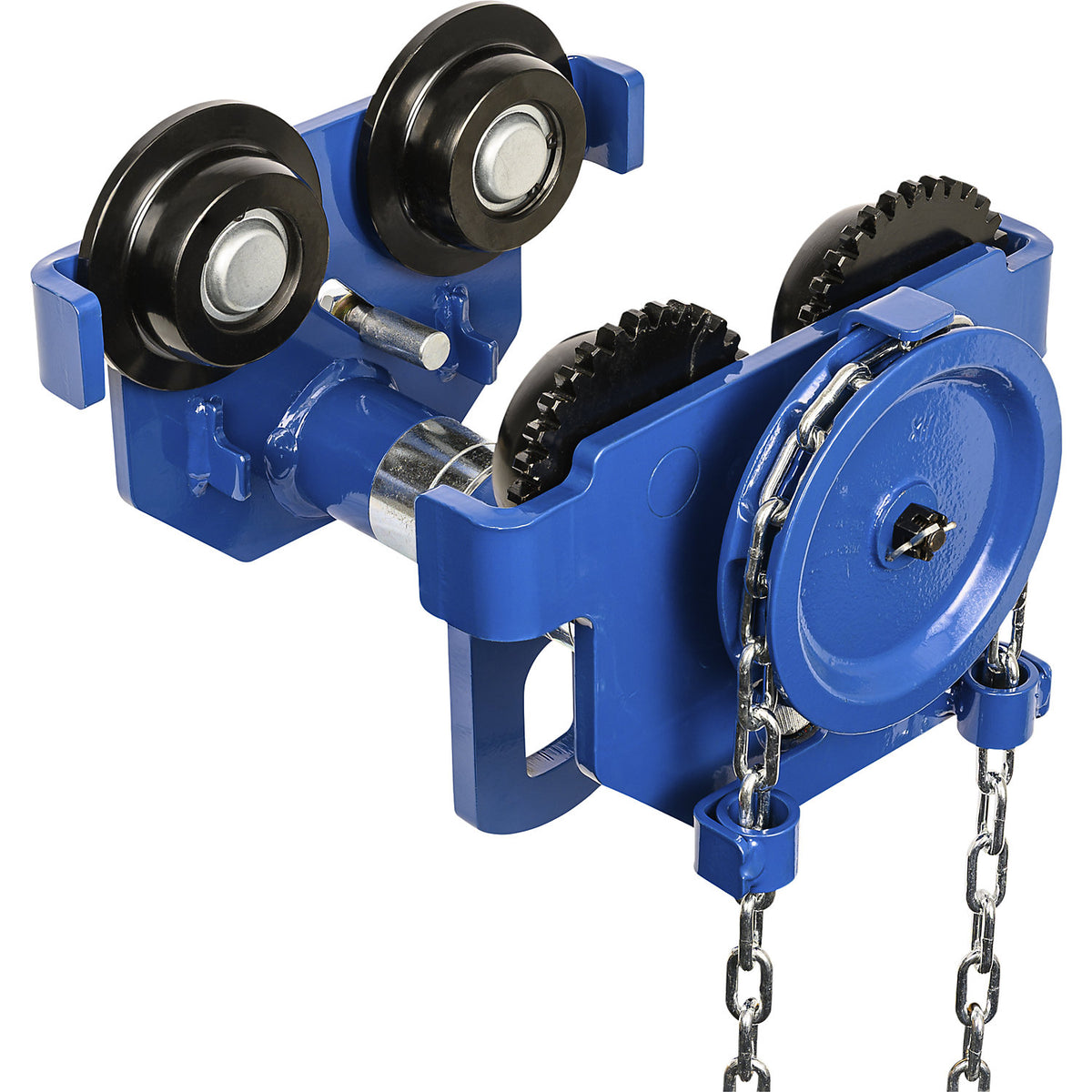

Geared trolley GTM, steel, max. load 3000 kg, gripping range 100 - 203 mm.

Estimated delivery: 48 days

Geared trolley GTM, steel, max. load 3000 kg, gripping range 100 - 203 mm

• Supplied = assembled
• Max. load = 3000 kg
• Gripping range = 100 - 203 mm
• Weight = 31 kg
• Product type = chain hoist chassis
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 32 kg
• Weight = 31 kg
• Controlled movement of loads up to 3 t via an endless hand chain
• Flexibly adjustable for beam flange widths from 100 to 203 mm
• For manual hoists in workshops, industry and agriculture
• Balanced load distribution across four ball-bearing wheels
• Safety brackets as wheel fracture support, track cleaner and anti-drop protection
• Wide adjustment range through easily repositionable spacers
• The GTM geared trolley enables the controlled movement of loads up to 3 t via an endless hand chain and is suitable for different beam widths
• By pulling the zinc plated hand chain, the transported load can be moved precisely to the right or left
• The geared trolley is suitable for beam flange widths from 100 to 203 mm
• Spacers allow easy adjustment to the respective width
• The trolley is mounted by sliding it onto the open beam
• Sturdy side plates support a balanced load distribution across four wheels
• For this purpose, the geared trolley pivots self-adjustingly around the bolt axis
• Four safety brackets at the ends of the side plates serve simultaneously as wheel fracture supports, track cleaners and anti-drop protection
• Permanently lubricated high-quality ball bearings with seals promote reliable and smooth running
• The zinc plated hand chain is protected against external influences
• The geared trolley is suitable for manual hoists in workshops, garages and industrial operations as well as in agriculture and forestry
• It facilitates the safe lateral positioning of heavy loads when no electrically powered trolley is required.
