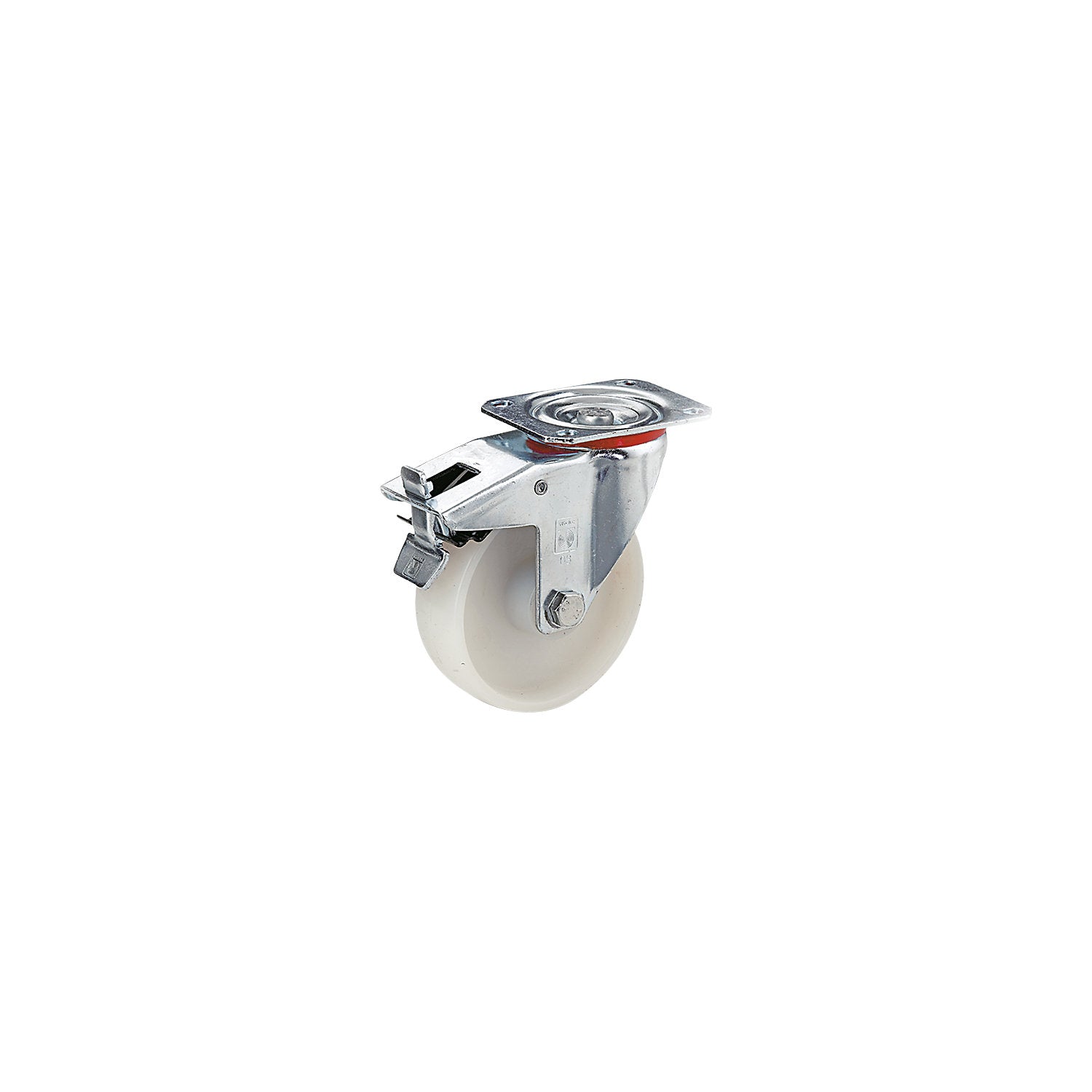

Nylon wheel, sheet steel housing, wheel Ø x width 150 x 40 mm, swivel castor with wheel stops, roller bearings.

Estimated delivery: 29 days

Nylon wheel, sheet steel housing, wheel Ø x width 150 x 40 mm, swivel castor with wheel stops, roller bearings

• Supplied = assembled
• Wheel diameter = 150 mm
• Structure = swivel castor with double stop
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 300 kg
• Wheel width = 40 mm
• Overall height = 185 mm
• Wheel bearing = roller bearing
• Temperature resistance = -20 °C to +80 °C
• Swivel castor offset = 52 mm
• Screw hole diameter = 11 mm
• Hub length = 60 mm
• Hub bore = 20 mm
• Model = transport castors
• Fixed castor plate dimensions = 135x114 mm
• Swivel castor plate dimensions = 135x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = galvanised and chrome-plated
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 2.33 kg
• Weight = 1.93 kg
• Sustainability = CO 2 footprint calculated
• Maintenance free, smooth running
• Hardwearing
• Largely resistant against many thinned acid and alkaline solutions
• Temperature resistant from -20 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
