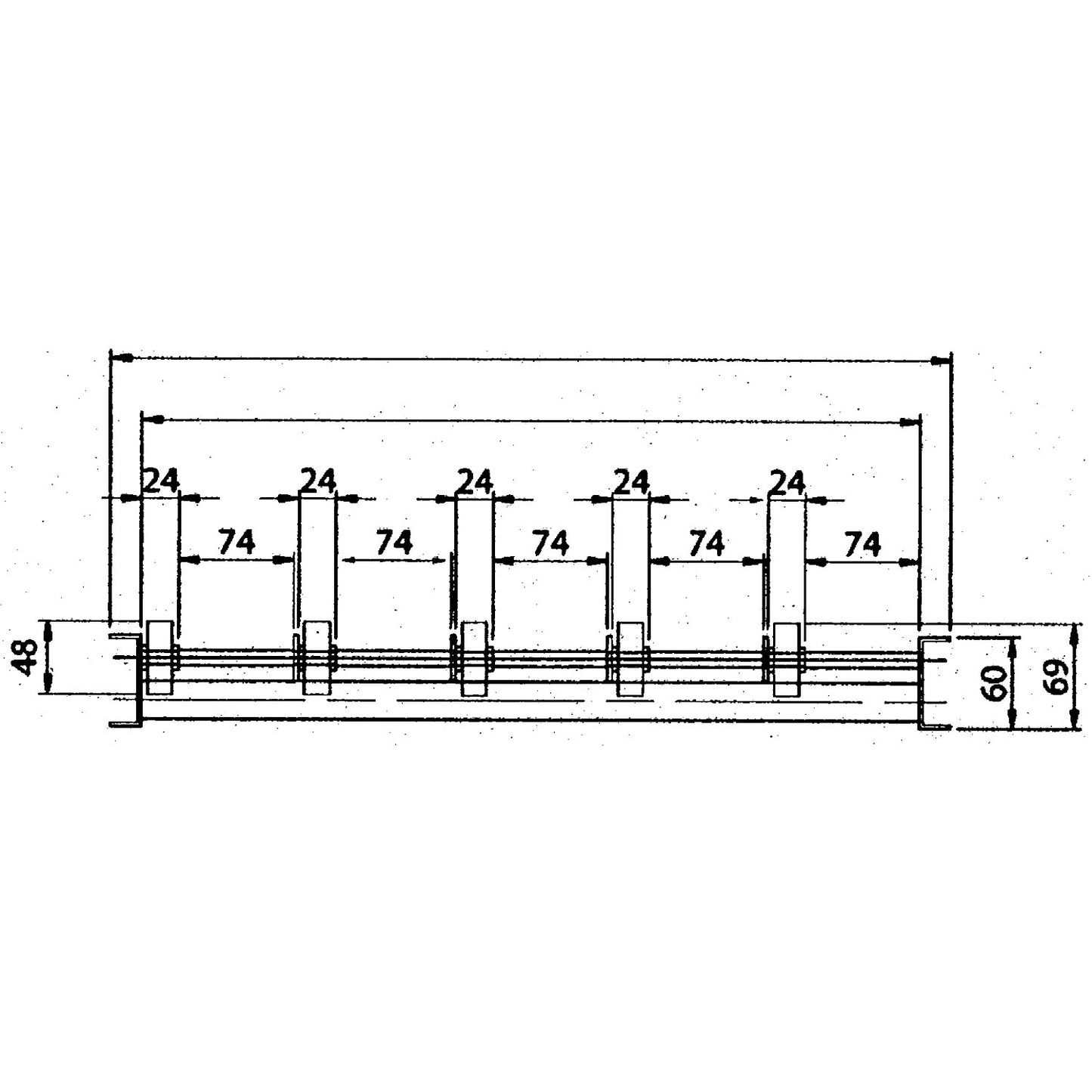

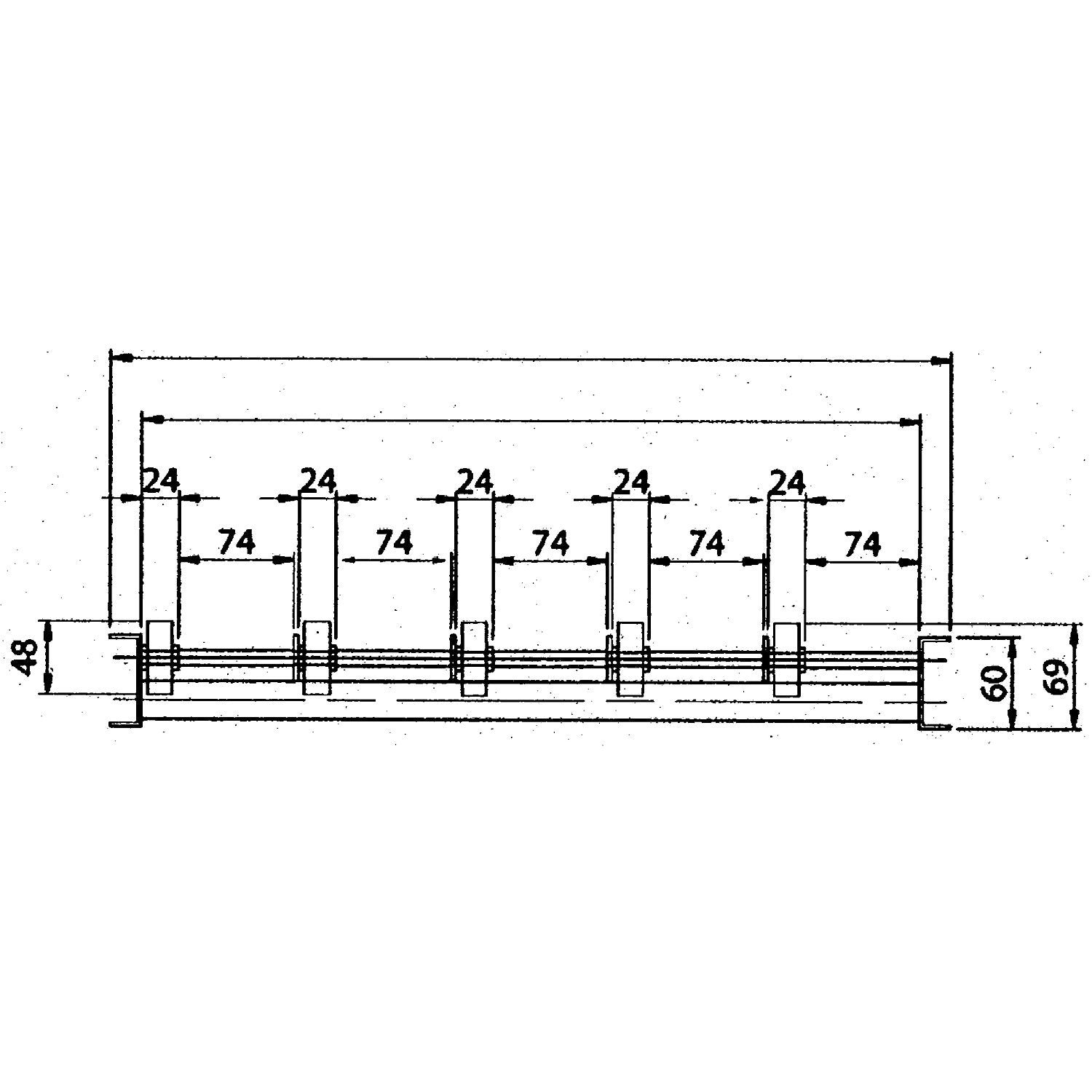

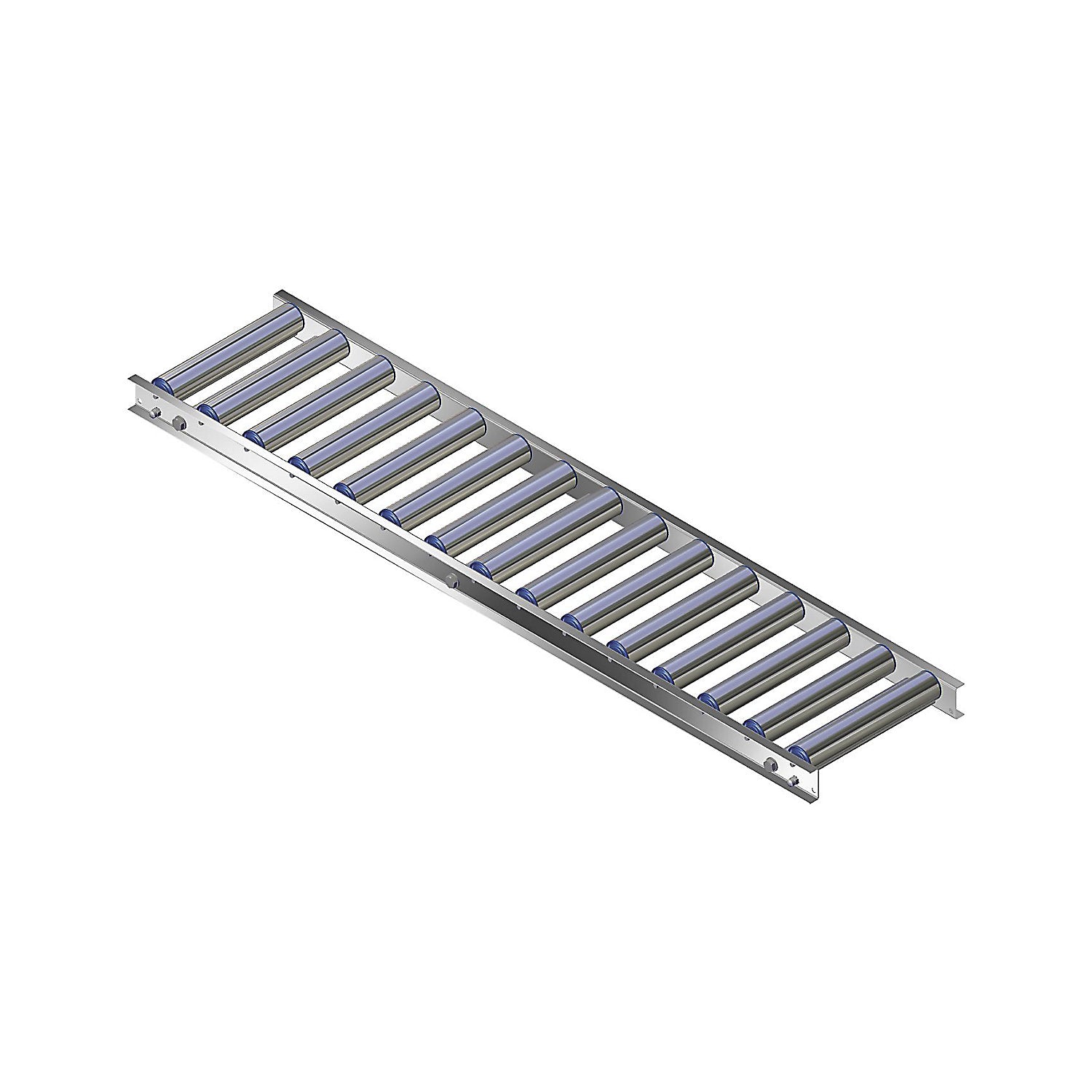

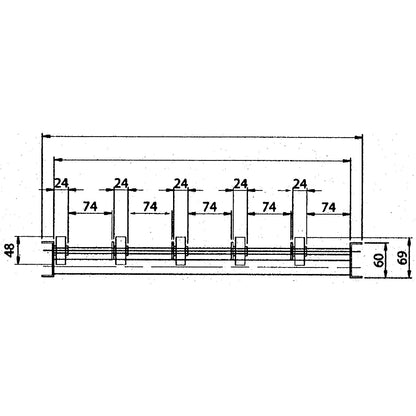

Light duty roller conveyor, aluminium frame with aluminium rollers, track width 300 mm, axle spacing 100 mm, length 1.5 m.

Estimated delivery: 41 days

Light duty roller conveyor, aluminium frame with aluminium rollers, track width 300 mm, axle spacing 100 mm, length 1.5 m

• Supplied = assembled
• Design of frame = aluminium
• Track width = 300 mm
• Overall height = 70 mm
• Width = 340 mm
• Length = 1.5 m
• Roller diameter = 50 mm
• Roller material = aluminium
• Axle spacing = 100 mm
• Length of goods conveyed = 300 - 1000 mm
• Width of goods conveyed = 450 mm
• Max. load with 1 m frame support spacing = 200 kg
• Installation length = 300 mm
• Tube length = 290 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 18.22 kg
• Weight = 9 kg
• Sustainability = CO 2 footprint calculated
• Optimises the material flow in the company
• Modular system, making it individually adjustable
• A very low empty weight makes it suitable for flexible use
• This lightweight roller conveyor from GURA improves the material flow within a company quickly and easily
• The versatile modular system allows individual adjustment to suit your requirements
• Sturdy side profiles made of aluminium with 20 x 60 x 20 mm
• Ball bearing mounted aluminium rollers, Ø 50 mm or sprung axle with Ø 8 mm
• Designing your conveyor: - Assemble required conveyor length from individual sections
• Determine required number of straight and curved sections. - Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported. - With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm. - Use our individual CAD planning service for comprehensive complete planning
• Supplied without double stands, quick connectors, protective caps and side guide rails
• Custom models, 45° curves and passages upon request.
