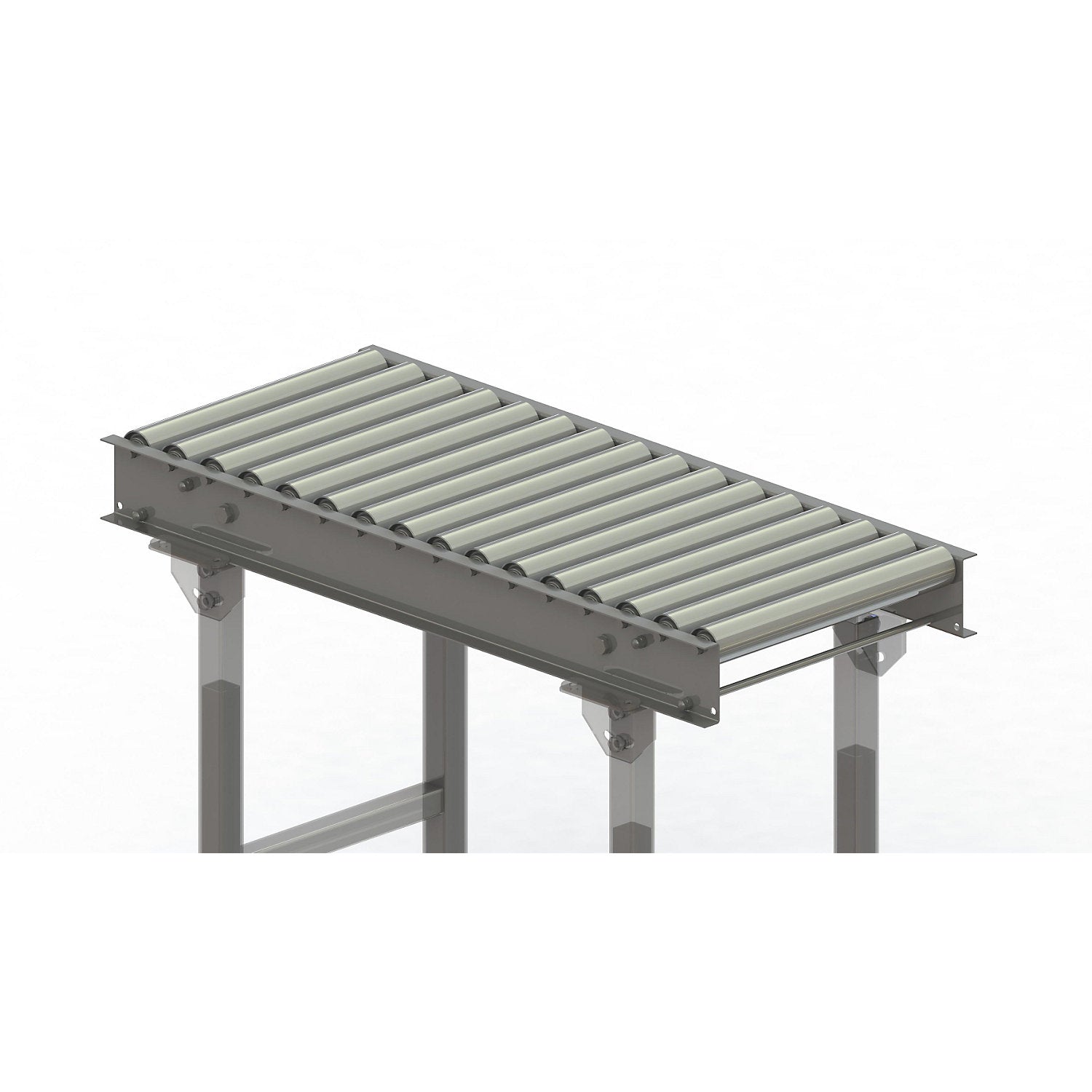

Roller conveyor, steel frame with zinc plated steel rollers, track width 400 mm, distance between axles 62.5 mm, length 1 m.

Estimated delivery: 41 days

Roller conveyor, steel frame with zinc plated steel rollers, track width 400 mm, distance between axles 62.5 mm, length 1 m

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 400 mm
• Overall height = 110 mm
• Width = 450 mm
• Length = 1 m
• Roller diameter = 50 mm
• Roller material = steel, zinc plated
• Axle spacing = 62.5 mm
• Length of goods conveyed = 200 mm
• Width of goods conveyed = 550 mm
• Max. load with 1 m frame support spacing = 400 kg
• Frame colour = silver
• Model = straight
• Product type = roller conveyors, heavy duty
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 43.52 kg
• Weight = 34.8 kg
• Sustainability = CO 2 footprint calculated
• Optimises the material flow in the company
• Modular system, making it individually adjustable

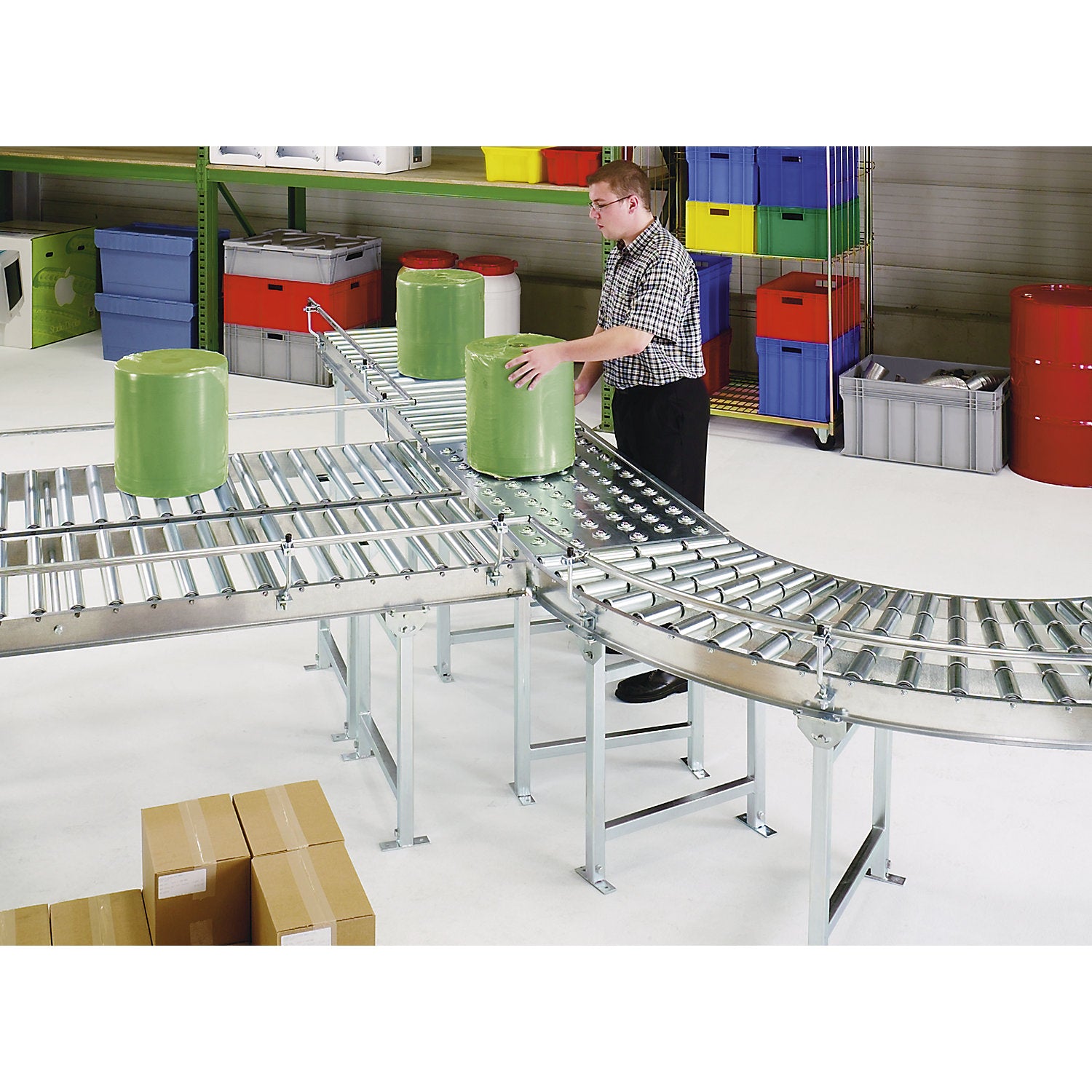

• This roller conveyor from GURA improves the material flow within a company quickly and easily
• The versatile modular system allows individual adjustment to suit your requirements
• U-profile frame made of zinc plated steel 25 x 100 x 25 x 2 mm, with robust cross pieces
• Ball bearing mounted, zinc plated steel rollers, Ø 50 mm, with sprung axle, Ø 12 mm
• Designing your conveyor: - Assemble required conveyor length from individual sections
• Determine required number of straight and curved sections. - Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported
• Use our individual CAD planning service for comprehensive complete planning
• Supplied without double stands, quick connectors, protective caps and side guide rails
• Custom models, 45° curves and passages upon request.
