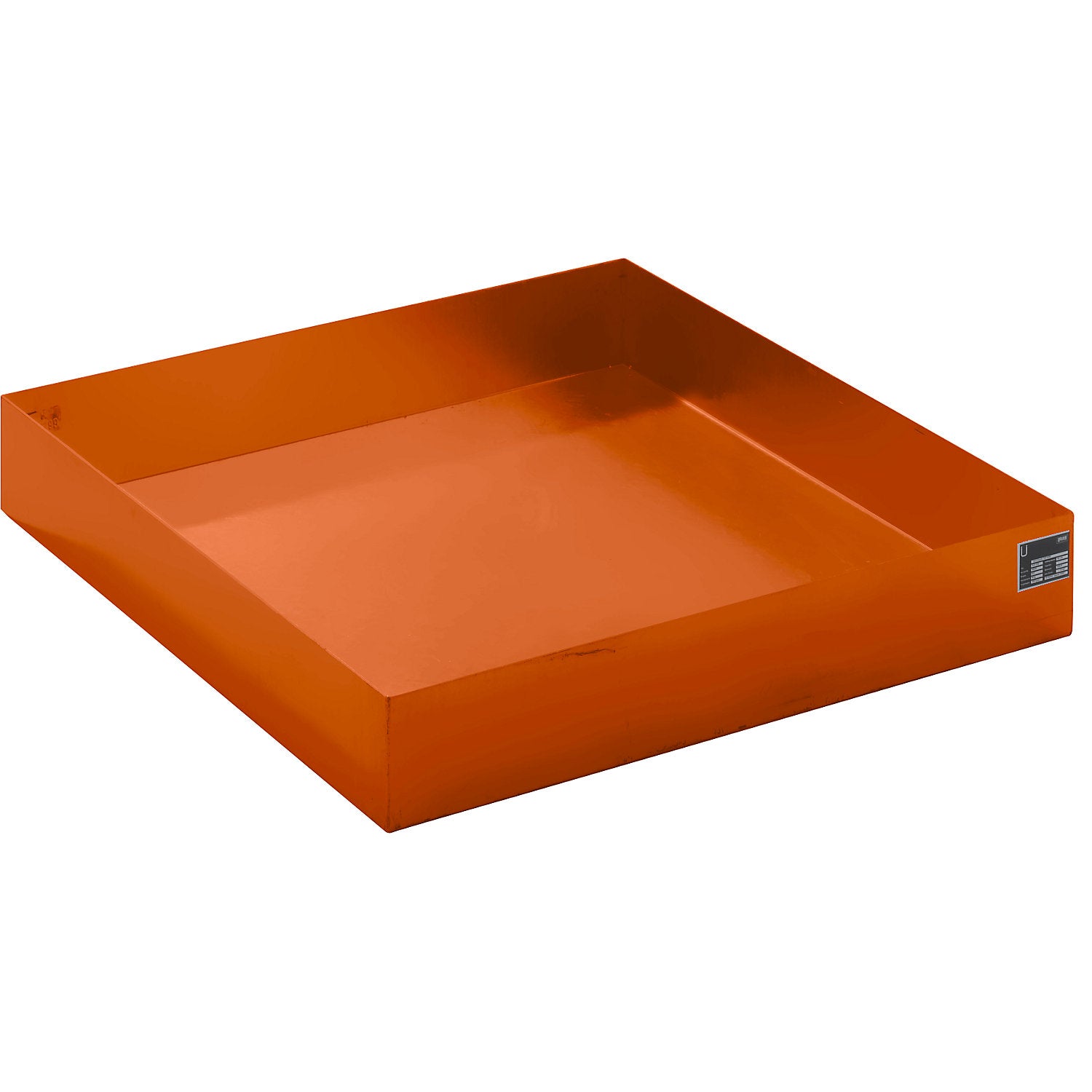

Pallet sump tray, LxWxH 1200 x 1200 x 185 mm, orange RAL 2000.

Estimated delivery: 44 days

Pallet sump tray, LxWxH 1200 x 1200 x 185 mm, orange RAL 2000

• Supplied = assembled
• Type of grate = without
• Sump capacity = 230 l
• Length = 1200 mm
• Width = 1200 mm
• Height = 185 mm
• Drum capacity = small containers
• Material = sheet steel
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. load = 1000 kg/m²
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 54 kg
• Weight = 54 kg
• Sustainability = CO 2 footprint calculated

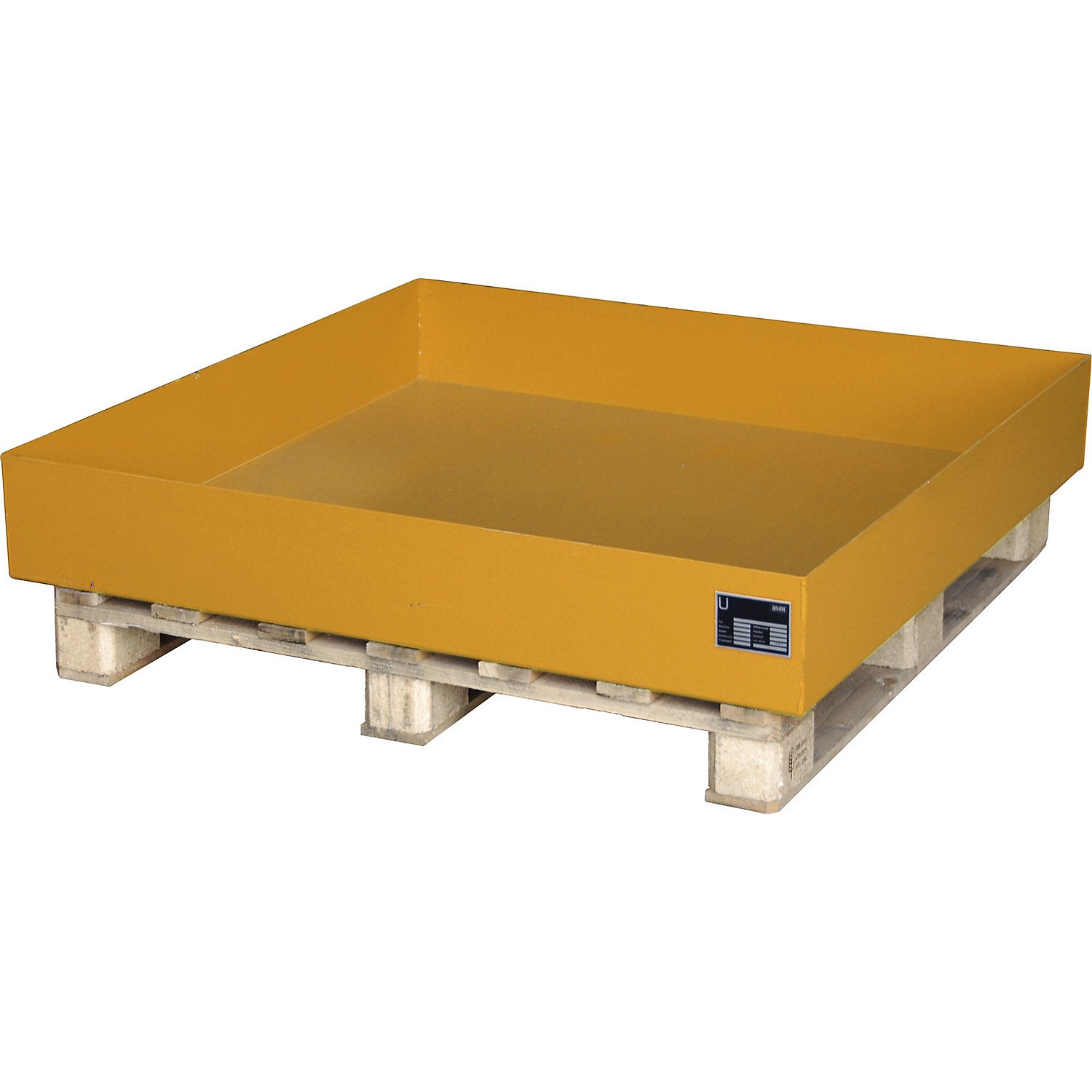

• For placement directly on top of Euro or chemical pallets (without feet/fork guides)
• For 200 litre drums and small containers
• Made of 3 mm sheet steel
• Optionally hot dip galvanised or colour painted
• For the storage of water-hazardous and flammable liquids

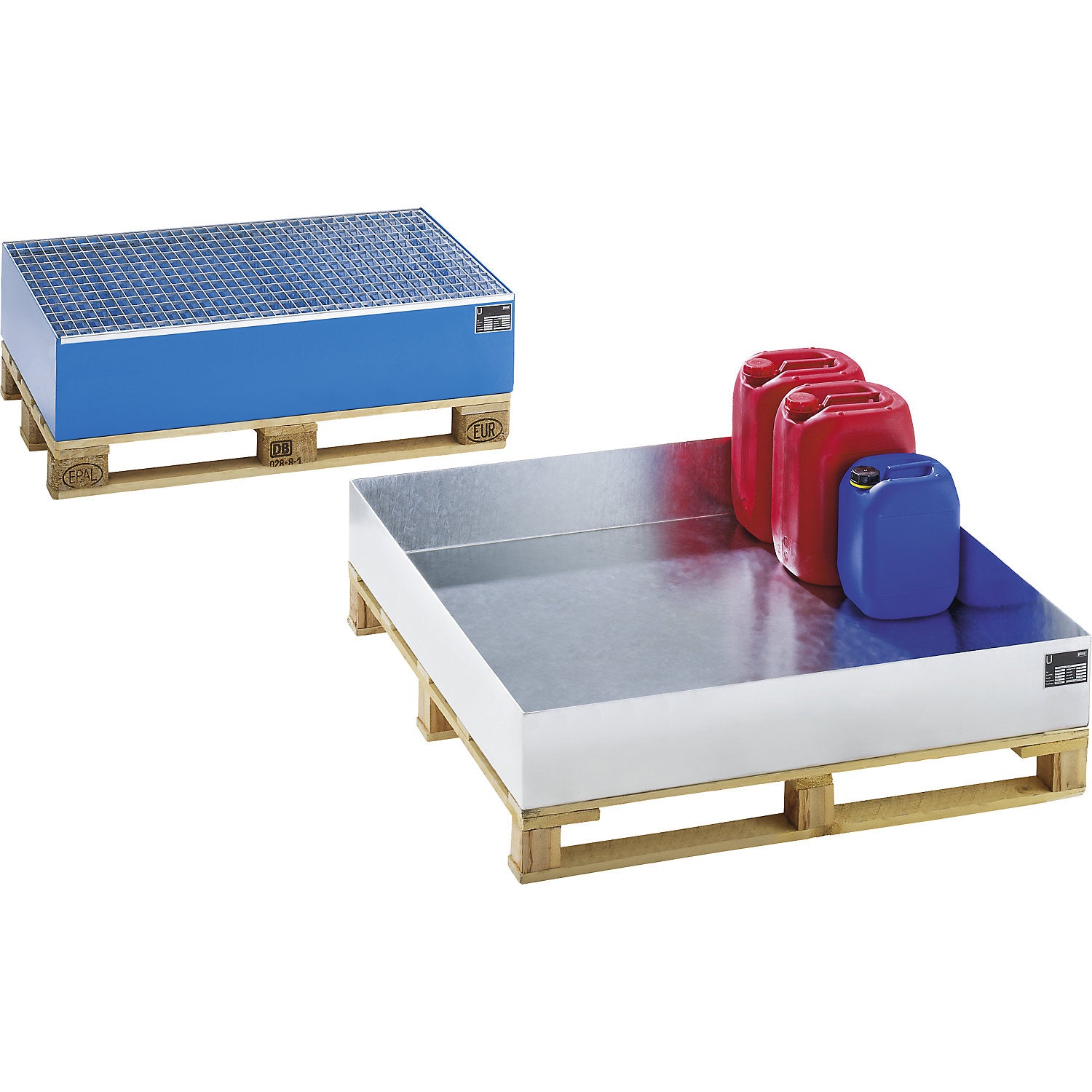

• The pallet sump tray enables space-saving and safe storage of drums and small containers directly on Euro or chemical pallets
• The robust model made of 3 mm sheet steel ensures high load capacity and reliable protection when handling water-hazardous and flammable liquids
• Designed as a shallow tray, the sump tray can be placed directly onto existing pallets without entry brackets or feet
• This ensures efficient use of storage space and simplifies workflows
• The design is particularly suitable for storing 200-litre drums and various small containers in production, logistics and workshop areas
• The shallow tray is available with optional hot dip galvanised or painted finishes
• The coloured model supports clear colour coding of the stored media and facilitates operational organisation
• Thanks to the resistant surface, the dispensing station remains permanently ready for use even under demanding operating conditions
• With declaration of conformity (ÜHP) according to StawaR, approved for flammable liquids of GHS categories 1 - 3 as well as for water-hazardous liquids of GHS categories 1 - 4
• This makes the dispensing station suitable for numerous applications where legally compliant storage and reliable protection against leaking liquids are required.
