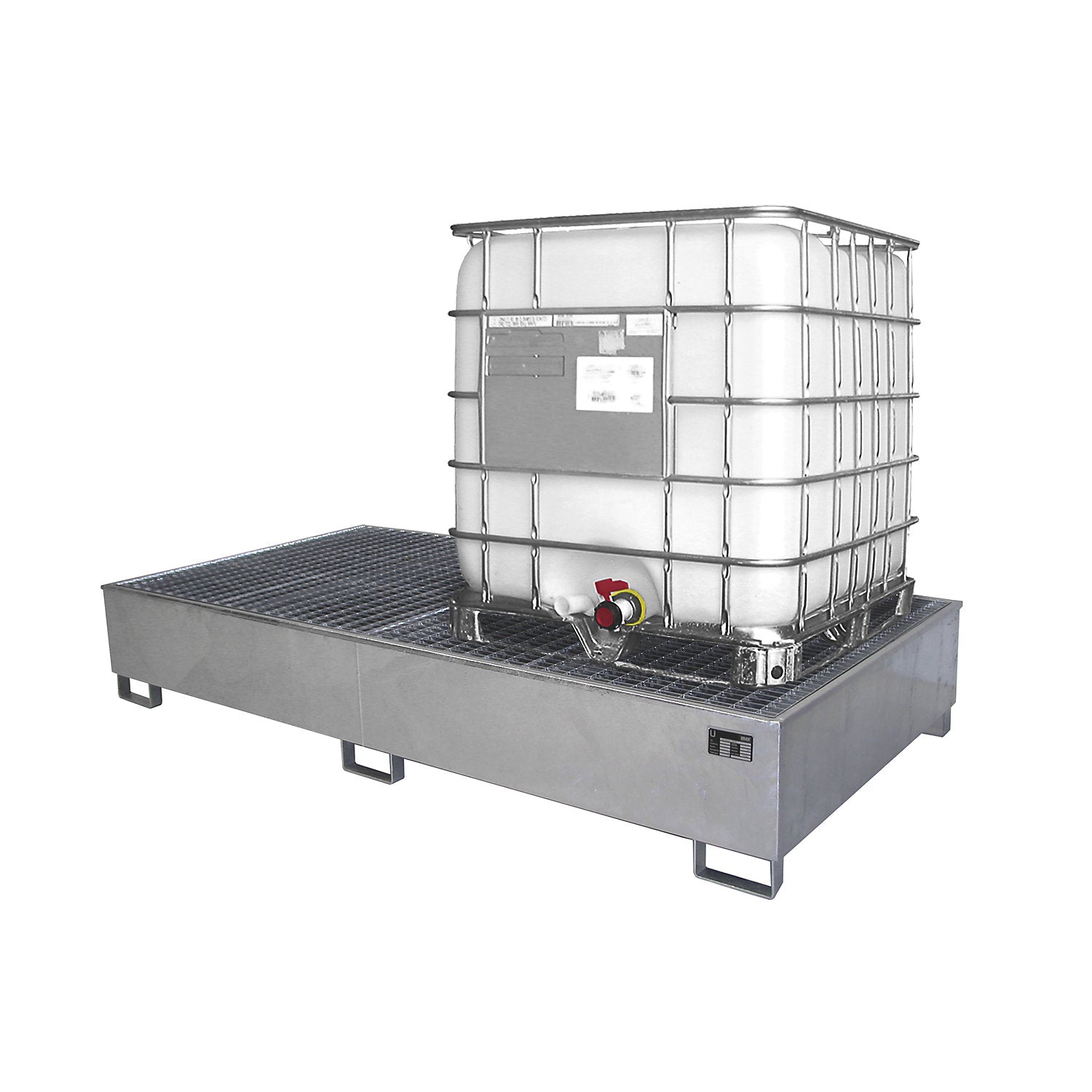

Steel sump tray with PE insert, 1000 l, for 2 x IBC/CTC, LxWxH 2665 x 1315 x 440 mm, zinc plated.

Estimated delivery: 48 days

Steel sump tray with PE insert, 1000 l, for 2 x IBC/CTC, LxWxH 2665 x 1315 x 440 mm, zinc plated

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1000 l
• Length = 2665 mm
• Width = 1315 mm
• Height = 440 mm
• Drum capacity = 8x200 l
• Material = sheet steel
• Finish = hot dip galvanised
• Colour = hot dip galvanised. 1000 l container capacity = 2 pcs
• Design of sump tray = with PE insert
• Max. load = 1000 kg/m²
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and corrosive liquids, water hazardous dangerous goods
• Hazard class = for flammable liquids in GHS categories 1 - 3, for water hazardous liquids in GHS categories 1 - 4 and for corrosive liquids in GHS category 1
• Distributed load = 1000 kg/m²
• Customs tariff number = 73090030
• Country of origin = DEU
• Gross weight = 271 kg
• Weight = 271 kg
• Sustainability = CO 2 footprint calculated
• For the storage of aggressive, corrosive, flammable media such as acids, alkaline solutions, chemicals, oils

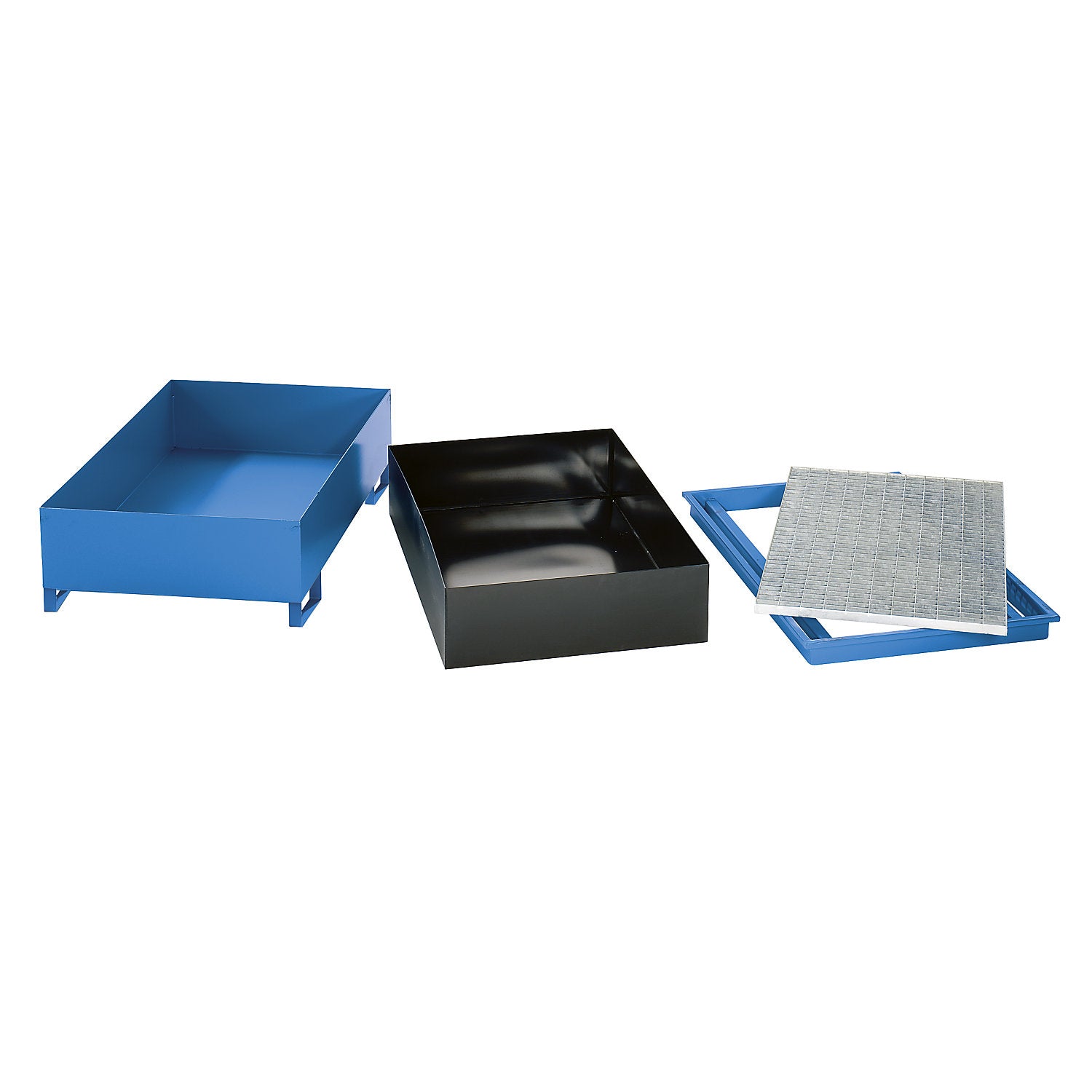

• Robust steel tray with hardwearing PE insert, clamp frame and grate
• With certification - manufacturer's declaration of conformity in accordance with StawaR
• Robust steel tray construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene panel material
• With zinc plated steel clamp frame for fixing the plastic insert in place
• This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene
• Certified with manufacturer's declaration of conformity in accordance with StawaR
• Approved for flammable liquids in GHS categories 1 - 3
• Approved for water hazardous liquids in GHS categories 1 - 4
• Approved for corrosive liquids in GHS category 1
• Please enquire for individual dimensions and designs!
