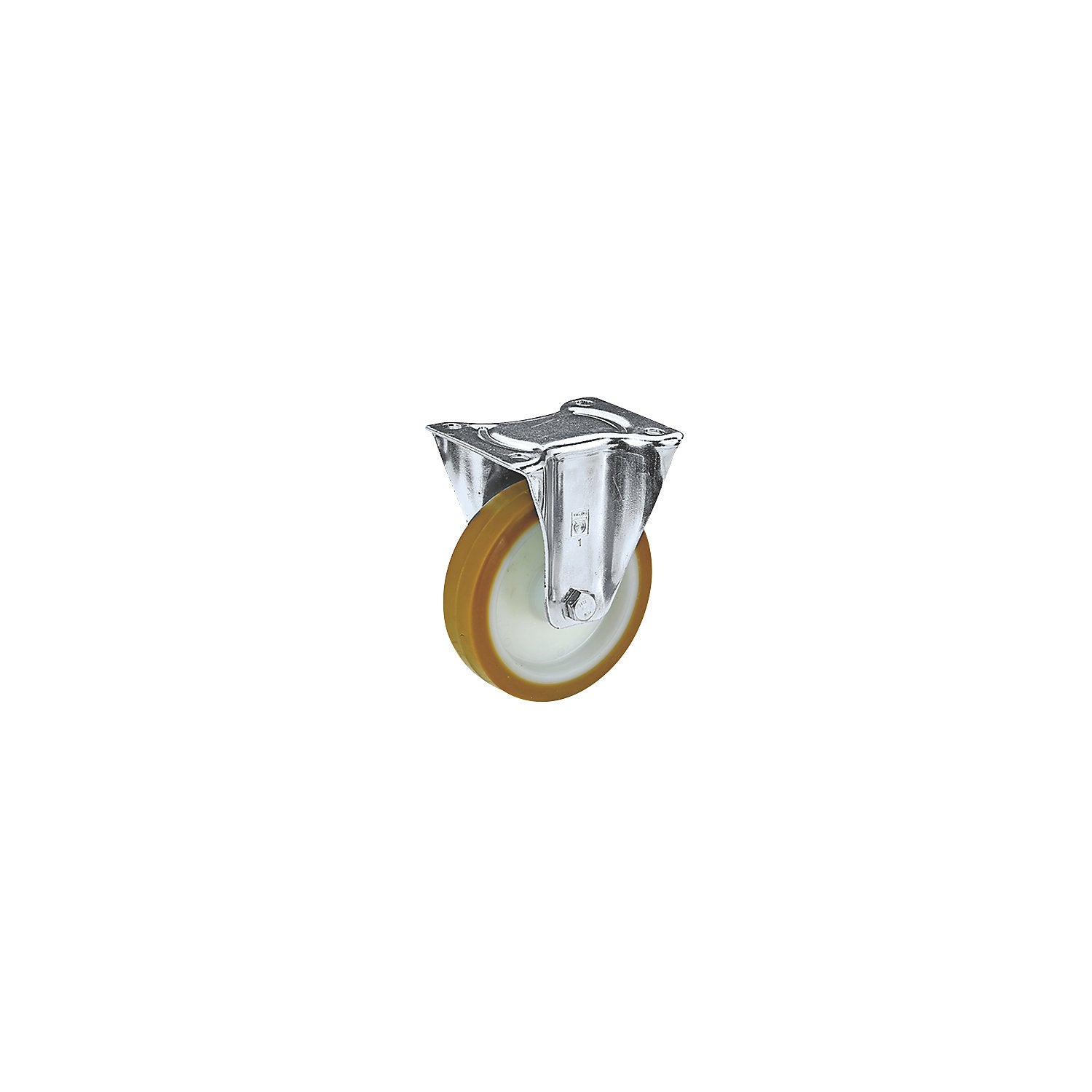

Polyurethane tyres on nylon rims, wheel Ø x width 100 x 35 mm, overall height 125 mm, fixed castor with plain bearing.

Estimated delivery: 29 days

Polyurethane tyres on nylon rims, wheel Ø x width 100 x 35 mm, overall height 125 mm, fixed castor with plain bearing

• Supplied = assembled
• Wheel diameter = 100 mm

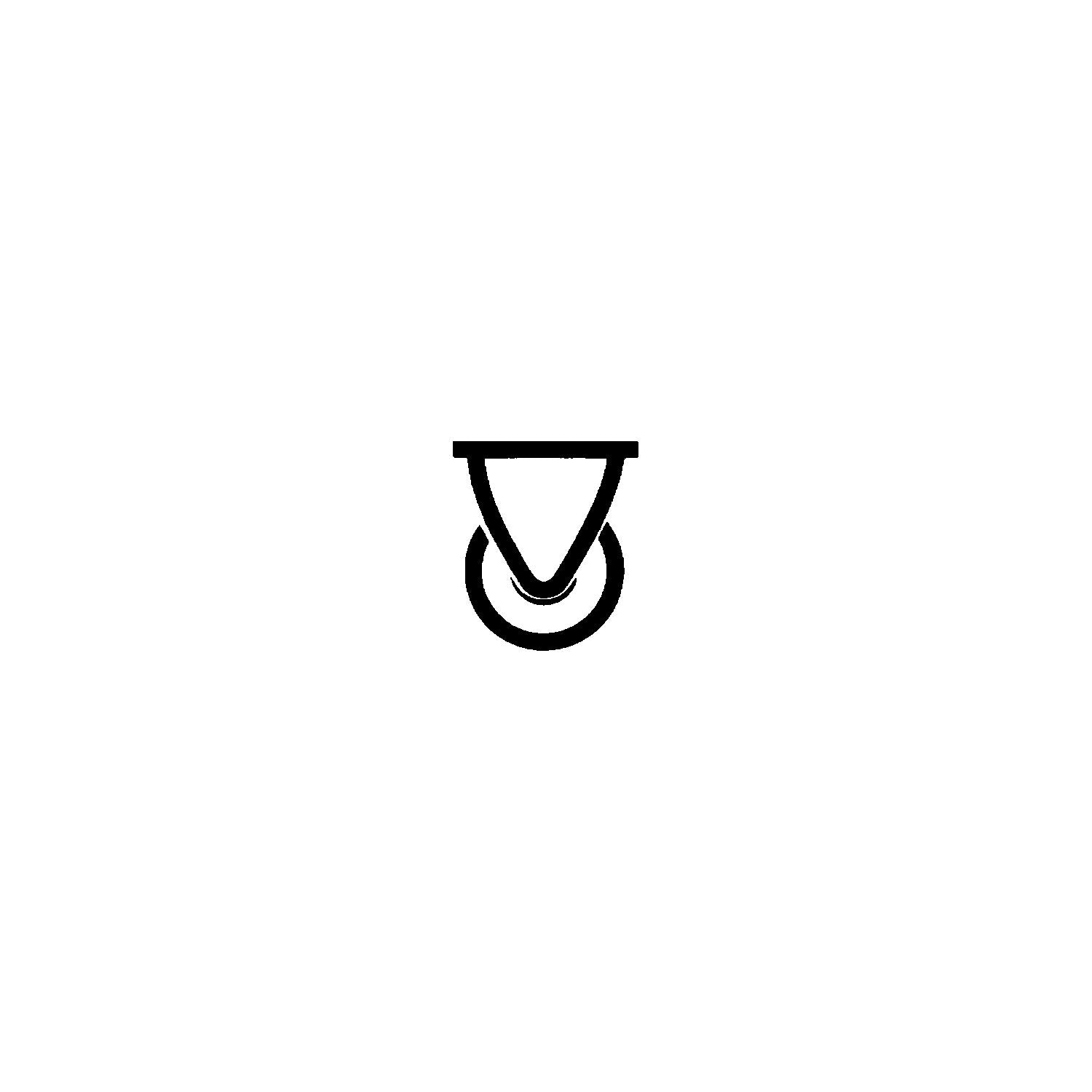

• Structure = fixed castor
• Wheel material = polyurethane (PU)
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 35 mm
• Overall height = 125 mm
• Wheel bearing = plain bearing
• Temperature resistance = -5 °C to +80 °C
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Fixed castor plate dimensions = 102x87 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 80x60 - 76 mm
• Housing surface = zinc plated
• Shore hardness = 92 A
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 0.5 kg
• Weight = 0.5 kg
• Sustainability = CO 2 footprint calculated
• On nylon rim
• Extremely durable for high performance, low rolling resistance
• Largely resistant against many thinned oils, greases, and chemicals
• Hardness 92 Shore A
• Temperature resistant from -5 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
