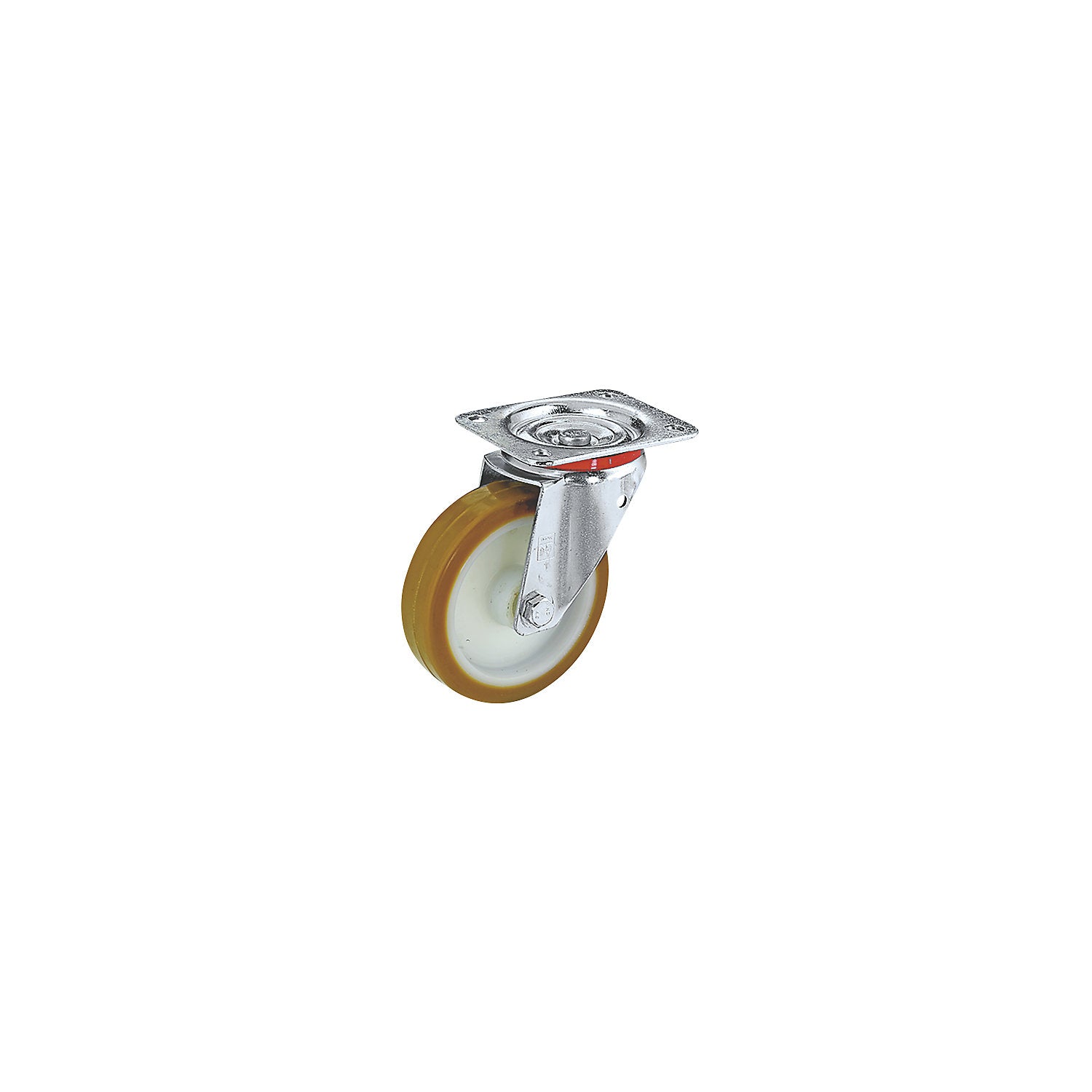

Polyurethane tyres on nylon rims, wheel Ø x width 100 x 35 mm, overall height 128 mm, swivel castor with roller bearings.

Estimated delivery: 29 days

Polyurethane tyres on nylon rims, wheel Ø x width 100 x 35 mm, overall height 128 mm, swivel castor with roller bearings

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane (PU)
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 35 mm
• Overall height = 128 mm
• Wheel bearing = roller bearing
• Temperature resistance = -5 °C to +80 °C
• Swivel castor offset = 45 mm
• Screw hole diameter = 11 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Fixed castor plate dimensions = 135x114 mm
• Swivel castor plate dimensions = 135x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = zinc plated
• Shore hardness = 92 A
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 0.9 kg
• Weight = 0.9 kg
• Sustainability = CO 2 footprint calculated
• On nylon rim
• Extremely durable for high performance, low rolling resistance
• Largely resistant against many thinned oils, greases, and chemicals
• Hardness 92 Shore A
• Temperature resistant from -5 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
