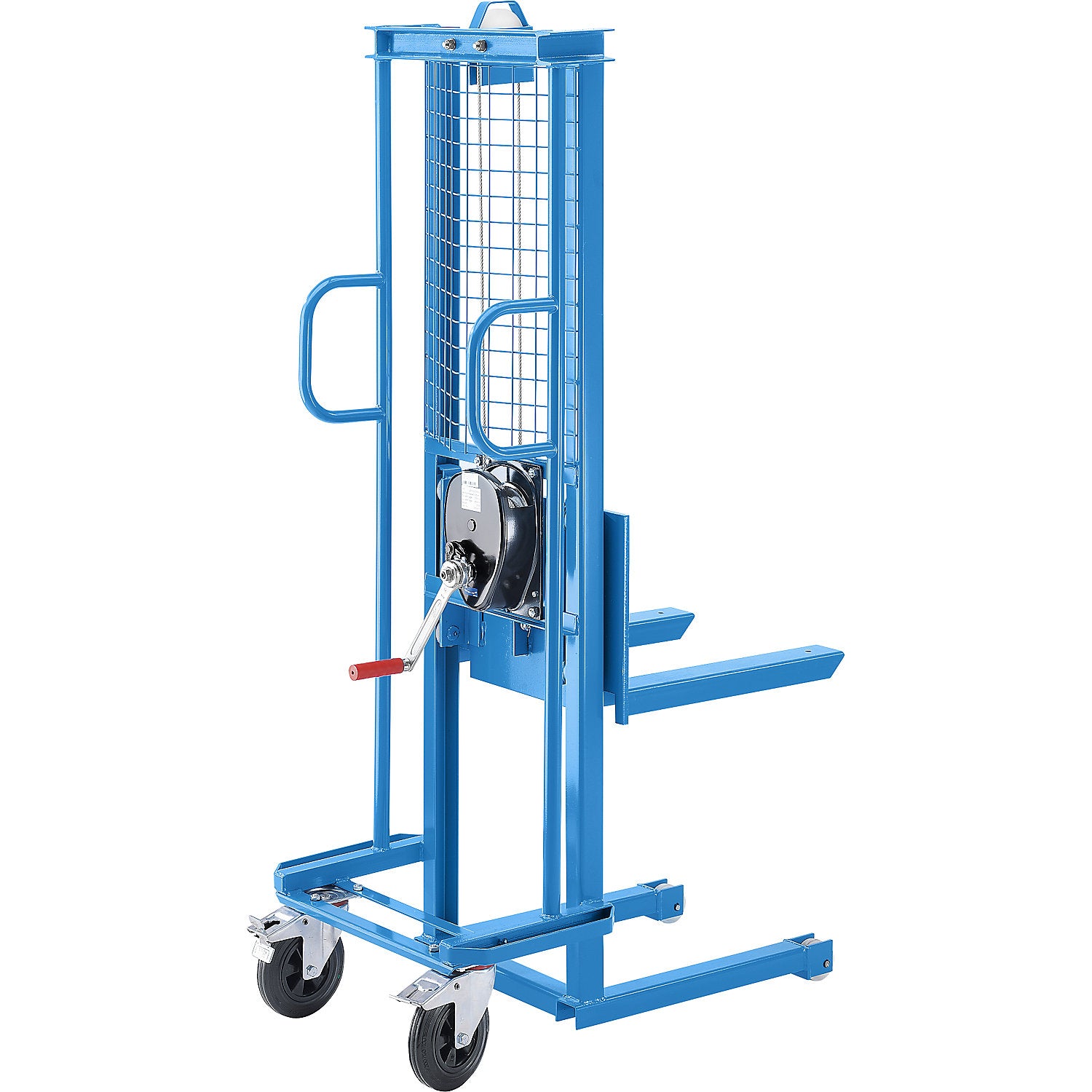

Manual winch stacker, max. load 300 kg, overall height 1650 mm.

Estimated delivery: 31 days

Manual winch stacker, max. load 300 kg, overall height 1650 mm

• Supplied = assembled
• Lifting range = 90 - 1150 mm
• Fork length = 600 mm
• Distance across forks = 540 mm
• Fork width = 90 mm
• Length = 1070 mm
• Width = 570 mm
• Overall height = 1650 mm
• Lift per crank rotation = 30 mm
• Lift drive = hand winch
• Wheel fittings = 2 steering wheels with double stops, 2 fork rollers
• Castor diameter front / rear = 80 / 200 mm
• Steering wheel material = solid rubber
• Roller material = nylon
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 84279000
• Country of origin = DEU
• Gross weight = 105.5 kg
• Weight = 105 kg
• Sustainability = CO 2 footprint calculated
• Max. load 300 kg
• Very manoeuvrable, short 600 mm forks
• Safety winch with steel cable and recoil brake
• Millimetre accurate height adjustment, 30 mm lift per crank rotation
• Without hydraulics, virtually maintenance free - no loss of oil possible
• Lifting runners with flanged rollers
• Powder coated, light blue RAL 5012 as standard. 2 solid rubber steering wheels with double stops, wheel Ø 200 mm. 2 nylon fork rollers, wheel Ø 80 mm.
