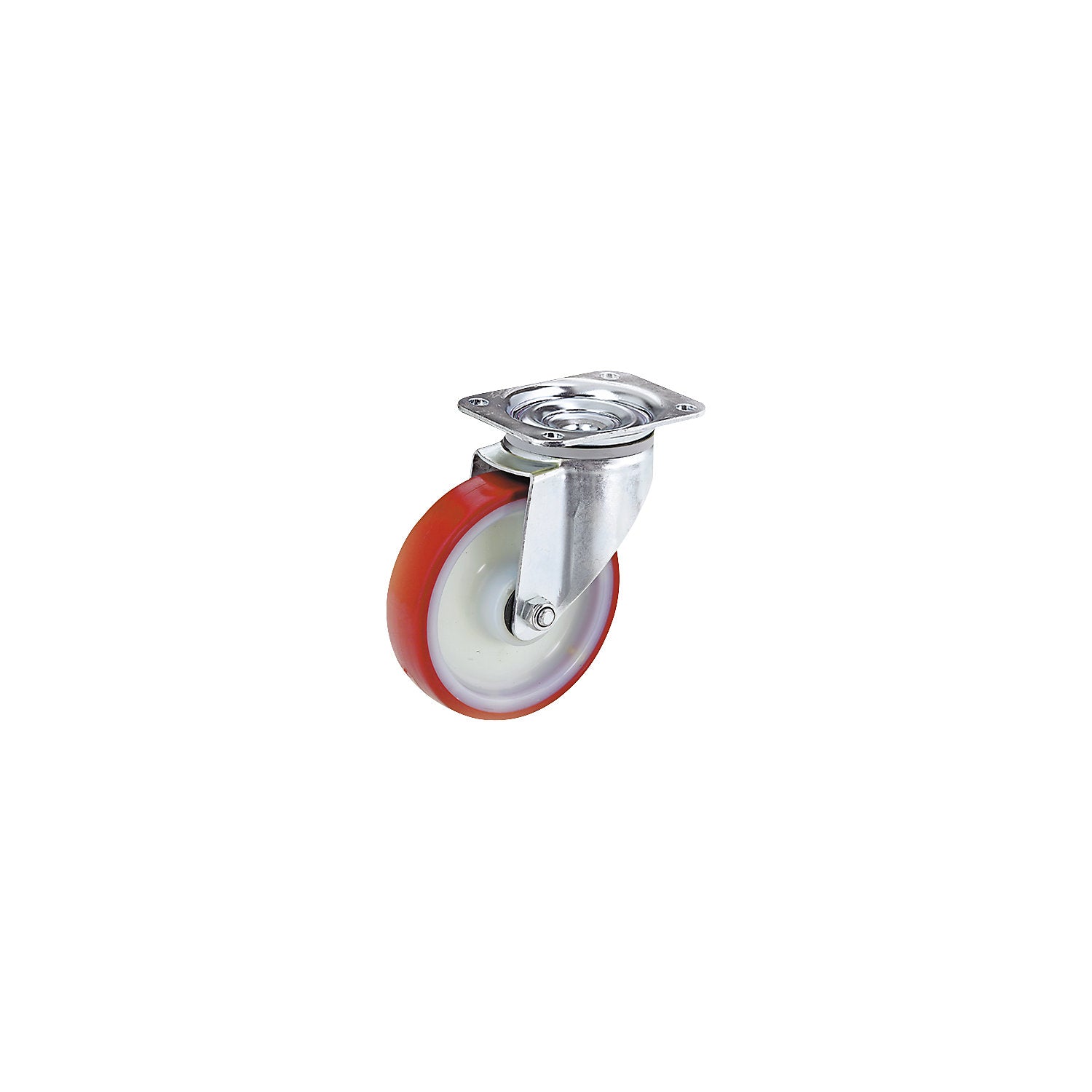

Polyurethane tyre on nylon rim, wheel Ø x width 100 x 32 mm, swivel castor.

Estimated delivery: 29 days

Polyurethane tyre on nylon rim, wheel Ø x width 100 x 32 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane (PU)
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 32 mm
• Overall height = 128 mm
• Wheel bearing = roller bearing
• Temperature resistance = -40 °C to +80 °C
• Swivel castor offset = 41 mm
• Screw hole diameter = 9 mm
• Hub length = 44.4 mm
• Hub bore = 12 mm
• Model = transport castors
• Fixed castor plate dimensions = 103x85 mm
• Swivel castor plate dimensions = 105x85 mm
• Screw hole spacing = 60x77 - 80 mm
• Housing surface = galvanised and chrome-plated
• Shore hardness = D40
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 0.84 kg
• Weight = 0.84 kg
• Sustainability = CO 2 footprint calculated
• On nylon rim
• Extremely durable for high performance, low rolling resistance
• Largely resistant against many thinned oils, greases, and chemicals
• Hardness Shore D40
• Temperature resistant from -40 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
