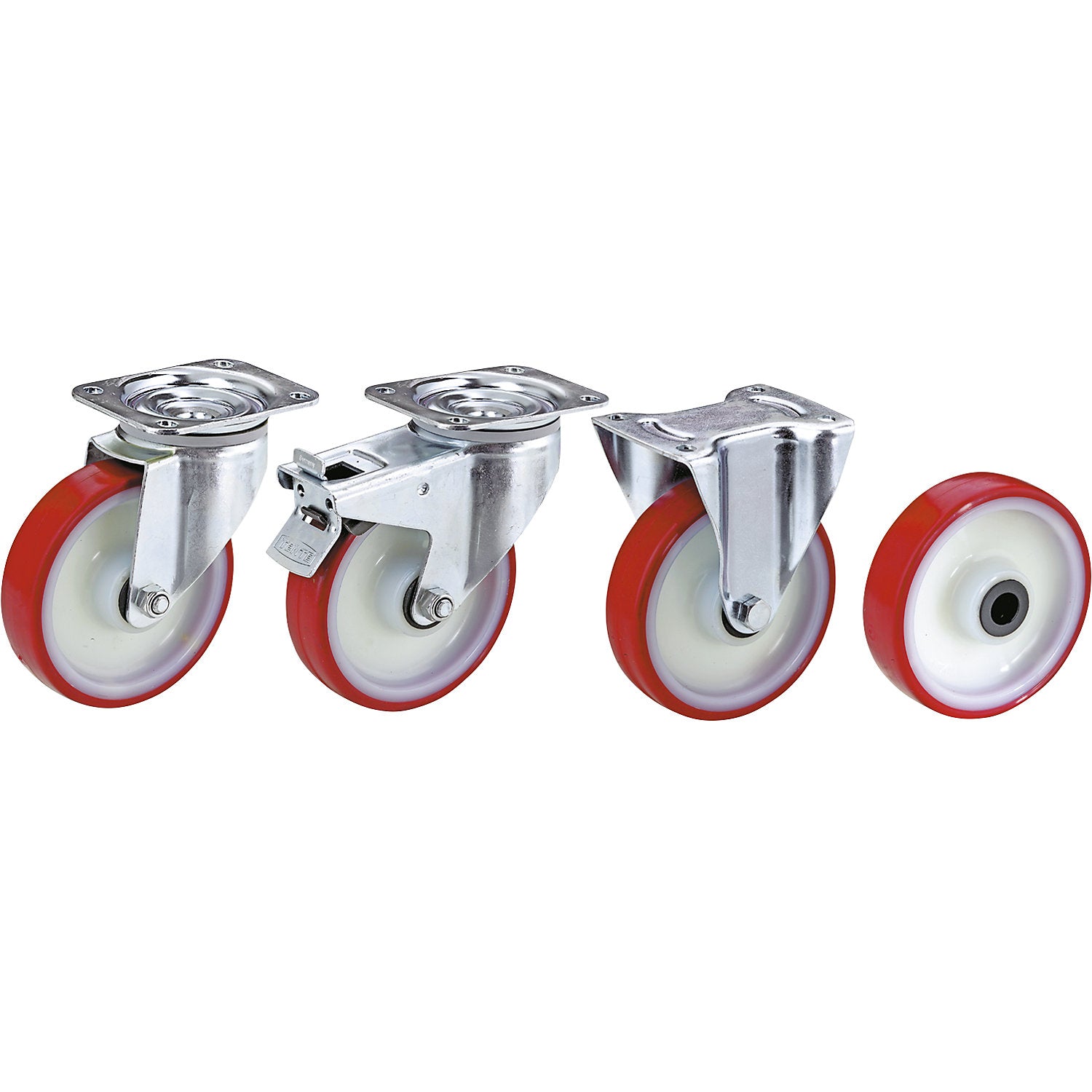

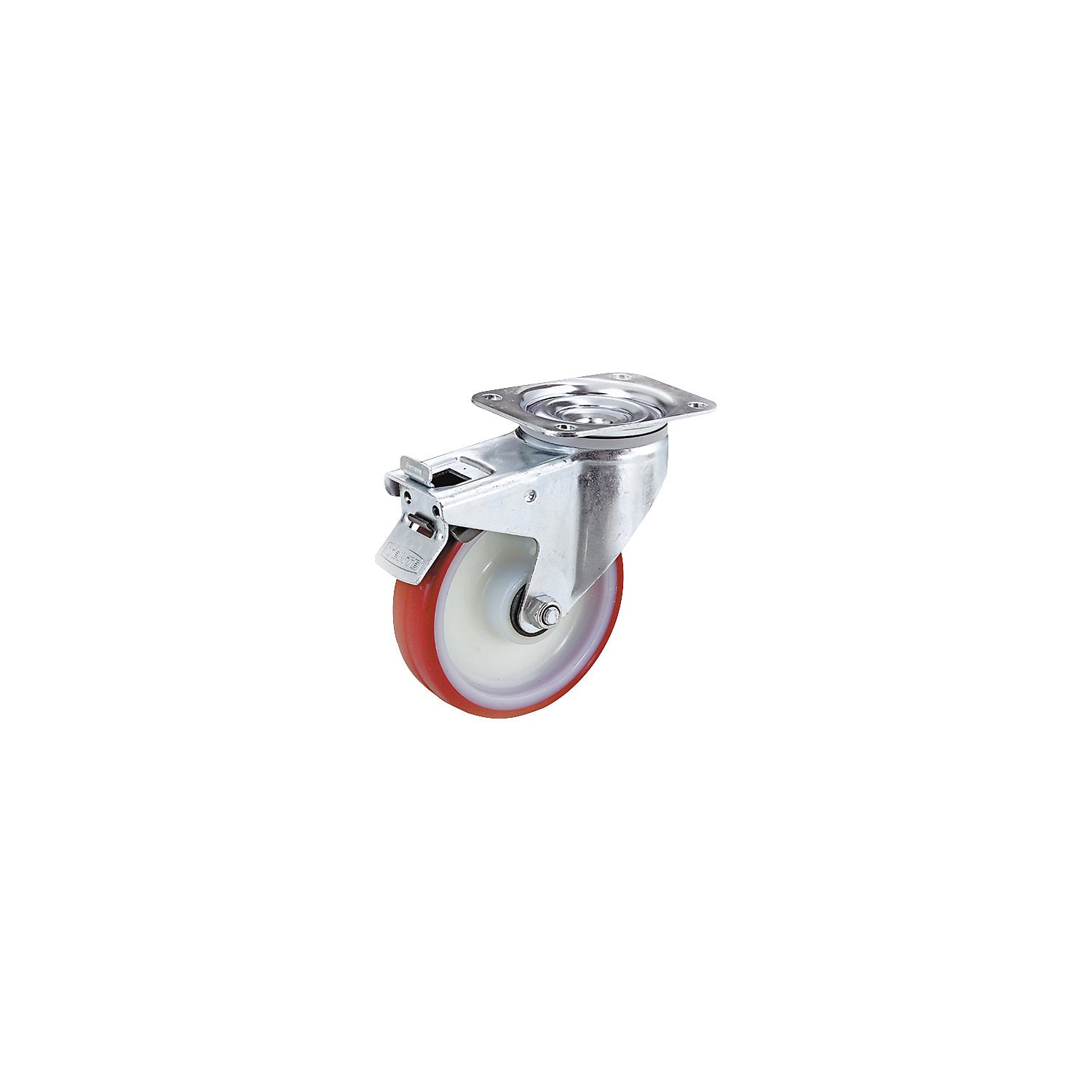

Polyurethane tyre on nylon rim, wheel Ø x width 160 x 40 mm, swivel castor with wheel stops.

Estimated delivery: 29 days

Polyurethane tyre on nylon rim, wheel Ø x width 160 x 40 mm, swivel castor with wheel stops

• Supplied = assembled
• Wheel diameter = 160 mm
• Structure = swivel castor with double stop
• Wheel material = polyurethane (PU)
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 350 kg
• Wheel width = 40 mm
• Overall height = 200 mm
• Wheel bearing = roller bearing
• Temperature resistance = -40 °C to +80 °C
• Swivel castor offset = 55 mm
• Screw hole diameter = 11 mm
• Hub length = 58 mm
• Hub bore = 20 mm
• Model = transport castors
• Fixed castor plate dimensions = 137x115 mm
• Swivel castor plate dimensions = 137x105 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = galvanised and chrome-plated
• Shore hardness = D40
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.99 kg
• Weight = 2.99 kg
• Sustainability = CO 2 footprint calculated
• On nylon rim
• Extremely durable for high performance, low rolling resistance
• Largely resistant against many thinned oils, greases, and chemicals
• Hardness Shore D40
• Temperature resistant from -40 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection.
