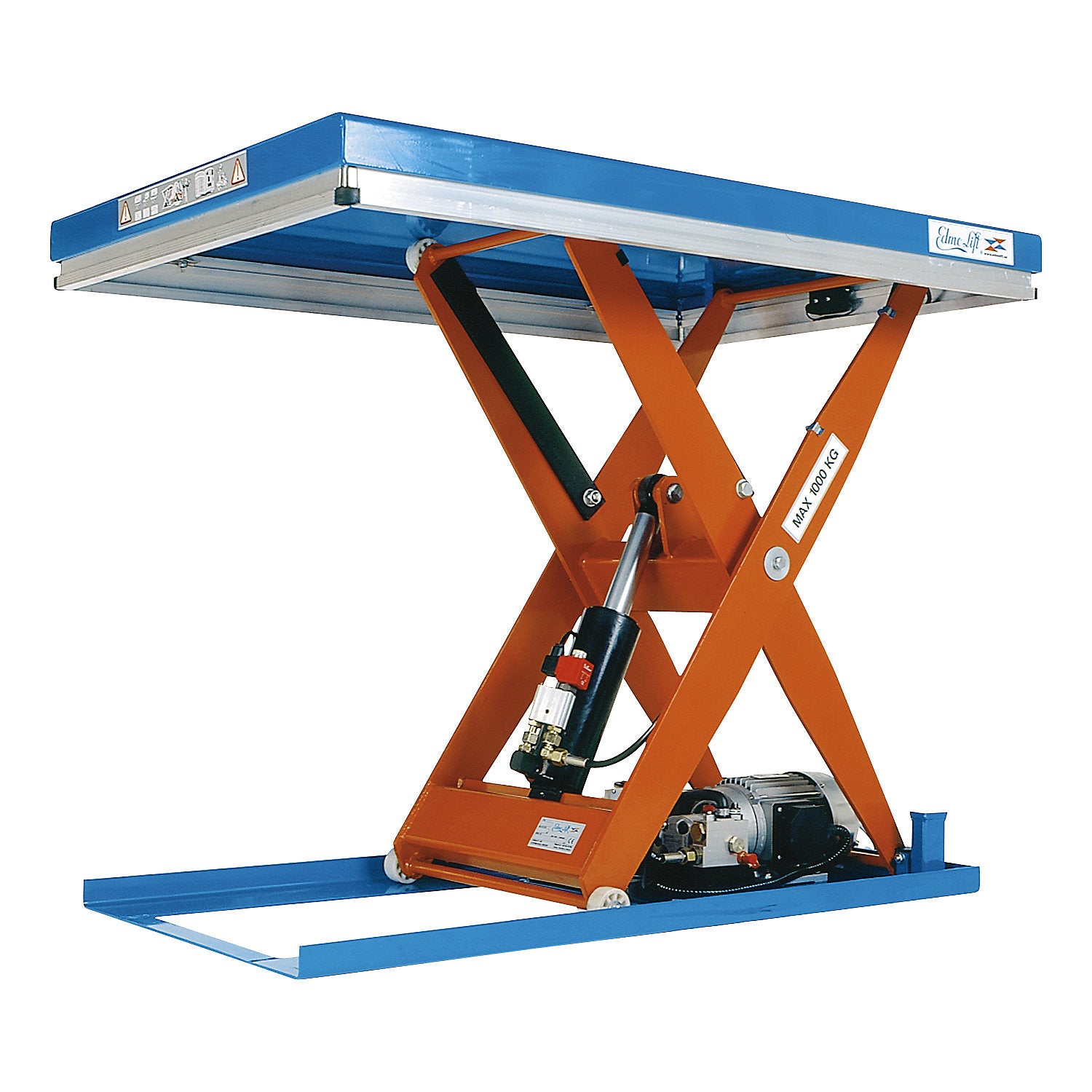

Compact lift table, static, max. load 1000 kg, platform LxW 1200 x 800 mm, effective lift 820 mm.

Estimated delivery: 72 days

Compact lift table, static, max. load 1000 kg, platform LxW 1200 x 800 mm, effective lift 820 mm

• Supplied = assembled
• Max. load = 1000 kg
• Lifting range = 180 - 1000 mm
• Platform design = closed
• Lifting time = 15 sec
• Power = 0.75 kW
• Operating voltage = 400 V 3-phase AC
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = ultramarine blue RAL 5002
• Platform material = sheet steel, powder coated
• Material = steel
• Finish = powder coated
• Frame colour = signal orange RAL 2010
• Lift = 820 mm
• Lifting capacity at full load in 1 shift operations = 3 - 4 cycles per hour
• Platform width = 800 mm
• Platform length = 1200 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 180 kg
• Weight = 160 kg
• Sustainability = CO 2 footprint calculated
• Low price due to high volume production
• Tested and proven for daily, 8 hour operation
• Sturdy construction
• Compact lift tables can be either used free standing or built-in, so that the platform is level with the ground
• The table is smoothly and quickly raised to the desired height at the touch of a button
• The electro-hydraulic motor is integrated in the device
• High quality powder coating, platform and frame in ultramarine blue RAL 5002, scissor mechanism in signal orange RAL 2010
• Operating voltage 400 V
• Control voltage 24 V
• The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, and are compliant with EN 1570-1 as well as VDE requirements

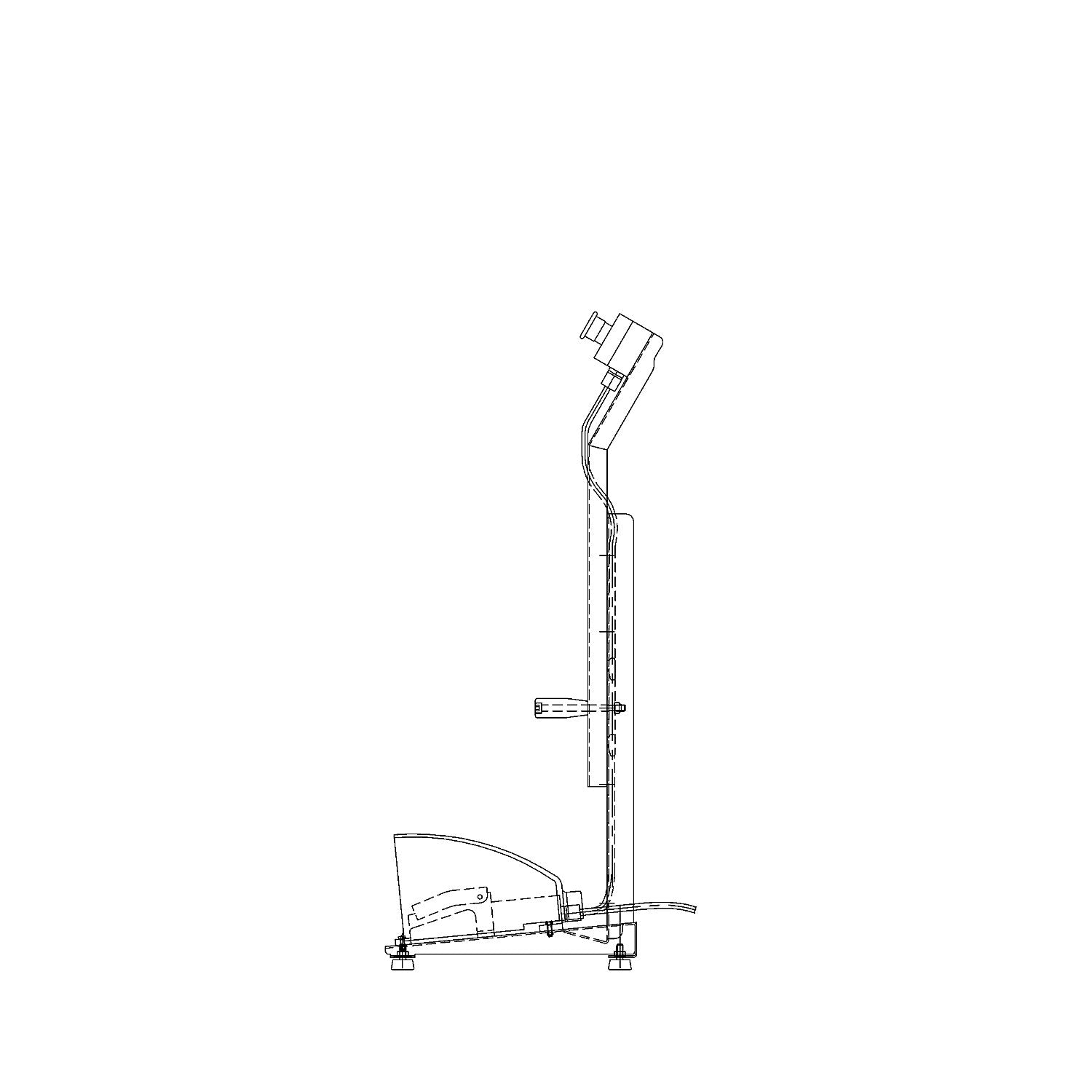

• Operated using a hand switch with 3 m cable and emergency off switch
• Lifting capacity at full load: 3 - 4 cycles per hour in 1 shift operation. 230 V model on request.
