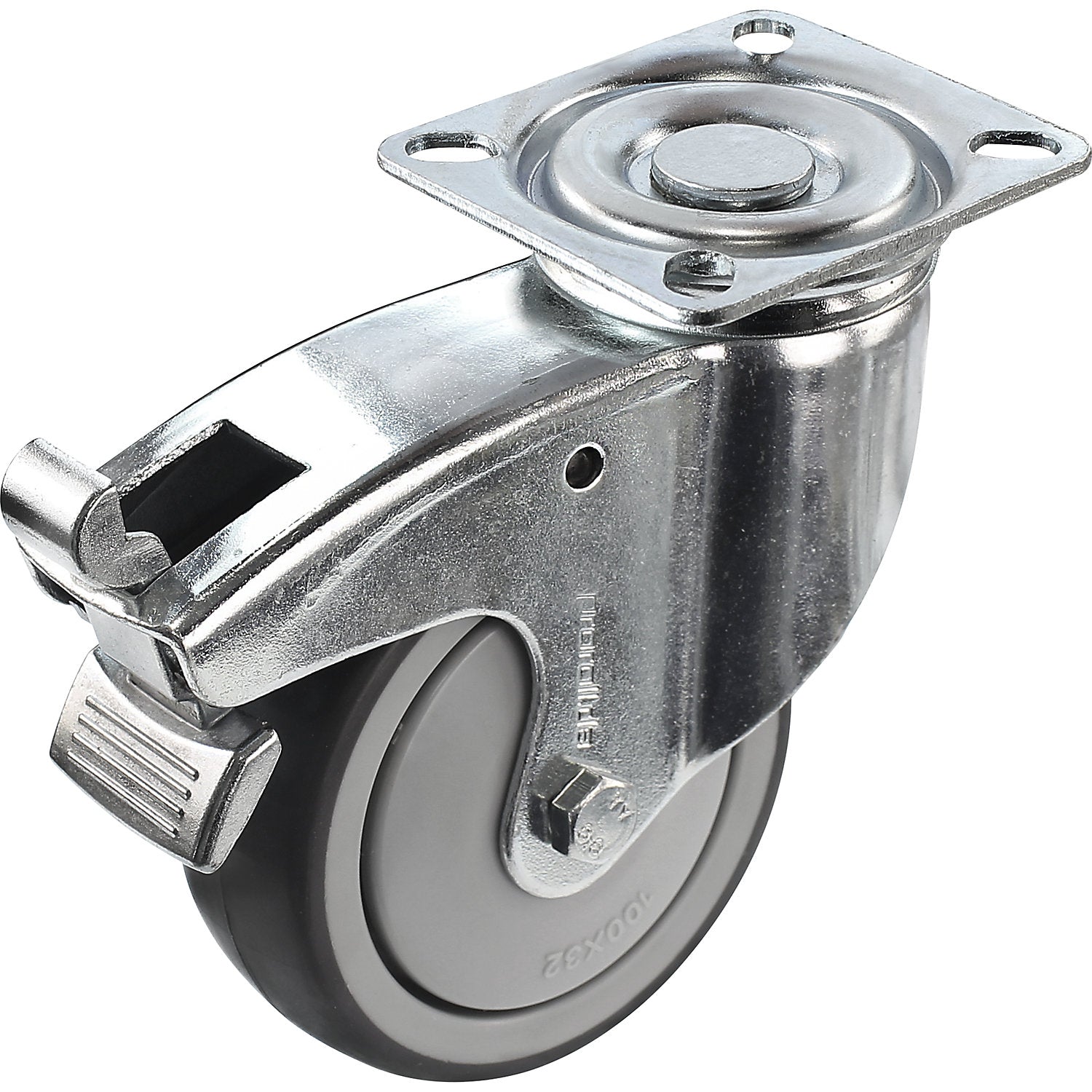

Rubber tyre, thermoplastic, with mounting plate, wheel Ø x width 100 x 32 mm, swivel castor with double stop.

Estimated delivery: 29 days

Rubber tyre, thermoplastic, with mounting plate, wheel Ø x width 100 x 32 mm, swivel castor with double stop

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with double stop
• Wheel material = rubber - thermoplastic rubber elastomer (TPE)
• Material of rim = polypropylene
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 80 kg
• Wheel width = 32 mm
• Overall height = 133 mm
• Wheel bearing = ball bearing
• Temperature resistance = -10 °C to +70 °C
• Swivel castor offset = 38 mm
• Screw hole diameter = 8.5 mm
• Model = light duty castors
• Fixed castor plate dimensions = 77x67 mm
• Swivel castor plate dimensions = 77x67 mm
• Screw hole spacing = 61.5 / 51.5x56.5 / 46.5 mm
• Housing surface = zinc plated
• Shore hardness = 85 A
• Customs tariff number = 73269098
• Country of origin = CHN
• Gross weight = 1.75 kg
• Weight = 0.84 kg
• Sustainability = CO 2 footprint calculated
• Non-leak tyres
• Low rolling resistance, smooth running
• Non-marking tyres, hardwearing
• Hardness 85 Shore A
• Temperature resistant from -10 °C to +70 °C
• Swivel bearing with double ball race
• Also available as electrically conductive models on request.
