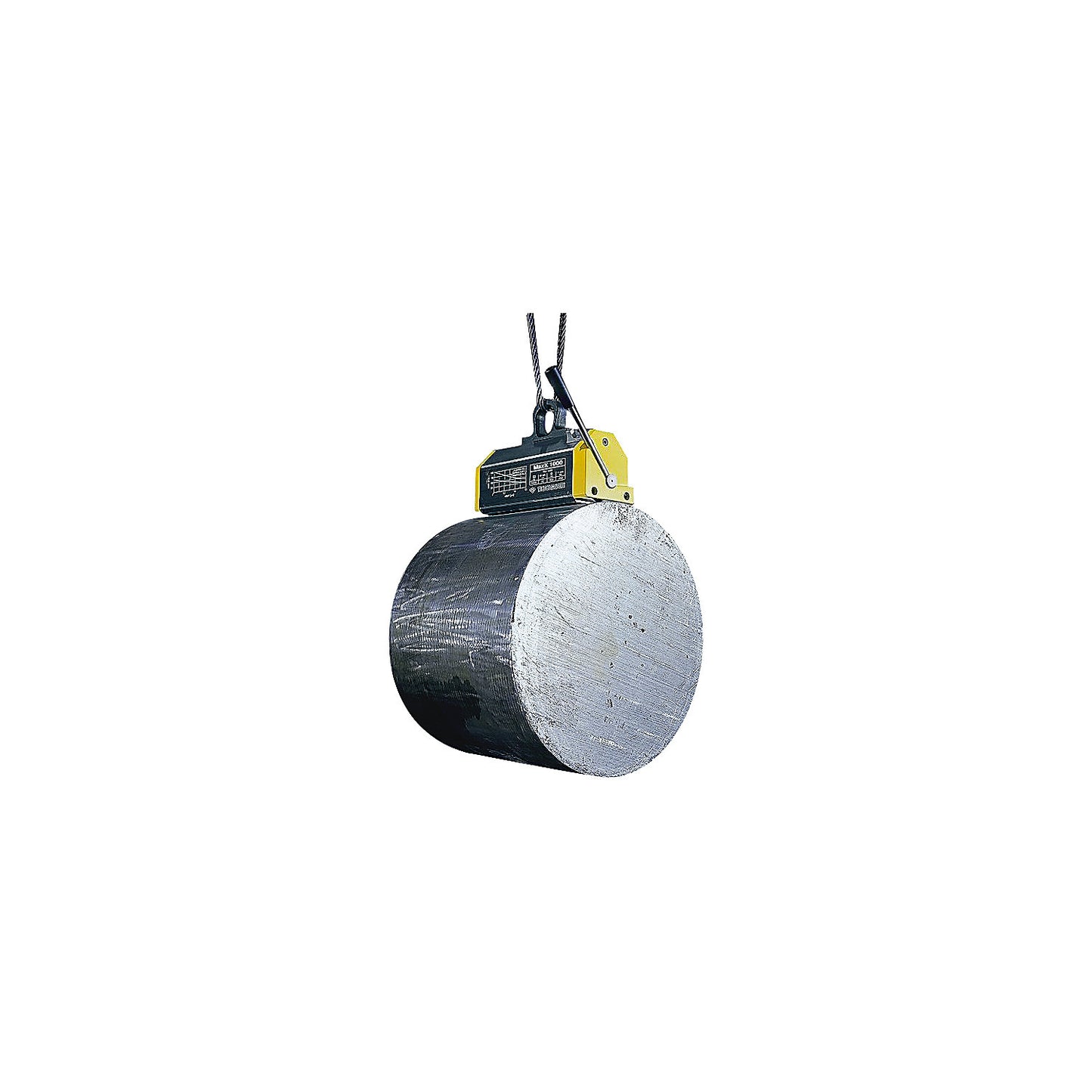

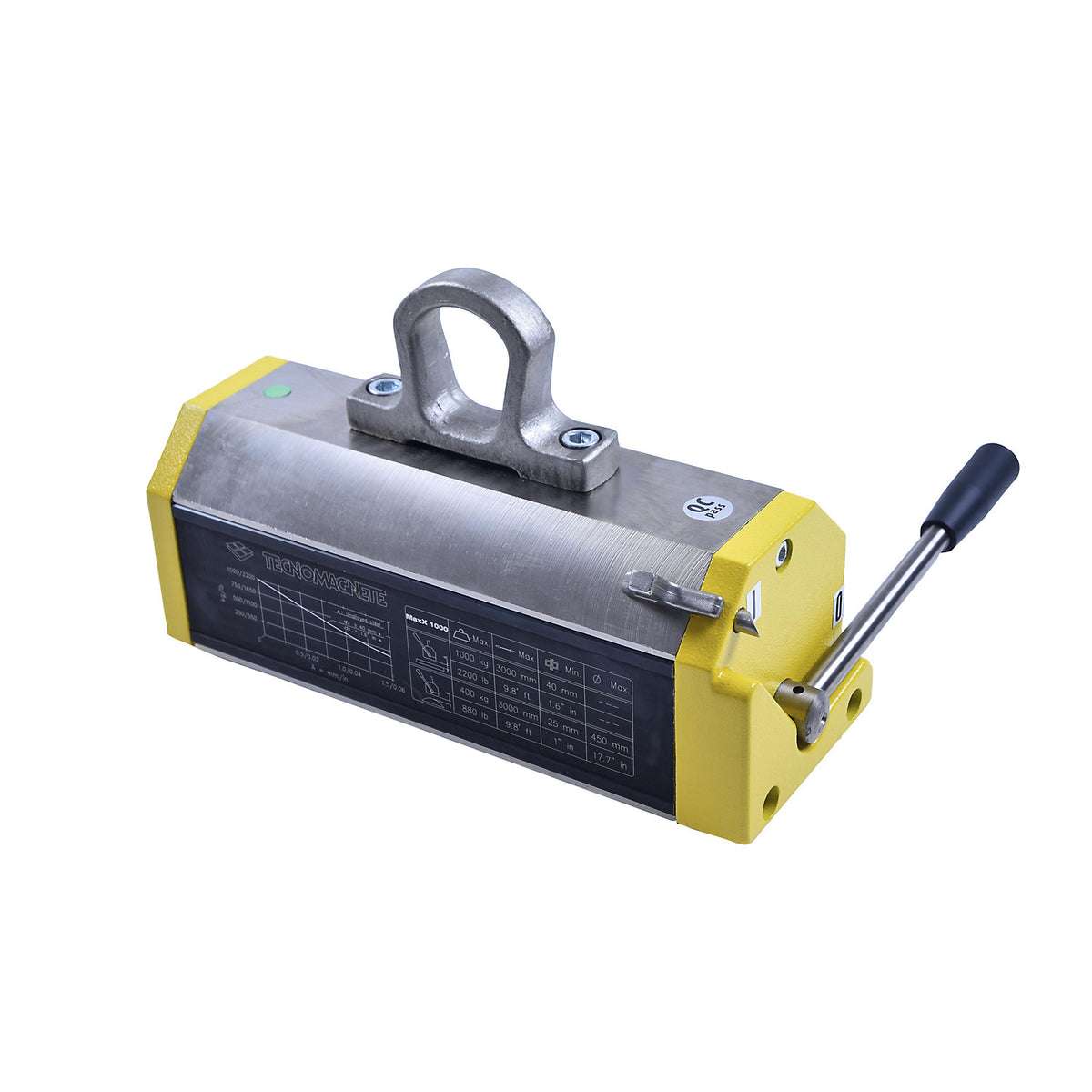

Stationary lifting magnet, for flat and round material, lifting capacity 1000 kg for flat material, 400 kg for round material.

Estimated delivery: 37 days

Stationary lifting magnet, for flat and round material, lifting capacity 1000 kg for flat material, 400 kg for round material

• Supplied = assembled
• Max. load permitted for flat material = 1000 kg
• Max. load permitted for round material = 400 kg
• Weight = 34 kg
• Width = 133 mm
• Max. diameter for round material = 450 mm
• Height = 219 mm
• Length = 342 mm
• Min. wall thickness for round material = 25 mm
• Min. wall thickness for flat material = 40 mm
• Max. workpiece length = 3000 mm
• Colour = metal, yellow
• Material = steel, aluminium
• Product type = lifting magnets
• Customs tariff number = 85059029
• Country of origin = ITA
• Gross weight = 36 kg
• Weight = 34 kg
• Sustainability = CO 2 footprint calculated
• Safe lifting of flat and round material
• Constant and reliable hold due to concentrated magnetic force
• Easy operation by flipping the lever
• Gentle handling of the load without damage
• Integrated safety device locks the lever during lifting
• Compact, lightweight design for flexible applications
• The permanent lifting magnet enables the safe and gentle lifting of flat and round material
• Its highly concentrated magnetic force ensures a constant, reliable hold and facilitates the handling of metallic loads
• The lifting magnet is particularly easy to operate
• By flipping the lever, the magnetic force is switched on or off
• During the holding phase, an integrated safety device locks the lever and thus supports controlled working
• The holding force concentrates specifically on the load
• As a result, surrounding steel parts are not unintentionally attracted
• At the same time, the magnetic force treats the surface of the load gently, as no mechanical grippers or lifting slings act on the material
• Even workpieces with irregular surfaces can be reliably handled with the load lifting magnet
• Thanks to its compact design and comparatively low dead weight, the lifting magnet can be used flexibly at various workplaces
• It is particularly suitable for metalworking companies, workshops, production areas and warehouses where steel parts are regularly lifted or relocated
• In doing so, the load lifting magnet reduces the effort required for attaching loads and supports a swift material flow
• Particularly with frequently changing workpieces, the simple lever operation facilitates recurring lifting and transport operations
• Other loading capacities are available on request.
