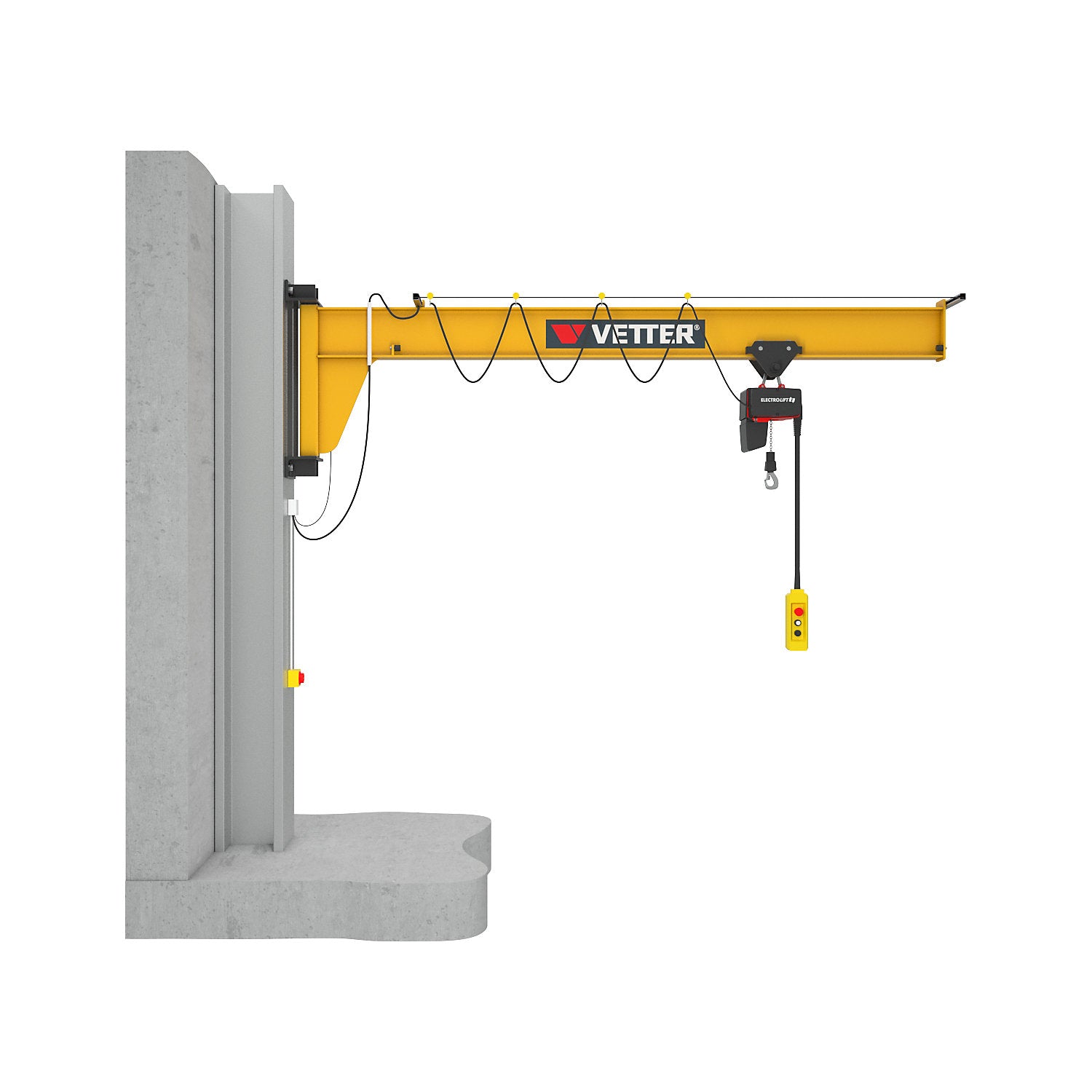

ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 1000 kg, reach 4 m.

Estimated delivery: 52 days

ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 1000 kg, reach 4 m

• Supplied = flat pack
• Max. load = 1000 kg
• Operating voltage = 400 V / 50 Hz
• Swivel range = 180°
• Design of rotary crane = crane without electric chain hoist
• Flange width = 150 mm
• Height of lifting gear = 573 mm
• Reach = 4000 mm
• Horizontal force max. = 41 kN
• Vertical force max. = 13 kN
• Bracket module = B
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = wall mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 247.2 kg
• Weight = 247 kg
• Sustainability = CO 2 footprint calculated
• Compact design, ideal for low rooms
• High quality craftsmanship
• Flexibility in assembly
• The compact design and the large usable lifting height also make it ideally suited for narrow and small spaces
• It also features a variable stabilising arm length, which adapts to your requirements
• Decide for yourself whether the wall mounted jib crane should be attached to a steel support, reinforced concrete support, reinforced concrete wall or steel construction
• Construction complies with EN regulations and EU machine guidelines for light industrial use
• Steel shot blasted, painted in yellow RAL 1007
• Bearing brackets jet black RAL 9005
• Included in delivery Standard electrical system with lockable mains cut-off switch and power supply to hoist
• Round trailing cable
• Dolly buffers on front and back
• Wall mounted jib crane including bearing brackets, without mounting screws
• Detailed documentation is included in delivery
• Does not include chassis and electric chain hoist
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return
• You couldn't find the right model? Other load capacities, reaches, overall heights and paint coats available on request.
