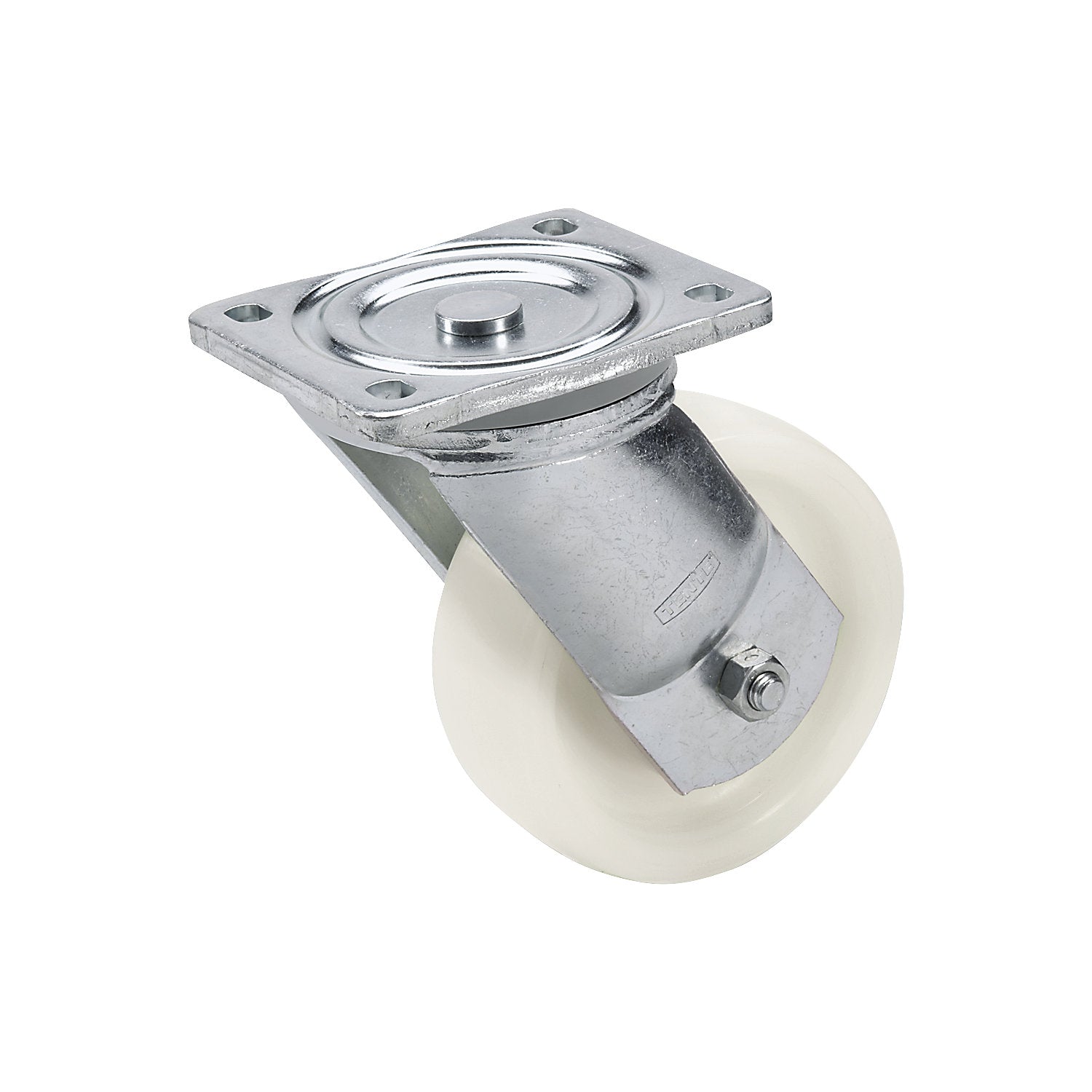

Nylon wheel, hardwearing, wheel Ø x width 125 x 50 mm, swivel castor.

Estimated delivery: 29 days

Nylon wheel, hardwearing, wheel Ø x width 125 x 50 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 125 mm
• Structure = swivel castor
• Wheel material = plastic - nylon
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 840 kg
• Wheel width = 50 mm
• Overall height = 170 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +80 °C
• Swivel castor offset = 48 mm
• Screw hole diameter = 11 mm
• Hub length = 60 mm
• Hub bore = 20 mm
• Model = heavy duty castors
• Fixed castor plate dimensions = 135x110 mm
• Swivel castor plate dimensions = 135x110 mm
• Screw hole spacing = 105x75 - 80 mm
• Housing surface = galvanised and chrome-plated
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 4.6 kg
• Weight = 3.6 kg
• Hardwearing
• Largely resistant to thinned acids and alkaline solutions
• Temperature resistant from -20 °C to +80 °C
• Steel housing, welded, with zinc chromate finish

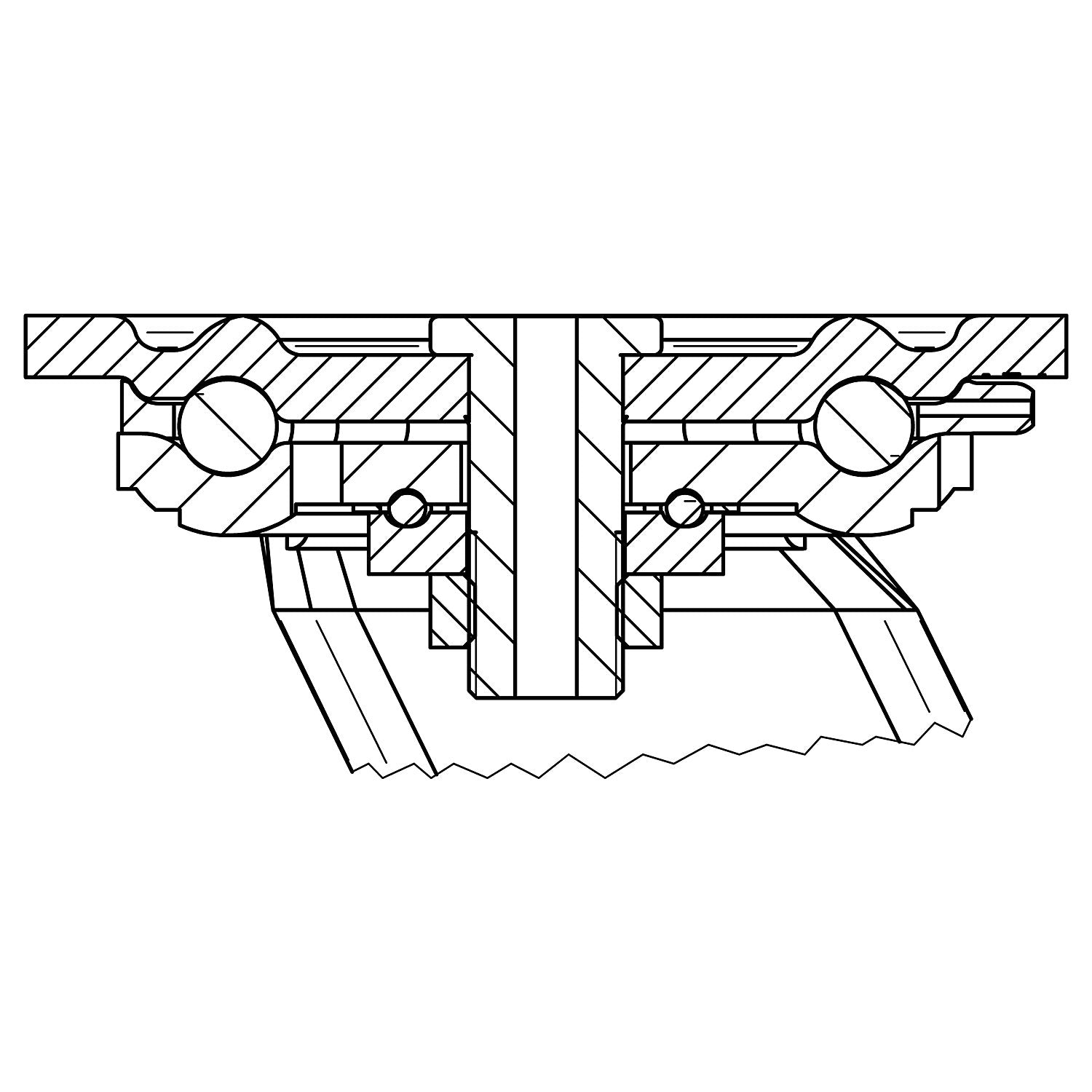

• Swivel bearings with double ball race
• Live ring with labyrinth seal
• With lubrication nipple, centre bolts screwed on and secured.
