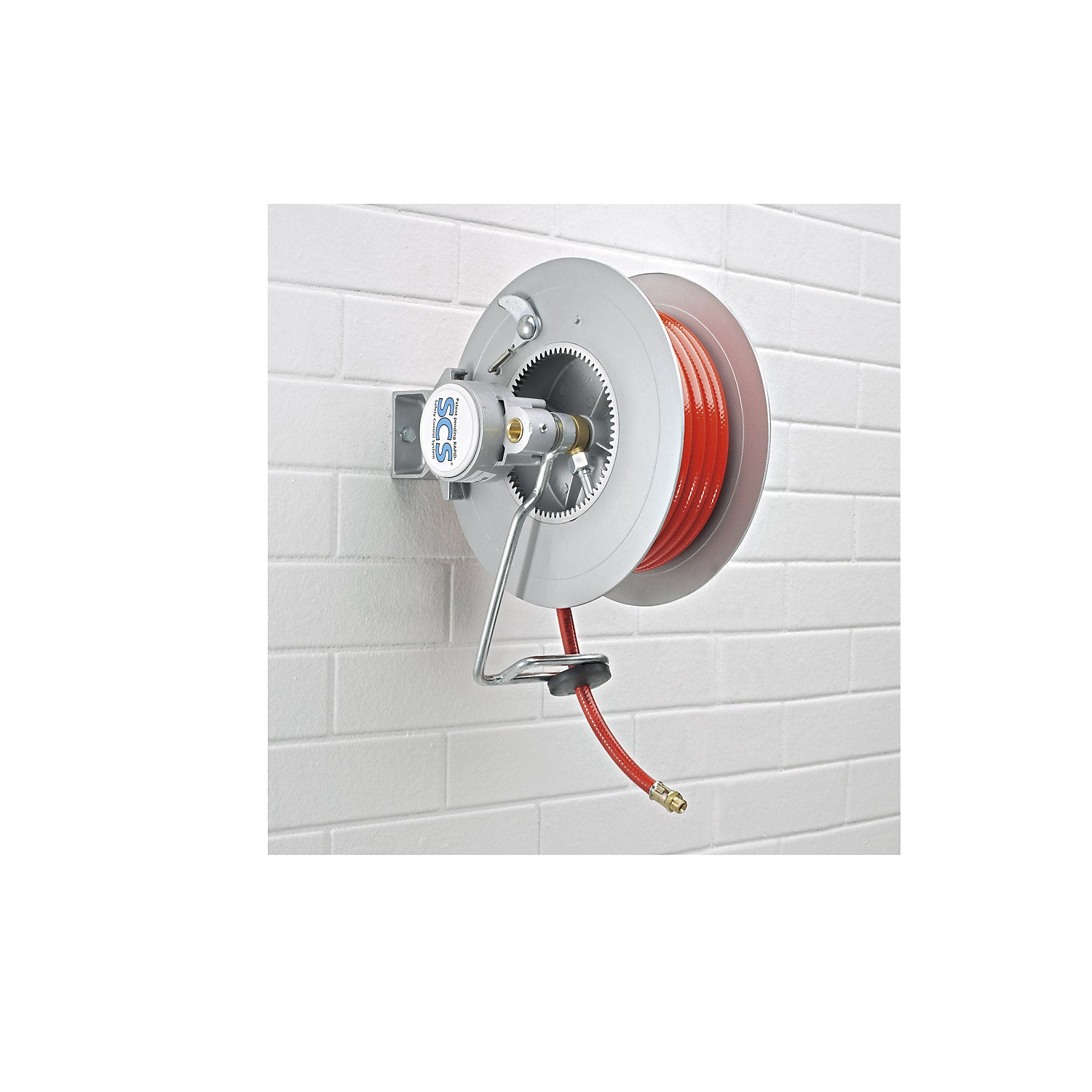

Hose reel, PVC hose with brake, hose length 12 m.

Estimated delivery: 39 days

Hose reel, PVC hose with brake, hose length 12 m

• Supplied = assembled
• Area of application = for air
• Max. pressure up to = 15 bar
• Nominal hose diameter = DN 10
• External connection = G 3/8 inch
• Hose length = 12 m
• Housing material = cast aluminium
• Type of mounting = Can be fastened to wall, ceiling, floor, machines and vehicles
• Length = 355 mm
• Width = 166 mm
• Height = 325 mm
• Fittings = PVC hose
• Model = with SCS® duplex brake
• Colour = silver grey
• Product type = hose reels
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 8.5 kg
• Weight = 7.8 kg
• Sustainability = CO 2 footprint calculated
• For air - max. 15 bar
• With SCS® duplex brake
• Robust and durable cast aluminium reel
• Zinc plated, swivelling hose guide
• Includes a quick release coupling
• Multiple latches per turn
• With recoil spring and recoil locks
• Drum and base made of cast aluminium, swivelling hose guide, zinc plated
• PVC hose and buffer
• Quick coupling and swivel bracket for mounting as an accessory
• SCS® duplex brake The SCS® duplex brake guarantees controlled, braked retraction without risk for people and machines
• Only functional in direction of retraction.
