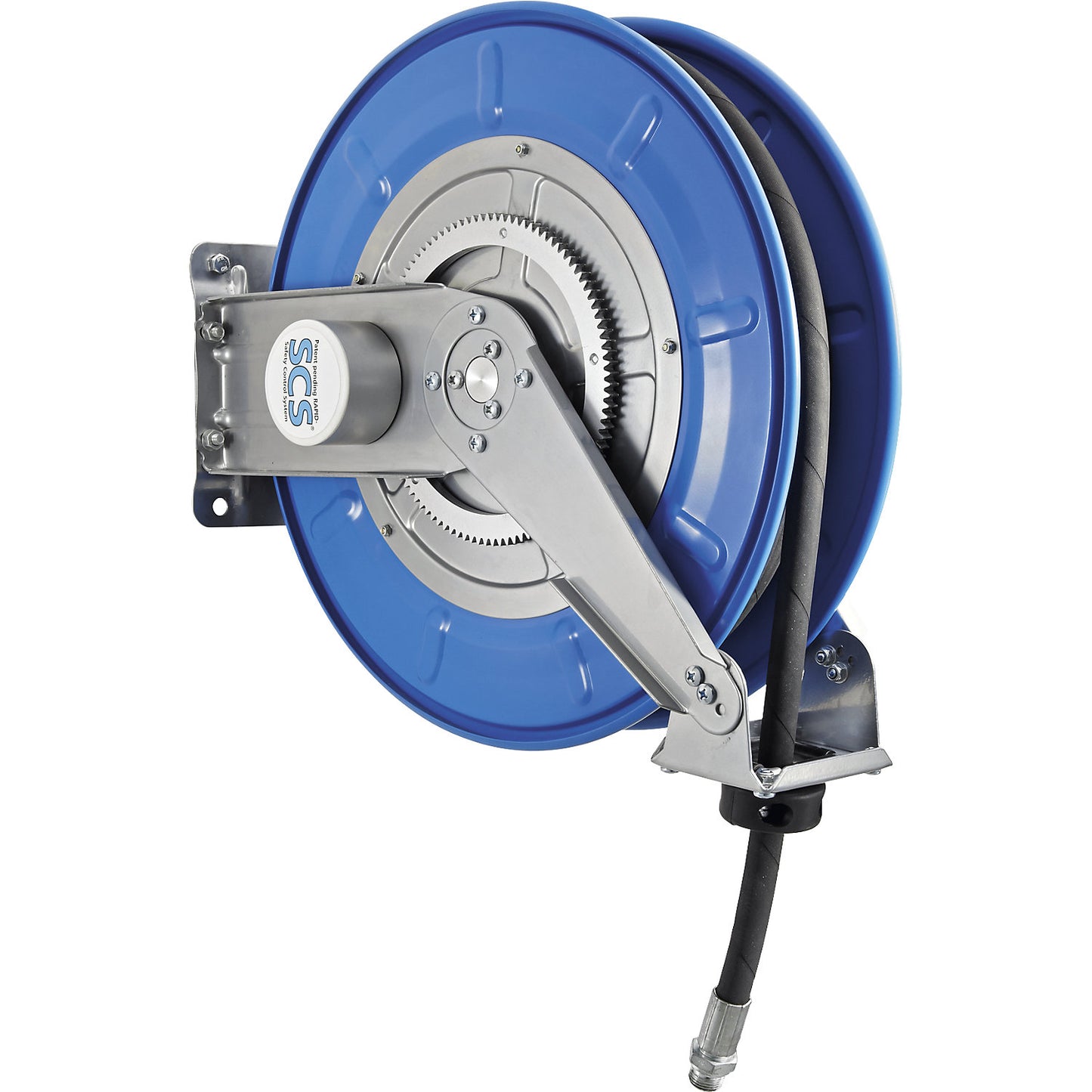

Hose reel for air, water, oil, up to 50 bar, nominal hose diameter DN 12, external connection G 1/2'', hose length 10 m.

Estimated delivery: 39 days

Hose reel for air, water, oil, up to 50 bar, nominal hose diameter DN 12, external connection G 1/2'', hose length 10 m

• Supplied = assembled
• Area of application = for air, water, or oil
• Max. pressure up to = 50 bar
• Nominal hose diameter = DN 12
• External connection = G 1/2 inch
• Hose length = 10 m
• Housing material = sheet steel, painted
• Fittings = PVC hose
• Model = with SCS® duplex brake
• Colour = blue
• Product type = hose reels
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 15.9 kg
• Weight = 15 kg
• Sustainability = CO 2 footprint calculated
• For air, water, or oil - max. 50 bar
• Painted with some zinc plated elements
• Rubber hose with stopper
• Up to max. 60 °C
• With SCS® duplex brake
• Variable outlet window with PVC rollers
• Multiple latches per turn
• Swivel bracket for mounting available as an accessory
• SCS® duplex brake
• The SCS® duplex brake guarantees controlled, braked retraction without risk for people and machines
• Only functional in direction of retraction.
