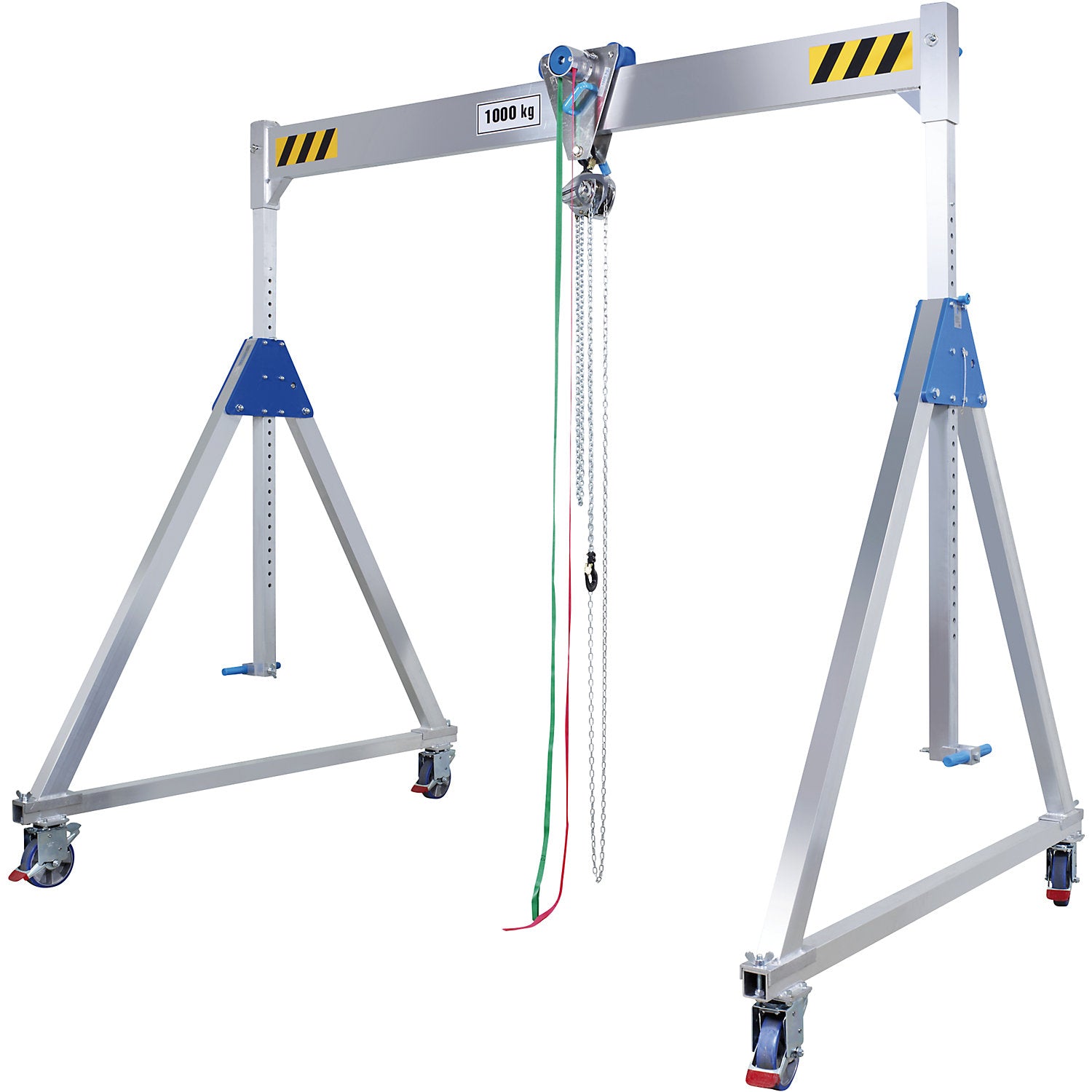

ALU1 aluminium gantry crane, with spur gear block and tackle unit, max. load 1000 kg, suspension height 2170 - 3020 mm.

Estimated delivery: 52 days

ALU1 aluminium gantry crane, with spur gear block and tackle unit, max. load 1000 kg, suspension height 2170 - 3020 mm

• Supplied = flat pack
• Max. load = 1000 kg
• Design of mobile gantry crane = crane with spur gear block and tackle
• Material = aluminium
• Track width = 4400 mm
• Clear width = 4000 mm
• Suspension height from - to = 2170 - 3020 mm
• Overall height from - to = 2550 - 3400 mm
• Side support width = 2000 mm
• Max. lifting height = 2647 mm
• Weight = 186 kg
• Colour = silver
• Product type = mobile gantry cranes
• Customs tariff number = 84261900
• Country of origin = DEU
• Gross weight = 188 kg
• Weight = 186 kg
• Sustainability = CO 2 footprint calculated
• Height adjustable, also mobile when loaded
• Easy plug in assembly, ideal for changing locations
• Low empty weight due to aluminium profile
• This mobile gantry crane is used exactly where you currently need it
• It is quick to set up and disassemble, and can work with heavy loads without problems - this makes it particularly suitable for mobile use
• Assembly is just as easy as using it, and requires no drilling and no tools: all parts are produced with plug connections
• Due to these characteristics, it is especially suitable for assembly purposes
• This model is equipped with a spur gear block and tackle
• Suitable for indoor and outdoor use
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
