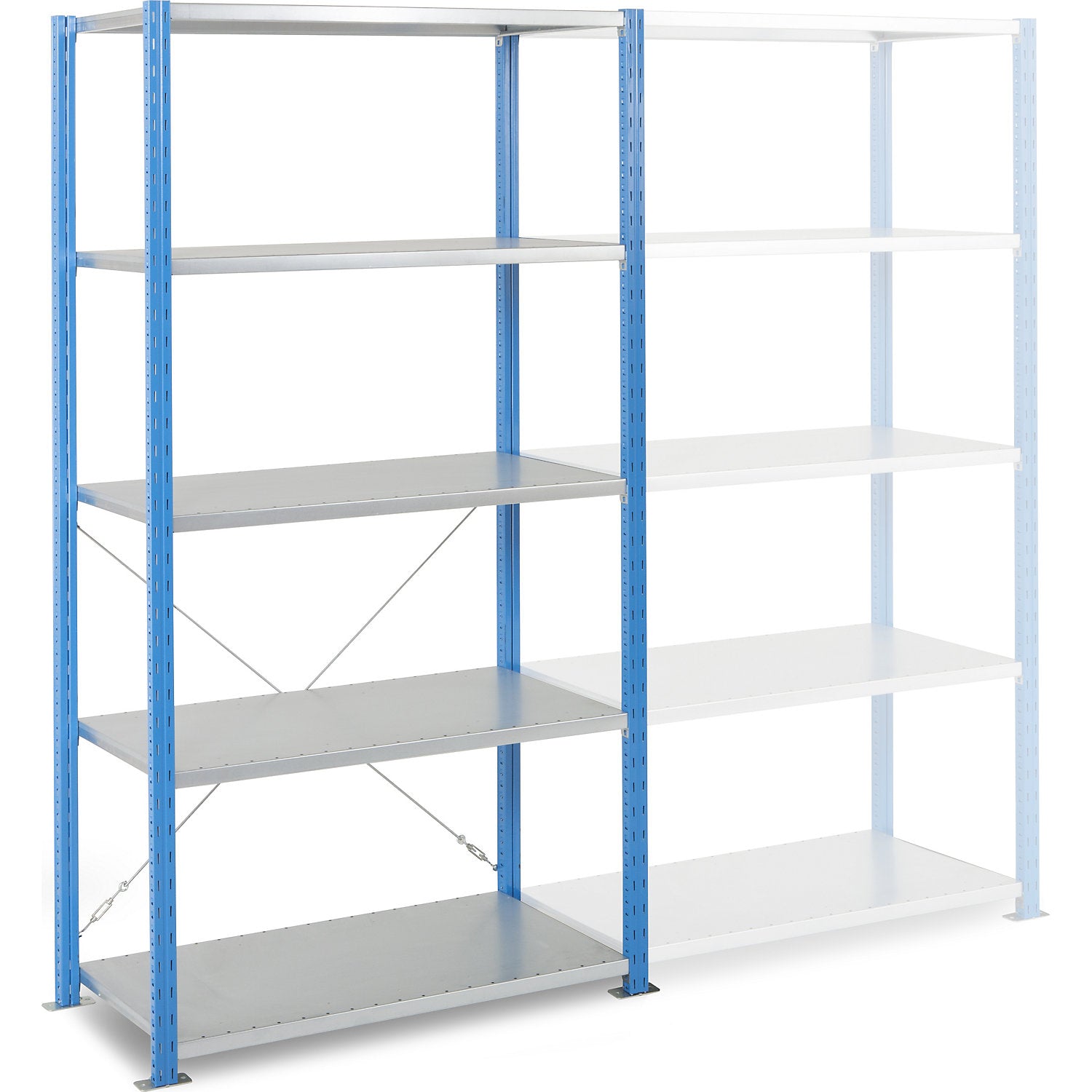

Heavy-duty boltless shelving, shelf WxD 1000 x 800 mm, max. shelf load 270 kg, standard shelf unit, height 2000 mm, 5 shelves.

Estimated delivery: 36 days

Heavy-duty boltless shelving, shelf WxD 1000 x 800 mm, max. shelf load 270 kg, standard shelf unit, height 2000 mm, 5 shelves

• Supplied = flat pack
• Shelf unit type = standard unit
• Shelf unit height = 2000 mm
• Shelf width = 1000 mm
• Shelf depth = 800 mm
• Colour = sky blue RAL 5015, zinc plated
• Number of shelves = 5 pcs
• Max. shelf load = 270 kg
• Max. bay load = 2000 kg
• Shelf height = 32 mm
• Shelf height adjustment increments = 25 mm
• Shelf material = sheet steel
• Design = plug in
• Material = steel
• Finish = plastic coated
• Width = 1100 mm
• Depth = 812 mm
• Shelf unit fittings = with zinc plated cross brace
• Width of upright profile = 43 mm
• Depth of upright profile = 39 mm
• Product type = heavy duty boltless shelving units
• Customs tariff number = 73089098
• Country of origin = FRA
• Gross weight = 43.27 kg
• Weight = 41.97 kg
• Sustainability = CO 2 footprint calculated
• Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
• Wide range of accessories
• Shelf levels Zinc plated cross beams with removable sheet steel shelves, 0.6 mm thick
• Shelves with holes spaced at 50 mm at front and rear for shelf divider attachment (accessory)
• Shelf height 32 mm. 25 mm shelf height adjustment grid
• Upright frames 43 x 39 x 1 mm, with high quality plastic coating, blue RAL 5015
• Incl. zinc plated metal base plates (100 x 57 x 3 mm) for anchoring to floor (bolts and plugs not included)
• Anchoring hole Ø 11 mm
• Cross brace (zinc plated) Included with delivery
• Required for every standard shelf unit and for every 3rd extension shelf unit
• Upright profile width: 43 mm Upright profile depth: 39 mm External dimensions Shelf unit width Standard shelf unit: 1043 mm / 1293 mm
• Extension shelf unit: 1000 mm / 1250 mm
• Shelf unit width incl. foot plates Standard shelf unit: 1100 mm / 1350 mm
• Extension shelf unit: 1000 mm / 1250 mm
• Shelf unit depth Shelf depth + 12 mm
• Shelf unit depth incl. foot plates Shelf unit depth + 9 mm
• Please note: If the height of the shelf unit equals more than 5 times its depth, the shelf unit must be secured against tipping by means of wall fasteners
• Max. number of shelf dividers per shelf level 18 items for 1000 mm shelf width
• The specified max. load values are applicable with uniform load distribution
• Additional shelf levels may be used if the specified max. bay load is observed.
