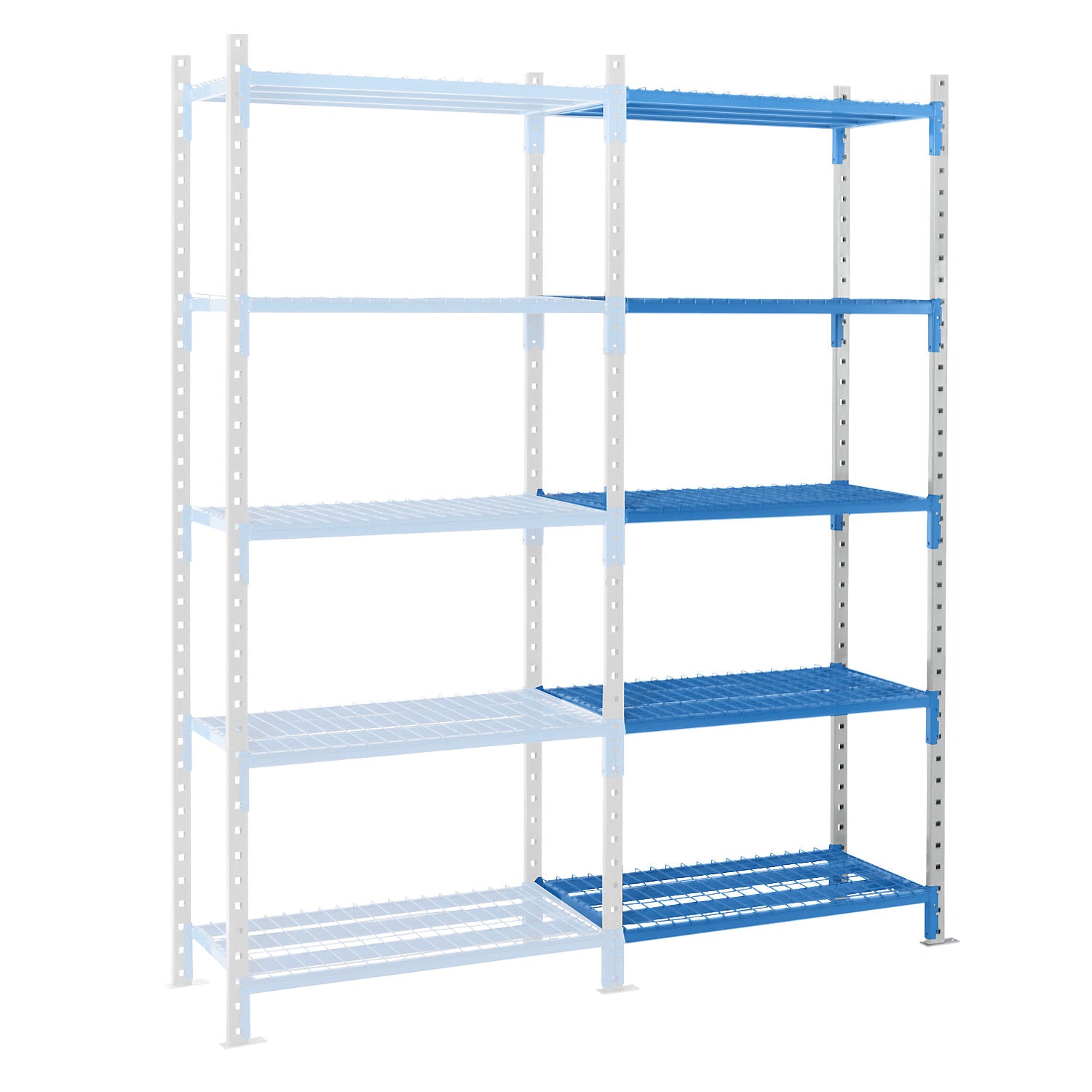

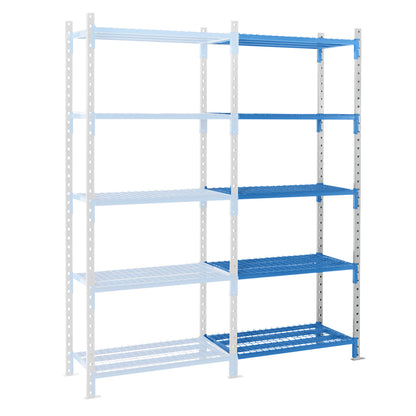

Boltless mesh shelf unit, shelf unit height 2496 mm, shelf width 960 mm, extension shelf unit, shelf width 995 mm.

Estimated delivery: 36 days

Boltless mesh shelf unit, shelf unit height 2496 mm, shelf width 960 mm, extension shelf unit, shelf width 995 mm

• Supplied = flat pack
• Shelf unit type = extension unit
• Shelf unit height = 2496 mm
• Shelf width = 960 mm
• Shelf depth = 995 mm
• Colour = light grey RAL 7035, sky blue RAL 5015
• Number of shelves = 5 pcs
• Max. shelf load = 500 kg
• Max. bay load = 2500 kg
• Shelf height adjustment increments = 62.5 mm
• Shelf material = mesh grid, plastic coated
• Design = plug in
• Material = steel
• Finish = plastic coated
• Width = 1010 mm
• Depth = 1015 mm
• Shelf unit design = double sided
• Shelf unit fittings = without rear panel
• Width of upright profile = 50 mm
• Depth of upright profile = 30 mm
• Product type = boltless shelving units
• Customs tariff number = 73089098
• Country of origin = FRA
• Gross weight = 74.2 kg
• Weight = 53.9 kg
• Sustainability = CO 2 footprint calculated
• Particularly user friendly and versatile due to mesh shelves which provide a better overview of stored products and for rooms with sprinkler systems
• Double sided use possible, as cross braces are not required
• Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
• Upright frames Rectangular tubular steel 50 x 30 x 1.5 mm
• Light grey RAL 7035, plastic coated
• Incl. zinc plated metal foot plates (110 x 50 x 3 mm) for anchoring to floor
• Floor anchoring holes Ø 13 mm
• Bolts and plugs not included. 62.5 mm shelf height adjustment grid

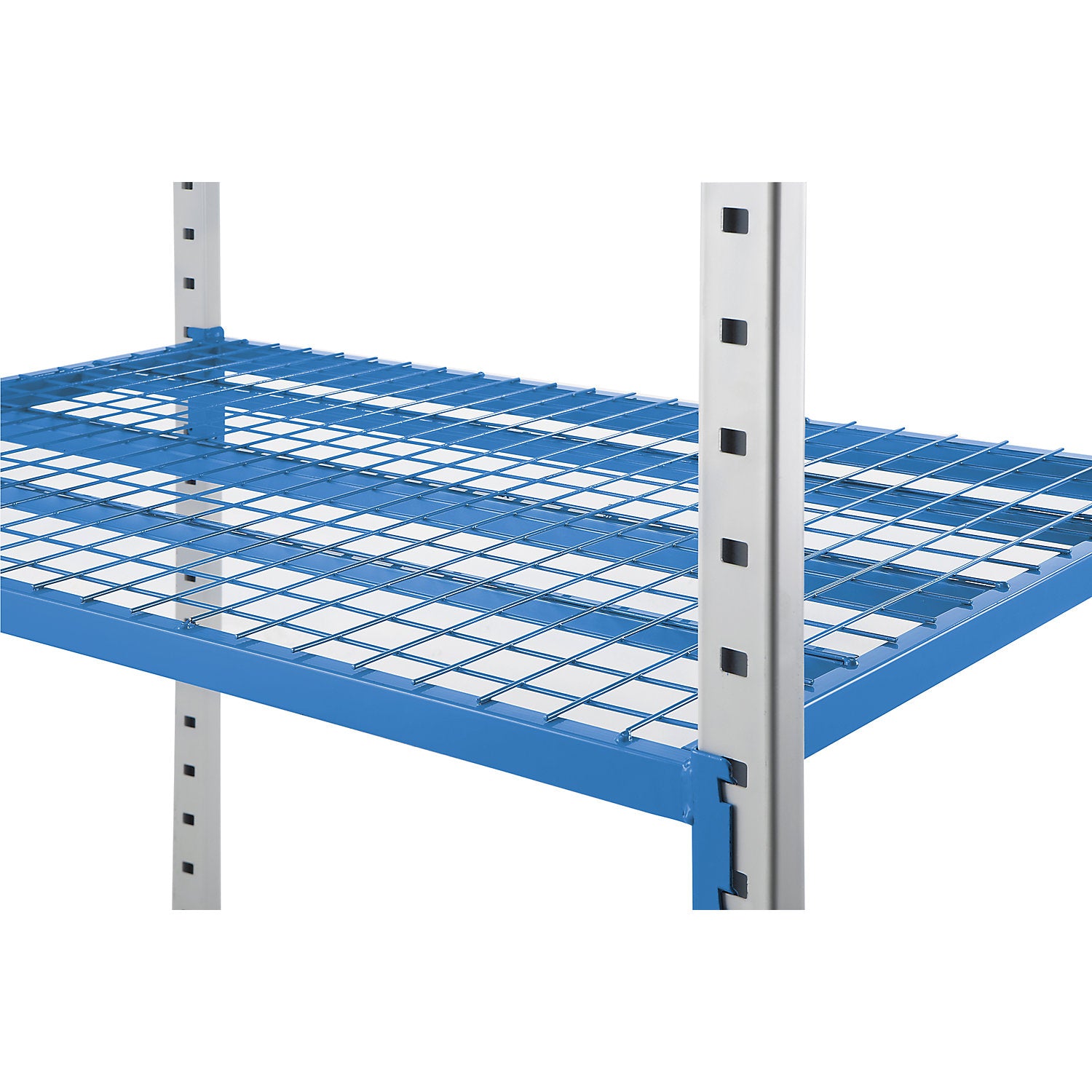

• Mesh shelves Mesh size 50 x 50 mm, wire thickness 3 mm
• Blue RAL 5015, plastic coated
• External dimensions Shelf unit width Standard shelf unit: 1060 mm + 1310 mm
• Extension shelf unit: 1010 mm + 1260 mm
• Shelf unit width incl. foot plates Standard shelf unit: 1120 mm + 1370 mm
• Extension shelf unit: 1010 mm + 1260 mm
• Shelf unit depth Shelf depth + 10 mm
• Shelf unit depth incl. foot plates Shelf unit depth + 20 mm
• Upright profile width: 50 mm Upright profile depth: 30 mm The specified max. load values are applicable with uniform load distribution
• Additional shelves may be used if the specified max. bay load is observed.
