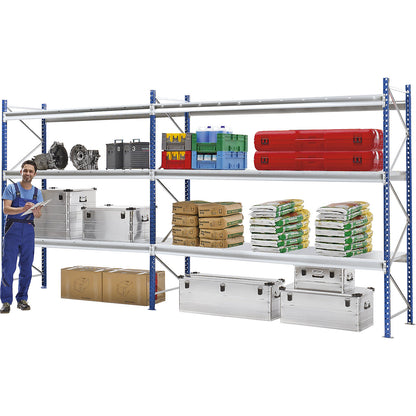

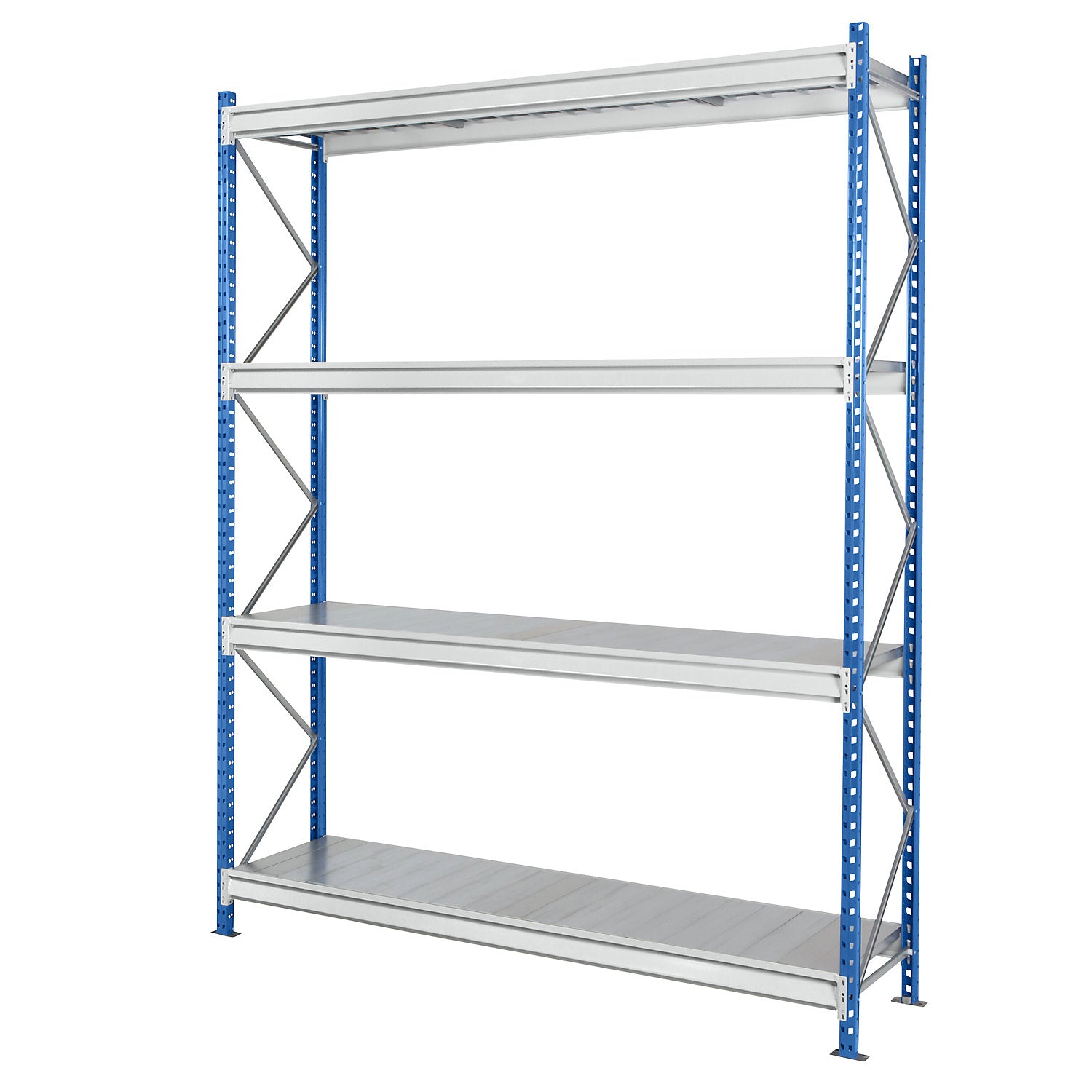

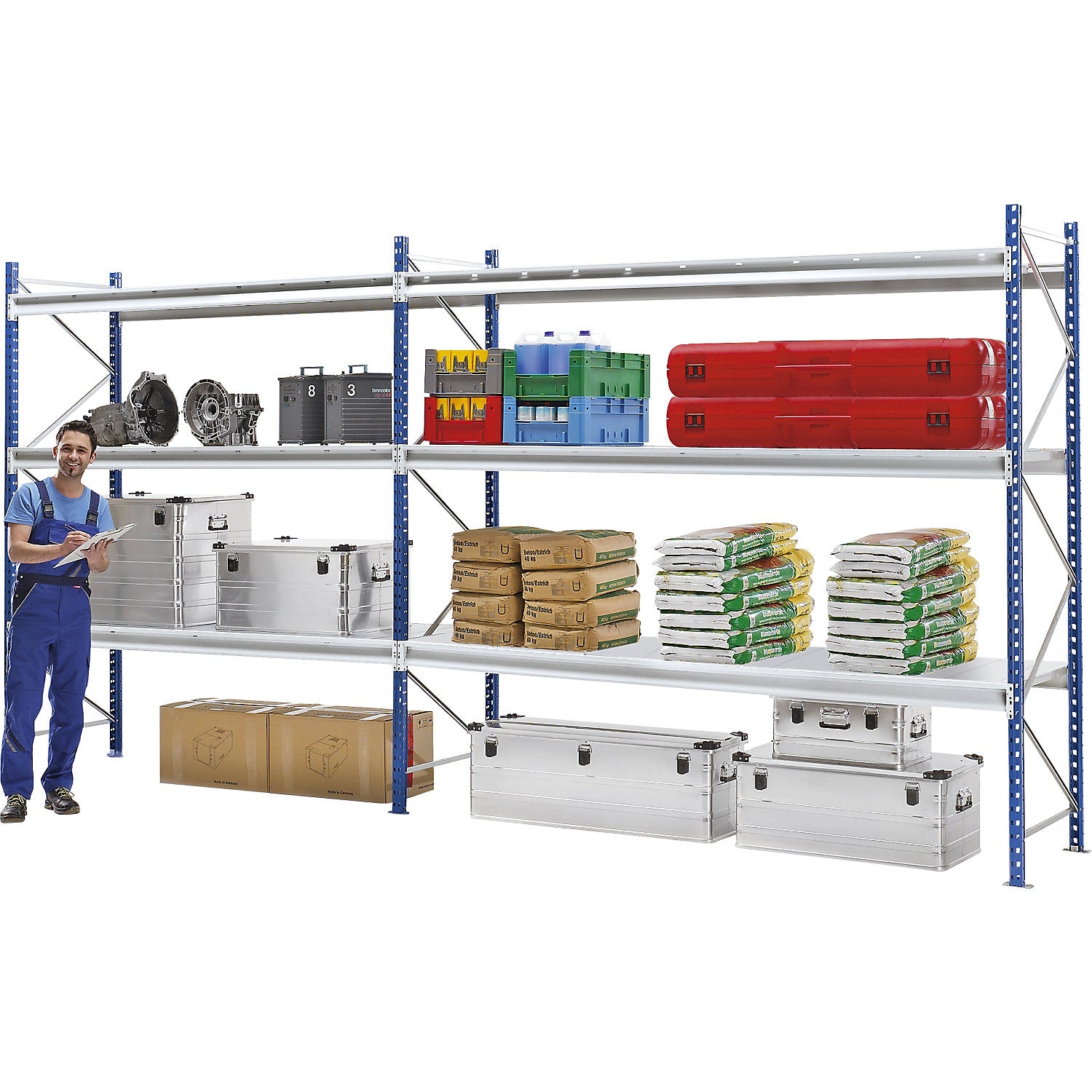

Heavy duty wide span shelving with steel shelf panels, frame colour blue, HxWxD 2996 x 2410 x 1000 mm, standard shelf unit.

Estimated delivery: 36 days

Heavy duty wide span shelving with steel shelf panels, frame colour blue, HxWxD 2996 x 2410 x 1000 mm, standard shelf unit

• Supplied = flat pack
• Shelf unit type = standard unit
• Shelf unit height = 2996 mm
• Shelf width = 2250 mm
• Shelf depth = 1000 mm
• Colour of uprights = gentian blue RAL 5010
• Width = 2410 mm
• Depth = 1010 mm
• Width of upright profile = 25 mm
• Depth of upright profile = 15 mm
• Shelf clearance width = 2245 mm
• Shelf thickness = 0.5 mm
• Max. bay load = 4500 kg
• Max. shelf load = 630 kg
• Adjustment grid = 50 mm
• Number of shelf levels = 4 pcs
• Material = steel
• Material of uprights = steel, plastic coated
• Cross beam material = steel, zinc plated
• Shelf material = steel, zinc plated
• Cross beam colour = light grey RAL 7035
• Shelf colour = silver
• Customs tariff number = 73089098
• Country of origin = FRA
• Gross weight = 157.487 kg
• Weight = 137.427 kg
• Sustainability = CO 2 footprint calculated
• For the manual storage of bulky and heavy goods
• Boltless installation and adjustment of support beams
• Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
• Upright frame 2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010
• Contoured profile, 50 x 50 mm
• Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts
• Zinc plated base plates for floor anchoring, 3 mm in height
• Bolts and plugs not included. 50 mm shelf adjustment grid

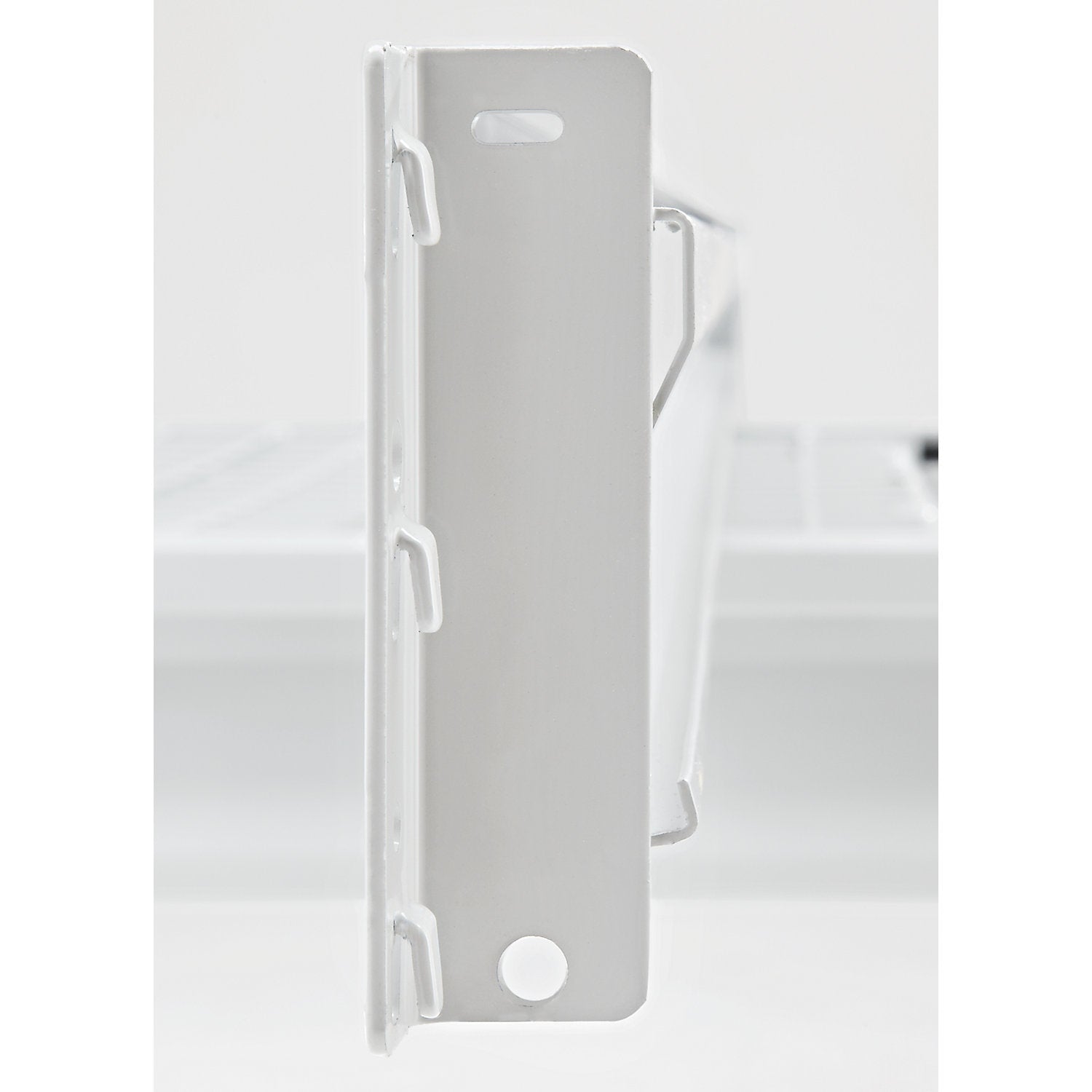

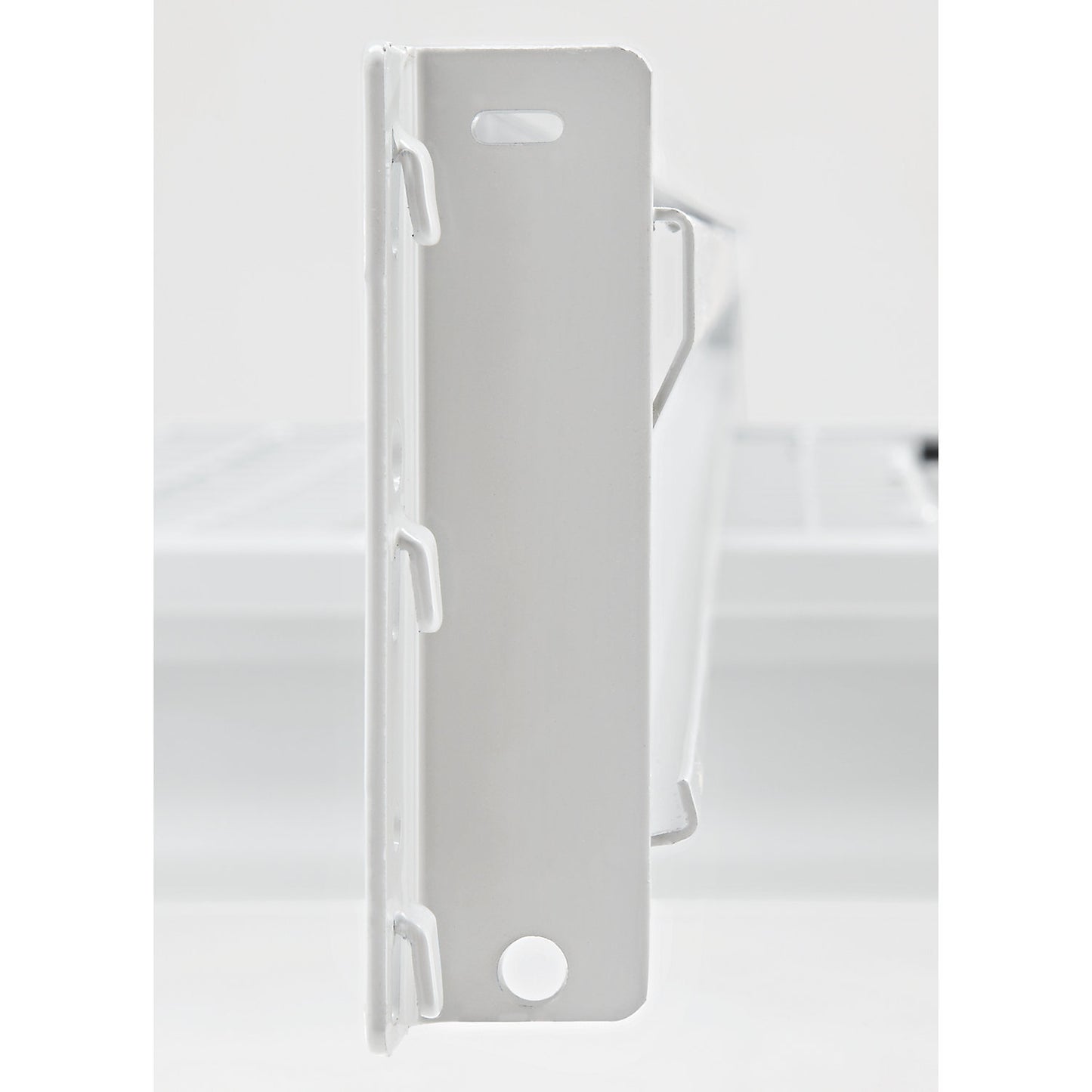

• Shelves Support beams with Z profile, plastic coated light grey RAL 7035. 3 suspension hooks with securing pins for mounting the support beams

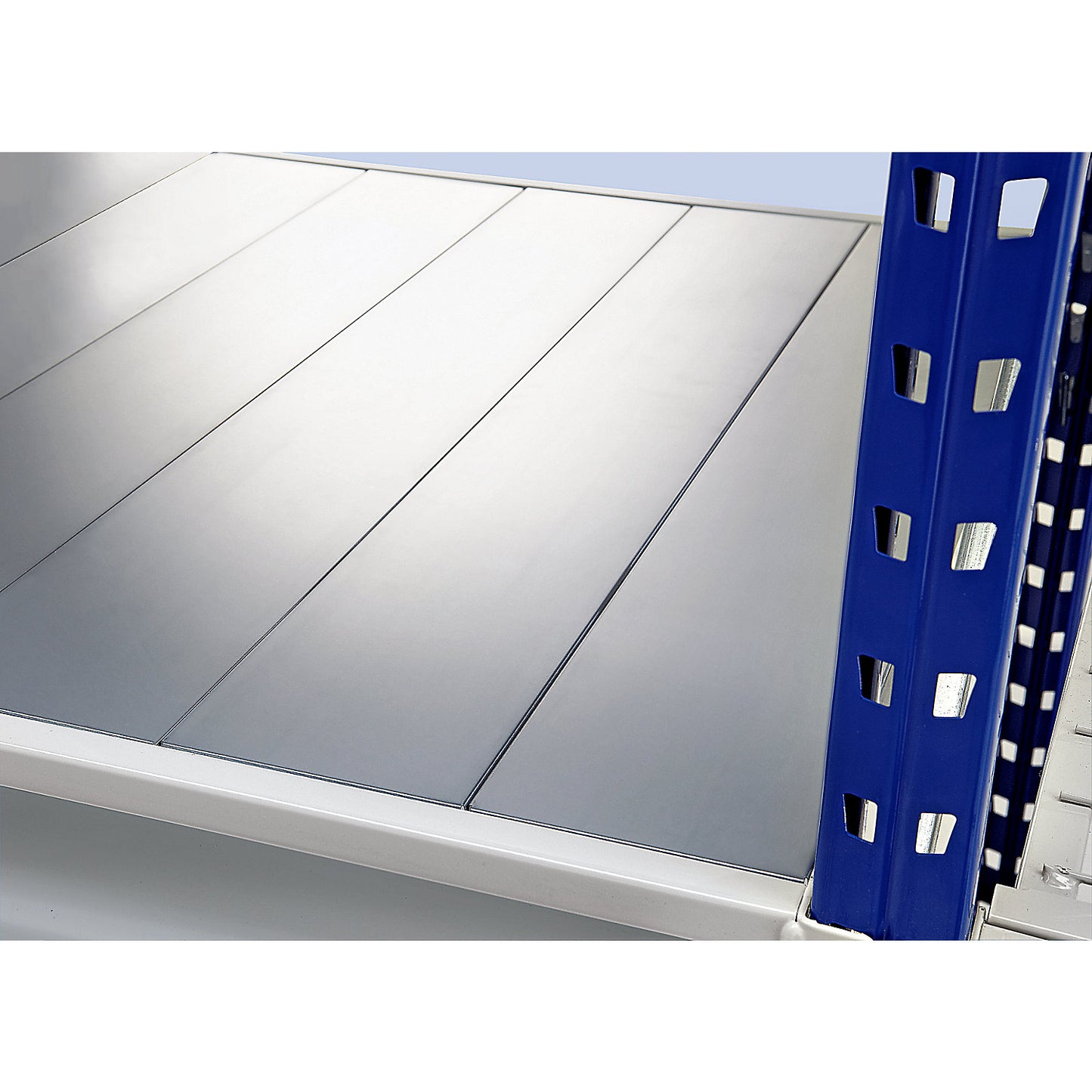

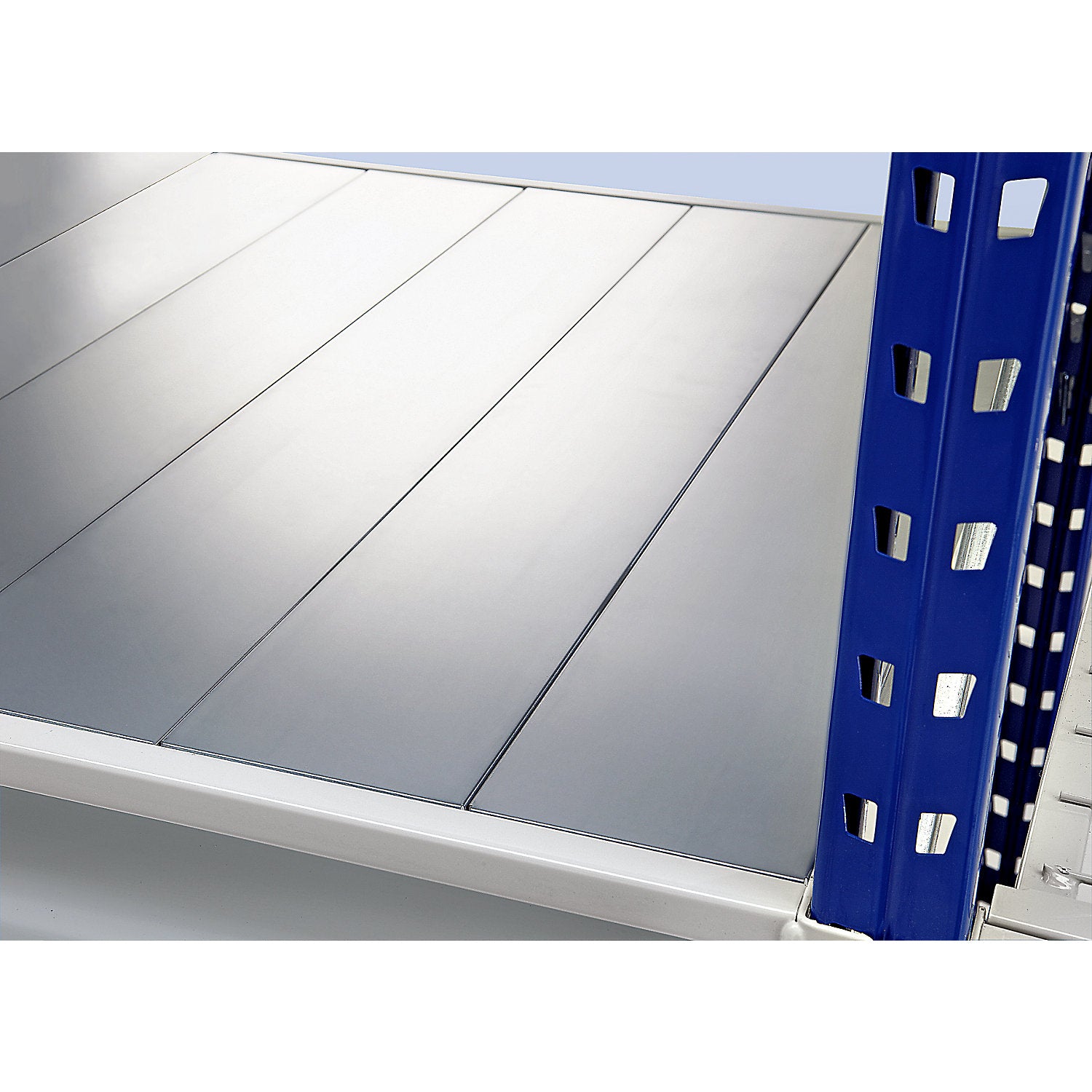

• Steel shelf panel modules, zinc plated, thickness 0.5 mm
• Standard shelf unit width - without footplates: shelf width + 100 mm. - with footplates: shelf width + 160 mm
• Extension shelf unit width - without footplates: shelf width + 50 mm. - with footplates: shelf width + 80 mm
• Shelf unit depth incl. foot plates Shelf depth + 10 mm
• The specified max. load values are applicable with uniform load distribution
• Additional shelf levels may be used if the specified max. bay load is observed.
