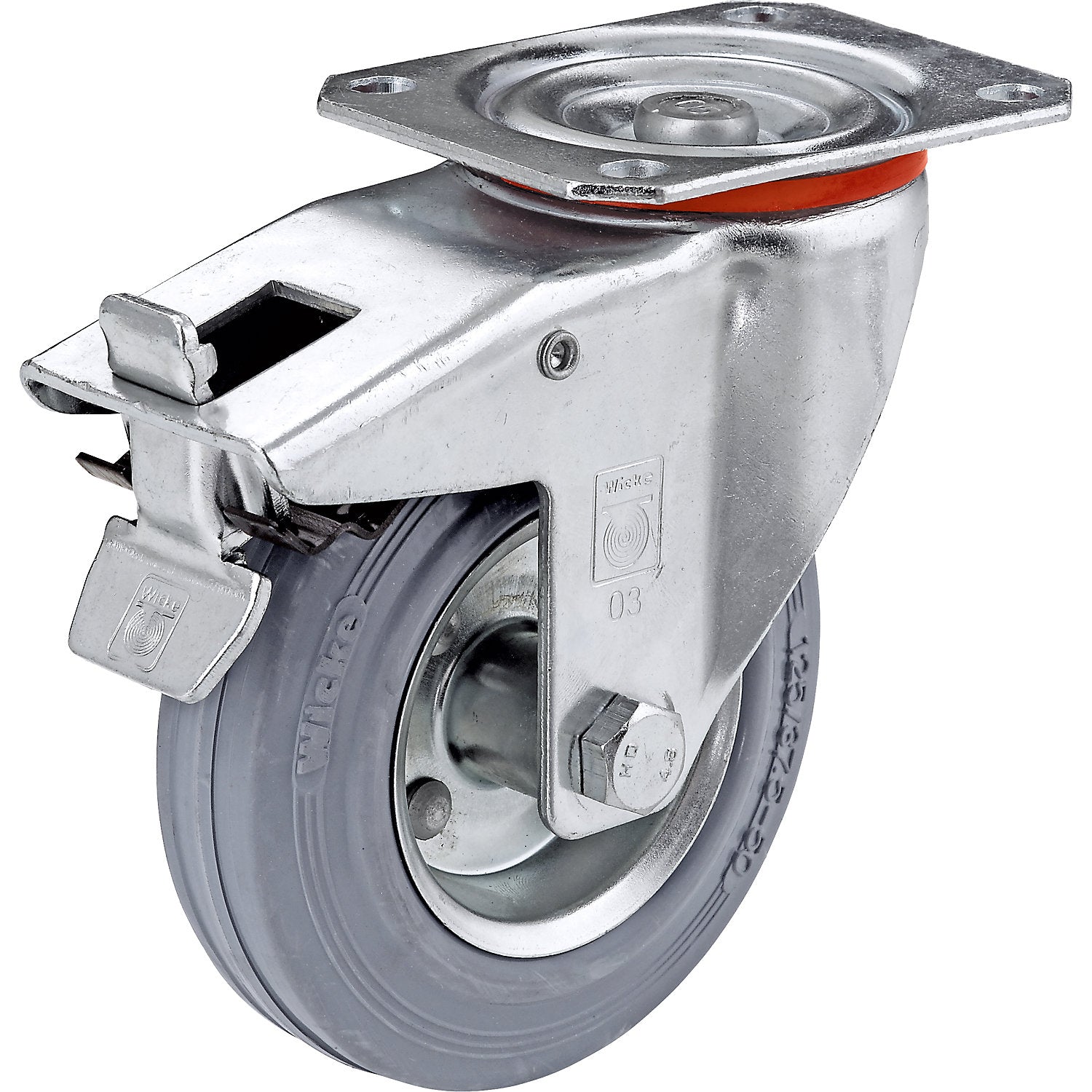

Solid rubber tyre, non-marking, wheel Ø x width 100 x 30 mm, swivel castor with wheel stops.

Estimated delivery: 29 days

Solid rubber tyre, non-marking, wheel Ø x width 100 x 30 mm, swivel castor with wheel stops

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with double stop
• Wheel material = rubber - solid rubber, non-marking
• Material of rim = sheet steel, galvanised
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 70 kg
• Wheel width = 30 mm
• Overall height = 125 mm
• Wheel bearing = roller bearing
• Temperature resistance = -5 °C to +60 °C
• Swivel castor offset = 38 mm
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Model = transport castors
• Fixed castor plate dimensions = 102x87 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 76 - 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 82 A
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 1.3 kg
• Weight = 0.9 kg
• Sustainability = CO 2 footprint calculated
• On sheet steel rim
• No annoying black marks on flooring
• Very quiet on hard floors
• Hardness 82 Shore A
• Temperature resistant from -5 °C to +60 °C
• Swivel bearing with sealed double ball race.
