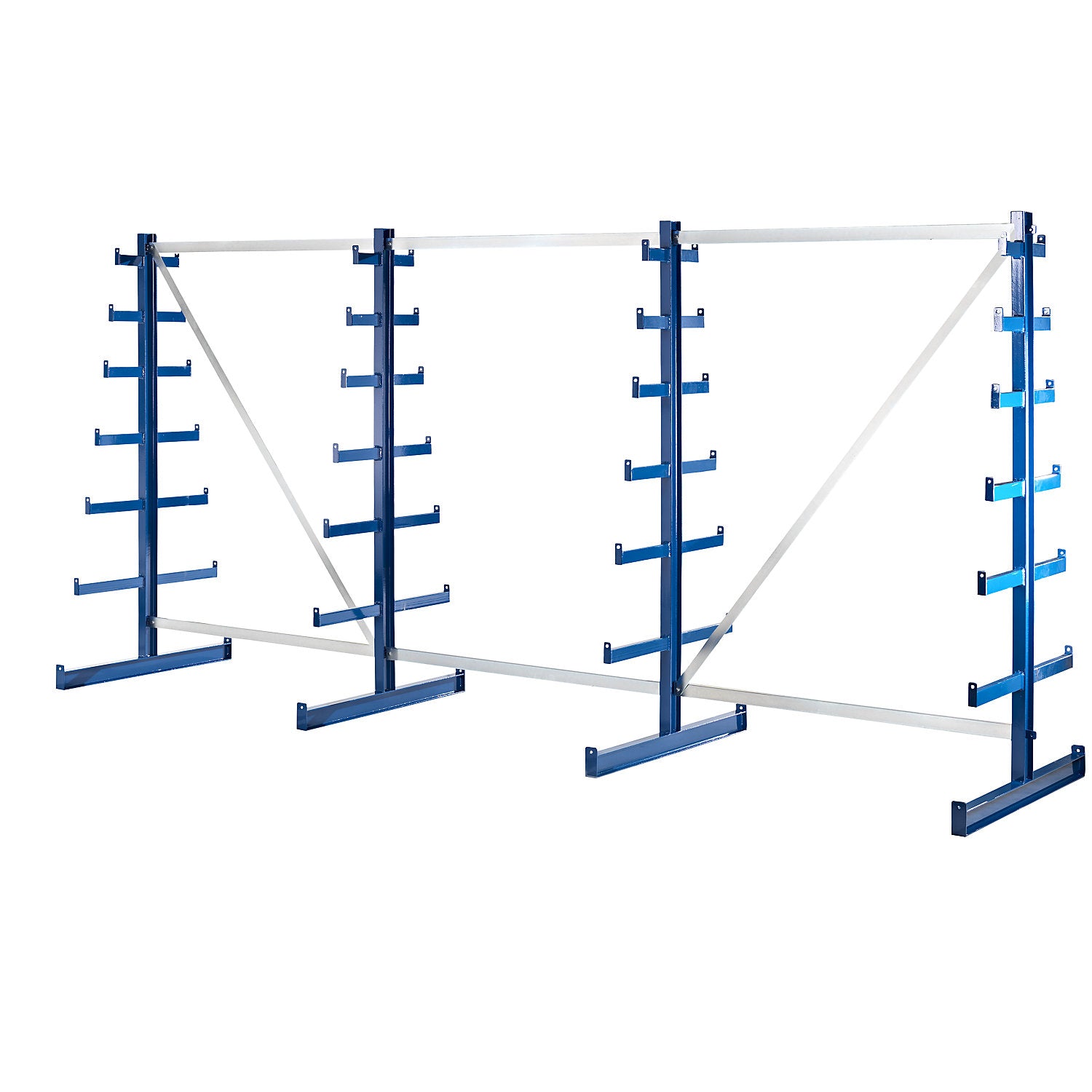

Cantilever racking unit with cantilever arms which taper towards the top, shelf unit length 4050 mm, double sided, gentian blue.

Estimated delivery: 36 days

Cantilever racking unit with cantilever arms which taper towards the top, shelf unit length 4050 mm, double sided, gentian blue

• Supplied = flat pack
• Shelf unit type = complete shelf unit
• Height = 2000 mm
• Distance between uprights = 1350 mm
• Cantilever arm length = 0 mm
• Shelf unit length = 4050 mm
• Max. cantilever arm load = 150 kg
• Max. load = 8400 kg
• Number of storage levels incl. foot = 14 pcs
• Number of uprights = 4 pcs
• Material = steel, powder coated
• Colour = gentian blue RAL 5010
• Design = welded
• Shelf unit design = double sided
• Shelf unit fittings = with cantilever arms which taper towards the top
• Product type = complete cantilever racking units
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 160.05 kg
• Weight = 130 kg
• Sustainability = CO 2 footprint calculated
• With permanently welded cantilever arms
• All cantilever arms with roll-off protection

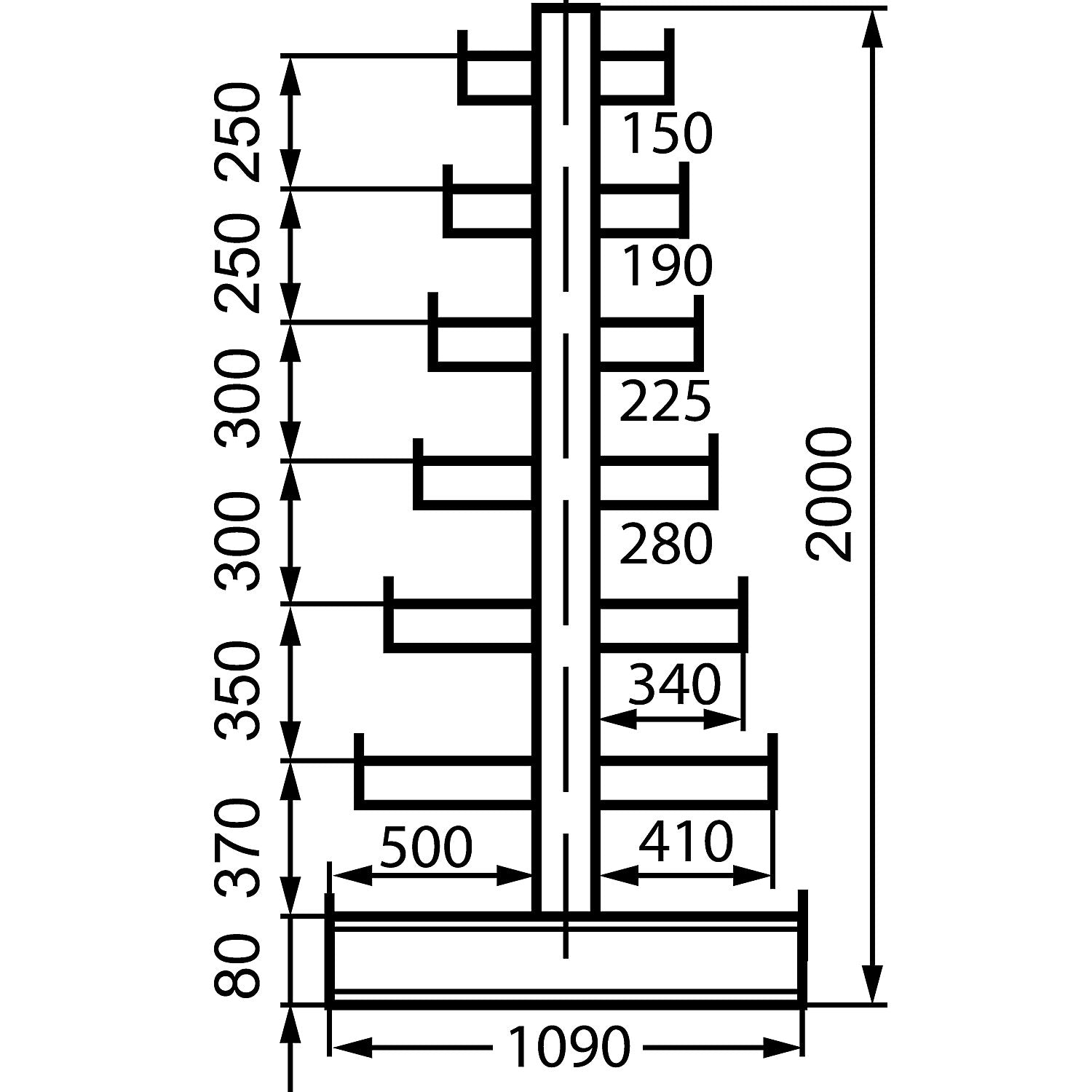

• Length of cantilever arms from bottom to top: 500 mm / 410 mm / 340 mm / 280 mm / 225 mm / 190 mm / 150 mm
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return
• The max. load specifications apply with evenly distributed loads
• The load centre should not be outside of the centre of the cantilever arms if the units are fully loaded.
