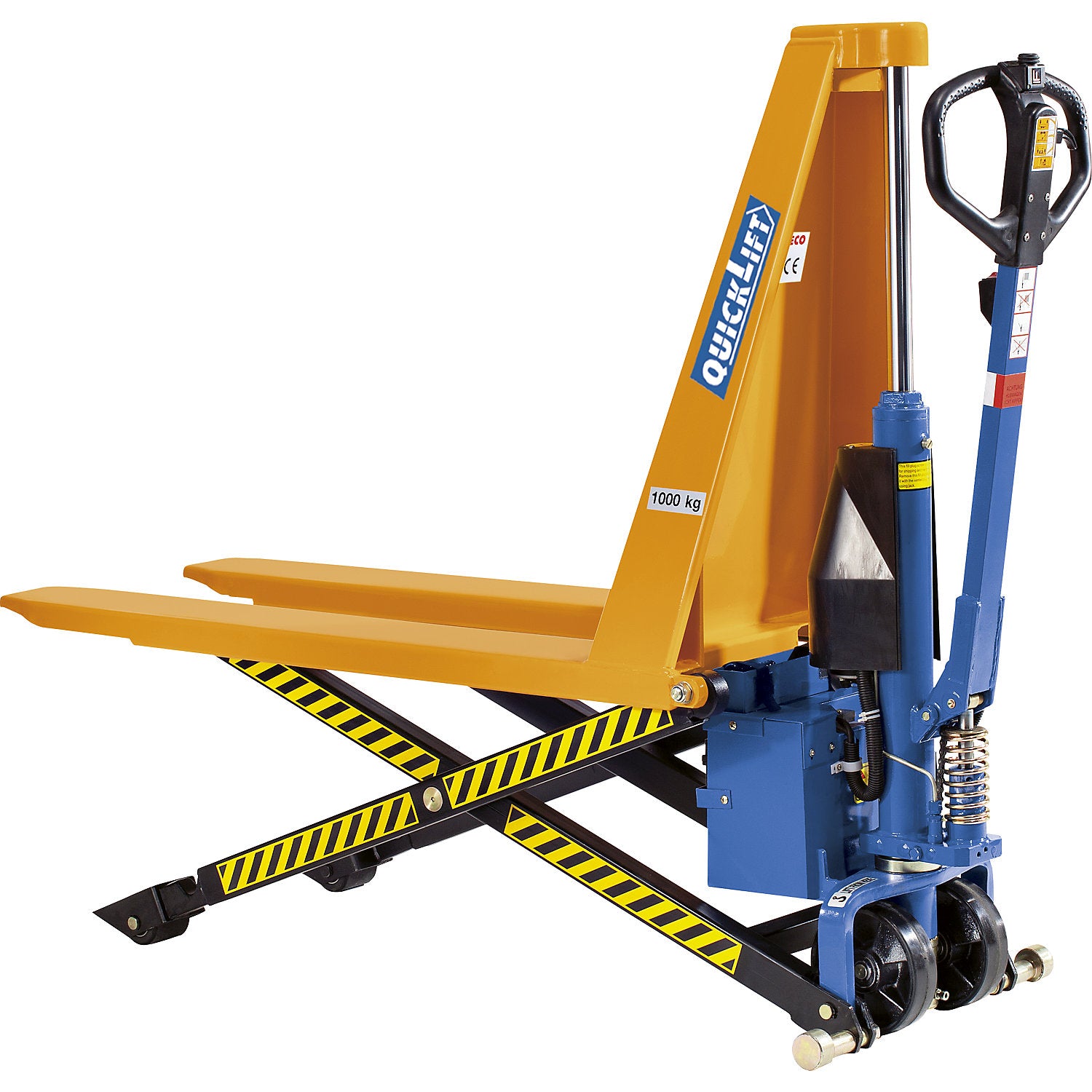

High-lift pallet truck, electric, max. load 1000 kg.

Estimated delivery: 31 days

High-lift pallet truck, electric, max. load 1000 kg

• Supplied = assembled
• Max. load = 1000 kg
• Lifting range = 85 - 800 mm
• Lift drive = electro-hydraulic
• Fork length = 1190 mm
• Fork width = 160 mm
• Distance across forks = 560 mm
• Length = 1676 mm
• Width = 560 mm
• Height = 1286 mm
• Steering radius = 210 °
• Lift per pump stroke with QuickLift = 19 mm
• Lift per pump stroke = 11 mm
• Steering wheel material = polyurethane
• Steering wheel diameter = 180 mm
• Steering wheel width = 55 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 75 mm
• Fork roller width = 75 mm
• Colour = melon yellow RAL 1028
• Finish = powder coated
• Battery = 12 V / 70 Ah
• Battery charger = 6 A impulse charger
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 175.5 kg
• Weight = 175 kg
• Sustainability = CO 2 footprint calculated
• Convenient electro-hydraulic system
• Lift, move and deploy loads
• Ergonomic work at the ideal height
• With QuickLift
• Robust and durable single cylinder telescopic hydraulic unit
• Additional supports for stability when forks are lifted

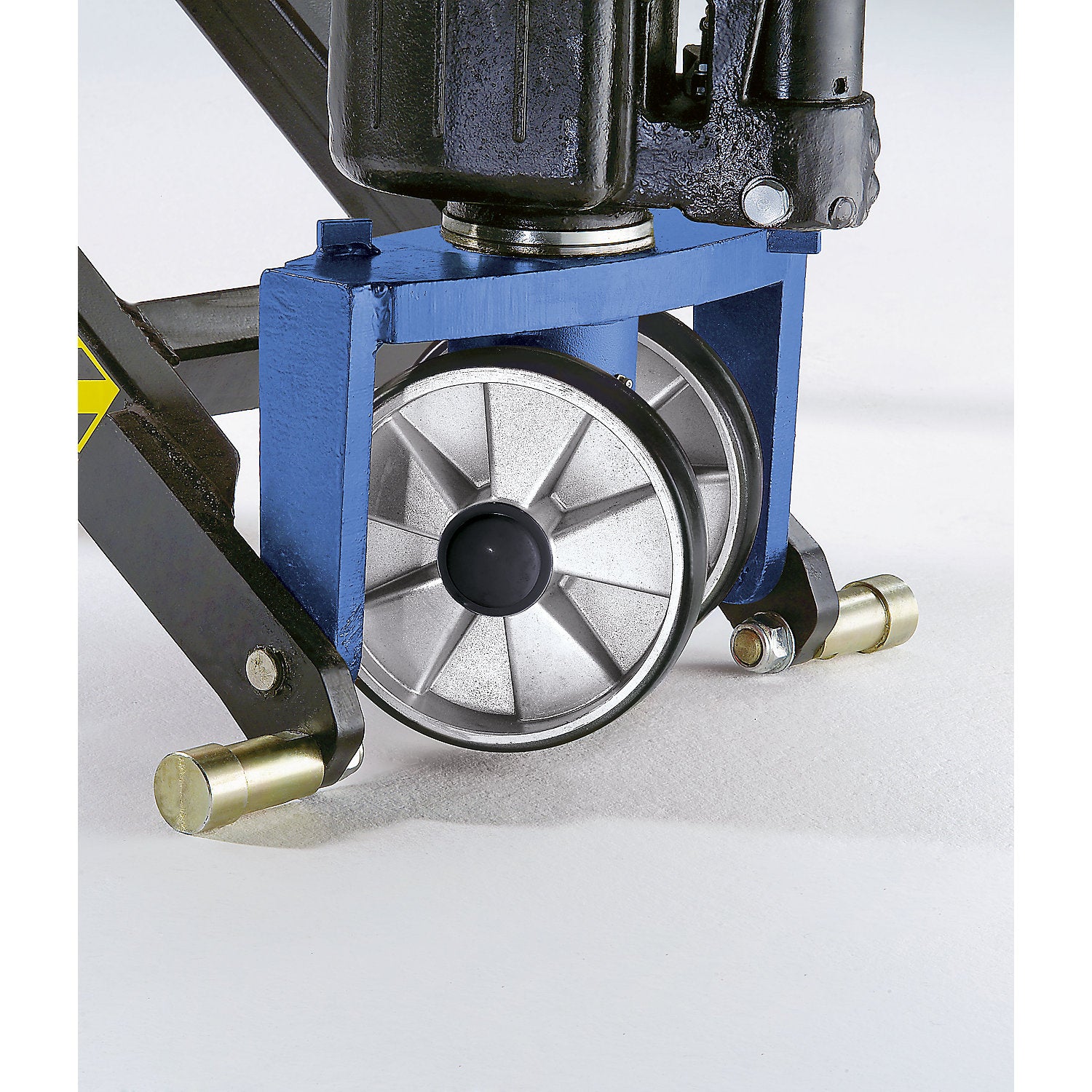

• Non-marking polyurethane wheels for sensitive floors
• Efficient load management and ergonomic working in warehouses, production and mailing logistics: the high-lift pallet truck combines load handling, load provision and load lifting functions
• Easily lift pallets with goods to an ergonomic working height without straining your back
• The integrated QuickLift function saves you valuable time and energy
• Active up to a max. load of 100 kg, light loads are lifted quickly
• Heavier loads are lifted more slowly, but less effort is required
• For additional safety, the high-lift pallet truck features an automatic lowering speed control and an overload pressure valve to protect the device
• The additional supports ensure a stability when the forks are raised, while the polyurethane wheels enable non-marking operation without damaging the floor
• The high-lift pallet truck is equipped with a single cylinder telescopic hydraulic system that is robust and hardwearing
• This versatile device can also be used as a pallet truck
• The high-lift pallet truck is a practical combination of a pallet truck and lift table that will optimise your warehouse logistics and work processes
• Use it for practical lifting and movement of pallets and heavy loads, for storing and retrieving materials, or for loading machines
• With an electro-hydraulic unit for quick lifting with minimal effort
• Adjust height smoothly and evenly at the push of a button when working at frequently changing heights
• Integrated 6 A impulse charger
• Manual hydraulics are also fully functional at all times.
