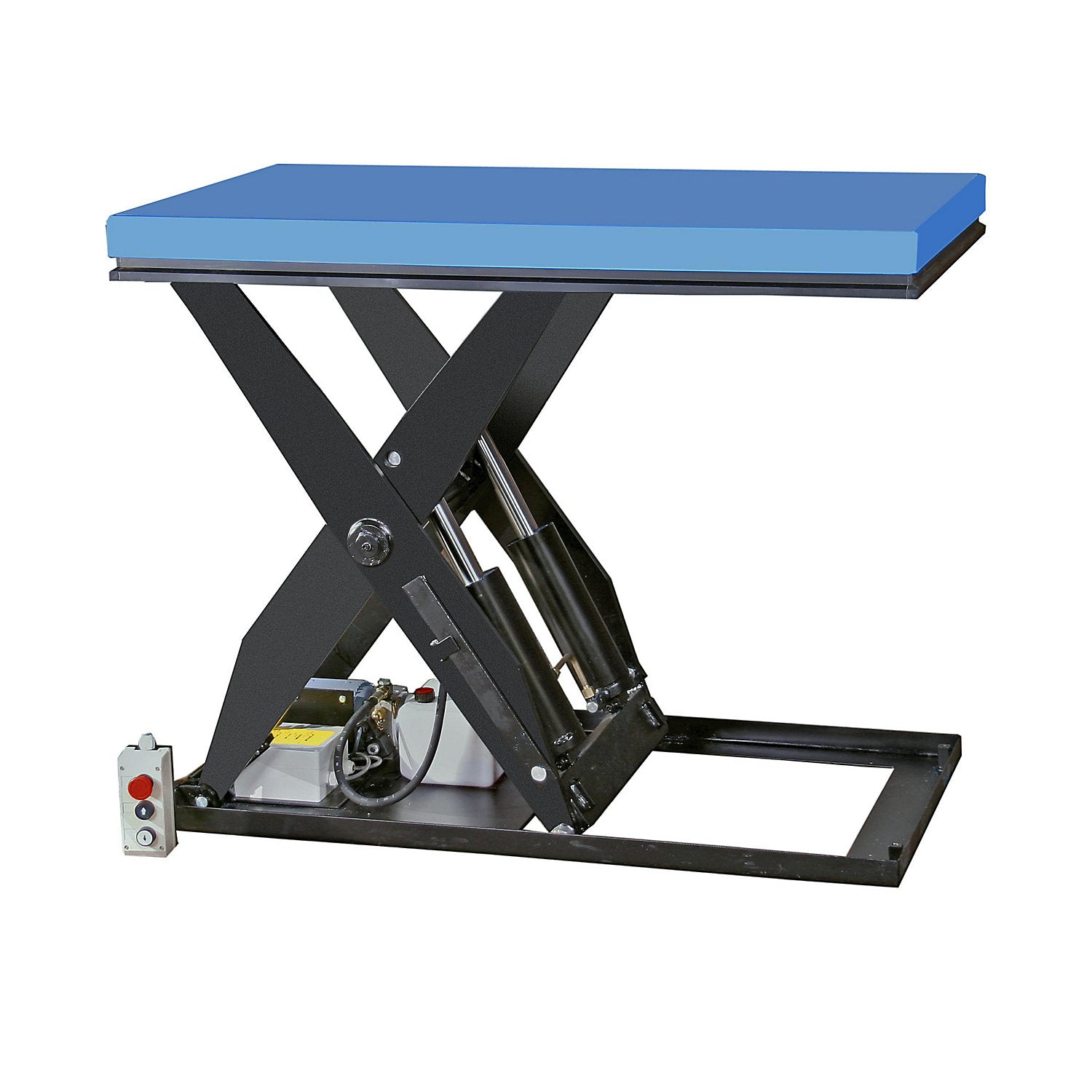

Compact lift table, platform LxW 1300 x 800 mm, max. load 2000 kg, operating voltage 400 V.

Estimated delivery: 35 days

Compact lift table, platform LxW 1300 x 800 mm, max. load 2000 kg, operating voltage 400 V

• Supplied = assembled
• Max. load = 2000 kg
• Lifting range = 190 - 1010 mm
• Platform design = closed
• Lifting time = 37 sec
• Power = 0.75 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = light blue RAL 5012
• Platform material = steel, powder coated
• Material = steel
• Finish = powder coated
• Frame colour = jet black RAL 9005
• Fittings = with hand operated control unit
• Lift = 820 mm
• Lifting capacity at full load in 1 shift operations = 6 cycles per hour
• Lift per pump stroke = 820 mm
• Platform width = 800 mm
• Platform length = 1300 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 286.3 kg
• Weight = 280 kg
• Sustainability = CO 2 footprint calculated
• Free standing
• Can be built-in to floor for ground level loading / unloading
• To be loaded with a counterbalance forklift
• Infinite, hydraulic height adjustment
• Robust scissor support struts
• Overload pressure valve for a long service life, end stop on top and bottom positions
• High-quality powder coating, platform in light blue RAL 5012, frame and scissor mechanism in black RAL 9005

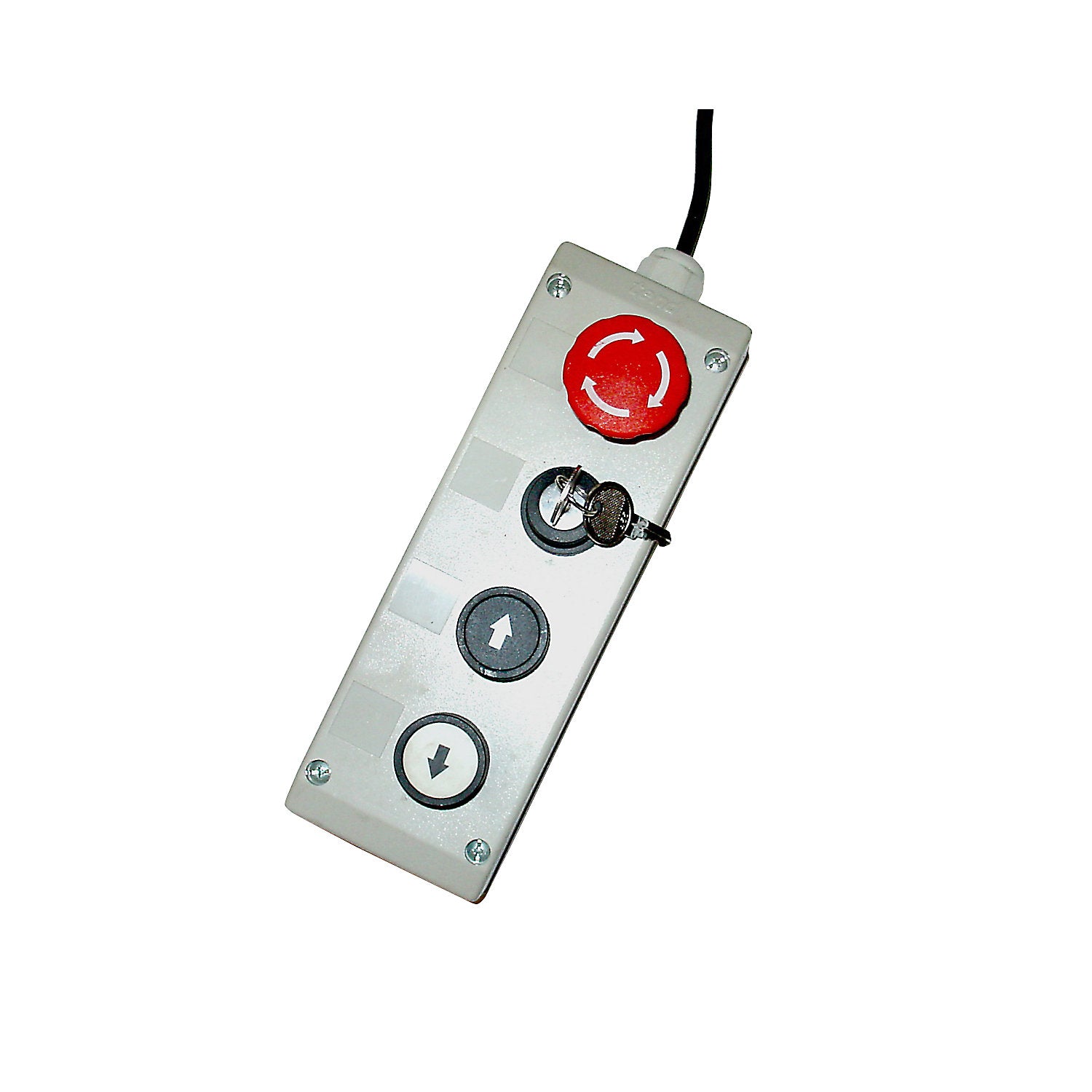

• Operated via hand key with 2.6 m cable
• Key switch
• Emergency off switch.
