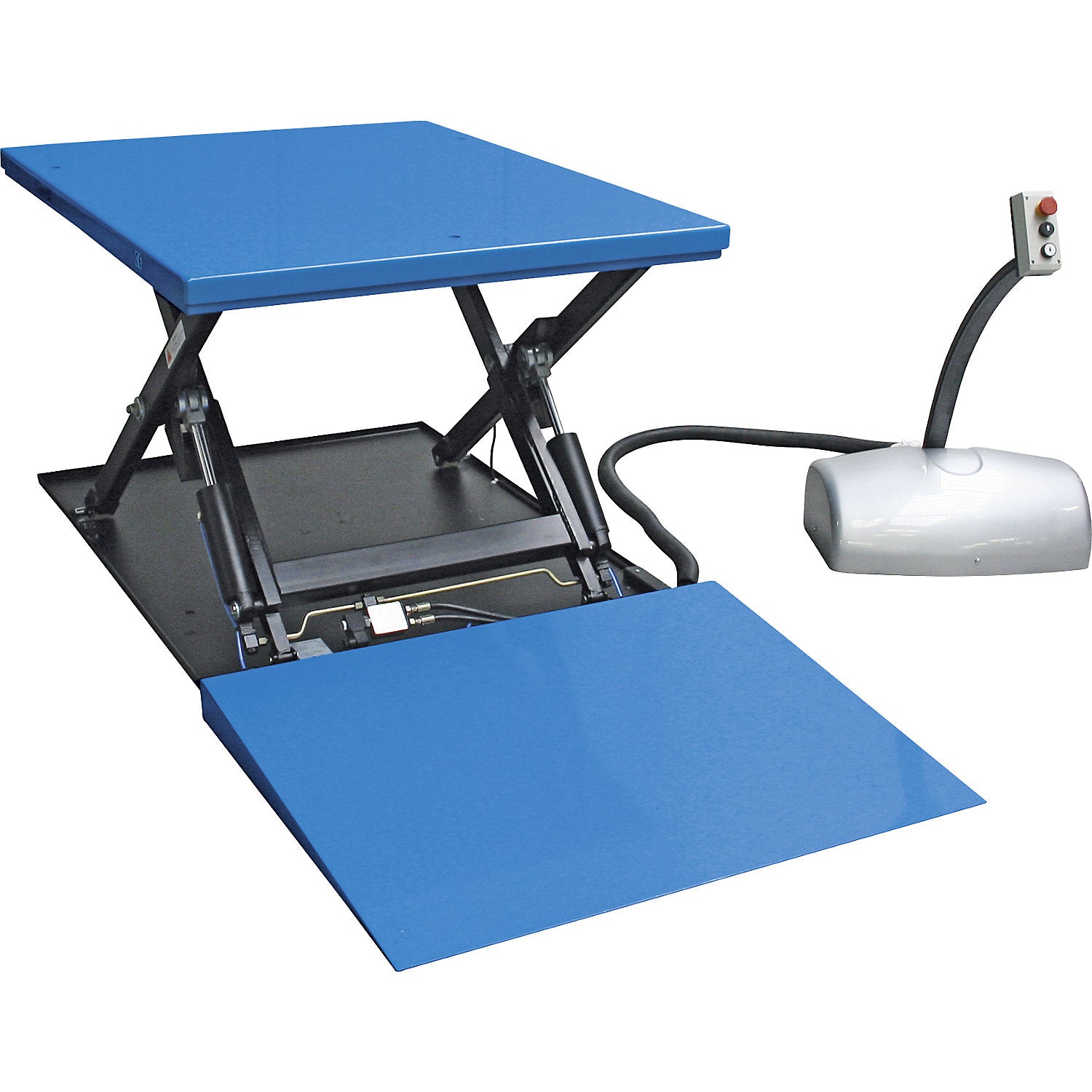

Low profile lift table, Closed platform, max. load 1000 kg, operating voltage 400 V.

Estimated delivery: 35 days

Low profile lift table, Closed platform, max. load 1000 kg, operating voltage 400 V

• Supplied = assembled
• Max. load = 1000 kg
• Lifting range = 85 - 840 mm
• Platform design = closed
• Operating voltage = 400 V
• Control voltage = 24 V
• Platform colour = light blue RAL 5012
• Material = steel
• Frame colour = jet black RAL 9005
• Fittings = with hand operated control unit
• Lifting capacity at full load in 1 shift operations = 6 cycles per hour
• Lifting time without load = 18 sec
• Lifting time with full load = 23 sec
• Platform width = 1140 mm
• Platform length = 1450 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 256.3 kg
• Weight = 250 kg
• Sustainability = CO 2 footprint calculated
• Suitable for Euro pallets and industrial pallets
• A counterbalance forklift is not required

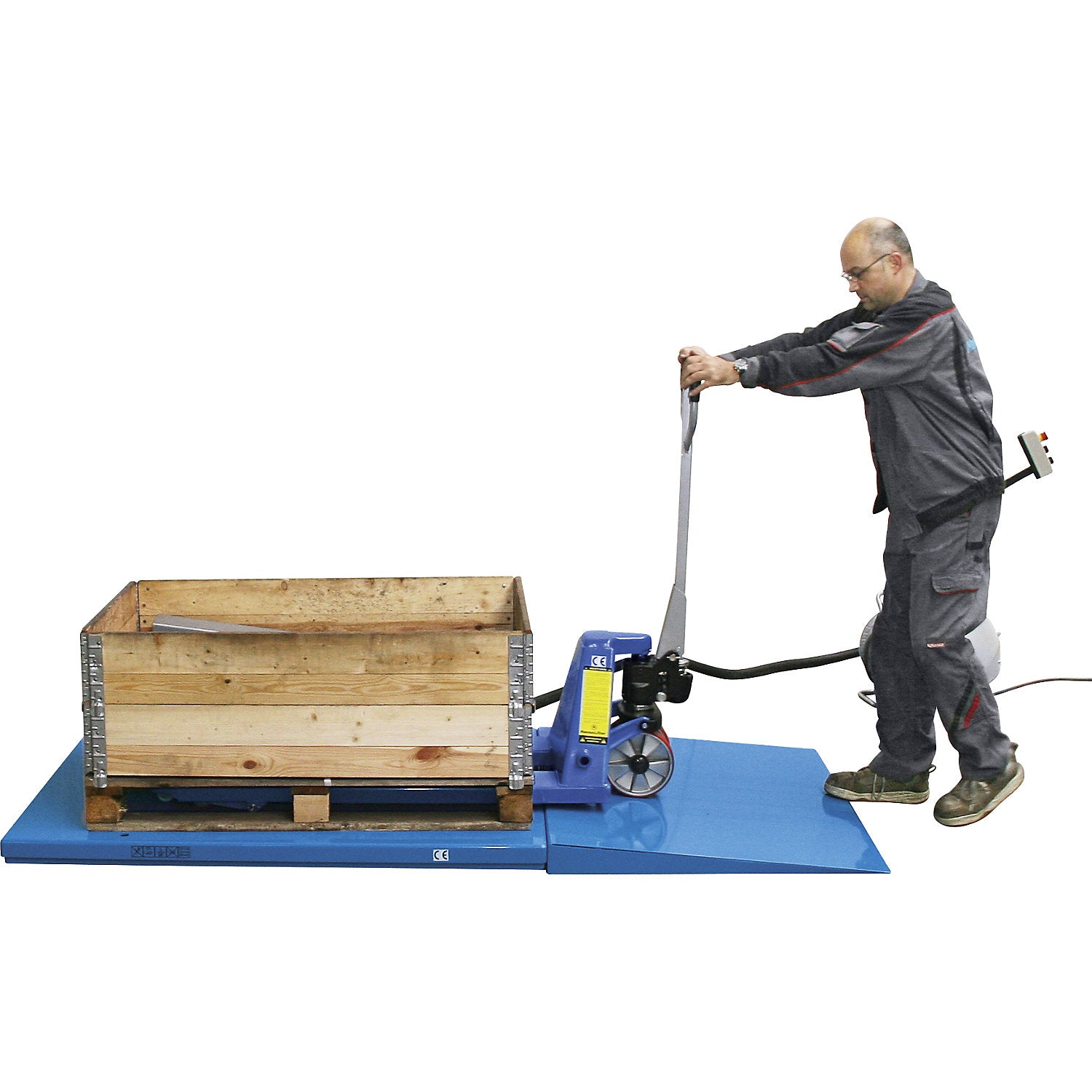

• Closed platform For access with pallet truck using the supplied ramp element
• All lift tables are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
