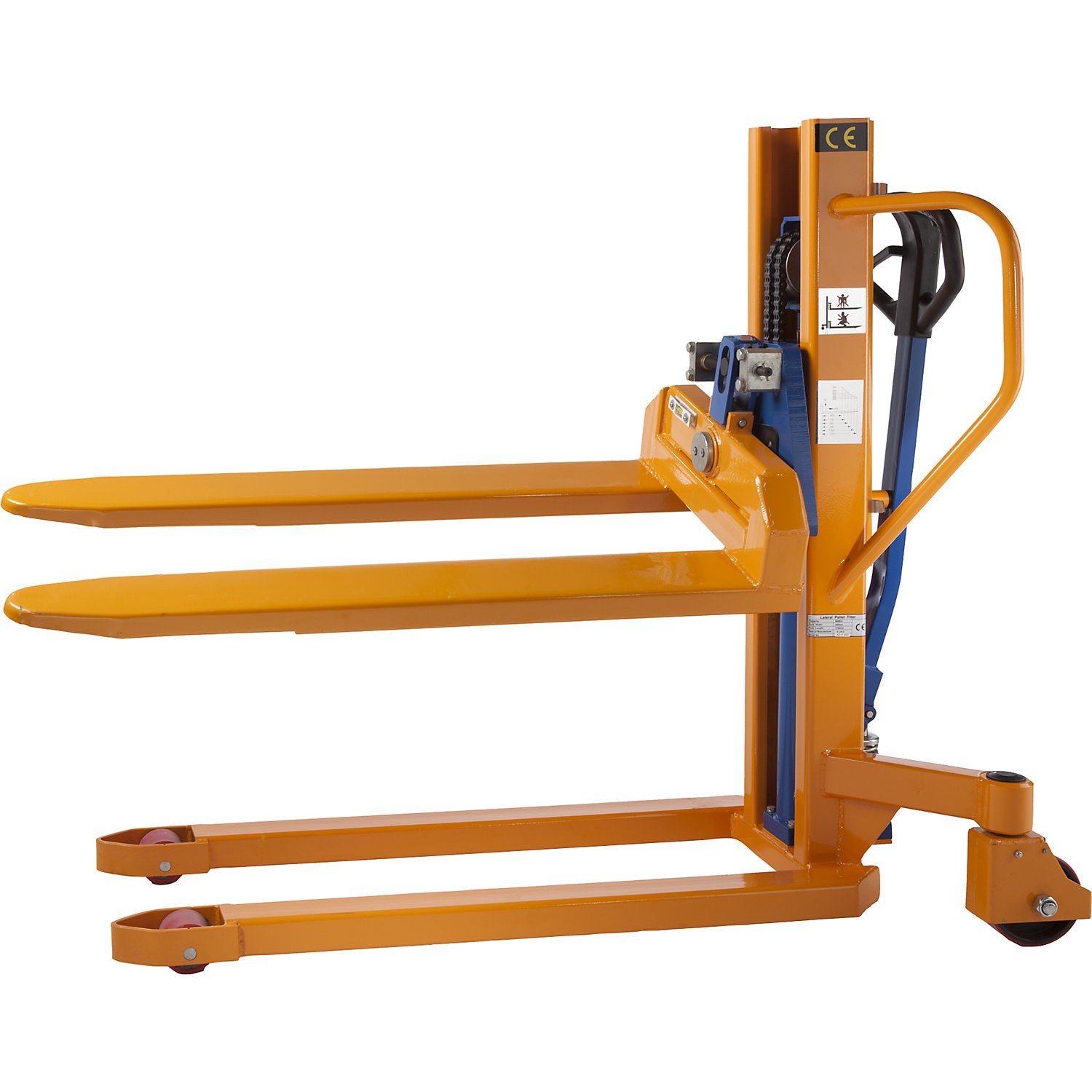

Pallet stacker, tilting forks, max. load 800 kg.

Estimated delivery: 31 days

Pallet stacker, tilting forks, max. load 800 kg

• Supplied = assembled
• Max. load = 800 kg
• Lifting range = 88 - 920 mm
• Lift drive = manual hydraulics
• Fork length = 1220 mm
• Fork width = 150 mm
• Distance across forks = 540 mm
• Length = 1740 mm
• Width = 785 mm
• Height = 1320 mm
• Lift per pump stroke = 18.5 mm
• Steering wheel material = polyurethane
• Steering wheel diameter = 200 mm
• Steering wheel width = 50 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 80 mm
• Fork roller width = 70 mm
• Colour = melon yellow RAL 1028
• Load centre = 600 mm
• Turning radius = 1600 mm
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 230 kg
• Weight = 210 kg
• Sustainability = CO 2 footprint calculated

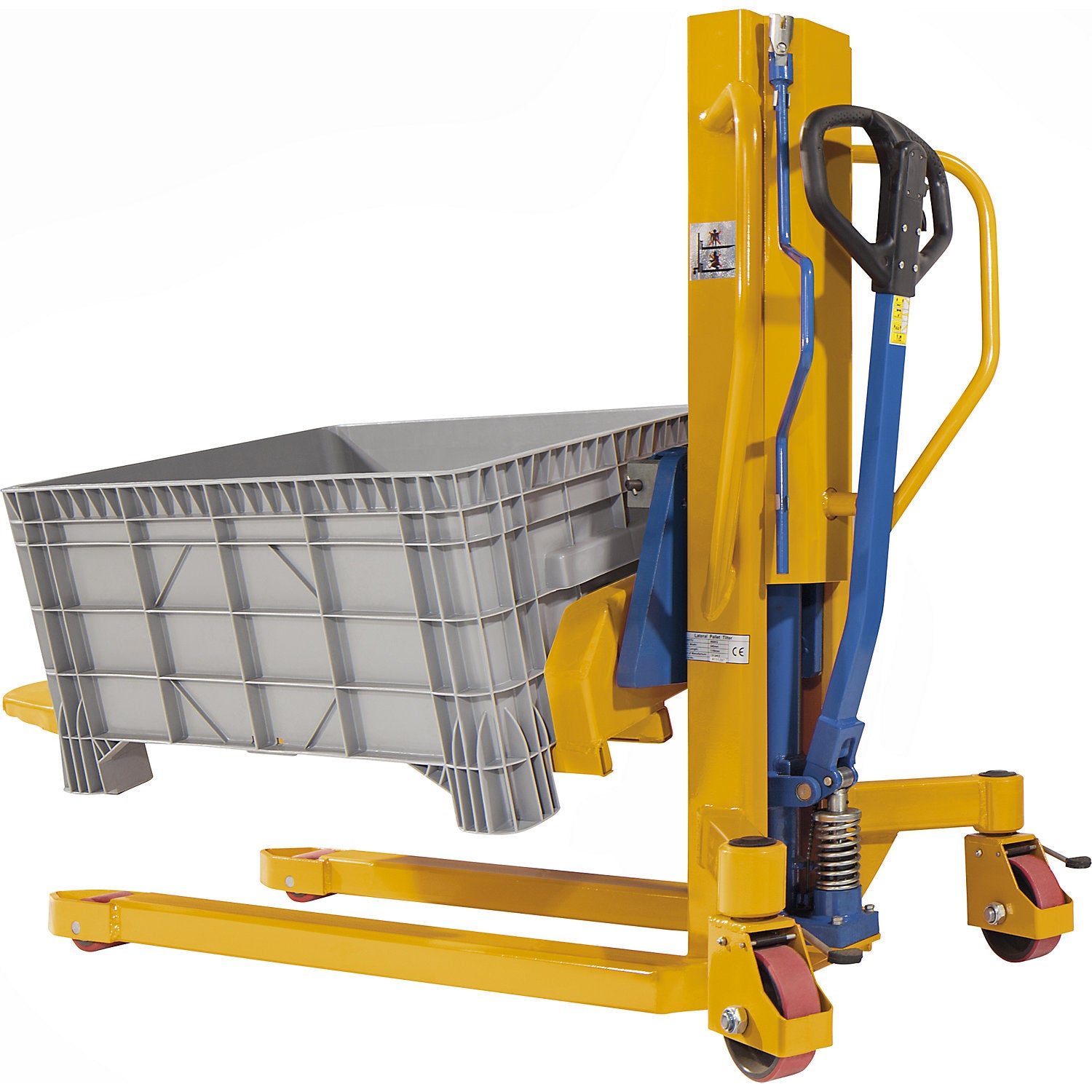

• With tilting forks
• For lifting pallets and mesh pallets
• Solid, hardwearing precision steel profile mast
• Also suitable for mesh pallets
• Leaning too far forward and twisting the back whilst loading and unloading pallets and mesh pallets can cause injury to workers' backs
• Pallet stackers bring goods to the worker and thus reduce strain to a minimum
• Compact dimensions are advantageous for placement at the workstation
• Specially with extended fork tips for securely holding mesh pallets
• Maintenance free guide rollers and closed, low maintenance hydraulic system
• Polyurethane steering wheels optimised for mobility and precise positioning, both with wheel stops. 2 x 20° inclination precisely adjustable with crank
• Enables easy access in deep mesh pallets to protect against back injuries
• Please note Secure loads against slipping
• Pallets with raised edges are ideal
• Observe centre of gravity
• Max. container height 500 mm.
