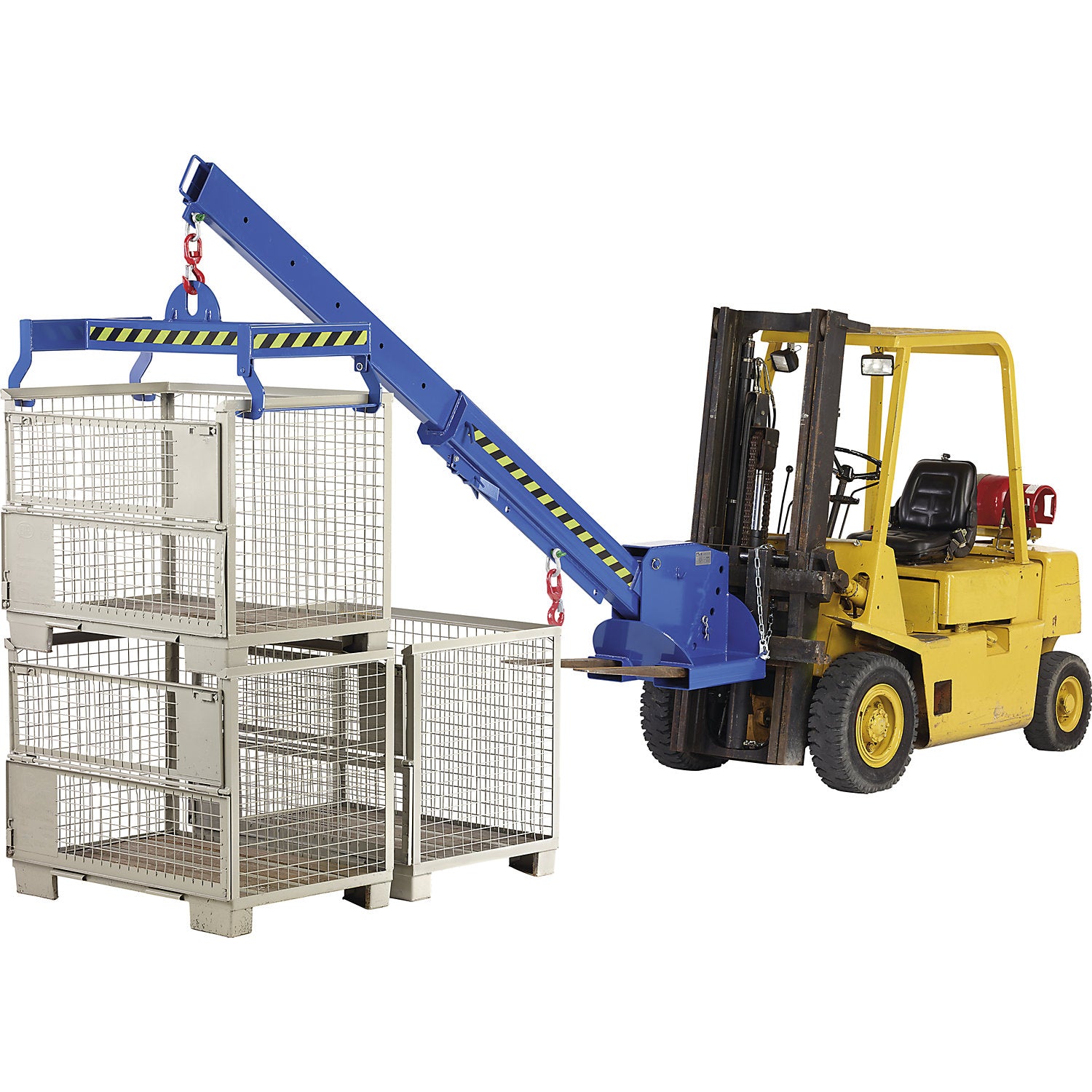

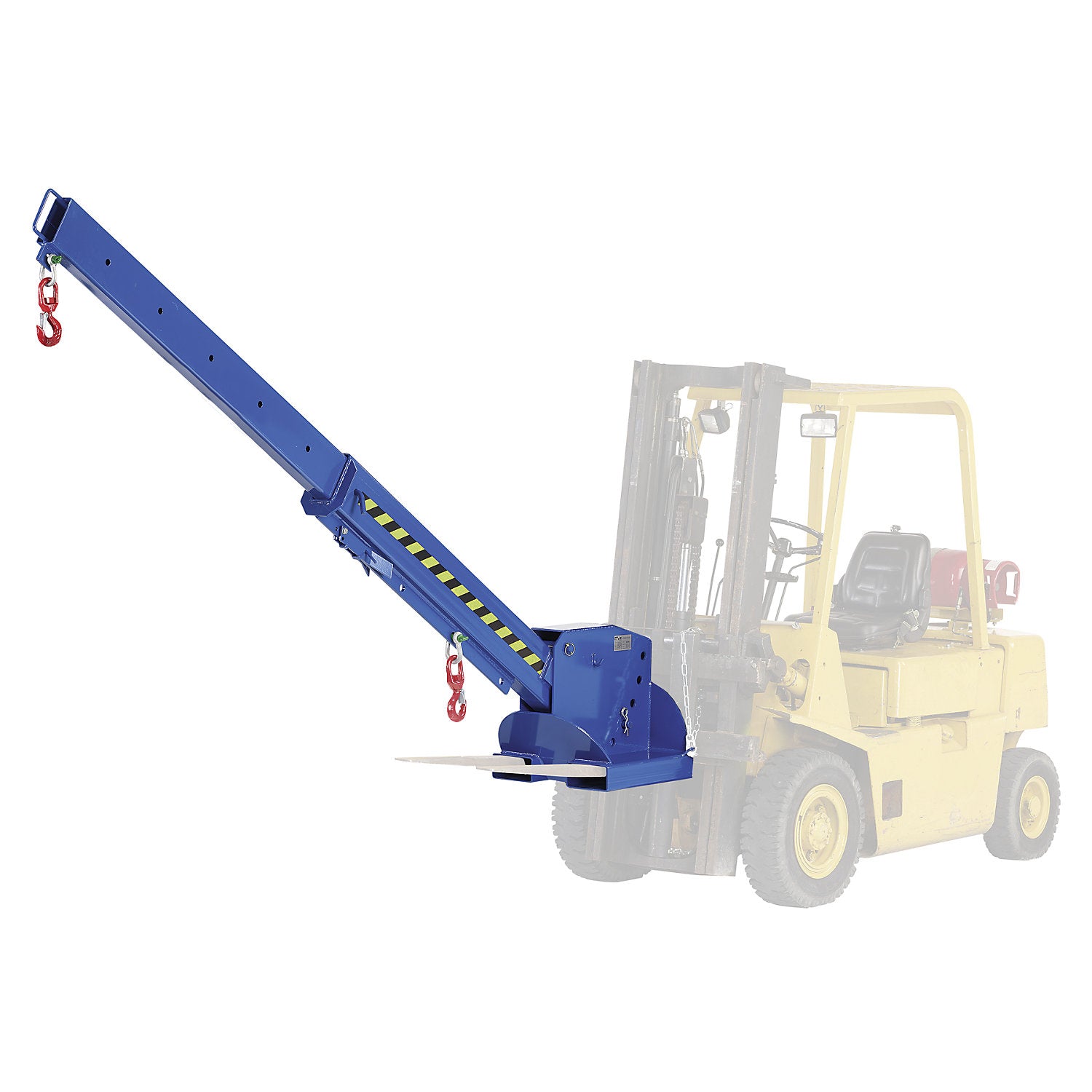

Telescopic loader, height adjustable in 5 stages, max. load 1000 - 5000 kg, telescopic, painted blue.

Estimated delivery: 36 days

Telescopic loader, height adjustable in 5 stages, max. load 1000 - 5000 kg, telescopic, painted blue

• Supplied = assembled
• Max. load from - to = 1000 - 5000 kg
• Adjustable length = 2200 - 3750 mm, 6 positions
• Slope = 0° - 45°
• Width = 560 mm
• Height = 610 mm
• Length = 3760 mm
• Finish = painted
• Colour = gentian blue RAL 5010
• Distance across forks = 169 mm
• Product type = load arms
• Fork pocket dimensions = 188x88 mm
• Material = steel
• Customs tariff number = 84312000
• Country of origin = DEU
• Gross weight = 247 kg
• Weight = 247 kg
• Sustainability = CO 2 footprint calculated
• Height adjustable in 5 stages
• When the range or lifting height of a forklift is not sufficient
• Where the load can only be accessed from above
• Safety chain
• With safety chain
• Standard length 2200 mm, 2 swivel hooks
• Extends to 6 lengths, stops at end position

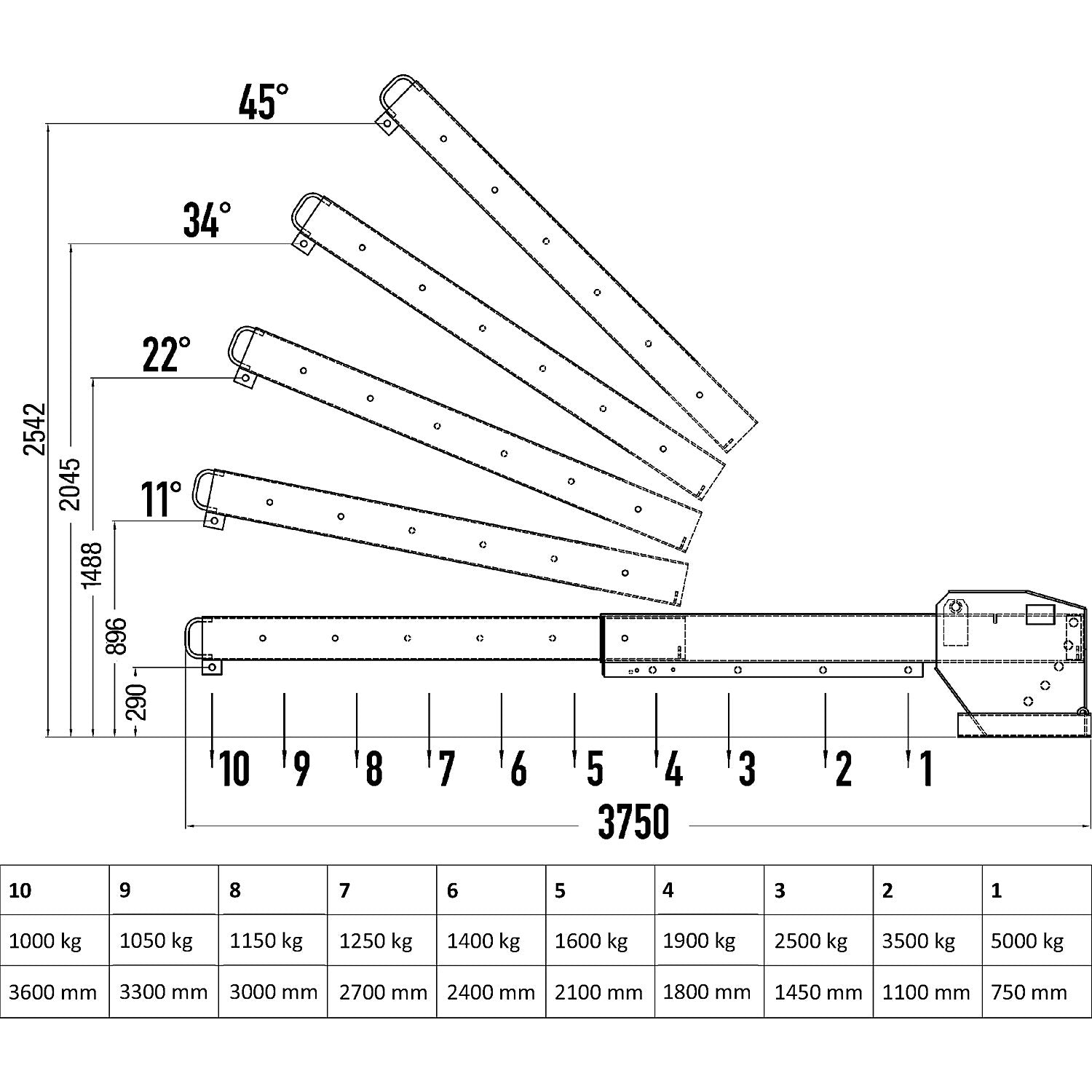

• Attention! Observe the max. load diagram for the stacker
• Note Observe the max. load diagram on the forklift.
