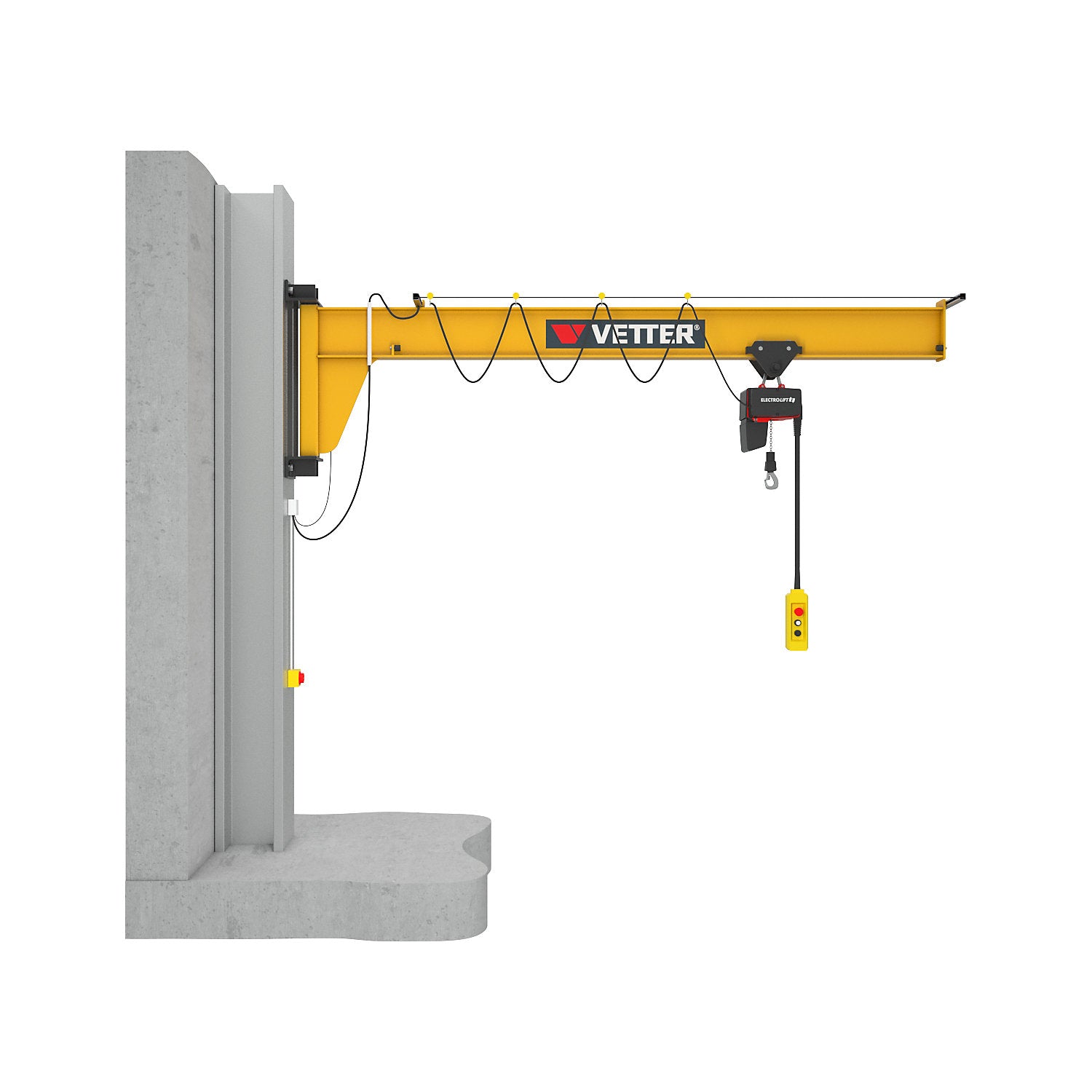

ASSISTENT AW wall mounted jib crane, with HF electric chain hoist, max. load 500 kg, reach 4 m, main and precise lifting 4.5/1.1 m/min.

Estimated delivery: 52 days

ASSISTENT AW wall mounted jib crane, with HF electric chain hoist, max. load 500 kg, reach 4 m, main and precise lifting 4.5/1.1 m/min

• Supplied = flat pack
• Max. load = 500 kg
• Operating voltage = 400 V / 50 Hz
• Swivel range = 180°
• Design of rotary crane = crane with electric chain hoist and manual drive dolly (lifting height 5 m)
• Flange width = 120 mm
• Height of lifting gear = 480 mm
• Main lift = 4.5 m/min
• Precise lift = 1.1 m/min
• Reach = 4000 mm
• Horizontal force max. = 26 kN
• Vertical force max. = 7 kN

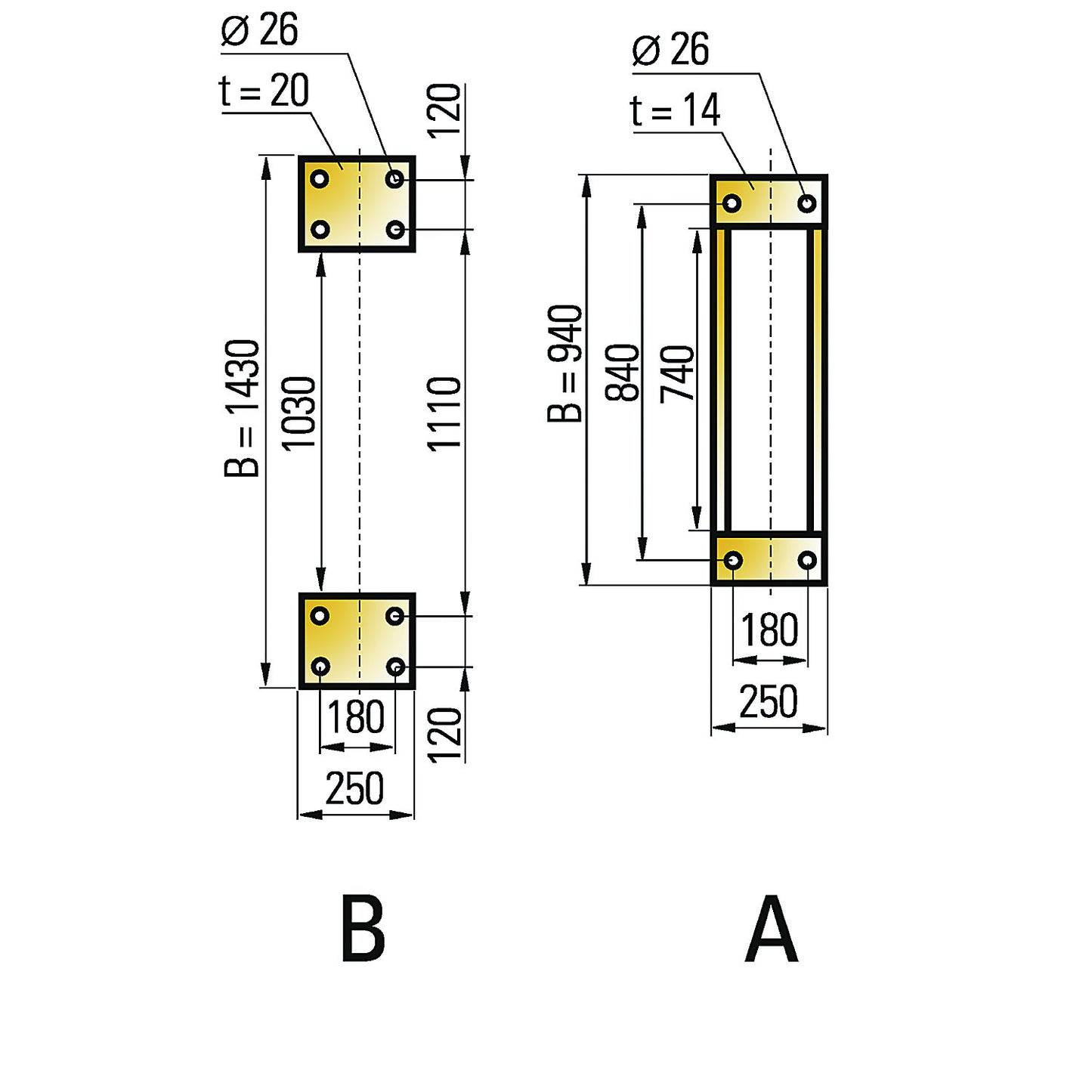

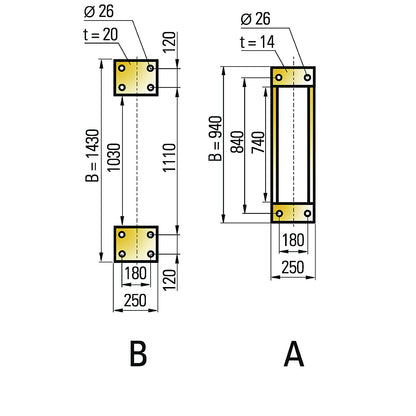

• Bracket module = A
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = wall mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 263.5 kg
• Weight = 263 kg
• Sustainability = CO 2 footprint calculated
• Compact design, ideal for low rooms
• High quality craftsmanship
• Flexibility in assembly
• The compact design and the large usable lifting height also make it ideally suited for narrow and small spaces
• It also features a variable stabilising arm length, which adapts to your requirements
• Decide for yourself whether the wall mounted jib crane should be attached to a steel support, reinforced concrete support, reinforced concrete wall or steel construction
• Construction complies with EN regulations and EU machine guidelines for light industrial use
• Steel shot blasted, painted in yellow RAL 1007
• Bearing brackets jet black RAL 9005
• Included in delivery: Standard electrical system with lockable mains cut-off switch and current feed to hoist
• Cable holding bracket up to 3 m jib length, round trailing cable for min. jib length of 4 m
• Dolly buffers on front and back
• Includes bearing brackets, without mounting screws
• Detailed documentation is included in delivery
• This model features an electric chain hoist with a manual drive dolly
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return
• You couldn't find the right model? Other load capacities, reaches, overall heights and paint coats available on request.
